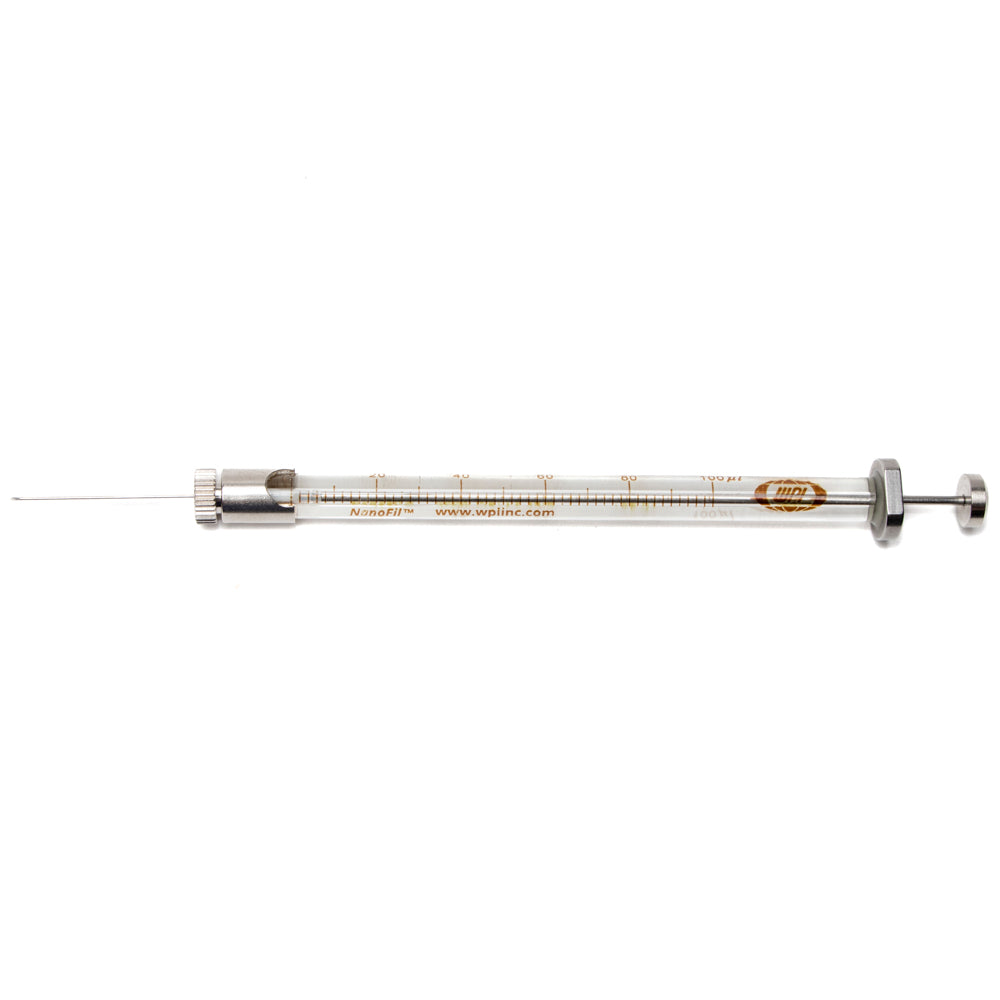

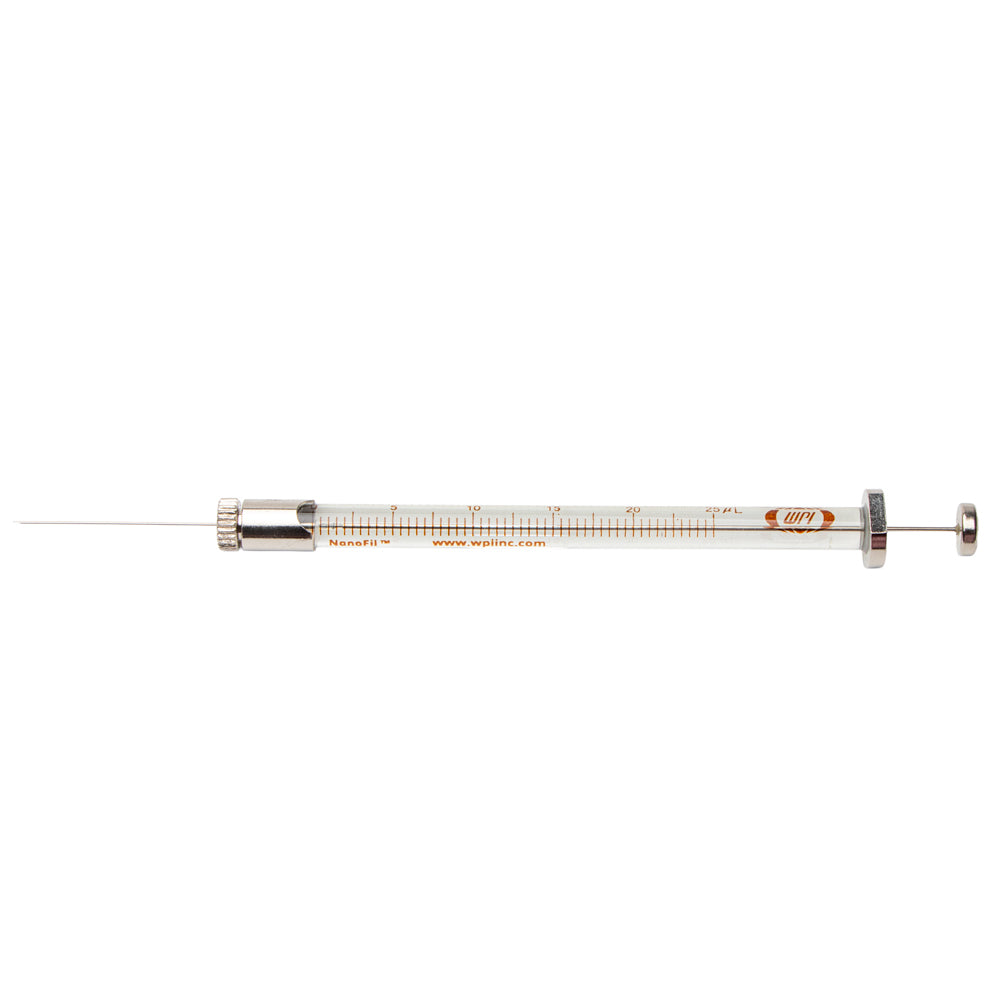

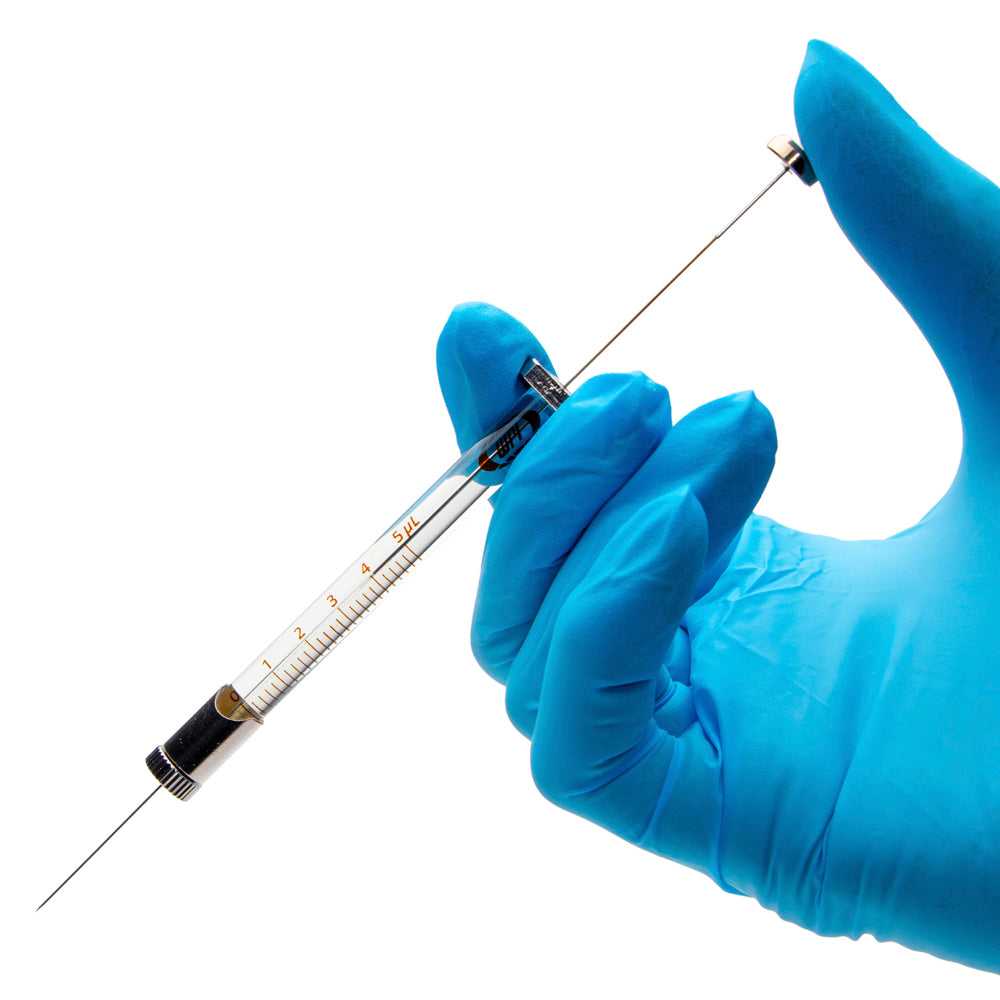

Gas-Tight Microinjection System
Regular price
$140
Sale price
$140
Regular price
Unit price
per
NANOFIL
Regular price
From $101 - $140
Sale price
From $101 - $140
Regular price
Unit price
per
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.

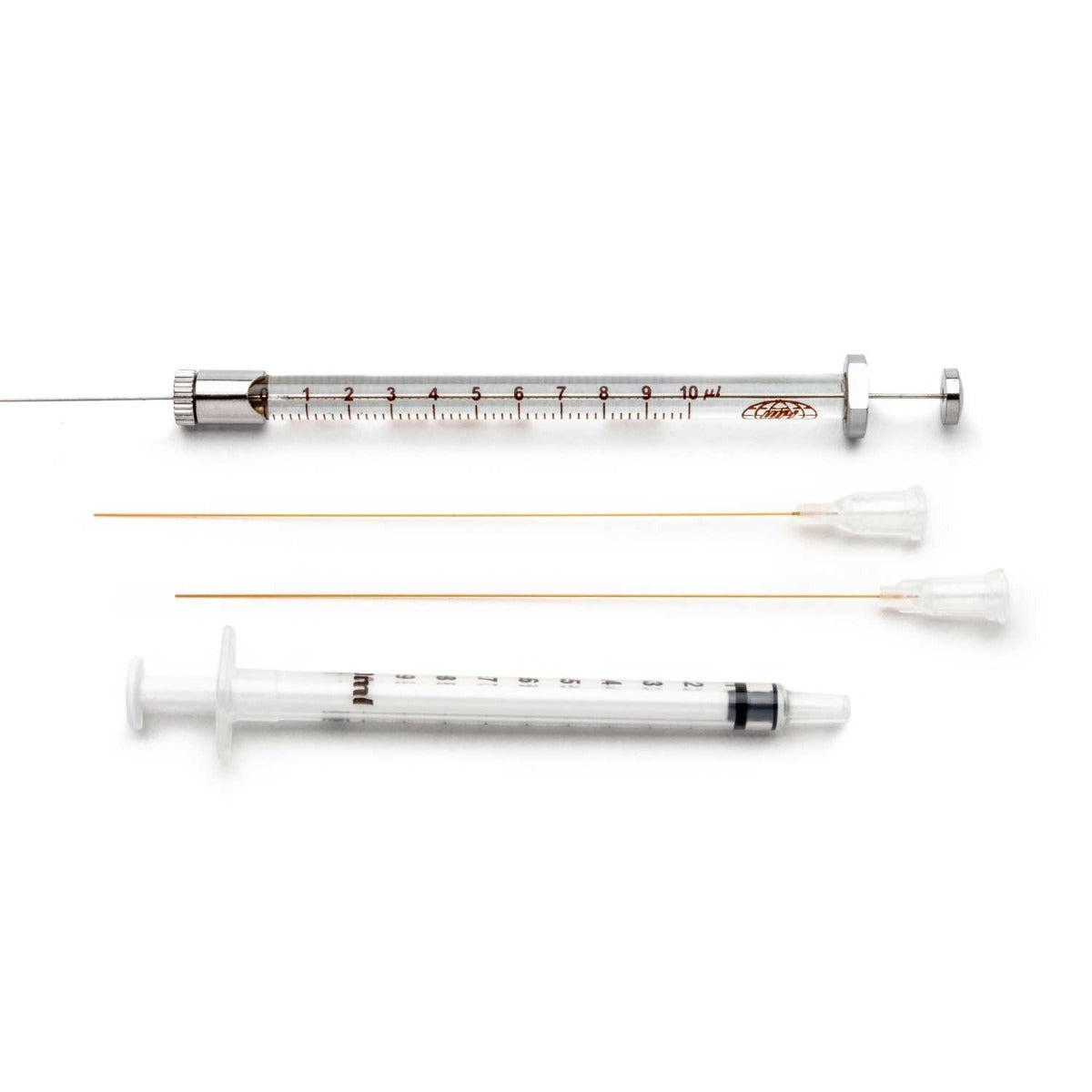

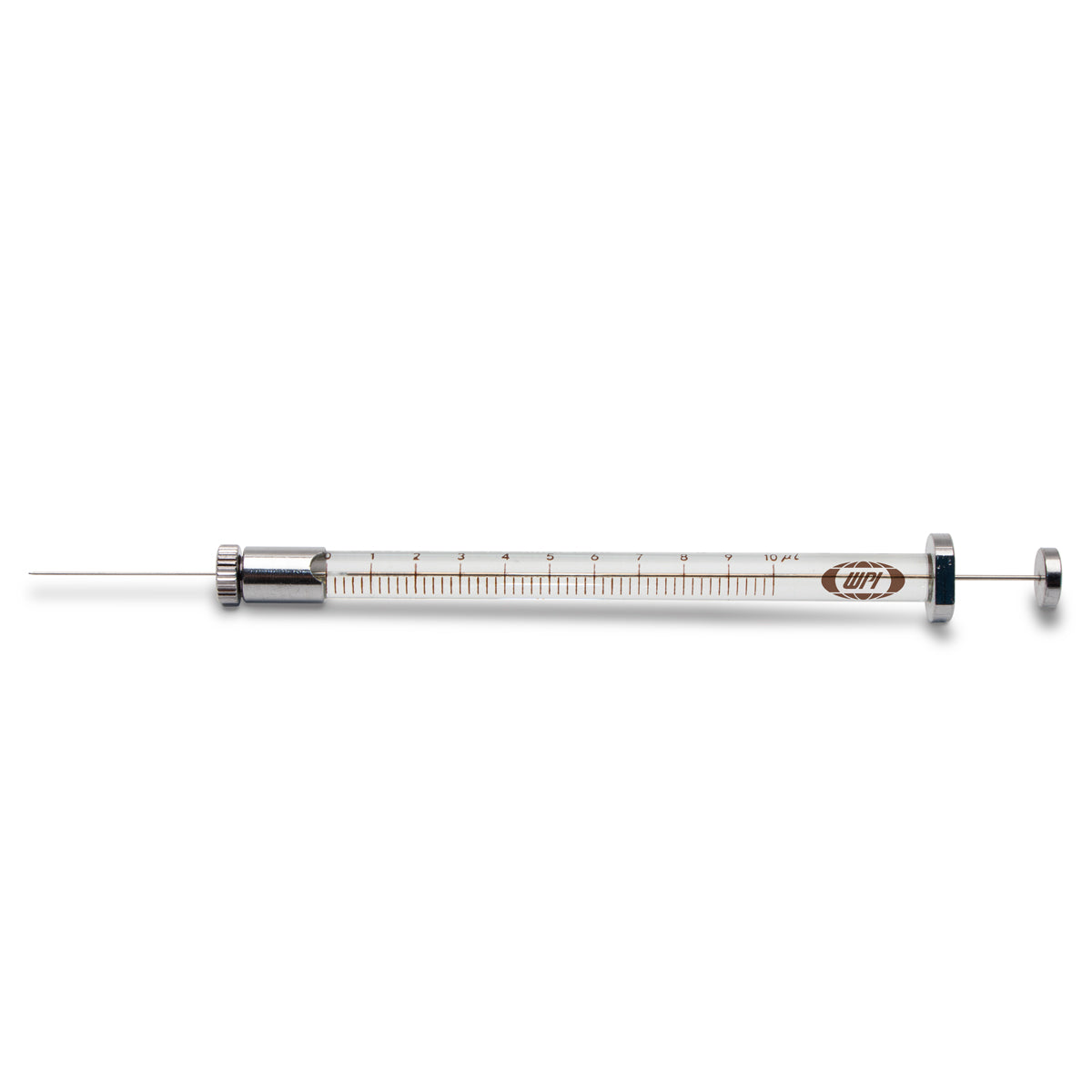

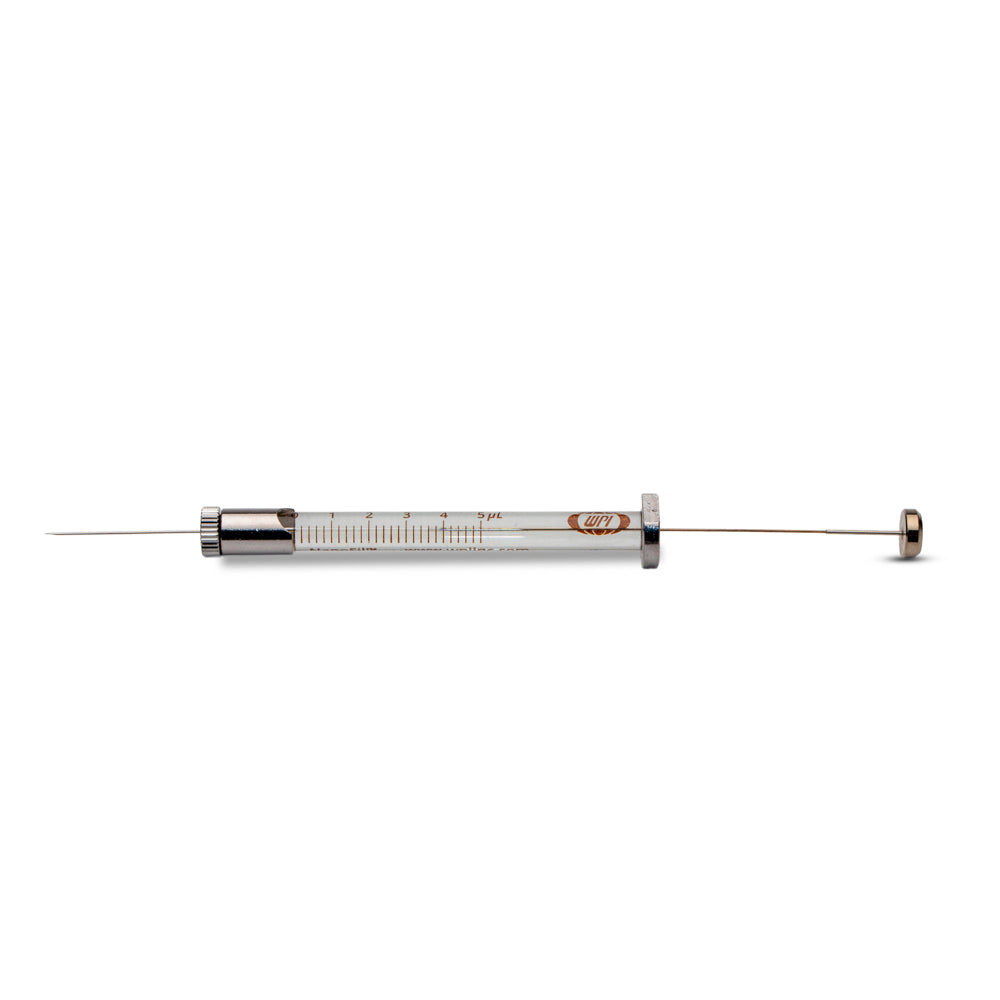

The NanoFil™ Gas-Tight Injection System boasts zero dead volume, an the variability is eliminated with the NanoFil™ design: our interchangable needles advance directly into the syringe barrel, creating a 1:1 connection with the plunger— a truly gas-tight system built for low-volume sample control. Our cross-compatible NanoFil™ needles are offered in sizes from 33-36g, blunt or beveled.
* Returns Policy : Non-returnable/Non-refundable
{{block class="Magento\Framework\View\Element\Template" name="fluorodish" template="Wpiinc_Templates::VAR-3167-volume-pricing.phtml" }}
Curious how NanoFil™ supports precision microinjection?
Visit the Gas-Tight Injection System page to learn about its gas-tight design, needle versatility, etc.
ACCESSORIES
Details
Details
Options
| Order code | Size | Includes |
| NANOFIL | 10 μL |
|

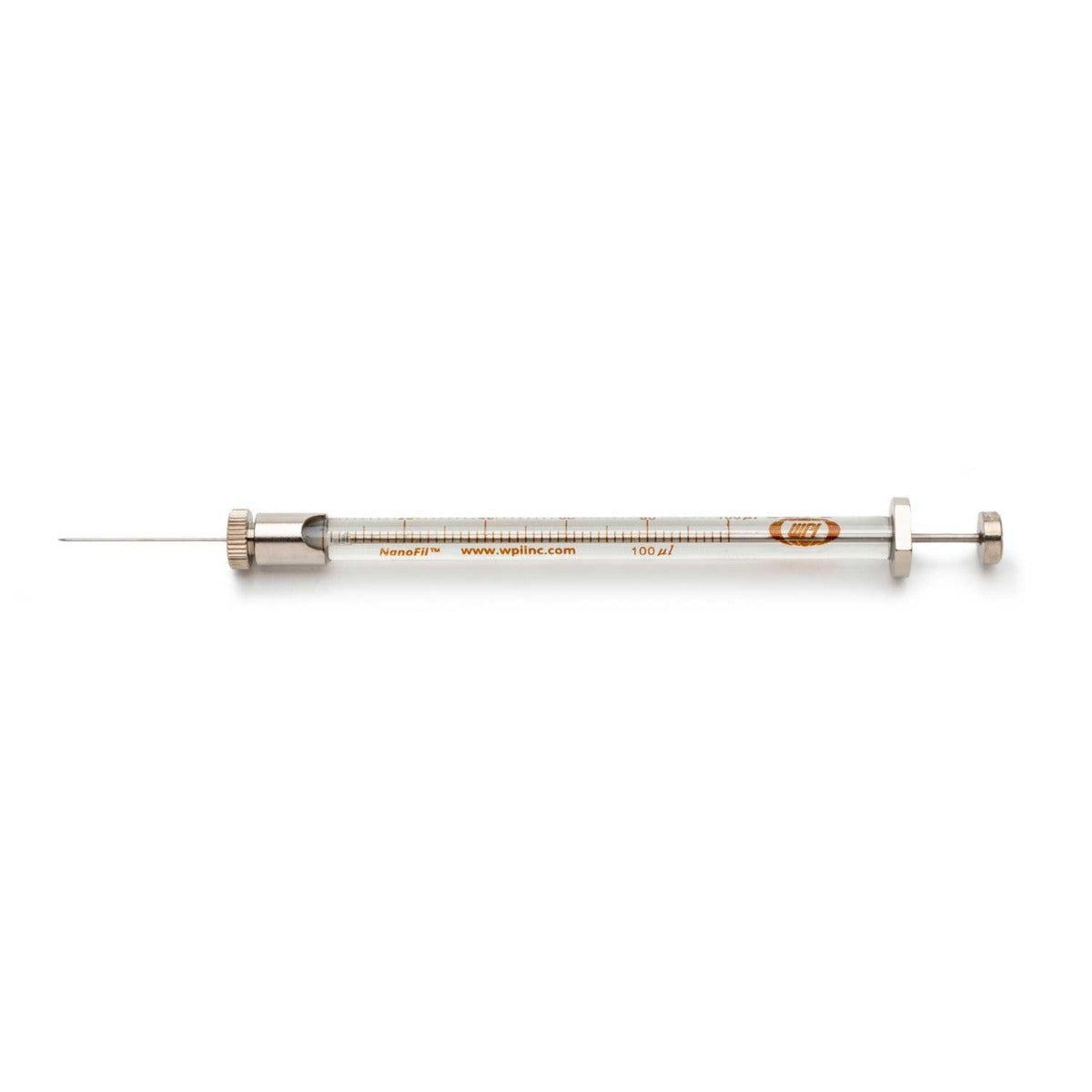

| NANOFIL-100 | 100 µL |
|
Features & Applications
- Biologically compatible injection syringe

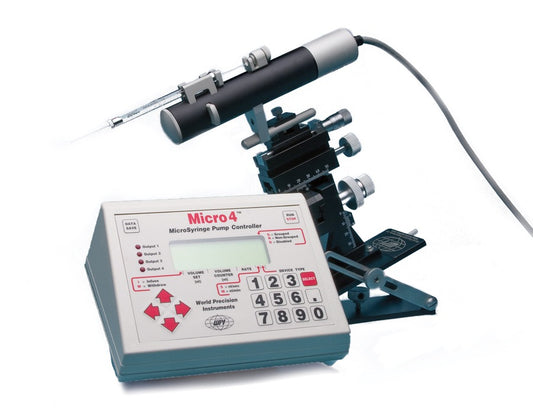

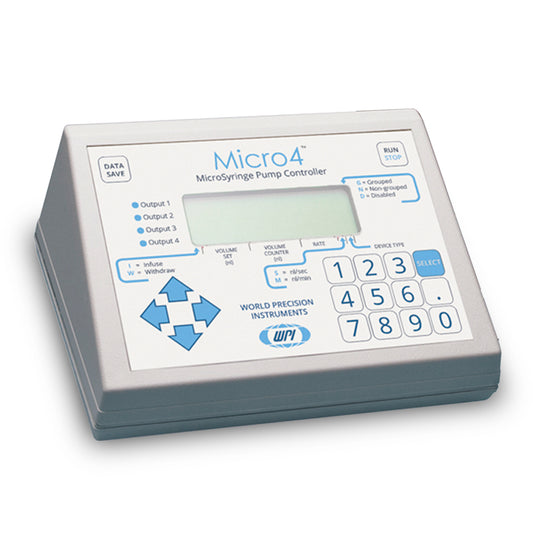

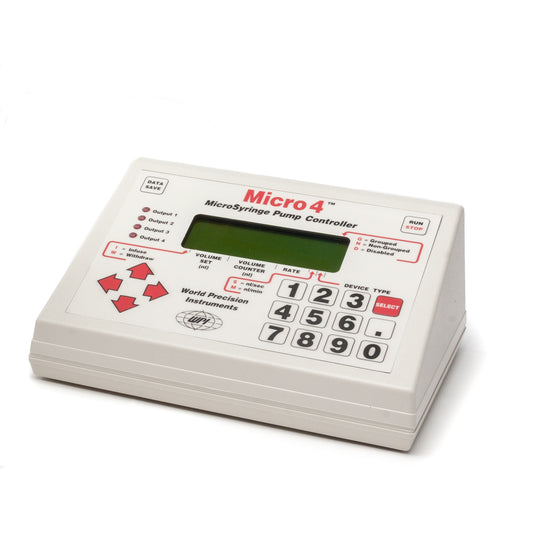

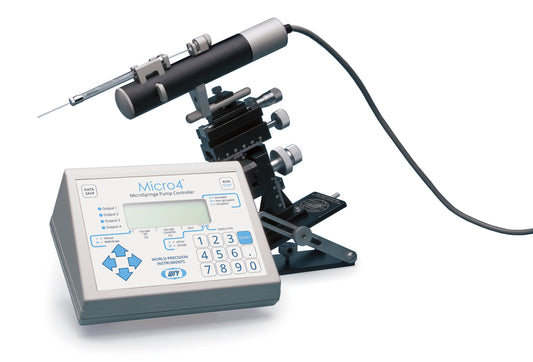

- Compatible with WPI's UMP3 microinjector for precise, targeted injections
- Animal research, viral targeting (e.g. AAV construct, DREADDS):
- Retinal Pigment Epithelial (RPE)/ Intra Ocular (IO)
- Brain
- Muscle
- Spine
- Capillary electrophoresis
Try our quartz 34G flexible tubing for precision capillary backfilling (SKU #NFQ34-5). Particularly useful for low-volume sample transfer into long taper glass pipettes. Compatible with any NanoFilTM syringe!
Special Application Kits
More Information
How to select the correct tip for your application.
See why our system is the choice for low-volume applications, and why other designs are not dependable: Tired of Missing the Mark?
Note: This product is non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.

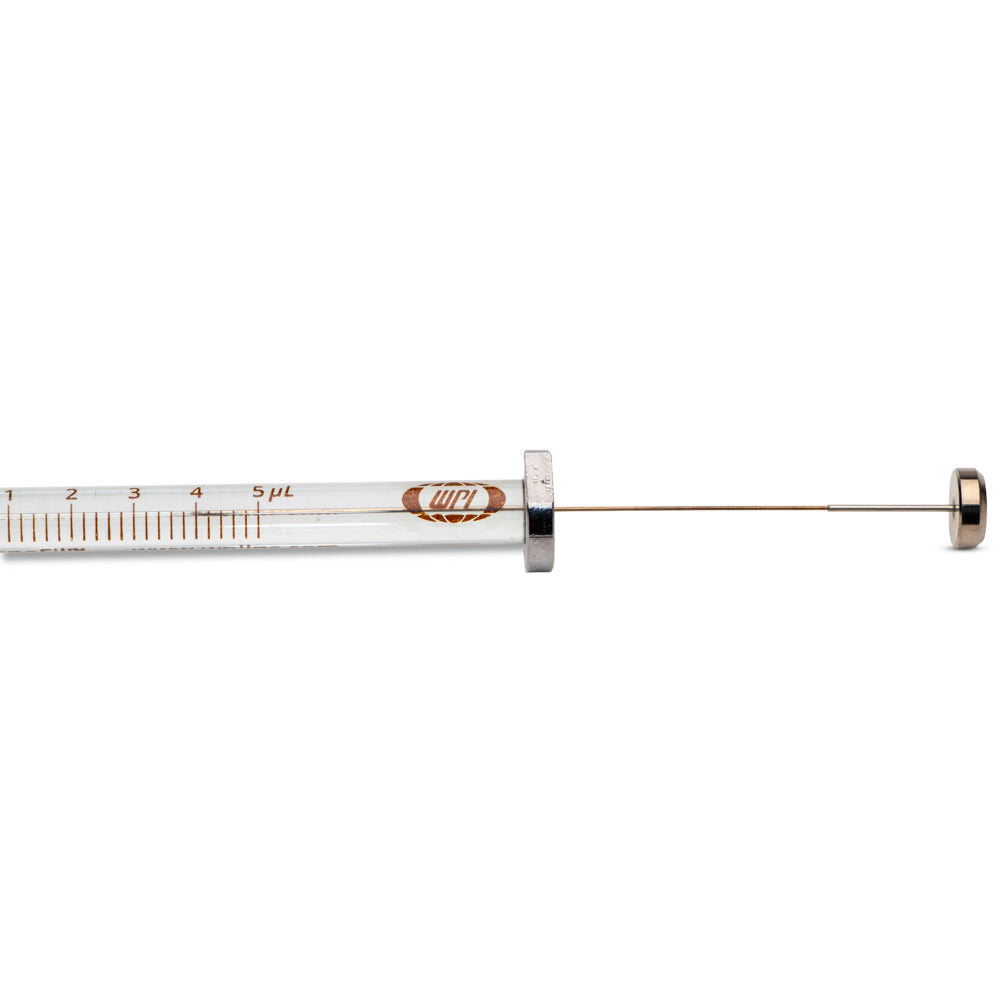

*After repeated use, it is normal that your plunger may incur wear/tear to either the PTFE tip and/or its overall straightness. The syringe must be replaced as plungers are specially made to each syringe.
References
Guo, Q., Gobbo, D., Zhao, N., Zhang, H., Awuku, N.O., Liu, Q., Fang, L.P., Gampfer, T.M., Meyer, M.R., Zhao, R., Bai, X., Bian, S., Scheller, A., Kirchhoff, F., & Huang, W. (2024). Adenosine triggers early astrocyte reactivity that provokes microglial responses and drives the pathogenesis of sepsis-associated encephalopathy in mice. Nature Communications, 15; 6340. https://doi.org/10.1038/s41467-024-50466-y
Luo, S., Jiang, H., Li, Q., Qin, Y., Yang, S., Li, J., Xu, L., Gou, Y., Zhang, Y., Liu, F., Ke, X., Zheng, Q., & Sun, X. (2024). An adeno-associated virus variant enabling efficient ocular-directed gene delivery across species. Nature communications, 15(1), 3780. https://doi.org/10.1038/s41467-024-48221-4
Nam, J., Richie, C.T., Harvey, B.K., & Voutilainen, M.H. (2024). Delivery of CDNF byAAV‑mediated gene transfer protects dopamine neurons and regulates ER stress and inflammation in an acute MPTP mouse model of Parkinson’s disease. Communications Biology, 7; 966. https://doi.org/10.1038/s42003-024-06658-9
Wietek, J., Nozownik, A., Pulin, M., Saraf-Sinik, I., Matosevich, N., Gowrishankar, R., Gat, A., Malan, D., Brown, B.J., Dine, J., Imambocus, B.N., Levy, R., Sauter, K., Litvin, A., Regev, N., Subramaniam, S., Abrera, K., Summarli, D., Goren, E.M., Mizrachi, G., Bitton, E., Benjamin, A., Copits, B.A., Sasse, P., Rost, B.R., Schmitz, D., Bruchas, M.R., Soba, P., Oren-Suissa, M., Nir, Y., Wiegert, J.S., & Yizhar, O. (2024). A bistable inhibitory optoGPCR for multiplexed optogenetic control of neural circuits. Nature Methods, 21; pg. 1275–1287. https://doi.org/10.1038/s41592-024-02285-8
Zhang, C., Dulinskas, R., Ineichen, C., Greter, A., Sigrist, H., Li, Y., Alanis-Lobato, G., Hengerer, B., & Pryce, C.R. (2024). Chronic stress deficits in reward behaviour co-occur with low nucleus accumbens dopamine activity during reward anticipation specifically. Communications Biology, 7; 966. https://doi.org/10.1038/s42003-024-06658-9
Resources
Resources
Specifications
Specifications

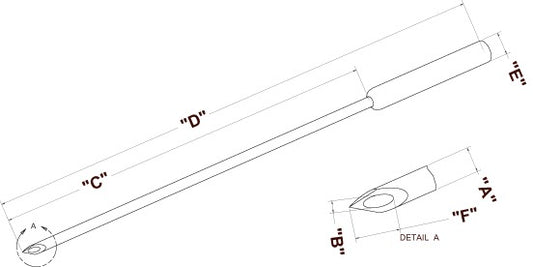

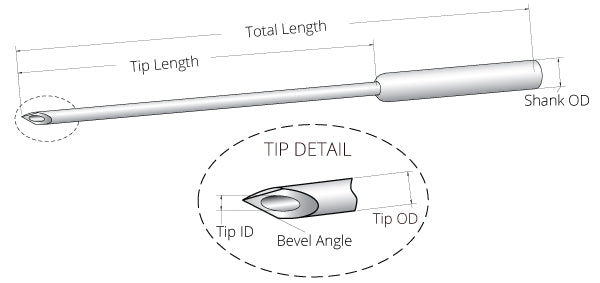

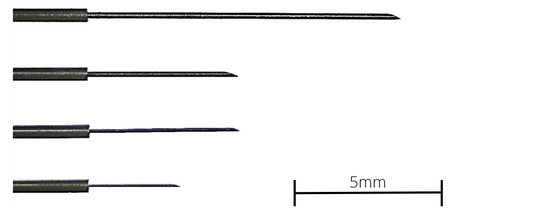

| Tip Order Number | Tip O.D. (µm) | Tip I.D. (µm) | Tip Length (mm) | Total Length (mm) | Shank O.D. (µm) | Bevel Length (µm) | Tip Material |
| NF33BV | 210 | 115 | 10 | 40 | 460 | ≈348 | Stainless Steel |
| NF34BV | 185 | 85 | 5 | 35 | 460 | ≈290 | Stainless Steel |
| NF35BV | 135 | 55 | 5 | 35 | 460 | ≈204 | Stainless Steel |
| NF36BV |
120 |
35 | 3 | 33 | 460 | ≈156 | Stainless Steel |
| NFQ34-5 | 160 | 100 | 55 | 75 | 460 | Quartz | |
| NF33BL | 210 | 115 | 10 | 40 | 460 | ≈0 | Stainless Steel |
| NF34BL | 185 | 85 | 5 | 35 | 460 | ≈0 | Stainless Steel |
| NF35BL | 135 | 55 | 5 | 35 | 460 | ≈0 | Stainless Steel |
| NF36BL | 120 | 35 | 3 | 33 | 460 | ≈0 | Stainless Steel |

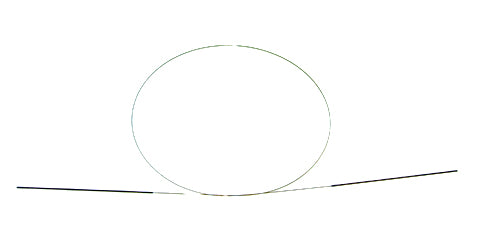

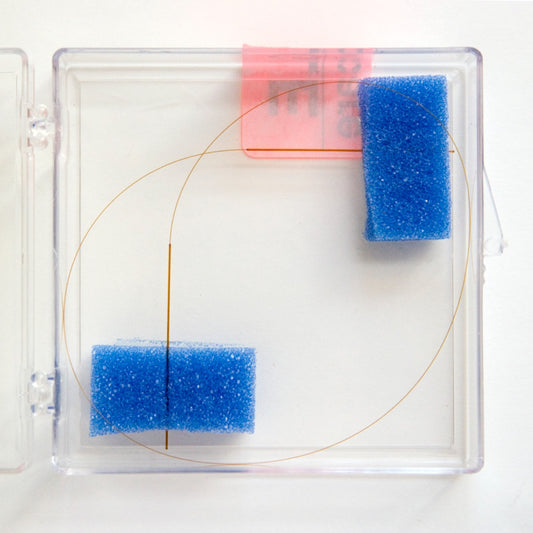

| Silflex | 100 | 35 | |||||
| NF26BV | 460 | 140 | 40 | 460 | Stainless Steel |
NANOFIL™ Syringe Specification Table
| Syringe Order Code | Volume | Syringe Type | Syringe Body | Autoclavable/Gas Sterilizable | Plunger Stroke Length | Plunger Cap Dimensions |
Syringe Barrel I.D. / O.D.* |
Qty | MICRO4 / MICRO2T Syringe Type Selection |
| NANOFIL |
10µL |
Gastight |
Borosilicate glass, Stainless Steel, PTFE |
Yes ✓ 10°C/50°F to 80°C/176°F, 1000psig max pressure |
60mm |
O.D.*: 7.90mm (0.311in) Depth: 2.80mm (0.110in) |
0.46mm (0.018in) / 6.40mm (0.252in) |
1 EA |
L (MICRO4) 5 (MICRO2T) |
| NANOFIL-100 |
100µL |
0.46mm (0.018in) / 6.40mm (0.252in) |
1 EA |
*I.D. = Inner diameter, O.D. = Outer diameter
Related Products
-

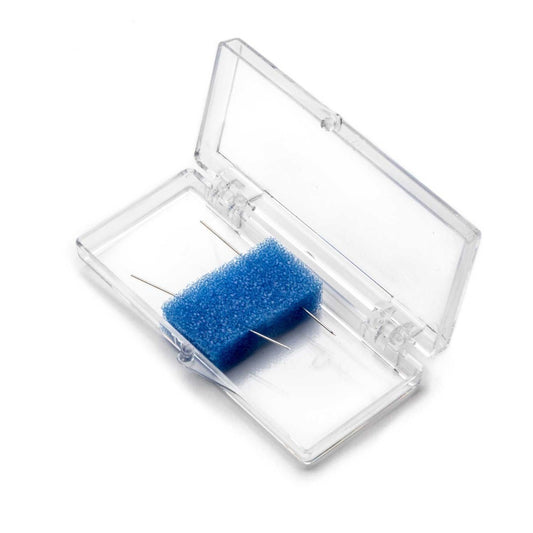

26g Beveled Replacement NanoFil needles
NF26BV-2
Regular price $66Sale price $66 Regular priceUnit price per -

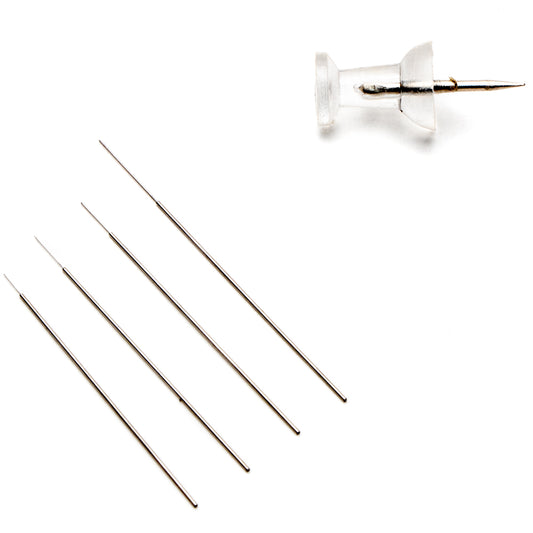

NanoFil Needles
Multiple SKUs
Regular price From $53 - $280Sale price From $53 - $280 Regular priceUnit price per -

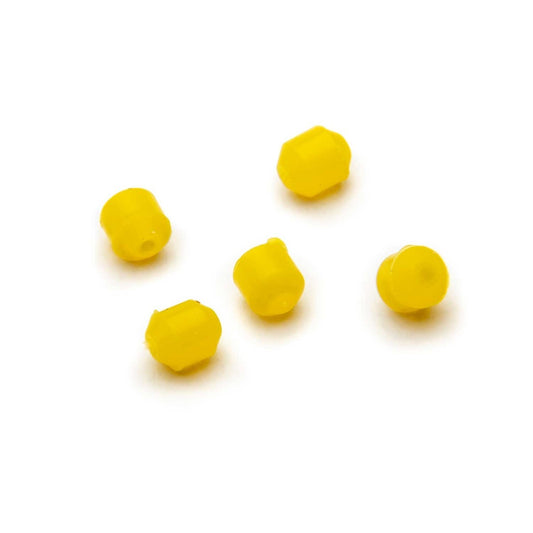

Spare Silicone Gasket for NanoFil & Holder
NFGSK-5
Regular price $85Sale price $85 Regular priceUnit price per -
-

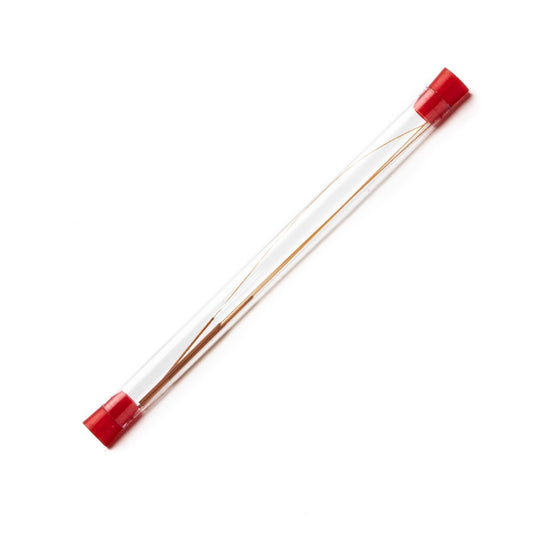

34g Flexible Quartz Tubing for filling
NFQ34-5
Regular price $172Sale price $172 Regular priceUnit price per -

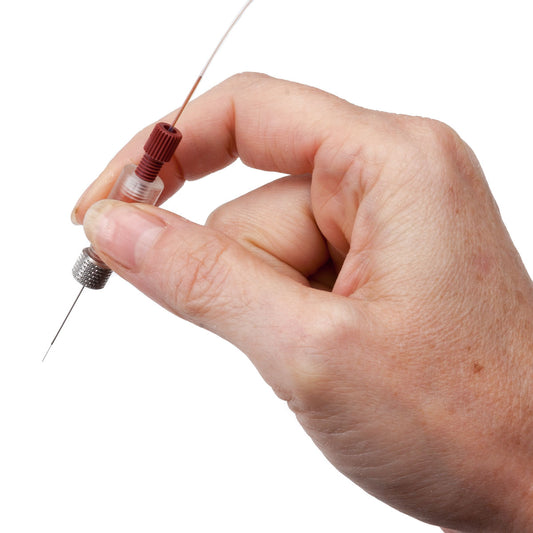

Nanofil Application Kits
Multiple SKUs
Regular price From $761 - $814Sale price From $761 - $814 Regular priceUnit price per -
-
-
Related Articles
-
Front Filling Nanofil Syringe
In this video, Mike Pizza demonstrates how to front fill a Nanofil syringe using MicroFil.
-
WPI's NanoFil: Gas Tight Injection System in Animal Research
Are you looking for a microliter or sub-microliter and high precision syringe that holds needles as small as 36 gauge (G), in addition to having the capability to connect to quartz tubing?
WPI’s NanoFil is the answer. We offer NanoFil syringes with NanoFil needles or the option to connect the NanoFil syringe to quartz tubing to use in research studies, mainly involving sub-microliter volume injections into animal tissues.
-

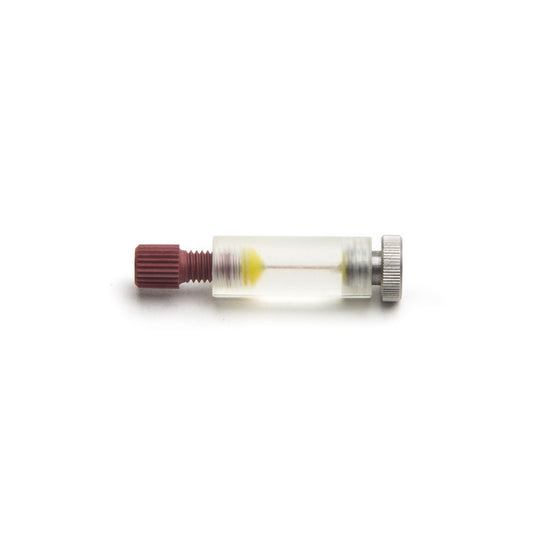

Application Kits for Use with the NanoFil for Microinjection
