PZMIII Stereo Zoom Trinocular Microscope

Options

Order code	Type	Description

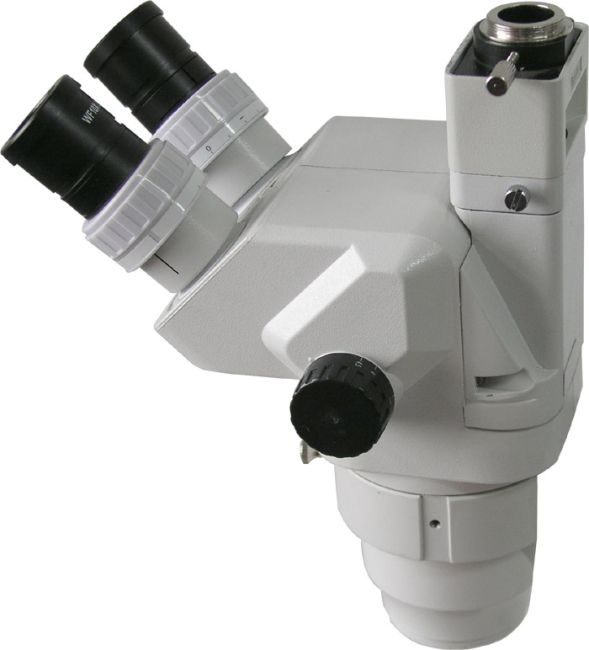

501379	Head only	Includes pair of 10x eyepieces and eye guards Shown with optional 0.5X C-mount adapter (#501381), not included

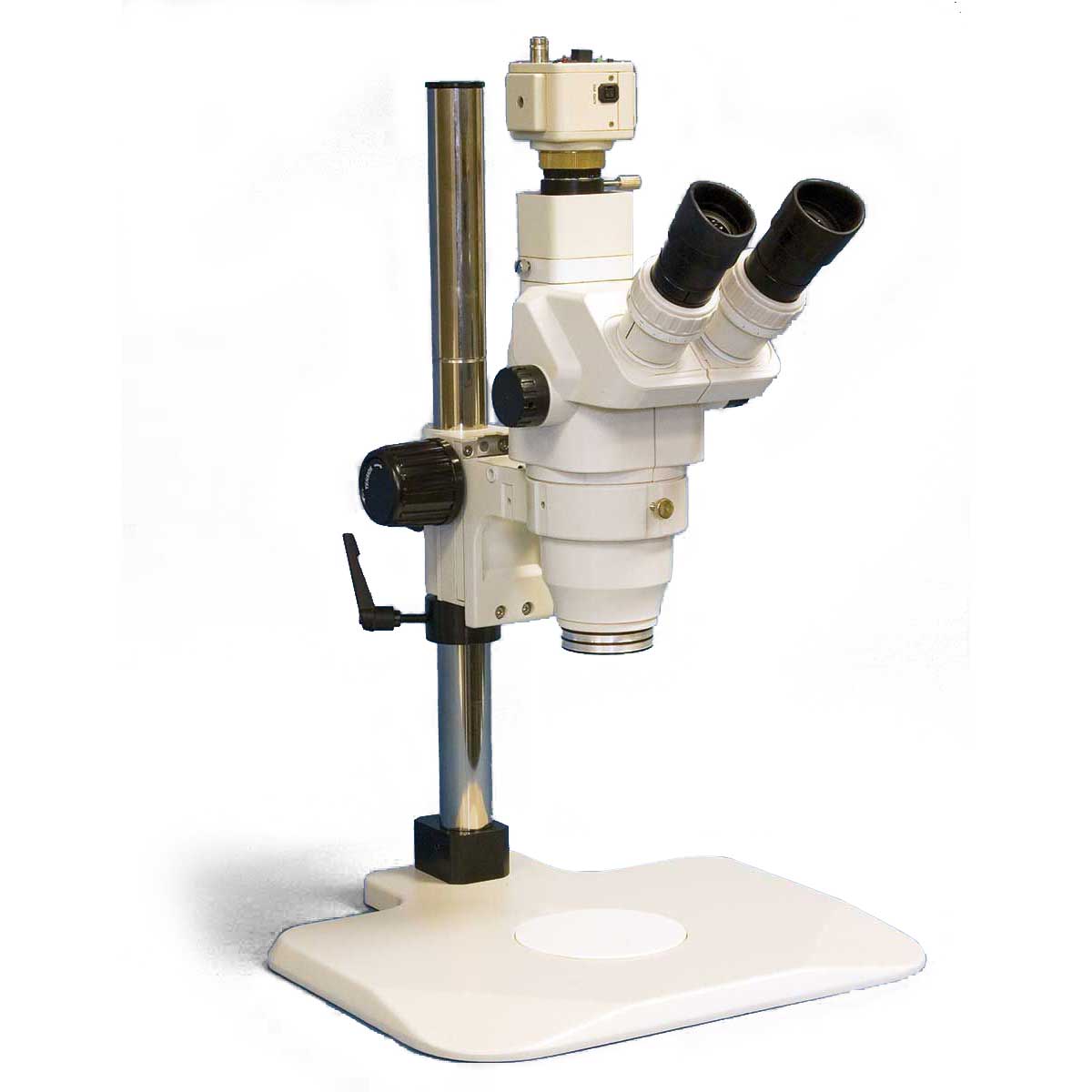

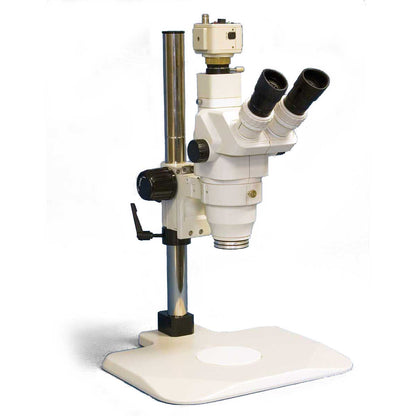

PZMTIII	Post Stand	Includes PZMTIII trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and post stand Requires a C-mount adapter (#501381) when using a camera
PZMTIII-AAC	Articulating Arm Stand	Includes PZMTIII trinocular body, pair of 10x eyepieces and eye guards, ring light adapter, and articulated arm with table clamp

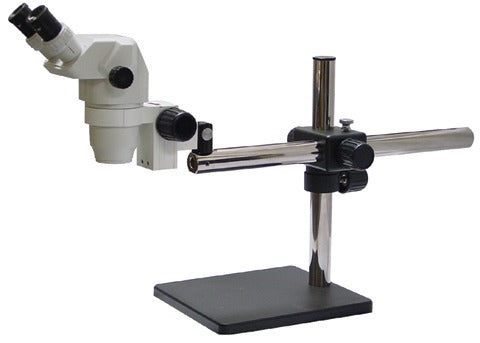

PZMTIII-BS	Boom Stand	Includes PZMTIII trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, and boom stand NOTE: Binocular is shown in the image

Camera Comparison Chart

Benefits

• Advanced optics
• Trinocular version available
• Perfect for a boom stand or articulating arm

Applications

• Tissue Dissection
• Cell injection
• Specimen manipulation
• Electrode inspection

WPI’s third-generation stereo microscope, PZMIII, is an ideal tool for tissue dissection, cell injection, specimen manipulation, electrode inspection, and many other applications that require a magnified, stereo viewing and ample working distance. It offers the leading brand’s quality and performance at an affordable price. Advanced optics provide the sharpest image that can only be found among the best of this class. It is superior to many stereo microscopes costing almost twice as much. Zooming is achieved by a spring-loaded knob that is smooth and effortless. The compact size and light weight make it more stable and easily manipulated on the boom stand. A specially designed photo/video module is used in the trinocular version of the microscope (PZMTIII) for photo, video, or digital imaging. In addition, an extensive list of optional accessories is available that can make the PZMIII suitable for almost any bio-research applications requiring a stereo microscope. See next page for options.

The PZMTIII trinocular version of this microscope offers a true trinocular view. Both eyepieces and the trinocular ports are active all the time. There is no need for the right eye piece to switch off. The left eye piece dims slightly, and the right eye piece is 50/50.

The following images show various setups for microinjection. Keep in mind that parts are interchangeable. For example:

• M10 or the M9 magnetic base could be used.
• PZMIV microscope could be used instead of the PZMIII.
• M3301 or the KITE micromanipulators can be used, and these micromanipulators can be placed on either side. (Keep in mind, though, If you wanted to use a KITE on the right side of the setup below, you would order a KITE-R (right hand), or if you want an M3301 on the left side, you would order an M3301.)
• 5479 or 5052 magnetic bases are virtually interchangeable.
• One or two Nanoliters, one or two UMPIII systems, or one Nanoliter and one UMPIII may be used, as desired.

ONE NANOLITER/ONE UMP3-1

ONE NANOLITER



ONE NANOLITER/M3301

ONE NANOLITER/KITE

ONE UMP3-1





PZMIII Instruction Manual
Microscope/Camera Configuration Chart
502007 Articulating Arm with Base Stand for Microscope

Type	Description
EYEPIECES	WFH 10x
ZOOM RANGE	0.67x - 4.5x
TOTAL MAGNIFICATION	6.77x - 45x
FIELD OF VIEW	ø34 mm - 5 mm
WORKING DISTANCE	100 mm
BINOCULAR TUBE	Inclined 45°
INTERPUPILLARY DISTANCE	Adjustable 47-70 mm
DIOPTER ADJUSTMENT	±5 Diopter (both eyepiece tubes)
MICROSCOPE BODY	Rotatable 360°
AUXILIARY LENSES: Total magnification	2x - 225x
AUXILIARY LENSES: Biggest Field of View	ø110 mm
AUXILIARY LENSES: Working Distance	26-287 mm
SHIPPING WEIGHT	23 lb.

PZMIV/PZMTIV/PZMIII Eyepiece and Objective Specifications



PZMIII Eyepieces and Objectives
	10× Eyepiece		15× Eyepiece		20× Eyepiece		25× Eyepiece
Objective	Mag.	Field (mm)  (Video Field)†	Mag.	Field (mm)  (Video Field)†	Mag.	Field (mm)  (Video Field)†	Mag.	Field (mm) (Video Field)†	Working Distance (mm)
0.3×	2× - 13.5×	114 - 17  (53.6 - 8)	3× - 20.3×	84 -13 (53.6 - 8)	4× -27×	69 - 10.3 (53.6 - 8)	5× - 33.8×	44.8 - 6.7 (53.6 - 8)	287 mm
0.5×	3.4× - 22.5×	69 - 10  (32.4 - 4.7)	5× - 33.8×	51 - 7  (32.4 - 4.7)	6.7× - 45×*	42 - 6.2 (32.4 - 4.7)	8.4× - 56.3×	26.9 - 4.0 (32.4 - 4.7)	177 mm*
0.75×	5× - 33.8×	45 - 7  (21.1 - 3.3)	7.5× - 50.6×	34 - 5 (21.1 - 3.3)	10× - 67.5×	28 - 4.2 (21.1 - 3.3)	12.6× - 84.4×	17.9 - 2.7 (21.1 - 3.3)	117 mm
1.0×	6.7× - 45×	34 - 5  (16 - 4.7)	10× - 67.5×	25 - 3.7 (16 - 4.7)	13.4× - 90×	21 - 3.1 (16 - 4.7)	16.8×-112.5×	13.4 - 2.0 (16 - 4.7)	100 mm
1.5×	10× - 67.5×	23 - 3.4 (10.8 - 1.6)	15× - 101.3×	17 - 2.5  (10.8 - 1.6)	20.1×-135×	14 - 2.1 (10.8 - 1.6)	25.1×-168.8×	9.0 - 1.3(10.8 - 1.6)	47 mm
2.0×	13.4× - 90×	12 - 2.5 (5.6 - 1.17)	20.1× - 135×	13 - 1.8  (5.6 - 1.17)	26.8×-180×	10 - 1.5 (5.6 - 1.17)	33.5× - 225×	6.7 - 1.0 (5.6 - 1.17)	26 mm
† The video field of view is based on a 1/2-inch (8 mm diagonal) CCD camera and a 0.5× camera adapter. *Long working distance (LWD) configuration
