NanoFil Needles

$73
$73

NF35BV

From $53 - $280
From $53 - $280
Tip Shape

Prices valid in USA, Canada, and PR only.

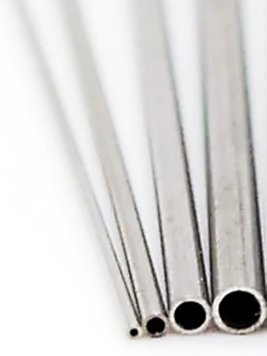

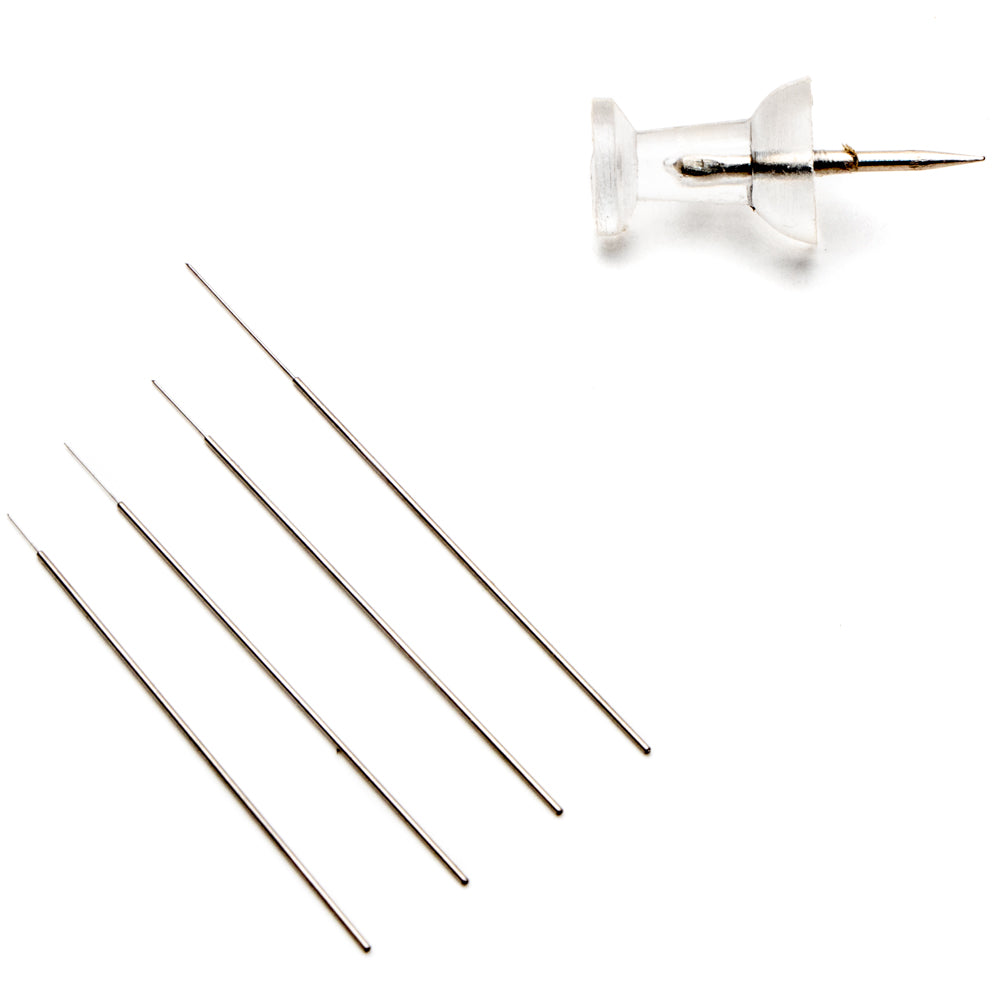

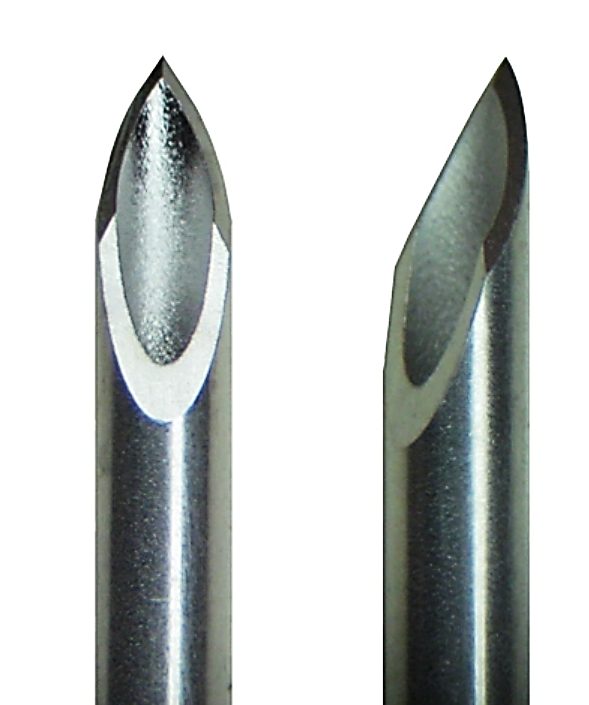

NanoFil™ needles are made for use with WPI's NanoFil™ syringes, are universal to any volume, and are available in both blunt and beveled syles, and each needle is handcrafted in-house and inspected for quality and consistency for your application. Each needle is fixed to a 26G base for enhanced rigidity, and allows for a universal fit across any NanoFil™ syringe. Our unique tri-beveled needle style boasts superior sharpness for insertion avoiding mechanical damage of sensitive tissues.

Paired with WPI's gastight NanoFil™ syringes, you will see a true difference in your application outcomes.

* Returns Policy : Non-returnable/Non-refundable

Curious how NanoFil™ supports precision microinjection?

Visit the Gas-Tight Injection System page to learn about its gas-tight design, needle versatility, etc.

Details

Features

  • Tip Material: Stainless Steel
  • For use with NanoFil syringes
  • Package of 1
  • Assortment packages are available



Click here to view the current NanoFilTM Data Sheet.

Selecting the Right Tip for your NanoFilTM Microinjection Application

Options

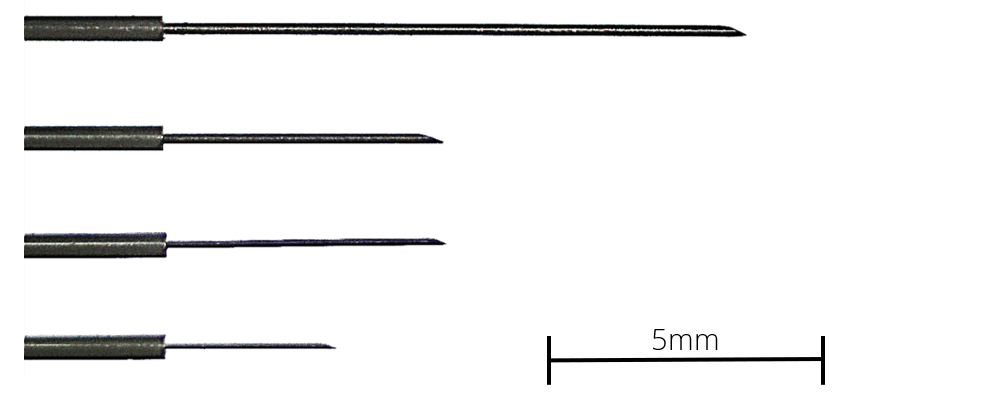

Order code Description Gauge Bevel/Blunt Pkg Size
NF33BL Nanofil 33G Blunt Needle 33 G Blunt 1
NF34BL Nanofil 34G Blunt Needle 34 G Blunt 1
NF35BL Nanofil 35G Blunt Needle 35 G Blunt 1
NF36BL Nanofil 36G Blunt Needle 36 G  Blunt  1
NF33BV Nanofil 33G Beveled Needle 33 G  Beveled  1
NF34BV Nanofil 34G Beveled Needle 34 G  Beveled  1
NF35BV Nanofil 35G Beveled Needle 35 G  Beveled 1
NF36BV Nanofil 36G Beveled Needle 36 G  Beveled 1
NF33-36BL Nanofil Needle Assortment 33-36 G Blunt  4 (1 of each size)
NF33-36BV Nanofil Needle Assortment 33-36 G  Beveled  4 (1 of each size)



NOTE: Due to supply constraint, this product is currently non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.

Resources

NanoFilTM Gas-Tight Microliter Syringe Manual

Selecting the Correct Tip

Specifications

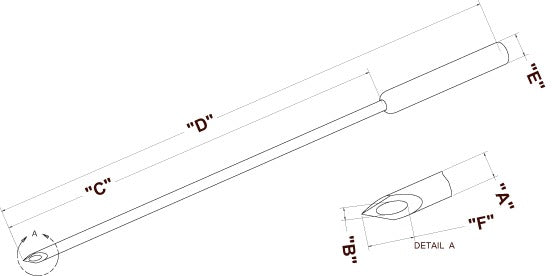

   Nanofil schematic



Tip Order code Guage Needle O.D. “A” (µm) Avg. Neelde I.D. “B” (µm) Range of ID for B (µm)* Range of OD for B (µm) Tip Length “C” (mm) Total Length “D” (mm) Shank O.D. “E” (µm) Bevel Length “F” (µm) Total Dead Volume (µL) Dead Vol Range (µL) Tip Material
NF33BV 33 210 115 89-125 200-216 10 40 460 ≈348 0.416 0.2488-0.4909 Stainless Steel
NF34BV 34 185 85 64-100 178-190 5 35 460 ≈290 0.199 0.1126-0.2749 Stainless Steel
NF35BV 35 135 55 38-76 127-139 5 35 460 ≈204 0.435 0.3676-0.4608 Stainless Steel
NF36BV 36 110 35 25-75 102-132 3 33 460 ≈156 0.340 0.2635-0.3671 Stainless Steel
NF33BL 33 210 115 89-125 200-216 10 40 460 ≈0 0.416 0.2488-0.4909 Stainless Steel
NF34BL 34 185 85 64-100 178-190 5 35 460 ≈0 0.199 0.1126-0.2759 Stainless Steel
NF35BL 35 135 55 38-76 127-139 5 35 460 ≈0 0.435 0.3676-0.4608 Stainless Steel
NF36BL 36 110 35 25-75 102-132 3 33 460 ≈0 0.340 0.2635-0.3671 Stainless Steel



References

Goel M, Sienkiewicz AE, Picciani R, Wang J, Lee RK, Bhattacharya SK, "Cochlin, intraocular pressure regulation and mechanosensing." PLoS One. 2012;7(4):e34309. Epub 2012 Apr 4.
