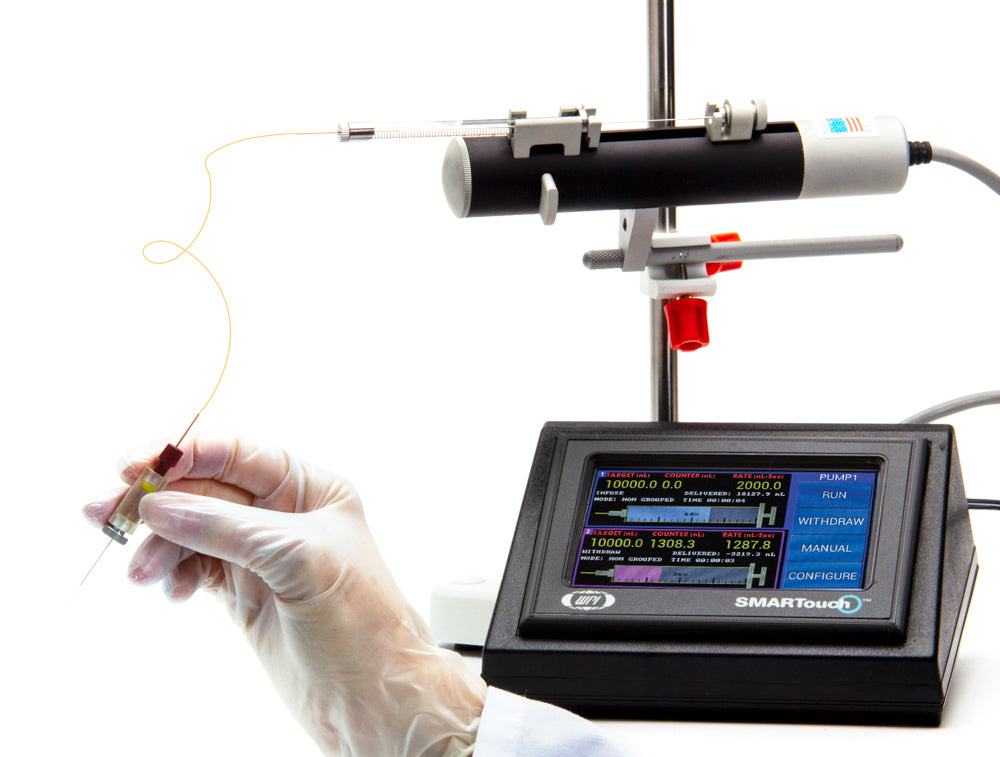

Microinjection Syringe Pump
UMP3T-1
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.

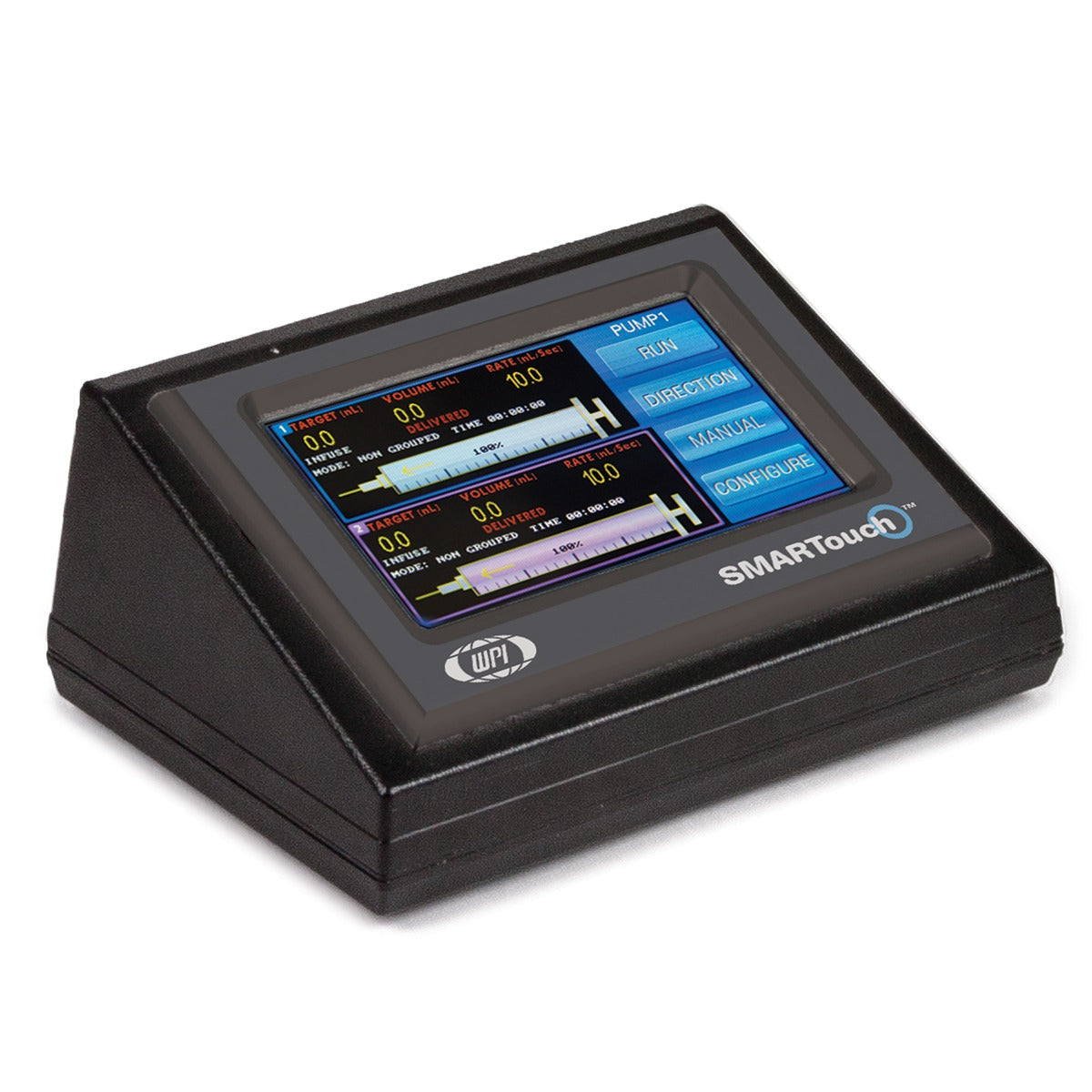

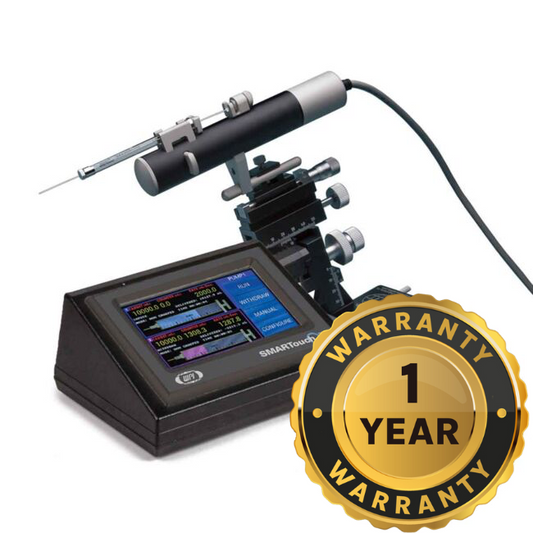

The touch-screen display on WPI's MICRO2T SMARTouch™ controller offers an intuitive, user-friendly interface. Our MICRO2T allows for simultaneous control of the UMP3 syringe pumps, and/or our NANOLITER2020 positive displacement pumps. Key features of the MICRO2T controller include a splash-proof touch screen, built-in memory configured for saving settings between use, and a dual mode motor drive. The UMP3 may be mounted to either a stereotaxic frame or a micro manipulator via its built-in mounting bar. An optional foot switch is available.

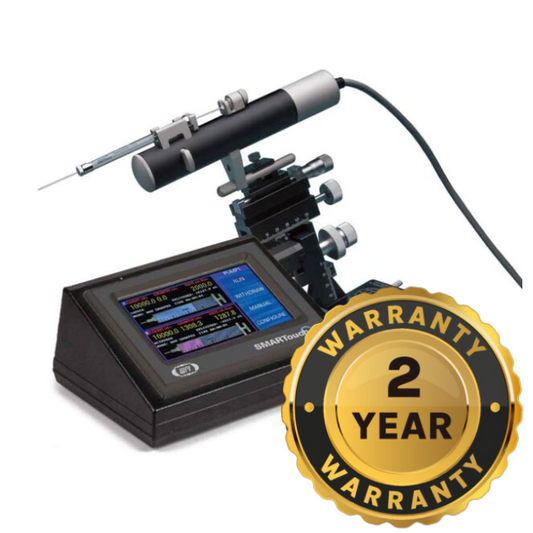

To learn more about our warranty options, click here.
Compatible with all major commerically available glass microliter syringes such as: WPI's NanoFil™, Hamilton, SGE, and ILS syringes.
**For the best gas-tight, zero dead volume experience, check out WPI's NanoFil™ syringe and needle system. Learn why our syringe system is a game-changer for controlled sample targeting— a design in a class of its own.
ACCESSORIES
Details
Details
Delivering microliter volumes precisely
With UMP3's smooth tuning for precise sample delivery or extraction, you can be confident in your system to handle all of your low-volume applications.
Options
| Order code | Description |
|

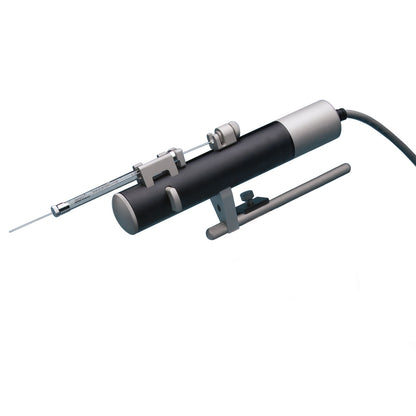

UMP3 |
UltraMicroPump3 ONLY (without controller) |
|
UMP3T-1 |
UltraMicroPump3 (one) and SMARTouch Controller |
|
UMP3T-2 |
UltraMicroPump3 (two) and SMARTouch Controller |
|
MICRO2T |
SMARTouch Controller ONLY, Two-Channel |
Note on Accessory
*13142 is the foot pedal for use with the MICRO2T/MICRO4T ONLY. It is not compatible with our older MICRO4 controller, which uses the 15867 foot pedal. The two foot pedals are not cross-compatible.
Benefits
- Accepts a wide range of microinjection syringes from 0.5 ul to 1000µL.
- Manual or automated functionality
- Smooth and low-noise operation
- Mounts directly on micromanipulator or stereotaxic frame
- Injections down to 25nL
- Rapid setup with intuitive touchscreen controller
- Premium Warranty Available
Applications
MicroFluidics
- Accurate microinjection of solution into tissue
- Cannulation drug delivery
- Micro delivery of biochemical agents or dyes
- Intravitreal Injection (with RPE-KIT)
- Intraoccular Injection (with IO-KIT)
The UMP3 (UltraMicroPump3) is a versatile microinjection syringe pump paired with microsyringes to deliver microliter-level volumes. The UMP3 is optimal for applications requiring precise, targeted injections of extremely low-volume samples. With its touchscreen controller, our UMP3 can deliver or withdraw as little as 25nL (using 10µL syringe with 60 mm stroke length).
Patent Pending Technology
The MICRO2T SMARTouch™ controller for the UMP3 and NANOLITER2020 features Patent Pending technology which includes:
- Total system calibration – Calibrate the syringe and the controller together as a system. This feature eliminates variability of the syringe and delivers (or withdraws) the configured volume.
- Smart smoothness – The controller can be set to automatically adjust microstepping according to the injection rate to deliver (or withdraw) smoothly.
- User defined travel limits – Set the limits for your NanoSyringe on your MICRO2T. This prevents your UMP3 from exceeding its drive range.
Additional Features
The MICRO2T SMARTouch™ controller has a graphical indication of the rate and volume remaining in your NanoSyringe. It offers end-stop detection that is dependent on the syringe volume. You can control two pumps independently the MICRO2T's dual capability. The controller also has automatic pump detection and a Pause/Resume feature for incremental dosing during infusion, or sample collection upon withdraw. The MICRO2T SMARTouch™ controller is fully compatible with all previous models of the UMP3.
Flexibility in Mounting

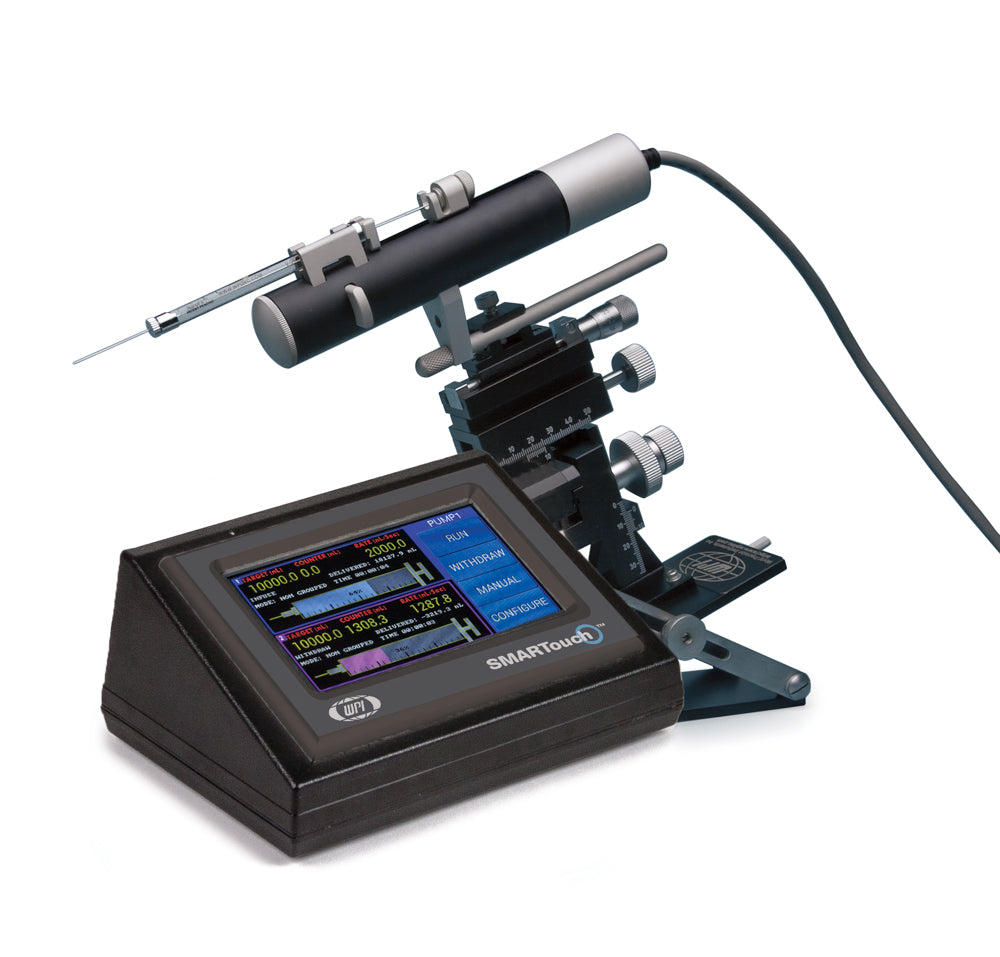

For positioning, the UMP3 microinjection syringe pump may be attached to any of several WPI micropositioners such as the M3301 (manual), DC3001 (motorized) and most stereotaxic manipulators.
Computer Control— A USB port on the rear of the MICRO2T controller can be used for connecting to a computer for scripted protocols.
NOTE: UMP3 accepts glass syringes with barrel diameters from 5.5 to 9 mm. You MUST set end-stop positions on your MICRO2T prior to using your UMP3.
Application Notes
The following images depict the various setups for microinjection using the UMP3 syringe pump and the MICRO2T controller. *Parts are interchangeable

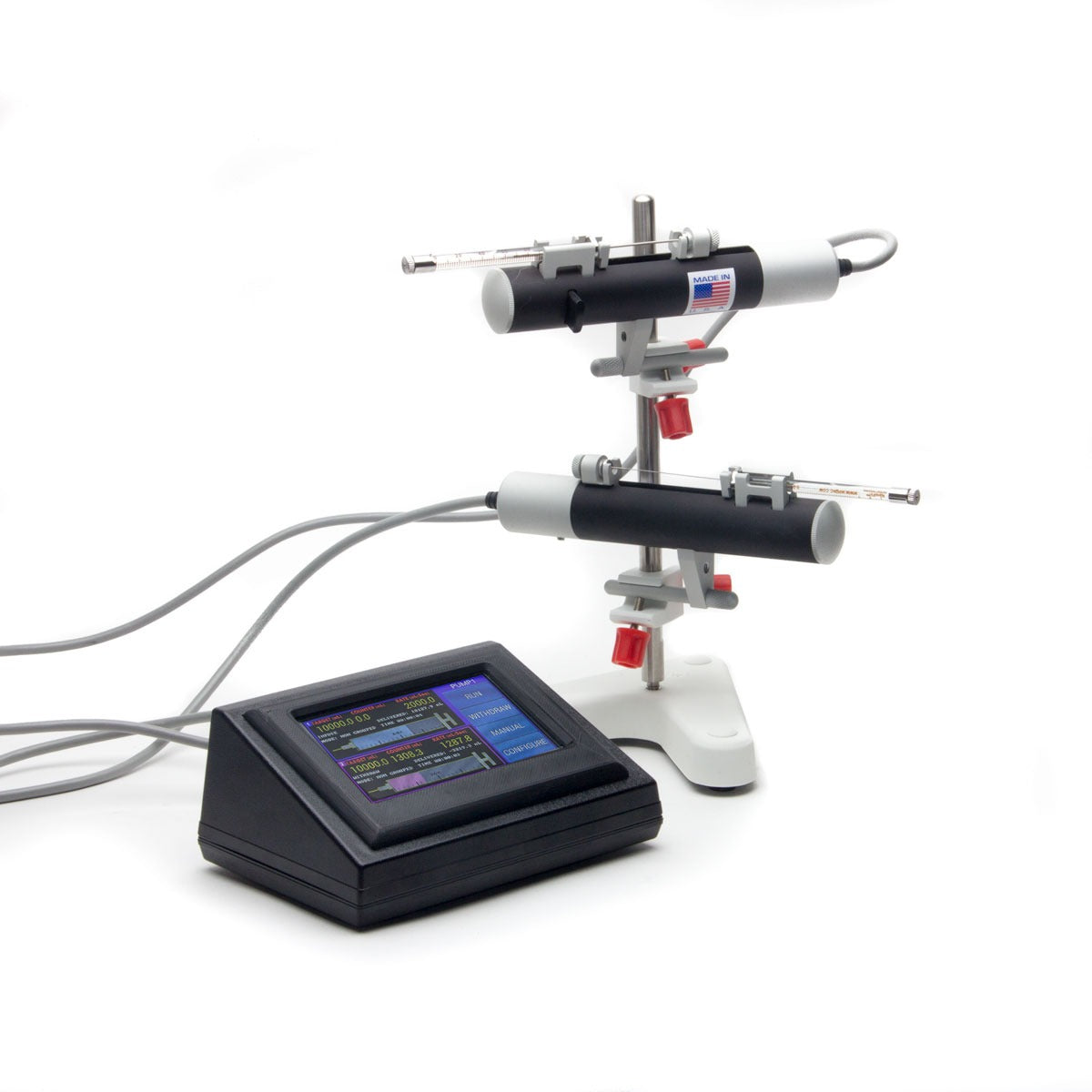

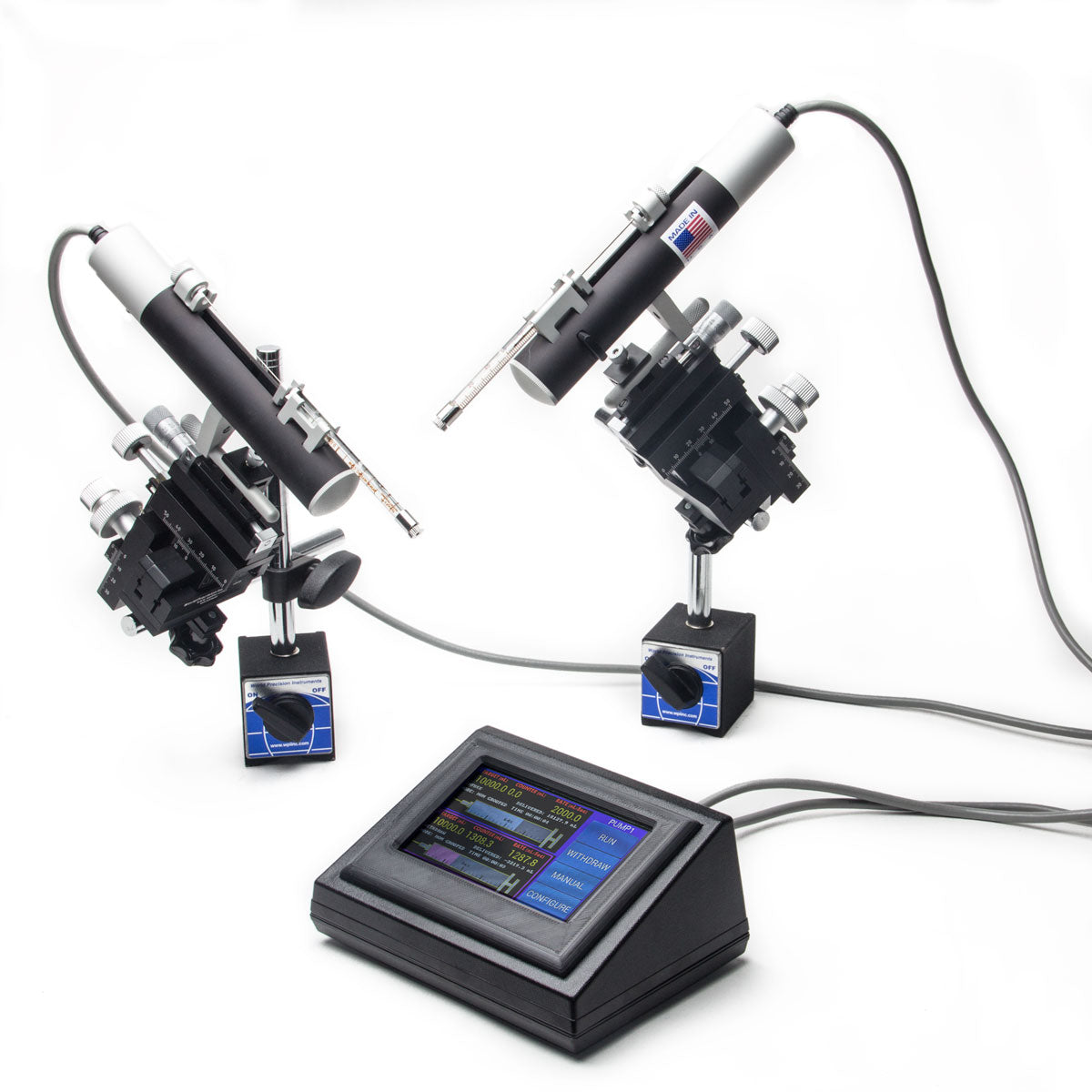

Figure 1. UMP3T-2 + MICRO2T (Two UMP3s and a MICRO2T)

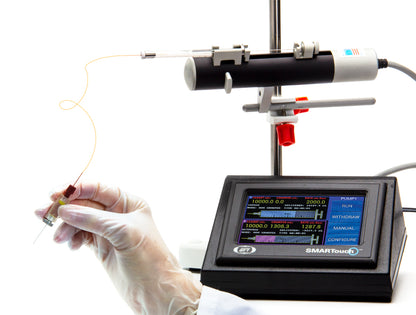

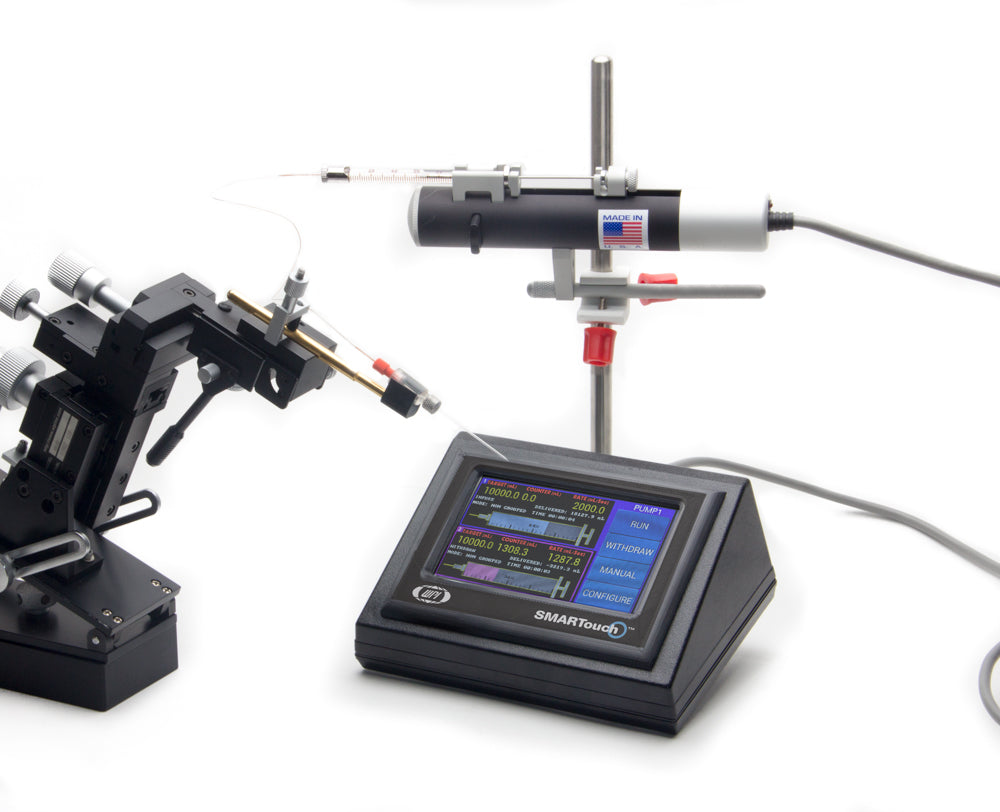

Figure 2. RPE Kit in a Custom Holder
The RPE Kit is designed for retinal pigment epithelium injections in the eye using a NanoFilTM syringe mounted on the UMP3 microinjection pump. You will be able to achieve accurate, and repeatable injections down to the submicroliter range.

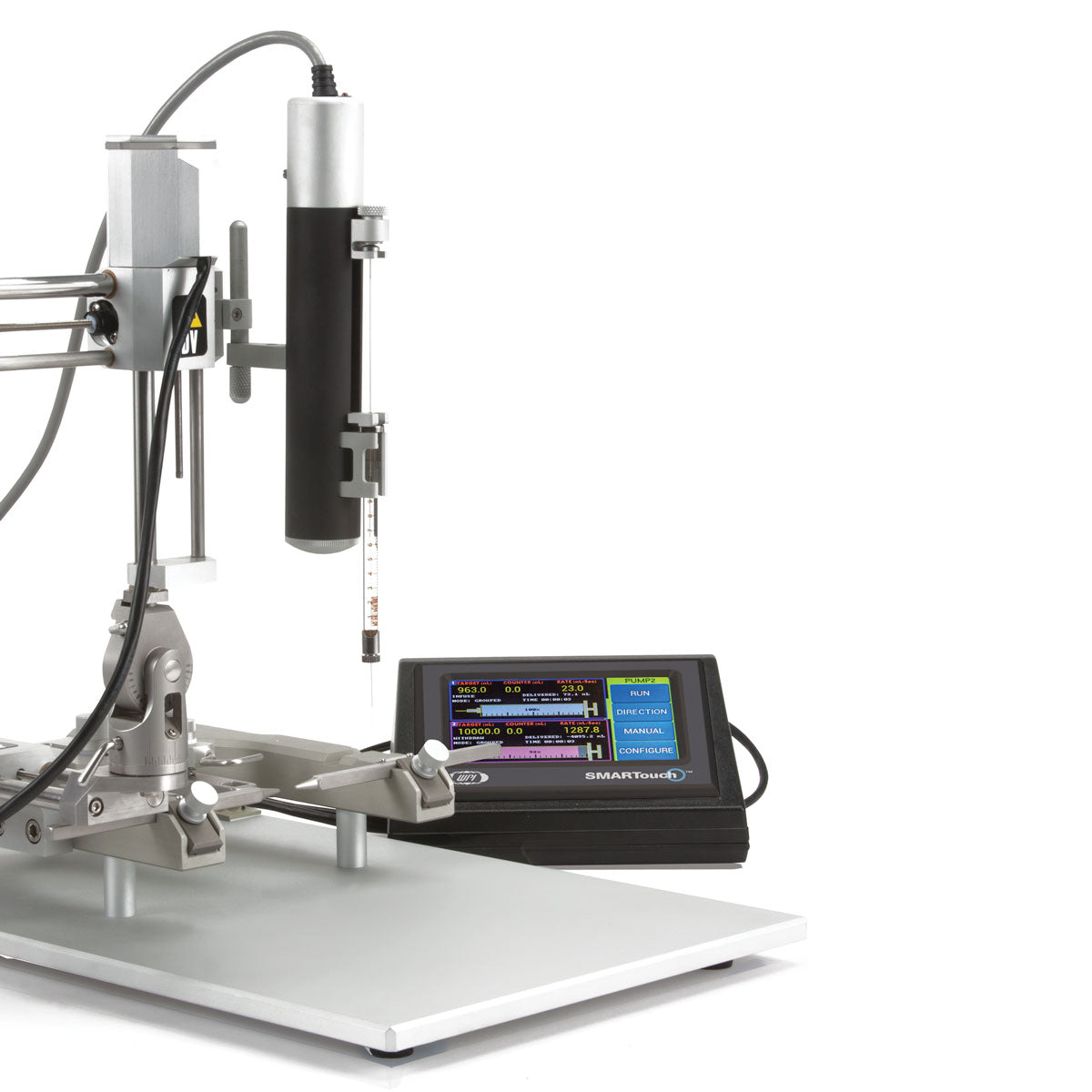

Figure 3. UMP3 with MTM-3
The UMP3 microinjection syringe pump may be mounted on any standard stereotaxic frame. Here the UMP3 is mounted on our MTM-3 motorized stereotaxic frame.
Resources
Resources
Specifications
Specifications
Related Products
-

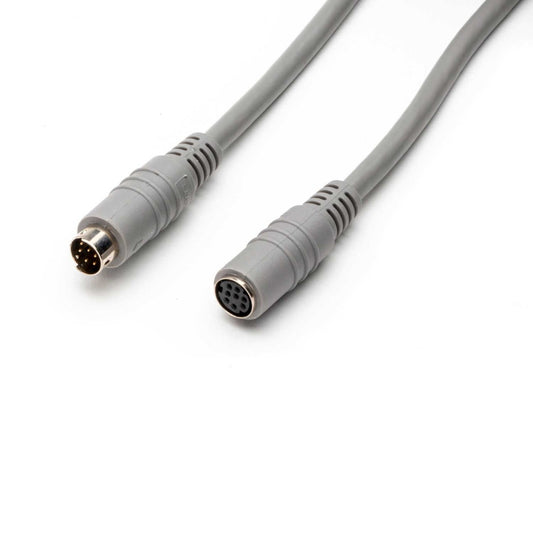

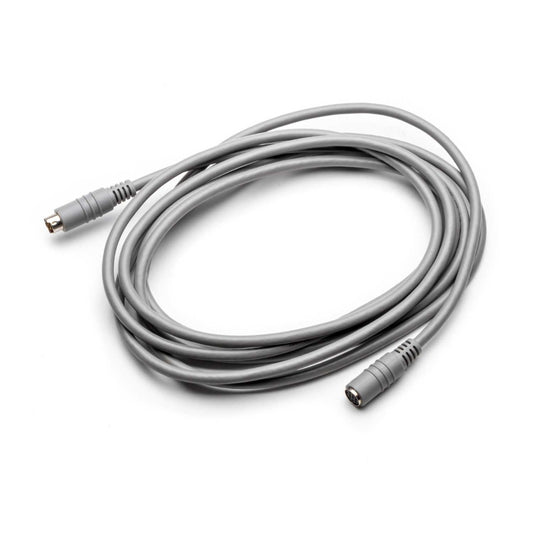

Extension Cable for DLS100 and UMP3
503301
Regular price $78Sale price $78 Regular priceUnit price per -

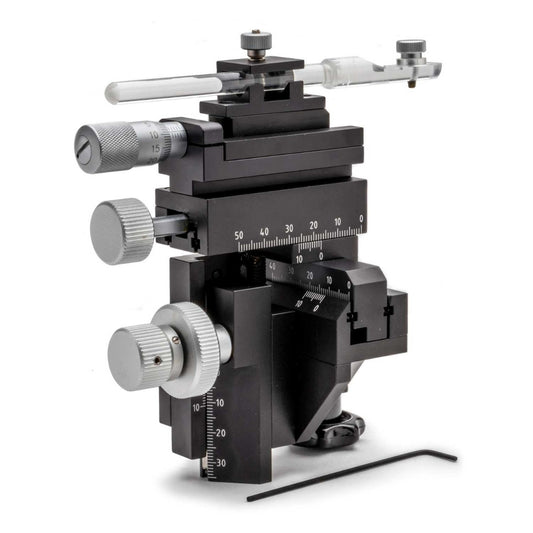

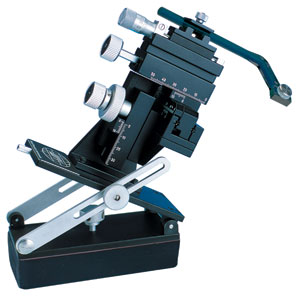

WPI Manual Micromanipulator
Multiple SKUs
Regular price From $1,700 - $1,900Sale price From $1,700 - $1,900 Regular priceUnit price per -

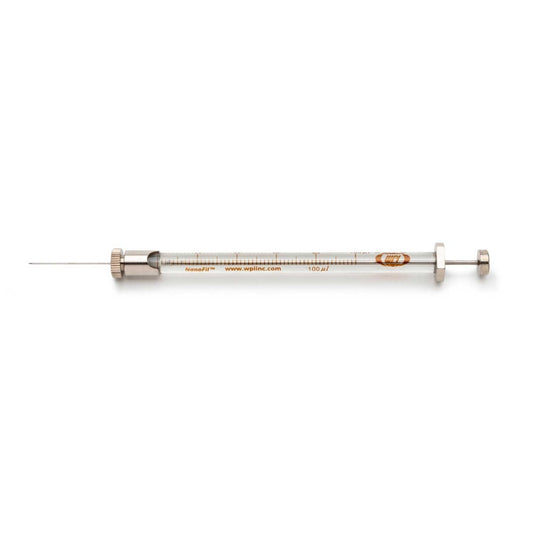

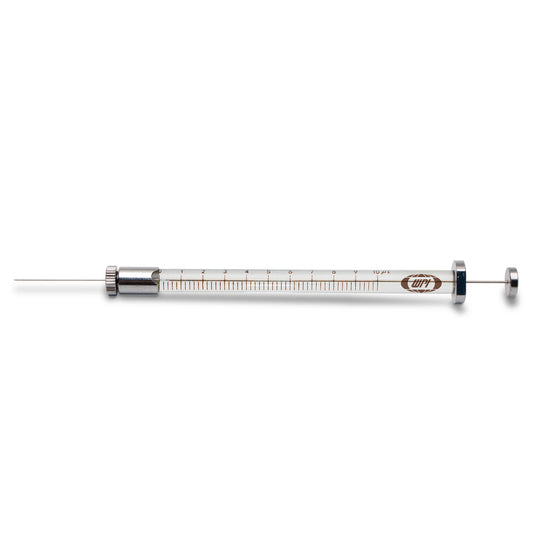

Gas-Tight Microinjection System
Multiple SKUs
Regular price From $101 - $140Sale price From $101 - $140 Regular priceUnit price per -
Nanofil Application Kits
Multiple SKUs
Regular price From $761 - $814Sale price From $761 - $814 Regular priceUnit price per -
-

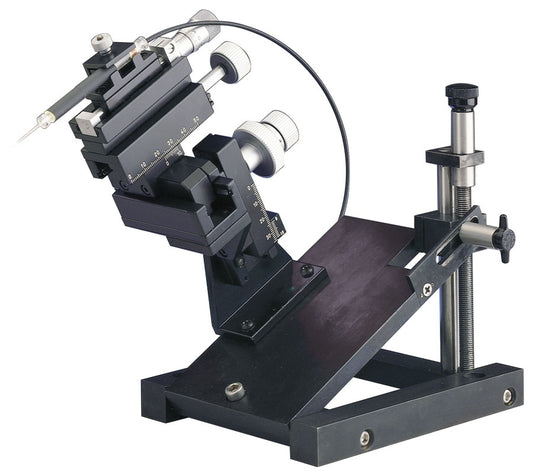

Tilting Base with Screw Adjustment
