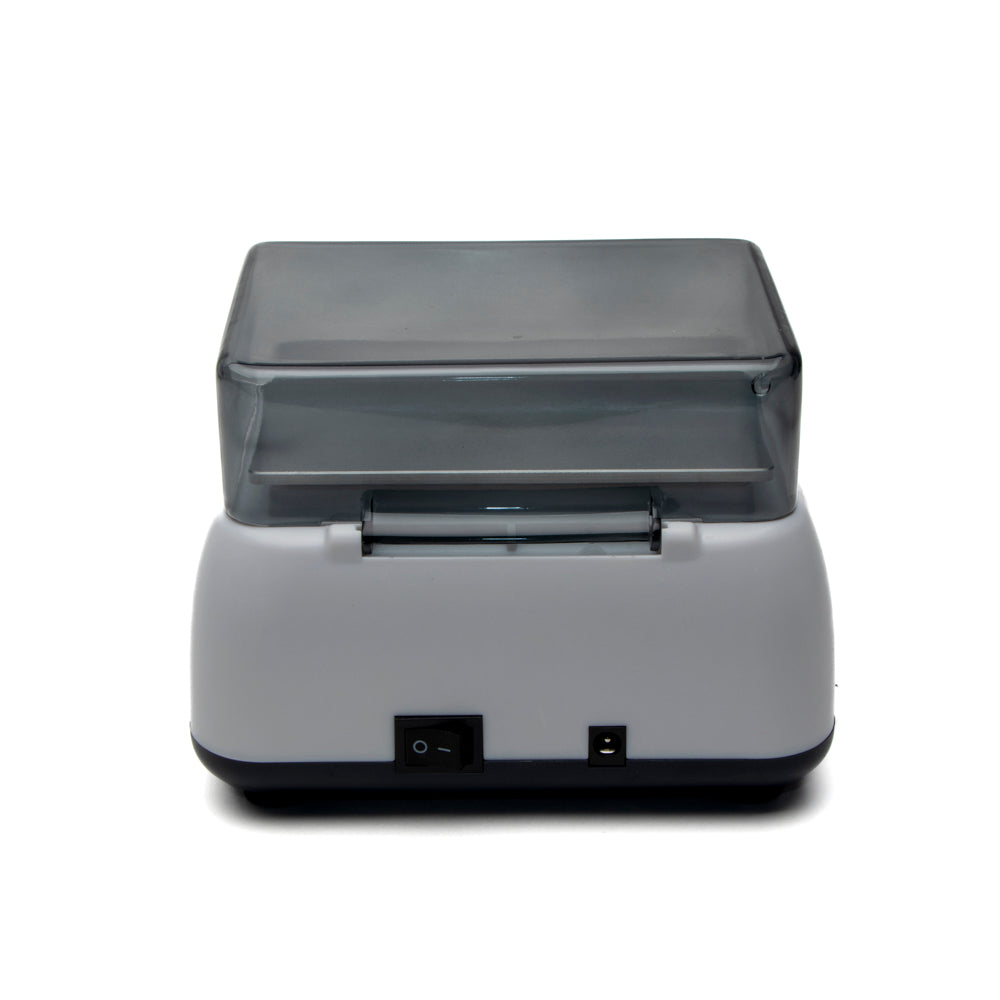

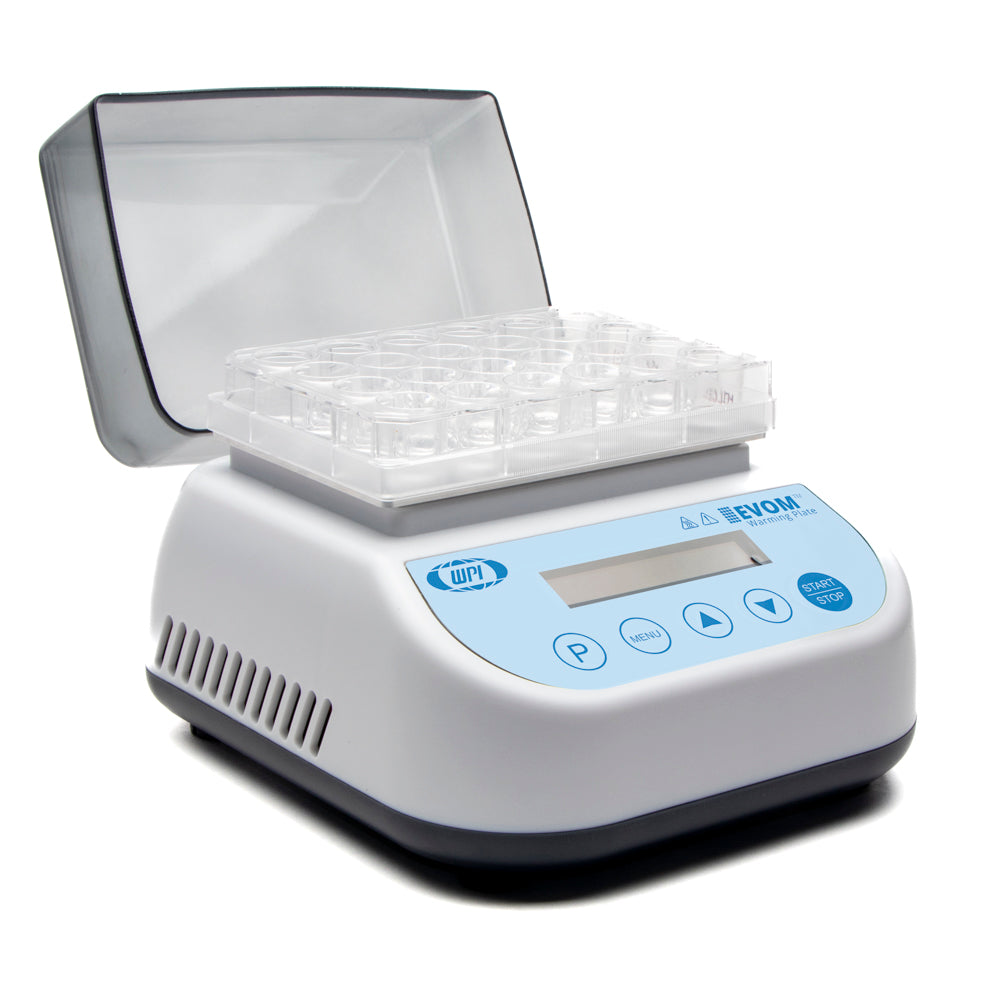

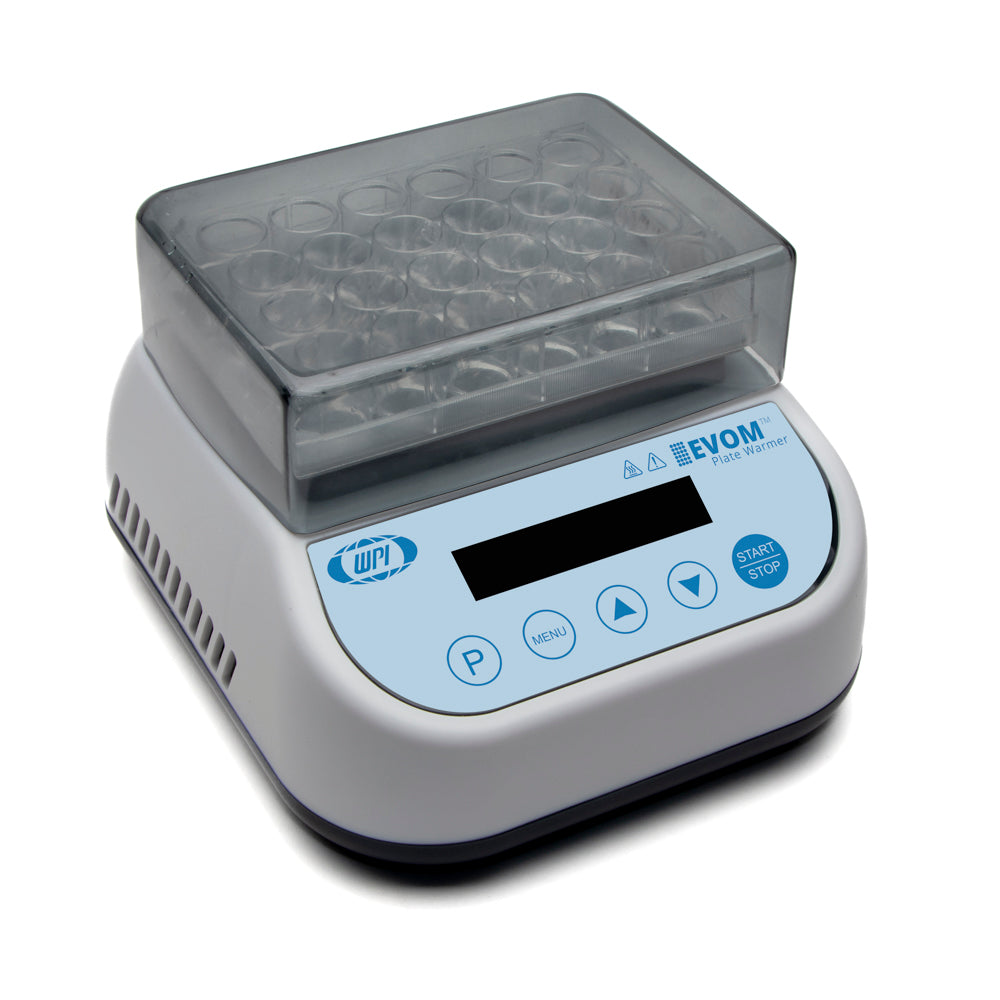

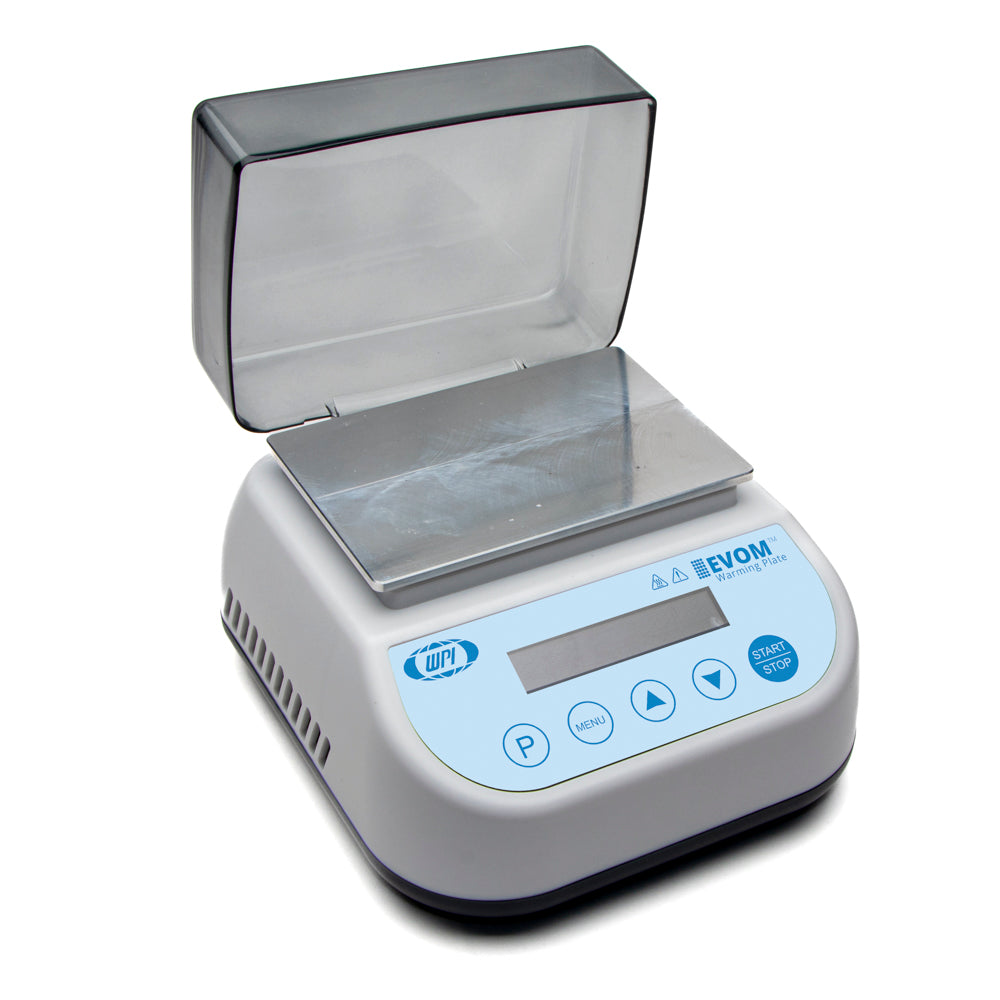

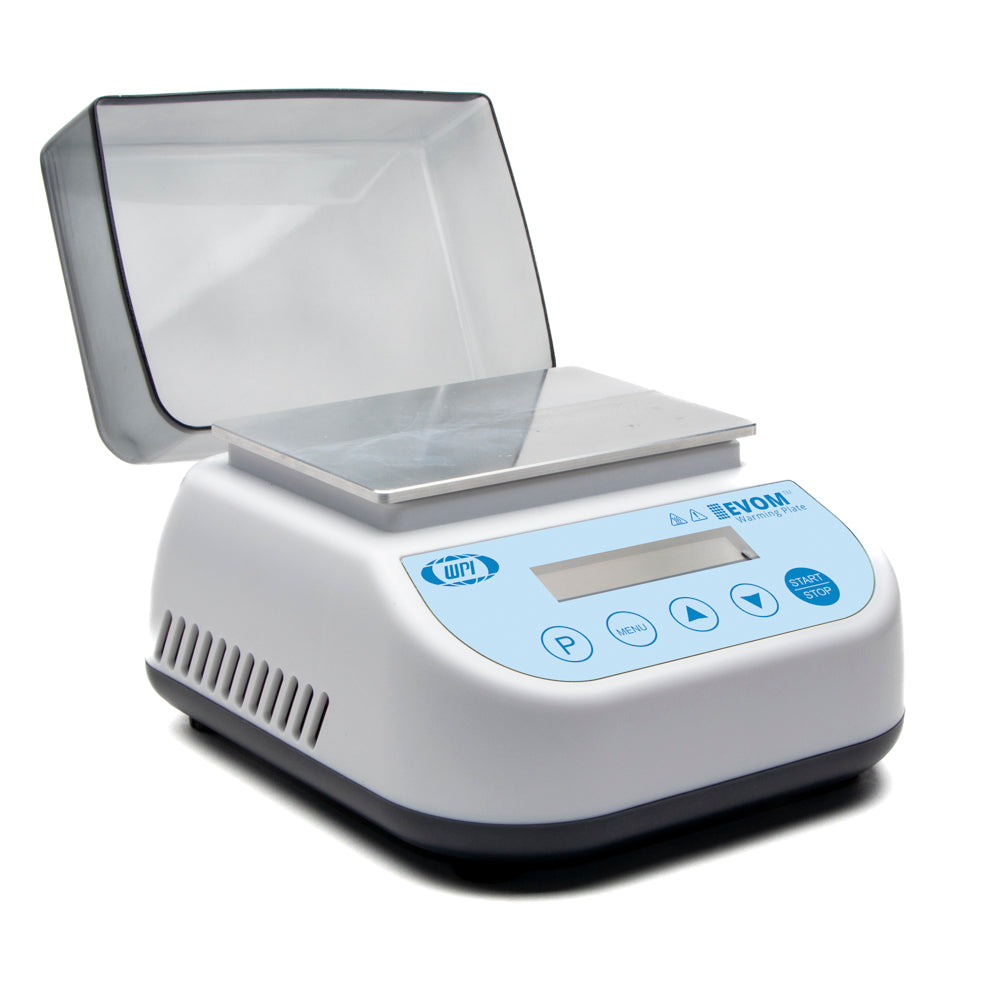

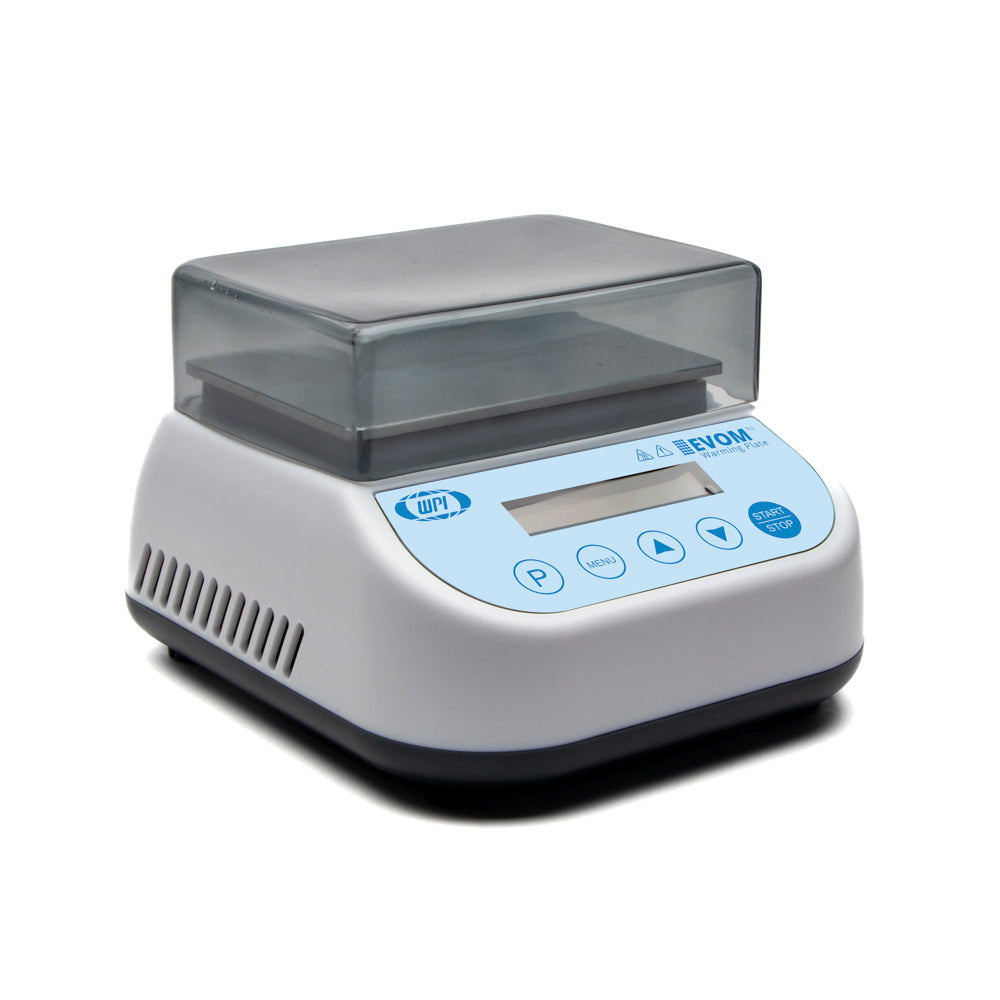

EVOM™ Warming Plate

  • Scientific laboratory scale with digital display on a white background
  • Gray machine with a transparent lid on a white background
$700
$700

EVM-AC-03-03-02

Prices valid in USA, Canada, and PR only.

Go Beyond Temperature Monitoring–Actively Maintain Your Sample Plate at a Stable 37ºC for Optimal Results
The EVOM™ Warming Plate is a sample warming platform that actively maintains the physiological temperature of 37°C, ensuring stable and reliable TEER measurements when used with an EVOM™ Manual and an STX4 or STX HTS electrode. Unlike mere temperature monitoring, which only alerts users to fluctuations, maintaining the correct temperature prevents variability, enhances data accuracy, and preserves cell integrity. With warming parameters preset for users’ convenience, this system eliminates guesswork and provides a consistently controlled environment for optimal experimental results. Although Warming Plate is primarily for EVOM/TEER measurement, it also gives users flexibility for other applications which requires temperature range from 30°C to 45°C.

Details

Features

  • Compact 6, 12, 24, and 96 well plate warming platform
  • Maintain sample temperature outside the incubator
  • Fast temperature equilibration/stabilization for TEER measurement
  • Heat a sample well plate from room temperature to 37°C in less than 12 minutes

Benefits of EVOM™ Warming Plate

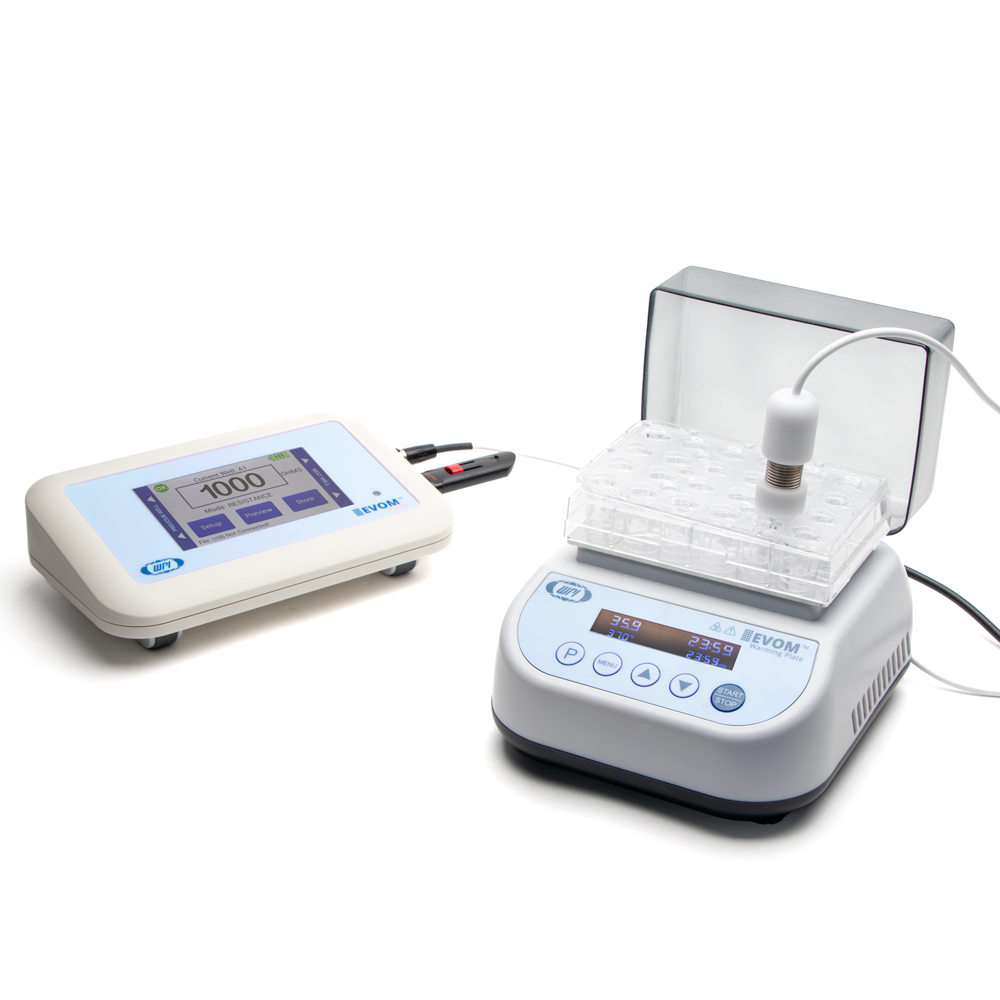

  • Maintain the sample plate temperature at 37°C, the same as the incubator temperature, while the resistance/ TEER values are measured with WPI’s EVOM™ Manual and a pair of chopstick electrodes, such as STX4 or STX HTS.
  • Minimize the effect of temperature fluctuation by taking measurements at the physiological temperature
  • Save time by eliminating the need for room temperature equilibration before measurement
  • Warm a sample well plate to the (incubator like) temperature of 37 °C
  • Provide options for needs to keep plate at different temperatures (30°C ~ 45°C) than standard 37 °C.

Resources

The older version of EVOM™ Warming Plate (EVM-AC-03-03) Instruction Manual



Specifications

Type Description
Warming plate system weight 3.5 lbs; Packaged (4.5 lbs)
Dimension (L x W x H) 17 x 16 x12 cm
Working environment 20-25°C, 35-50% (relative humidity)
Ideal temperature range Room temperature +5–25°C
Temperature range 37.0 °C (Program #1), 30.0°C-45.0 °C (Programs #2–9)
Temperature stability ±0.5 °C
Display accuracy 0.1 °C
Heating time < 12 min from room temperature
Timing range 6 h 00 min (Program #1), 0–6 h 00 min (Programs #2–9)
Power supply VAC100-240, 50/60Hz, VDC24V-4A
Power 96 W*
Certifications CE



* US power cord is included with the warming plate. (If the product is shipped outside of the USA, the appropriate power cord is included, based on the
shipping destination country.)
