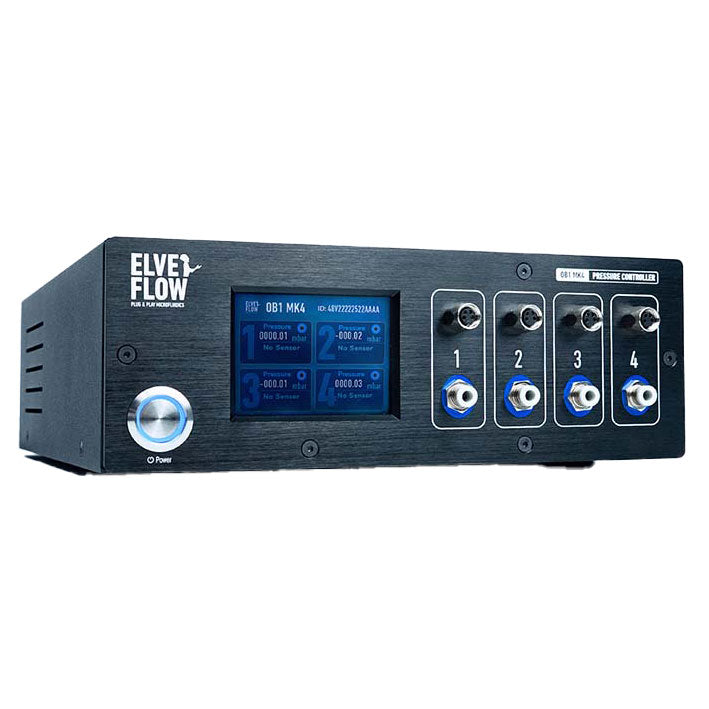

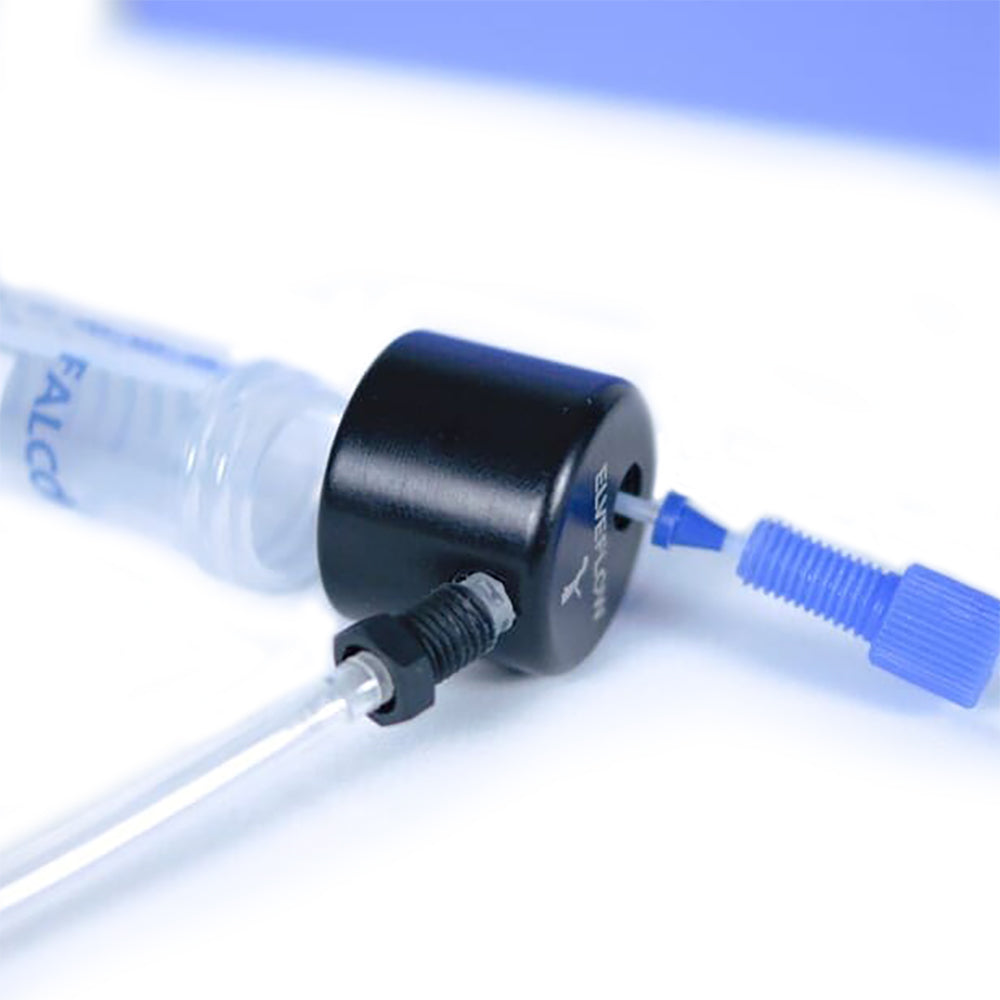

ElveFlow OB1 Microfluidic Pressure Regulator

Options

Order code	Elveflow Cross Reference SKU	Description
OB1-1-200	OB1_4-1000	ElveFlow OB1 Pressure Regulator, Single Channel, Eject Only, 200mbar
OB1-1-2000	OB1_4-2000	ElveFlow OB1 Pressure Regulator, Single Channel, Eject Only, 2000mbar
OB1-1-8000	OB1_4-3000	ElveFlow OB1 Pressure Regulator, Single Channel, Eject Only, 8000mbar
OB1-1-1000	OB1_4-4000	ElveFlow OB1 Pressure Regulator, Single Channel, Push/Pull, 1000mbar
OB1-1-6000	OB1_4-5000	ElveFlow OB1 Pressure Regulator, Single Channel, Push/Pull, 6000mbar
OB1-2-200	OB1_4-1100	ElveFlow OB1 Pressure Regulator, Dual Channel, Eject Only, 200mbar
OB1-2-2000	OB1_4-2200	ElveFlow OB1 Pressure Regulator, Dual Channel, Eject Only, 2000mbar
OB1-2-8000	OB1_4-3300	ElveFlow OB1 Pressure Regulator, Dual Channel, Eject Only, 8000mbar
OB1-2-1000	OB1_4-4400	ElveFlow OB1 Pressure Regulator, Dual Channel, Push/Pull, 1000mbar
OB1-2-6000	OB1_4-5500	ElveFlow OB1 Pressure Regulator, Dual Channel, Push/Pull, 6000mbar
OB1-3-200	OB1_4-1110	ElveFlow OB1 Pressure Regulator, Three Channels, Eject Only, 200mbar
OB1-3-2000	OB1_4-2220	ElveFlow OB1 Pressure Regulator, Three Channels, Eject Only, 2000mbar
OB1-3-8000	OB1_4-3330	ElveFlow OB1 Pressure Regulator, Three Channels, Eject Only, 8000mbar
OB1-3-1000	OB1_4-4440	ElveFlow OB1 Pressure Regulator, Three Channels, Push/Pull, 1000mbar
OB1-3-6000	OB1_4-5550	ElveFlow OB1 Pressure Regulator, Three Channels, Push/Pull, 6000mbar
OB1-4-200	OB1_4-1111	ElveFlow OB1 Pressure Regulator, Four Channels, Eject Only, 200mbar
OB1-4-2000	OB1_4-2222	ElveFlow OB1 Pressure Regulator, Four Channels, Eject Only, 2000mbar
OB1-4-8000	OB1_4-3333	ElveFlow OB1 Pressure Regulator, Four Channels, Eject Only, 8000mbar
OB1-4-1000	OB1_4-4444	ElveFlow OB1 Pressure Regulator, Four Channels, Push/Pull, 1000mbar
OB1-4-6000	OB1_4-5555	ElveFlow OB1 Pressure Regulator, Four Channels, Push/Pull, 6000mbar

Cutting-edge Microfluidic Flow Controller

Designed by scientists, for scientists. The versatile and powerful ElveFlow OB1 MK4 pressure controller provides the perfect flow control for all kinds of applications requiring utmost control and accuracy. Whether you need pressure or vacuum control, at an ultra low or high flow rate, or for short to week-long studies, the OB1 MK4 is the ideal instrument for your microfluidic needs.



The Best Performance in the Market: Piezoelectric Technology

The Elveflow OB1 MK4 is the only microfluidic flow control instrument worldwide to use piezoelectric
regulators. The piezoelectric technology gives you 20 times more precise and 10 times faster
flow control than any other flow controller on the market.



Customizable & upgradable

 -A modular system, up to 4 channels, and 5 pressure  & vacuum ranges      available

 -The OB1 MK4 can be configured according to your needs. In one piece of      equipment, you can have up to
 -4 pressure and/or vacuum channels (and other customized options). If your    needs change, the instrument
can be upgraded later, in any way you want.





Get the Fastest Flow Rate Control: Pair with a Flow Sensor

-Connect the OB1 MK4 to a water resistant liquid flow rate sensor for use with single solution workflows (MF1-5+), or our premium Coriolis flow sensors. Coriolis BFS flow sensors are suited to work with both liquid and gas: directly control the flow rate in your chip using multiple solutions. The OB1 MK4 system continuously calculates the pressure and maintains the desired and constant flow rate paired with flow sensor feedback.



Full control software, SDK, and UART communication

 -Single and intuitive software to get started in a few clicks and automate the  most complex and long
experiments. The SDK libraries allow you to control the OB1 MK4 using your  own code while connecting
it to other instruments. The MK4 is also equipped with UART communication  protocol in addition to the
 ESI and SDKs control, allowing it to communicate with most control systems, such as Mac, Linux, Arduino,
PLC.

Advantages of Pressure Control in Microfluidics

• Fast settling time (down to 40ms)
• High stability and pulseless flow
• Possibility to handle fluid volumes of several liters
• Enable both flow and pressure control when used with a flow meter

For more details about Pressure driven flow control, please read these Application notes.

Get the Perfect Microfluidic Instrument		Directly connect a flow sensor Control the flow inside your microfluidic setup By connecting a MFS or BFS  Flow Sensor to the OB1 MK4,  you enable direct rapid and precise regulation of the flow  rate. The PID algorithm of the  software reads the flow rate  and adjusts the pressure  accordingly to reach the target  flow rate with speed and precision.
5 pressure ranges for each channel Choose the pressure range best suited to your needs WPI offers several ElveFlow pressure channel options available covering a wide range, up to 8000 mbar (116 PSI) and down to  -900 mbar (-13 PSI). Choose the pressure channel that covers your experimental pressure requirements.		Choose between 1 to 4 channels, and more… How many channels do you want? The OB1 MK4 is a compact module that can accommodate up to 4 channels (pressure and/or vacuum). Each module can be upgraded at any time and have channels added or changed. You can control as many channels as you want with one computer. Need more channels on one module (8, 16, 64…. or even more)? Our custom service would design a specific pressure controller that fits your needs.

Software

A free software for all instruments
Powerful, modular and versatile set-up control solution
The ESI software can control up to 16 Instruments through the same interface. Thanks to TTL triggers you can synchronize your Elveflow system with any other instrument used in your laboratory (microscope or any electrical instrument … ). The Scheduler is a user-friendly tool to automate complex steps of your experiments and protocols.









Options

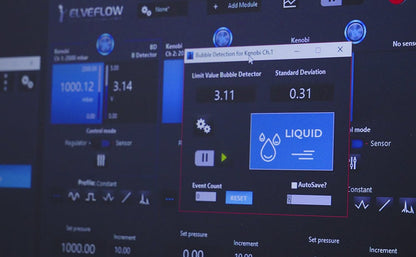

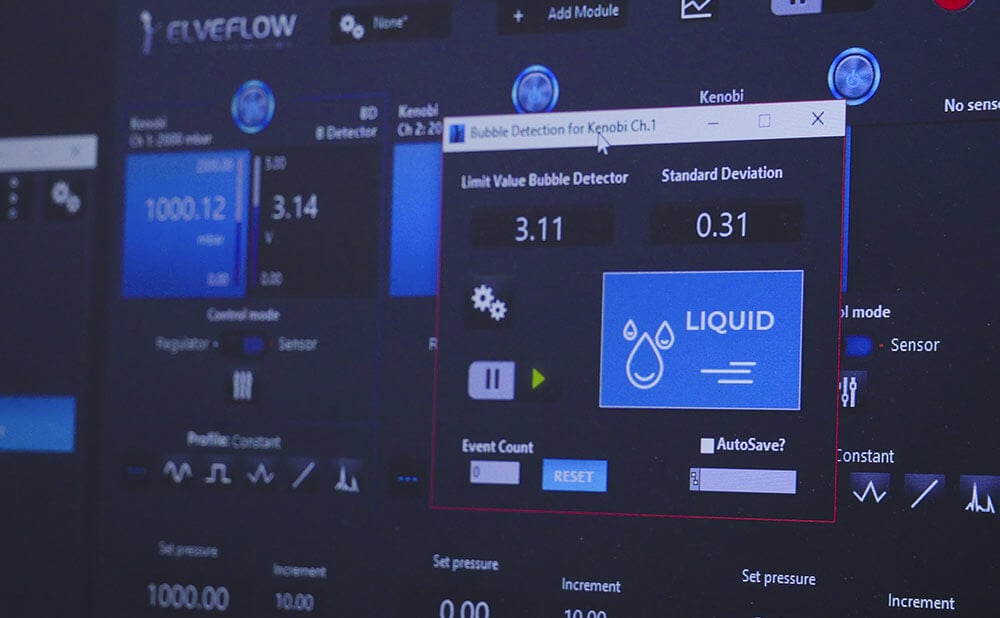

Volume Injection Module Enter your targeted volume and this module will automatically adjust the flow rate at the right time to inject it.	Fluidic System Optimization Module Automatic diagnostic of the fluidic path sizing and recommendations to improve your microfluidic setup.	Bubble Detection  Module Do not suffer anymore because  of bubbles! Quickly detect air in  your set up to ensure rapid  removal and avoid data confounds.	Sensor calibration module Don’t lose precious time in calibration protocols.



OB1 MK4 User Manual

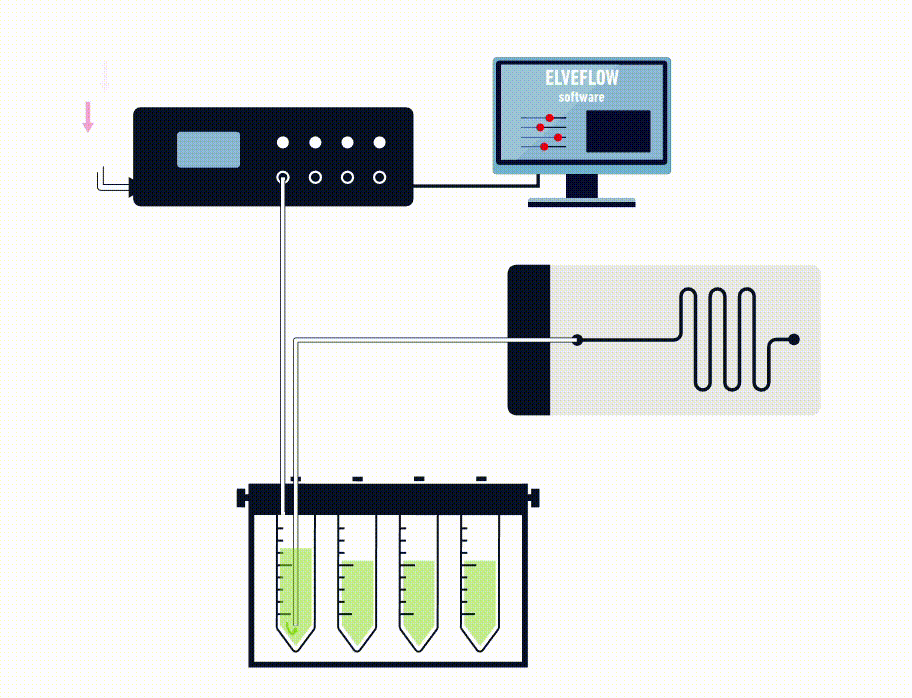

What is a Microfluidic Pressure-Driven Flow Controller?

Unboxing the OB1 Microfluidic Pump

Download Software & SDK for Elveflow Smart Interface

User Friendly and Cost Effective

• Cost-effective solution: one sensor’s operating range covers the ranges of several standard microfluidic sensors.
• No calibration required
  Stand alone sensor: plug the sensor directly to your computer to measure the flow rate.
• Excellent repeatability and long-term stability
• Excellent accuracy: down to 0.2 % of measured value accuracy
• Easy to install and use
• Low risk of gas bubble inclusion

How does a Coriolis flow meter work?

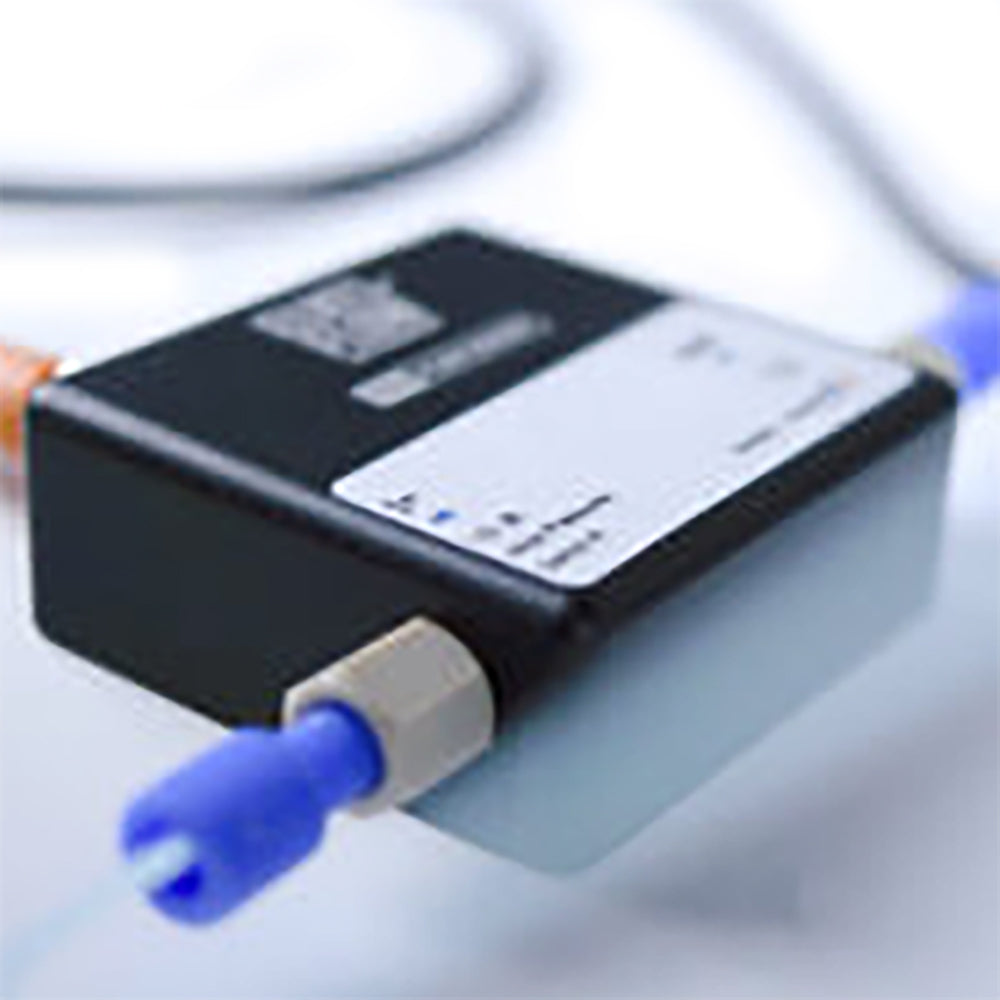

A microfluidic Coriolis flow sensor contains a U-shaped loop which constantly vibrates. When a fluid flows through this vibrating loop, Coriolis forces are generated and bend or twist the tube. The extremely small tube displacements are detected by sensors and fed to the electronic board. Since the measured phase shift is proportional to the mass flow, the Coriolis flow rate sensor measures the mass flow directly. This measurement principle is very accurate, fast and, more importantly, independent of the properties of the fluid (density, temperature, viscosity, pressure, heat-capacity or conductivity).

FAQ

Q: What pressure range should I choose?

A: The performances of the OB1 (for example, the pressure stability) is tied to the full operating pressure range. In order to achieve optimum performance, we recommend our users to choose the smallest pressure range that covers the required experimental pressures.

Q: Can I achieve direct flow control?

A: PID LOOP FOR FLOW CONTROL
By coupling a MFS or BFS flow sensor to the  OB1 flow controller, you can use the software to directly control the flow rate by directly inputting the flow rate value. The EIS software uses a PID loop to control the flow rate by setting automatically the pressure to reach the requested flow rate. Doing so, you can benefit of the best of the two worlds to get a fast and precise (pressure driven) volume flow rate (flow sensor).

Q: Do I need a pressure and/or vacuum source to operate the OB1 pressure controller?

A: Yes, you will need a pressure source to work with the OB1 pressure controller. You can either use the air supply of your lab if there is one, use a compressed air bottle or use an air compressor. WPI supplies compressors selected by Elveflow that are perfectly fitted for most application using the OB1. If your OB1 has a vacuum channel, you will need a vacuum pump. WPI also supplies Elveflow external pumps that work perfectly with the OB1.

This table summarizes the main specifications of the Elveflow® OB1 MK4 pressure controller. To provide quality & performance, all of our instruments are tested and calibrated independently (response time, stability, repeatability… ) after being assembled and all test results are kept.

*Non-contractual information, may be changed without notice

1. Max pressure value might vary by +/- 2.5%
2. Pressure stability (standard deviation) measured over the full pressure range with an external high accuracy pressure sensor (Druck DPI150) (3) Time required to reach 5% of the setting point. Depends on the computer operating system (4) Time required to reach 95% of the set point. Volume dependent – Measurement was done on 12 mL reservoir for a set point from 0 to 200 mbar (5) A vacuum source is mandatory for calibration and use of dual channels even if the channels are to be used in pressure only.

FLOW CONTROL
Flow sensor compatibility	Compatible with the whole MFS and BFS range Monitoring and feedback loop flow control available
Flow rates	From 0,1 µL/min to 500 mL/min (indicative, please refer to the MFS and BFS series)
Liquid Compatibility	Non contact pump Any aqueous, oil, or biological sample solution.
CONTROL & MONITORING
Software control	Elveflow Smart Interface Windows 7, 8 and 10, both 32 and 64 bit versions supported
Software Development Kit	Librairies available: Matlab, Python, Labview, C++ Windows 7, 8 and 10, both 32 and 64 bit versions supported Serial/UART communication protocol on request
Data management	Possibility to log and extract data (.csv): channel and sensor detailed information using ESI
Input profiles	Possibility to load profiles: ramp, sine, triangle, square or custom
Automation	Generate step-by-step sequences using the ESI built-in sequencer Load and save custom configurations (.csv)
Screen	LCD screen showing pressure and sensor from the channel

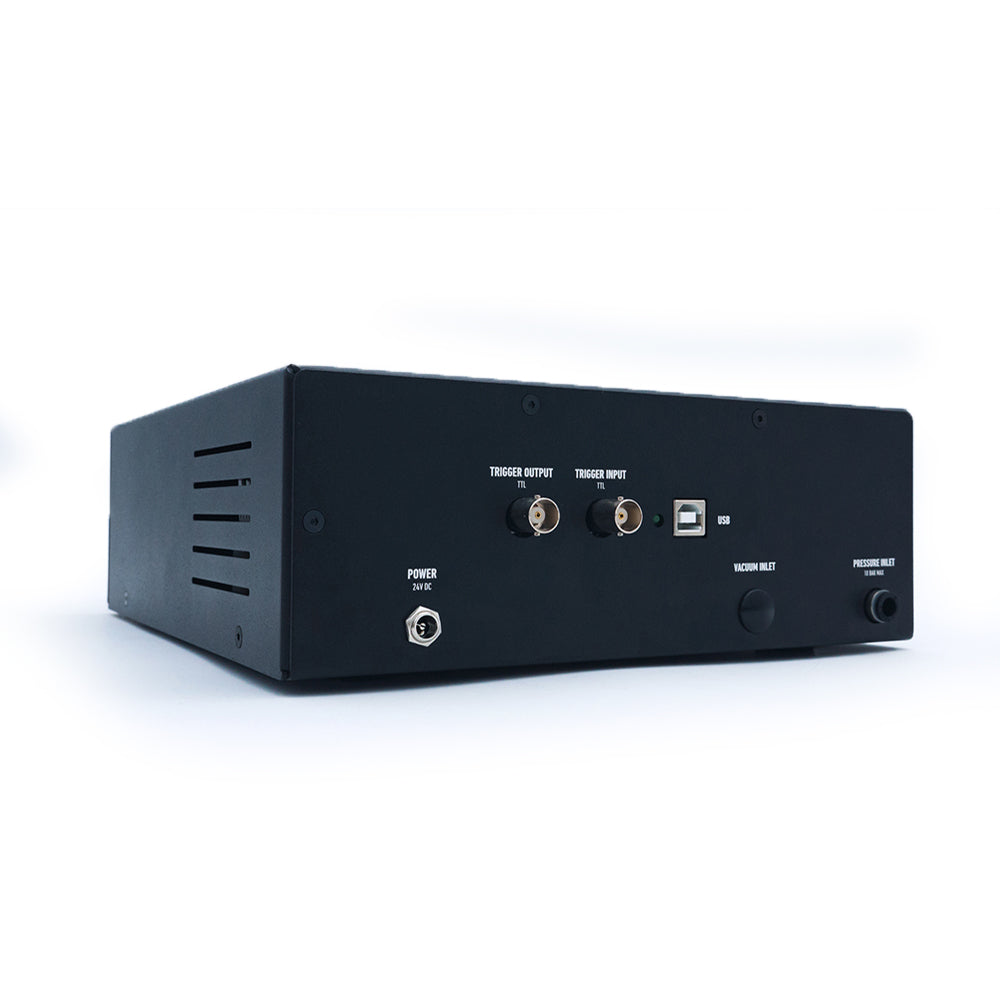

ELECTRICAL CONNECTION
USB connection	USB B

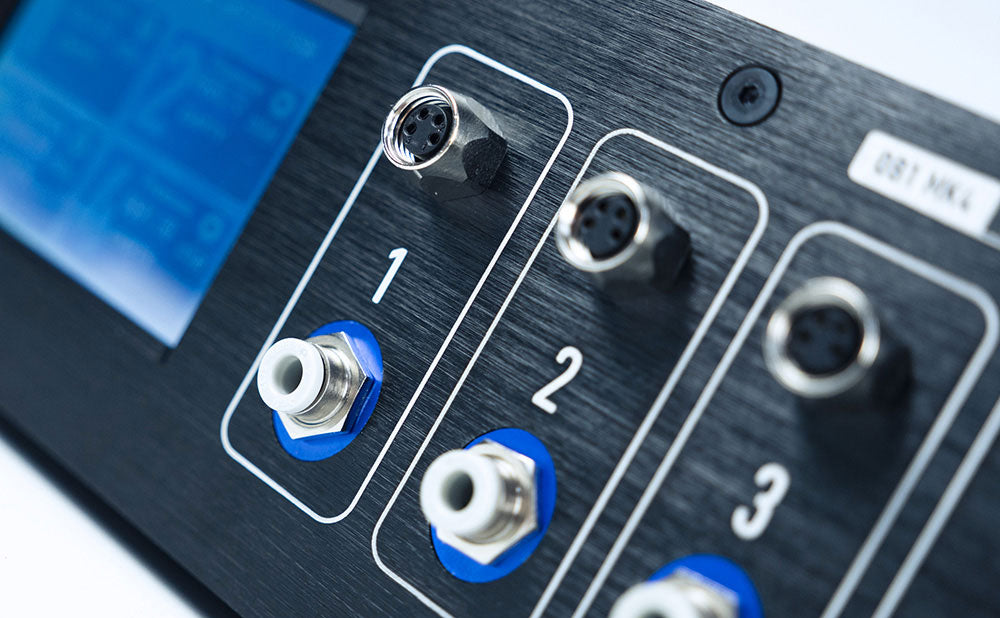

Sensor connection	One M8-4 pins connecter available per channel Compatible with Elveflow sensors: MFS, MPS, MFP, MBD Custom analog sensor supply: 5-24VCustom analog sensor readout : 0-10V
TTL trigger	In and out available 0-5V
OTHER
Power consumption	12 W (100 V to 240 V – 50 Hz to 60 Hz)
Casing dimensions (5)	(length x width x height): 240 x 223 x 80 mm
Weight	1.4 kg to 2.9 kg

*Non-contractual information, may be changed without notice
