SU-MPC365 Motorized Micromanipulator Systems

Narrow format manipulator designed especially for patch-slice manipulator systems that require more than 2 or 3 pipettes

Features

• Single controller and ROE will run two stepper motor drive manipulators
• Simple USB interface
• Toggle switch selects which manipulator is connected to input device
• LED and display indicate active manipulator
• Low-drift mechanical stability
• Narrow stand with linear slide or rotating base mounting options

Options

Benefits

• Self-detecting, daisy-chain capability allows control of four manipulators from one ROE-200
• User-friendly interface: single button access to all major functions
• New Accelerated Mode for fast, manual manipulator movement
• Easy toggle selection of Mode (speed/resolution, pulsed diagonal, Accelerated Mode)
• Display indicates X, Y, Z coordinates, Mode, and active manipulator
• Robotic Home and Work Position moves for easy automated pipette exchange
• Faster robotic moves than previous versions
• Definable 4th axis for coaxial pipette movement, angle selected by DIP switches

Applications

• Patch-slice manipulator systems that require more than 2 or 3 pipettes as well as for other setups where space is limited

The SU-MP265/M mechanical builds on our existing manipulator line in several ways. First, the narrow format means more manipulators can be grouped around a recording chamber. Next, the narrow format SU-MP265/M allows a high precision manipulator to be inserted into small spaces in existing setups. Finally, travel in the Y-axis is shortened (12.5 mm) both to economize on width and because radially oriented manipulators do not require long travel in the traverse axis.

The SU-MP265/M manipulator is designed specifically for systems requiring 4 or more manipulators. To this end, we have put together systems with special pricing for 4, 5 and 6 manipulators, and 2 or 3 dual manipulator controllers. The optional narrow-format stand and linear slide or rotating base is available for mounting the SU-MP265/M manipulators. With the 150 mm throw of the linear slide, the manipulator can be quickly and smoothly moved out to a location where there is easy access to the pipette for replacement. A rotating base can be used for mounting to large platform stages like the Sutter MT-78, or smaller Sutter MD Series platforms.

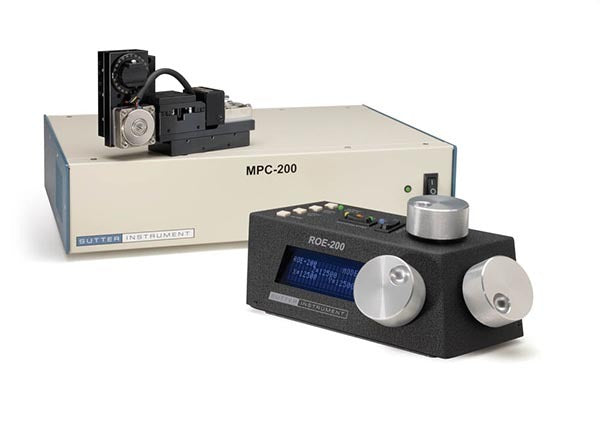

The SU-MPC365 systems are formed by using the popular MPC-200 dual manipulator controller and ROE-200 (#505083), with one or more SU-MP265/M mechanicals. A single MPC-200 controllers and ROE-200 can run one or two SU-MP265/M manipulators. A single ROE-200, when paired with two MPC-200 controllers can control up to four SU-MP265/M manipulators. If you require more manipulators in a single setup, you simply duplicate the smaller systems. A new firmware version of the MPC-200/ROE-200 automatically recognizes the SU-MP265/M mechanical and adjusts accordingly.

Video

Micromanipulation

Instructional Videos

CE and RoHS compliant
