Quad 4-Axis Motorized Micromanipulator

$9,520
$9,520

SU-QUAD-L

$9,520
$9,520
Right/Left handed

Prices valid in USA, Canada, and PR only.

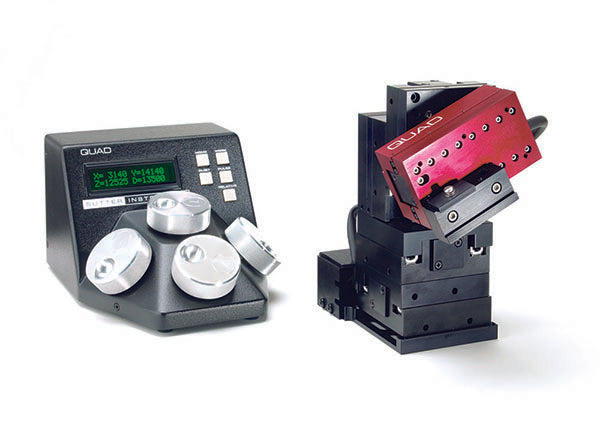

The QUAD® motorized micromanipulator is easy to use and features four independent axes. Each axis has a 25 mm range of motion, a digital display of position and a control box. The compact, intuitive controller takes up minimal bench space, is fan free and is easy to use. Three axes provide the X, Y, Z-orthogonal motion typical of most motorized micromanipulators. The QUAD features a true fourth axis to move the electrode coaxially at exactly the desired angle of approach. The fourth axis has 30 mm of travel that significantly extends the range of travel for the system.

ACCESSORIES

Details

4-axis motorized manipulator with 25 mm of movement on each axis

Features

  • Four independent axes - 30 mm travel in diagonal for coaxial pipette movement, 25 mm travel in X, Y and Z
  • Sub-micron 100 nm resolution
  • Quiet mode eliminates electrical noise
  • True diagonal assures coaxial movement
  • USB interface for computer control

Options

Order code Controller
SU-QUAD-L 4-Axis Motorized Micromanipulator, left hand
SU-QUAD-R 4-Axis Motorized Micromanipulator, right hand

Download the current data sheet.

Benefits

  • Compact, fanless, user-friendly control box preserves bench and rack space
  • Push button control of multiple functions - WORK, HOME, LOCK, PULSE and RELATIVE
  • Robotic HOME and WORK position moves for easy automated pipette exchange
  • Display indicated coordinates in relative or absolute values
  • Five conveniently located control buttons
  • When you are ready to begin collecting data, the motor drive electronics can be supressed

Applications

  • Suited for in vivo and in vitro electrophysiological recording
  • Cell penetration
  • Applications with noise-sensitive recordings



The QUAD® is very easy to operate. The compact design takes up minimal bench space, has a control box, a digital display of position, is fan free and intuitive to use. The control box inputs for each axis allow facile manual control of electrode position. Five conveniently located buttons control all of the basic functions that you will need in normal operation. Press and hold the [WORK] button to quickly store a work position; press [WORK] again and the manipulator will return to the same location. [HOME] sends the manipulator to an initial location or any user defined position, which is useful for changing electrodes rapidly. When you are ready to begin collecting data the motor drive electronics can be suppressed by pressing [LOCK]. Display coordinates can be zeroed at any location by pressing [RELATIVE]; go back to absolute coordinates by pressing [RELATIVE] again. Finally, [PULSE] activates a pulse movement mode that produces small, rapid bursts of motion that can be advantageous for sharp electrode cell penetration.

Resources

Video

Micromanipulation





Instructional Videos



Specifications

Travel 30 mm on the diagonal 4th axis
25 mm on the X, Y and Z axes
Control Box 5.5 x 7.5 x 4" (14 x 19 x 10.2 cm)
Weight 2.2 lbs. (1.0 kg)
Power 115/230 V, 50/60 Hz
