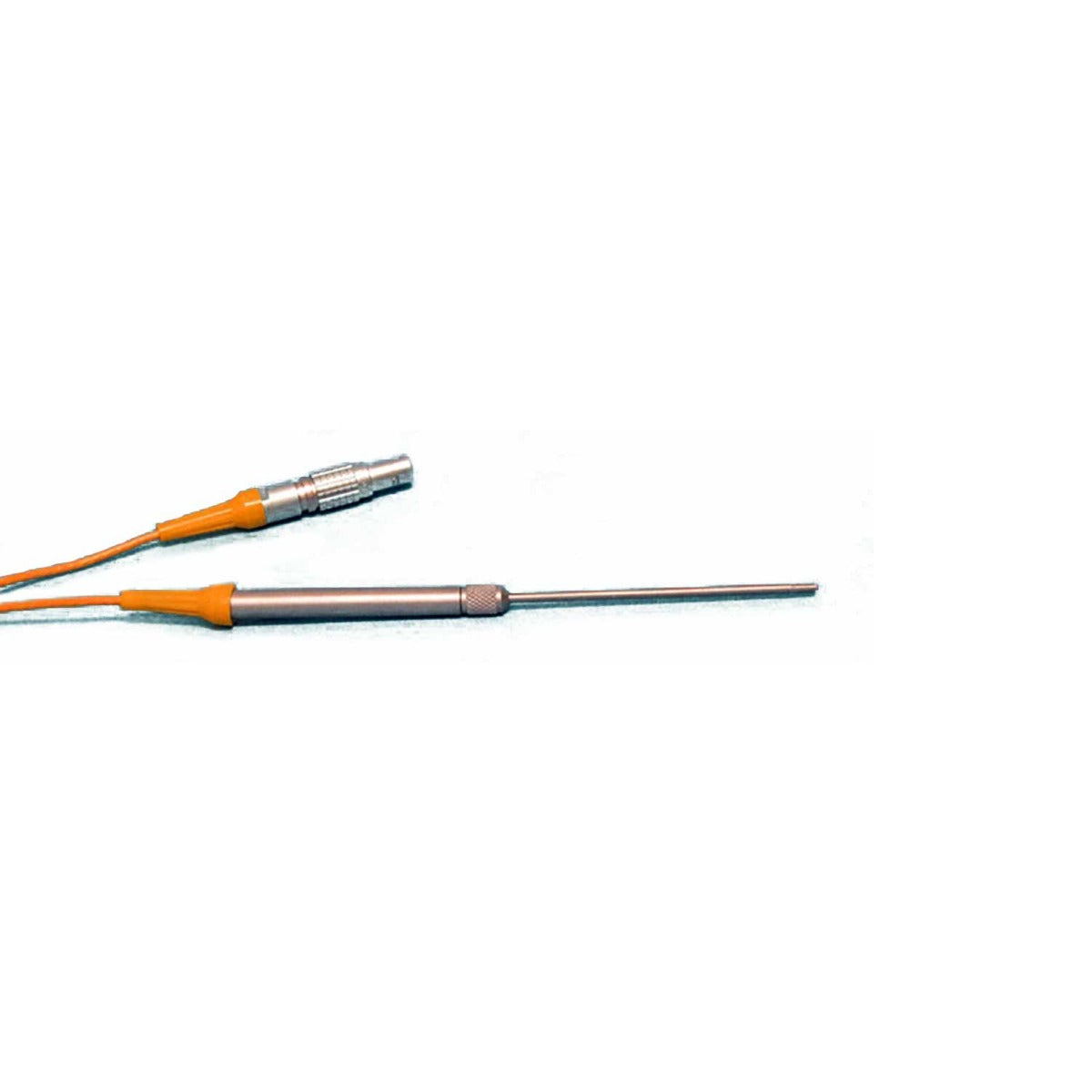

ISO-COP-2 Carbon Monoxide Sensor - 2mm
ISO-COP-2
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.
Carbon monoxide (CO) is a versatile mediator of physiological processes. Carbon monoxide (CO) formed by internal mechanisms (endogenous) is measured in a variety of ways, but standard measurement methods are of limited utility in most biological systems. WPI's ingenious ISO-COP-2 CO sensor measures CO in vivo or in vitro in real time!
ACCESSORIES
Details
Details
Click here to view the latest data sheet.
Features
- For use with Apollo1000, Apollo4000, TBR4100 and TBR1025
- Response Time: <10 sec
- Lowest Detection Limit: ~10nM
- Sensitivity: ~0.5pA/nM
- Application: Cell Cultures
- Package of 1
This CO sensor is comprised of a 2.0mm stainless steel body with a replaceable membrane-covered sleeve. The sleeve is filled with electrolyte. It is an amperometric sensor designed for use in cell culture and similar applications.
In principle, CO diffuses through the gas-permeable membrane and is then oxidized to CO2 on the working electrode of the sensor. This oxidation creates a current with a magnitude directly related to the concentration of CO in solution.
It is designed for use with WPI's TRB4100 (4-Channel) or TBR1025 (1-Channel) Free Radical Analyzers.
NOTE: The 2mm biosensors come with a spare membrane sleeve, 1cc syringe, an MF28G67 MicroFil needle and 10mL of filling solution.
Resources
Resources
References
References
Related Products
-

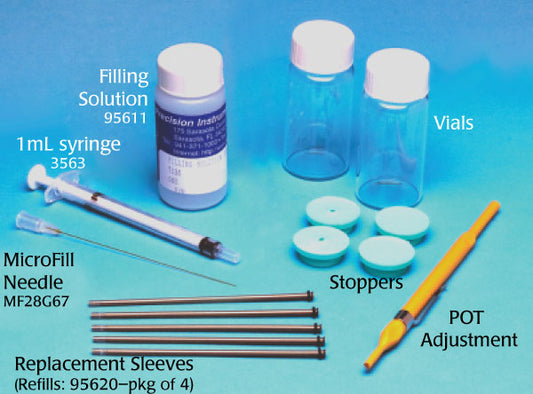

Start-up Kit for ISO-COP-2 Sensor
