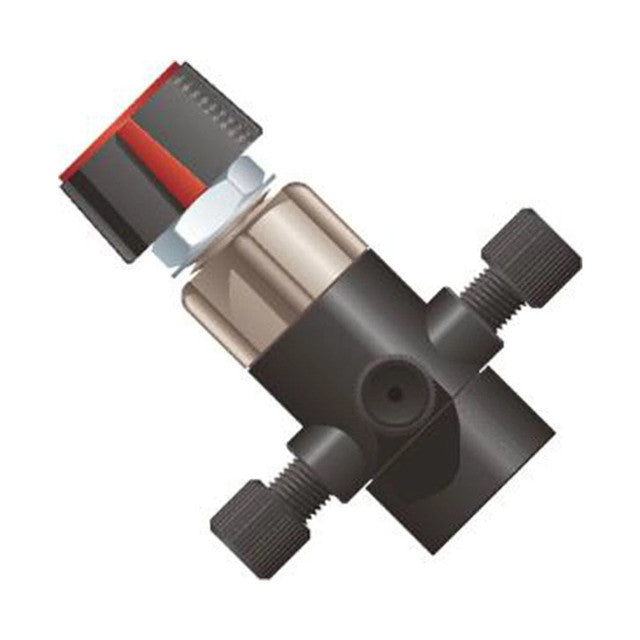

Kit: 4-Port Manual Switching Valve

$366
$366

505967

From $252 - $366
From $252 - $366
Options

Prices valid in USA, Canada, and PR only.

The 4-Port manual switching valves are useful when requiring re-routing or manipulation of ports during a microfluidic study. Its design allows for the valve to be easily placed in a specific support, such as a vertical valve bracket, or integrated in a bulkhead. Further, the switch valve is useful when needing to stop flow during cleaning, column replacement or other operations without disconnecting your system. Recommended for use with WPI's Elveflow microfluidic product offerings.

ACCESSORIES

Details

Options

Order code Description Detail

505967

Kit: 4-Port Manual Switching Valve, Right Angle

Contains:

  • 1x PEEK 4-Port Manual Switching Valve with female 1/4-28 threads for 1/4-28 fittings.

  • 4x ETFE Flangeless Nut Short 1/4-28 Flat-Bottom for 1/16" OD tubing.

  • 4x ETFE Flangeless Ferrule 1/4-28 Flat-Bottom for 1/16" OD tubing.

  • 1x Delrin Plug 1/4-28 Flat-Bottom

HS Code [3917400099]

505968

Kit: 4-Port Manual Switching Valve, T-Angle

Contains:

  • 1x PEEK 4-Port Manual Switching Valve with female 1/4-28 threads for 1/4-28 fittings. T angle configuration.

HS Code [3917400099]

Configurations

With the 4-Port Manual Switching Valve in the Digital Flow version you can protect sensitive components of your microfluidic setup (such as a column) during a cleaning cycle. By using this valve you do not need to remove, plug and reconnect the different elements.

Example of application of the Right Angle Flow Valve

With the 4-Port Manual Switching Valve in the Right Angle Flow version you can switch from a detector to another by using the same flow across a single column. It is possible to plug the unused port with a specific plug (included in the kit).

Example of application of the T Flow Valve



The 4-Port Manual Switching Valve in the T Flow version allows you to use two different detectors at the same time while retaining the ability to isolate each detector when needed. It is possible to plug the unused port with a specific plug (included in the kit).
