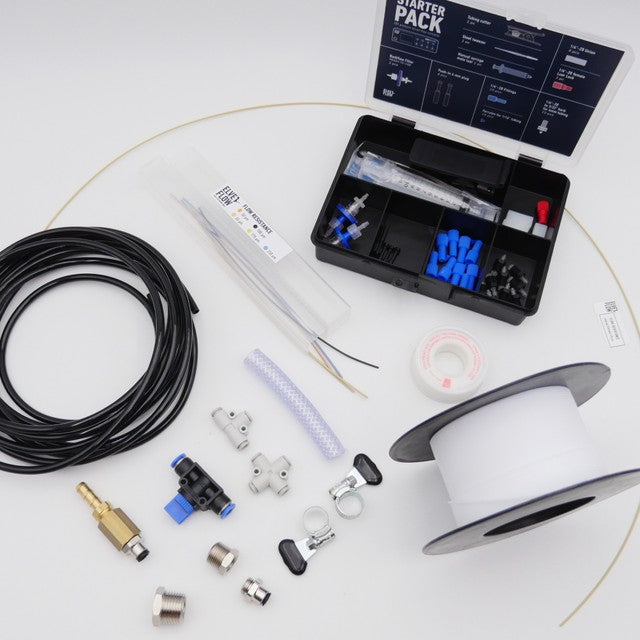

Kit Fittings: New Starter Pack, Push-in

Toolbox kit contains the fittings to go from the pressure source to the controller, the controller to the reservoirs and the reservoirs to the chips.

**Reservoirs not included**

Includes:

• PFA Nuts Flangeless 1/4-28 Fitting for 1/16 Tubing with ETFE Ferrules Flangeless 1/16 (x10)
• 1/4-28 Thread to 3/32 OD Barb (x10)
• Pneumatic strengthened PVC tubing 7 mm ID (10 cm)
• Pneumatic Tee Tube-to-Tube Adapter for 6mm OD Tubing (x1)
• Pneumatic Cross Tube-to-Tube Adapter for 6mm OD Tubing (x1)
• Steel wing hose clip,11-16mm diameter (x2)
• Tailpiece adaptor,1/4 in BSPTM x7mm hose ID (x1)
• Male parallel straight adaptor G1/4 x 6mm push-in (x2)
• Male parallel straight adaptor R3/8 x G1/4 (x1)
• Male parallel straight adaptor R1/2 x G1/4 (x1)
• Brass female sleeve,1/4in BSPP Female-Female (x1)
• Toggle Lever Pneumatic Manual Control Valve, 6 mm push-in, 10 bar (x1)
• PTFE Teflon Tubing Spare Roll 1/16 OD x 1/32 ID (50meters = 164 feet).
• Manual syringe male luer (x1)
• Female ETFE Luer Lock to Female 1/4-28 (x1)
• Male Push-In 4 mm plug (x4)
• 5µm Luer lock Filter with adaptors towards 3/32 barb connectors (x2)
• Set of flow resistances : 1/16 OD PEEK Tubing , 50 µm ID (x 20 cm) , 65 µm ID (x 20 cm) , 100 µm ID (x 20 cm) , 175 µm ID (x 100 cm + 20 cm) , 250 µm ID (x 20 cm)
• 1/4-28 to 1/4-28 internal threads Standard Union (x 4)
• Microfluidic Tubing Cutter (x 1)
• Steel tweezer with thin end (x1)
• Coil Tubing 6mm OD (5m)
• Coil Tubing 4mm OD (5m)

HS CODE [39174000]
