PZMIII Stereo Microinjection Microscope

Articulating mirror ideal for Brightfield and Darkfield applications

• Illuminated base
• Articulating mirror
• Includes base, microscope head and focus mount
• Trinocular version available
• Includes opaque, black/white contrast stage plate







Options

Order code	Type	Description
PZMIII-MI	Binocular	Binocular Microscope Head with LED illuminated base (articulating mirror)
PZMTIII-MI	Trinocular	Trinocular Microscope Head with LED illuminated base (articulating mirror)

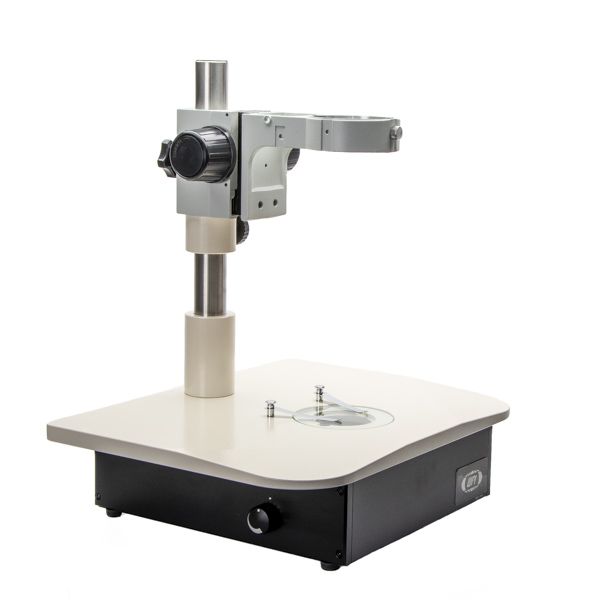

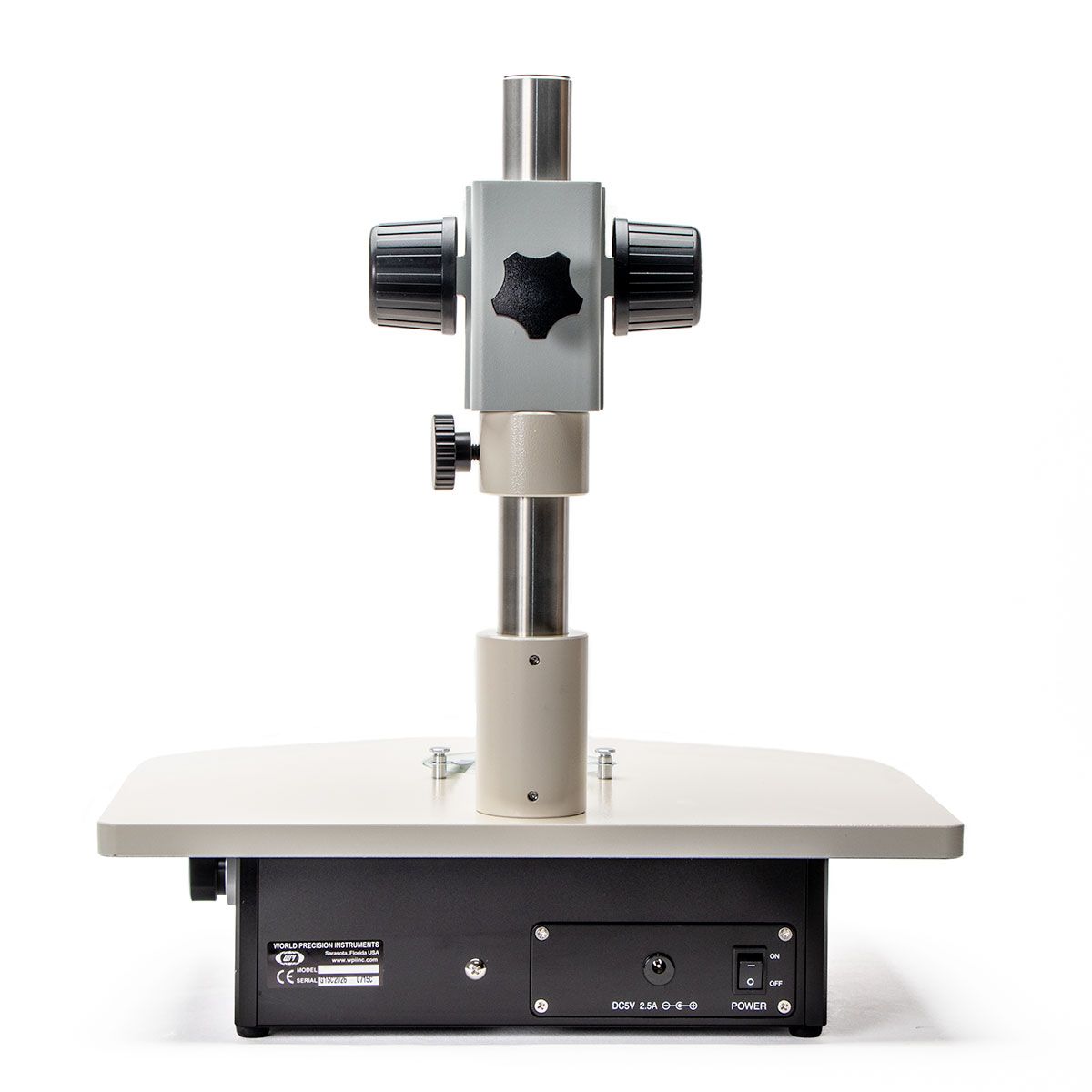

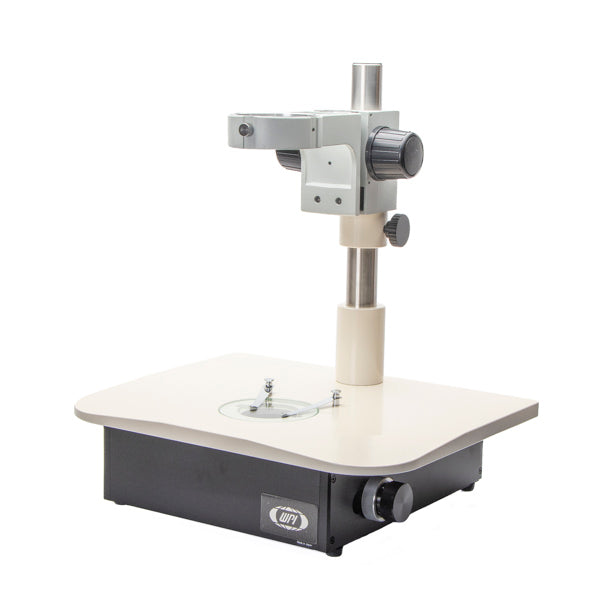

505145	Base only	Mirror Microinjection Base with 76 mm Focus Mount



Camera Comparison Chart

Benefits

• Oblique, transmitted light for low magnification view of tissues, cells or embryo transfer
• Adjustable brightfield and darkfield illumination
• Pseudo DIC illumination

Applications

• Microinjection
• Nematode research

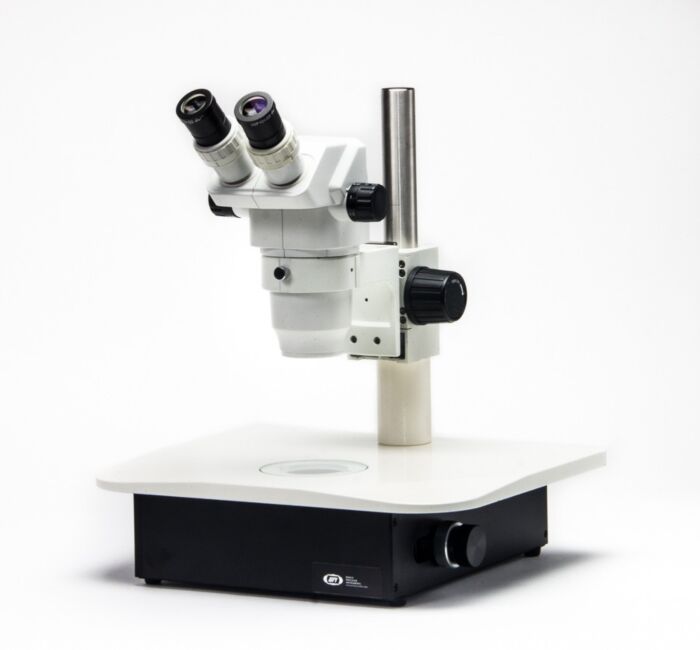

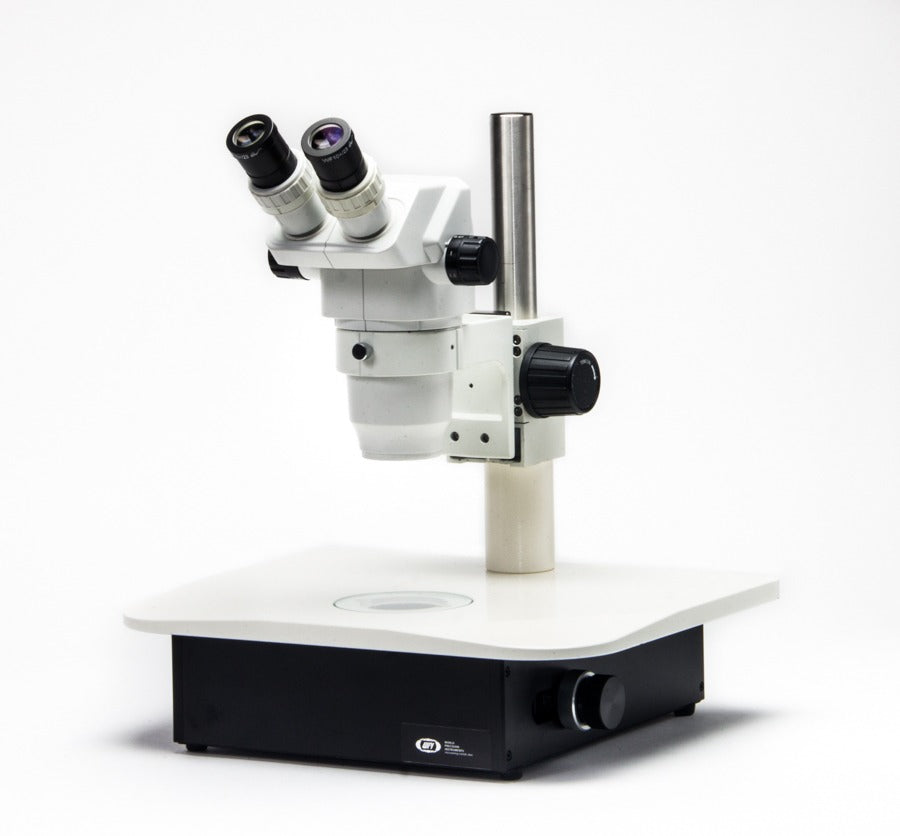

PZMIII-MI Microscope with Illuminated Base and Articulating Mirror is perfect for microinjection and transfection. It includes our standard stereo microscope head mounted on a research grade Brightfield/Darkfield pole type stand. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination.

The sliding mirror is gimbaled, allowing for a full range of movement front to back, as well as rotation. The mirror rotates 360º on one axis and can slide for further lighting effect directionally, front to back. A knob on the right of the base adjusts the mirror and a locking ring holds the desired mirror position.

The articulating mirror lets you vary the microscope illumination from Brightfield LED to Darkfield LED at an appropriate angle. It is an effective tool for viewing live bacteria. At low magnifications, view tissues, cells or embryo transfer where oblique, transmitted illumination is critical.

Systems include

The scope mounting pole diameter is 32mm.

This platform includes the PZMIII microscope, a focus mount, two stage clips, 94.5 mm glass stage plate, opaque black/white contrast stage plate and an automatic voltage sensing power supply and a 25.6cm vertical post. The base may be fitted to other microscope heads.

Microscope Options

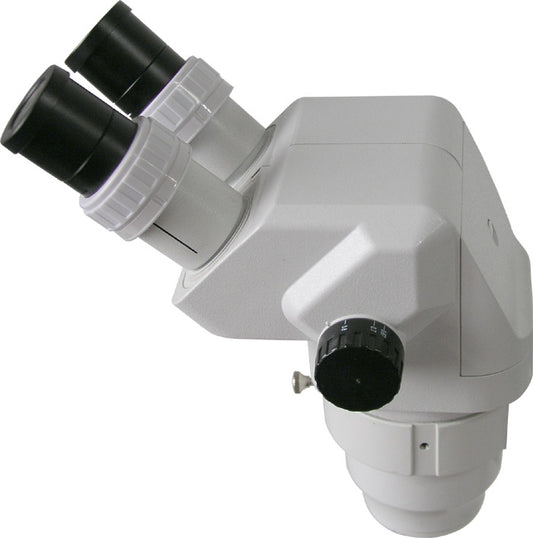

This unit is sold with our standard PZMIII binocular stereo microscope head. Other options are available. Speak with a specialist today to configure a microscope for your needs. Call (866) 606-1974 (Toll free in the USA) or email wpi@wpiinc.com. Some options are shown below:

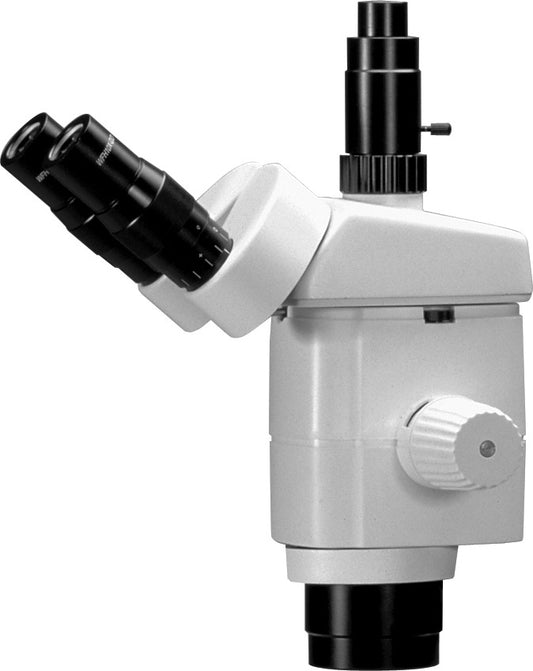

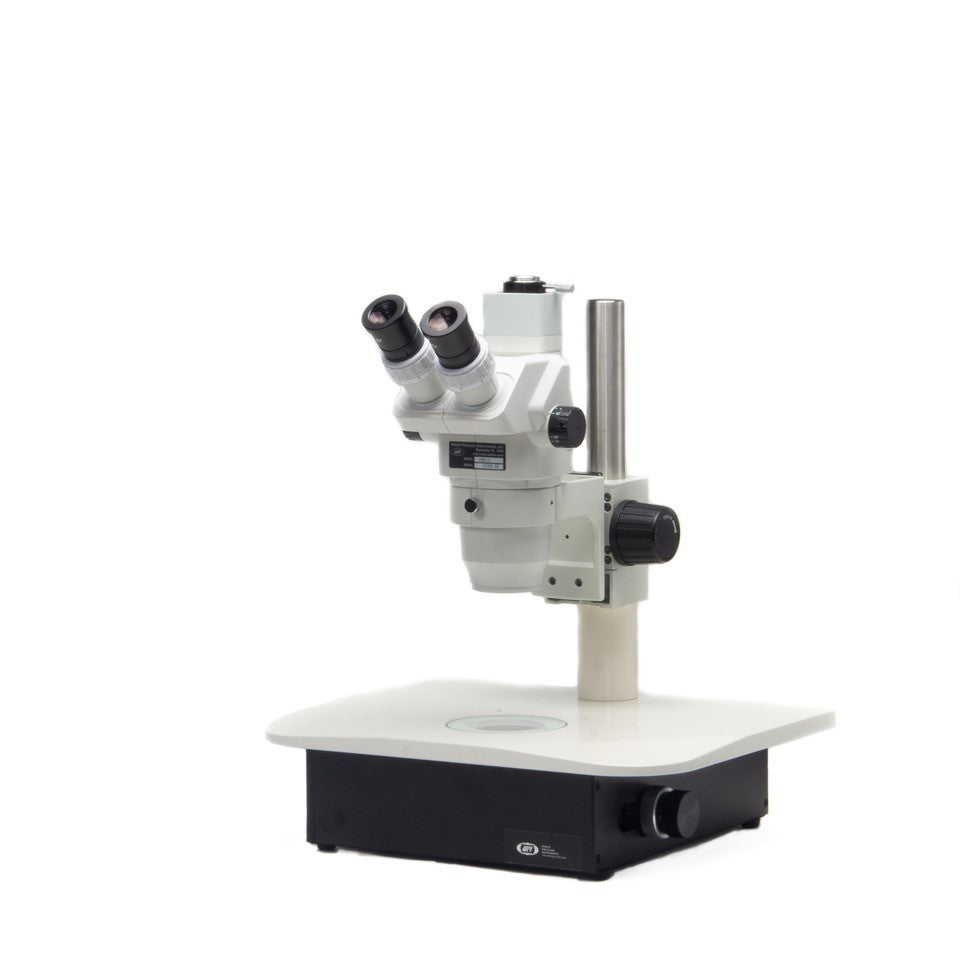

If you want to add a camera or connect with a video monitor, select a PZMTIII trinocular head for you lighted microscope base.

This trinocular microscope head has a camera attached. It also shows an M3301 mounted to the base using a M4C coupler for microinjection studies. A setup like this facilitates classroom or collaborative environments so everyone can see on the remote screen  what the researcher is viewing through the microscope.

Instruction Manual

Stereo Microscope and LED Illuminated Base with Articulating Mirror Manual

Dimensions	330 mm (13") wide by 280 mm (11") length by 85 mm (3.37") high
Pillar Height	10” (25.6 mm)
Glass Stage Plate	9.5 cm (3.75") diameter
Stage Clips	75 mm clip length, 4 mm pin, paired
Illumination Port	Built in incident and transmitted variable intensity LED illumination
Rotatable Mirror	Dual-reflection lens/mirror system provides transmitted brightfield/ pseudo-darkfield illumination
Manufacturer	Made in Japan
Warranty	Limited lifetime warranty
CE	yes
Package Information	10 lbs. 17 x 14 x 9"
