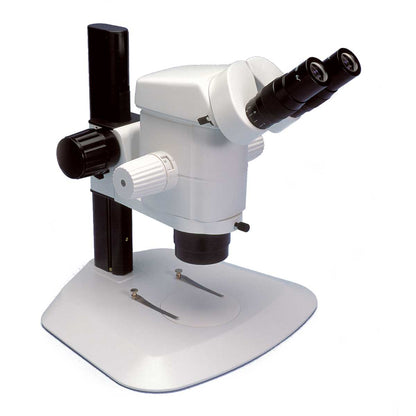

PZMIV Stereo Zoom Trinocular Microscope
Regular price
$1,578
Sale price
$1,578
Regular price
Unit price
per
502001
Regular price
From $1,578 - $2,222
Sale price
From $1,578 - $2,222
Regular price
Unit price
per
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.
Modular, two parallel beam path design with high quality optics
The fourth generation of WPI’s trinocular precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. This trinocular microscope is a true trinocular, with continuous operation of both eyepieces and photo tube simultaneously. There is no need to block the right eyepiece to use the photoport.
The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty. The microscope offers planachromatic objectives the ensure no optical distortion. It has a large zoom ratio of 8:1, and a large zoom range of 0.62x-5.0x. It has step and continuous zoom and comes with a 5-year warranty.

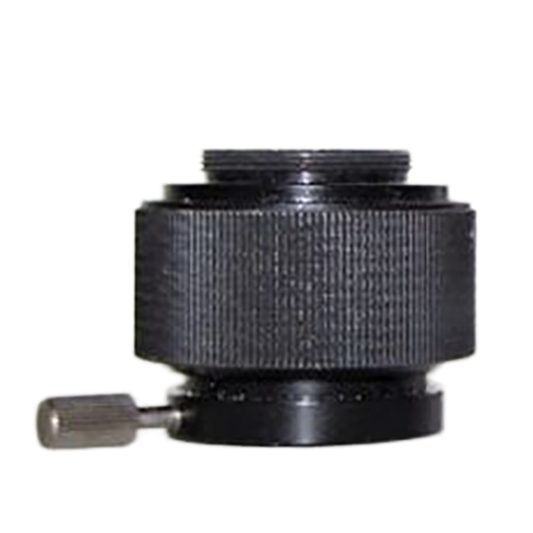

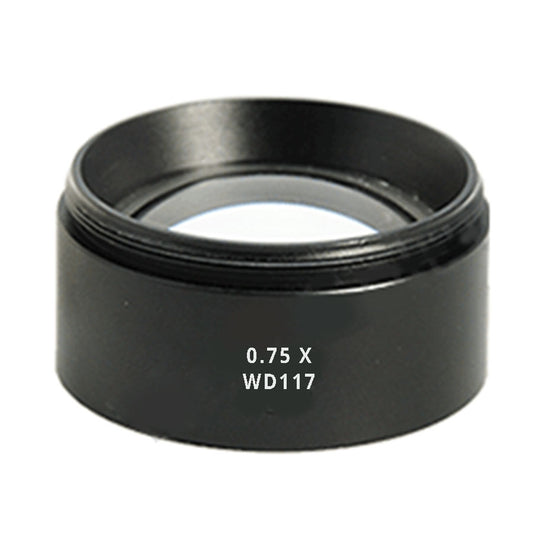

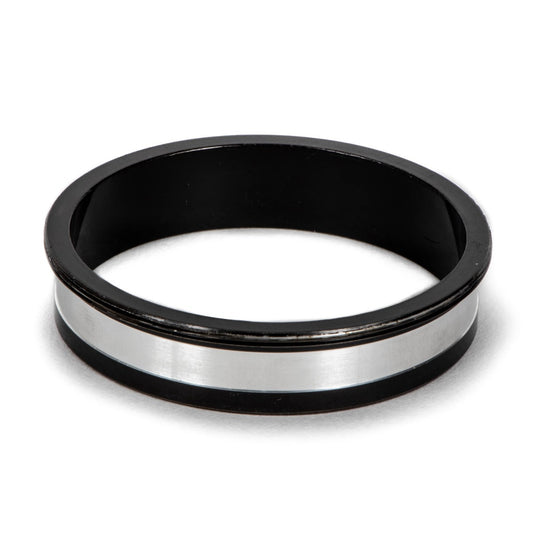

ACCESSORIES
Details
Details
Options
| Order code | Type | Description |

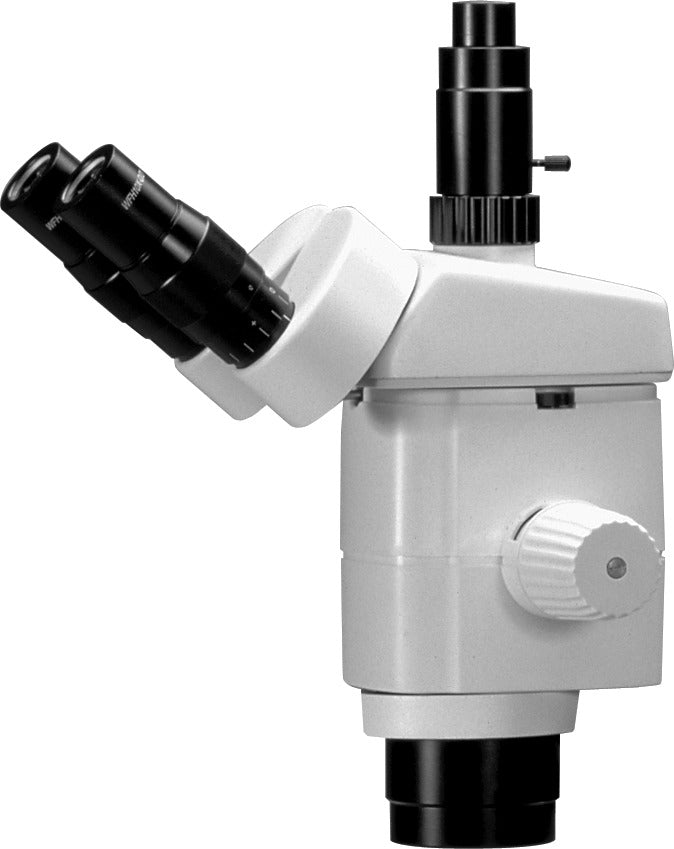

| 502001 | Head only |
|
| PZMTIV | Track Stand |
|

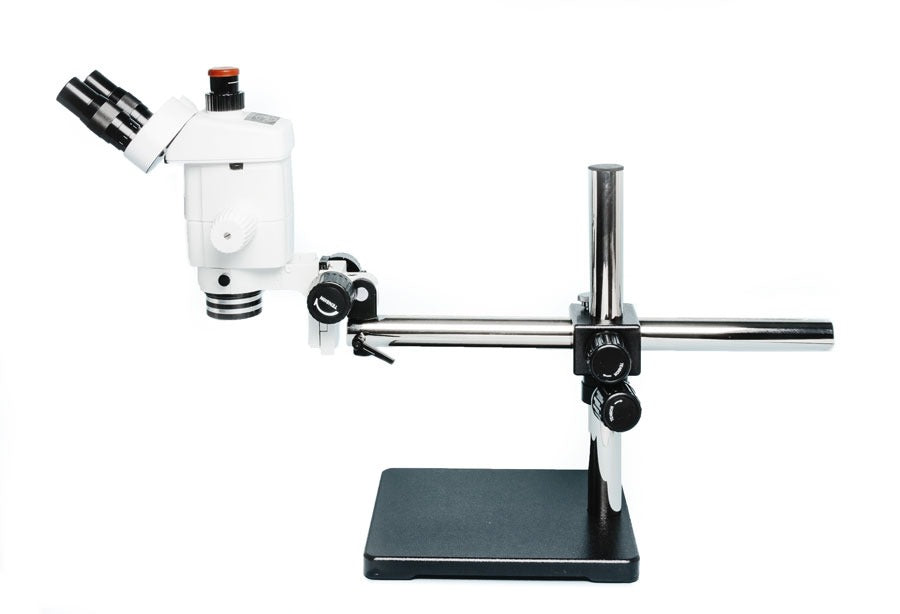

| PZMTIV-BS | Boom Stand |
|
Benefits
- High-contrast imaging, ideal for observing transparent, low-contrast objects
- Long working distance option available
Applications
- Integrated optical and biological research
The fourth generation of WPI’s precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty.
The PZMIV is available in a binocular or trinocular version. In addition, an extensive list of optional accessories is available that makes the PZMIV suitable for integrated optical and biological research.

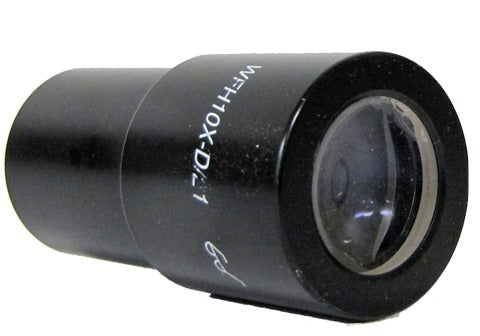

The microscope comes with a track stand, standard 10x eyepieces (wide-field, distortion-free and high eye point), 1x planachromatic distortion-free objective.
See the specification tables marked areas for more details. On trinocular versions of the microscope with the LWD option, the camera view is nearly the same as the eyepiece visual field of view.

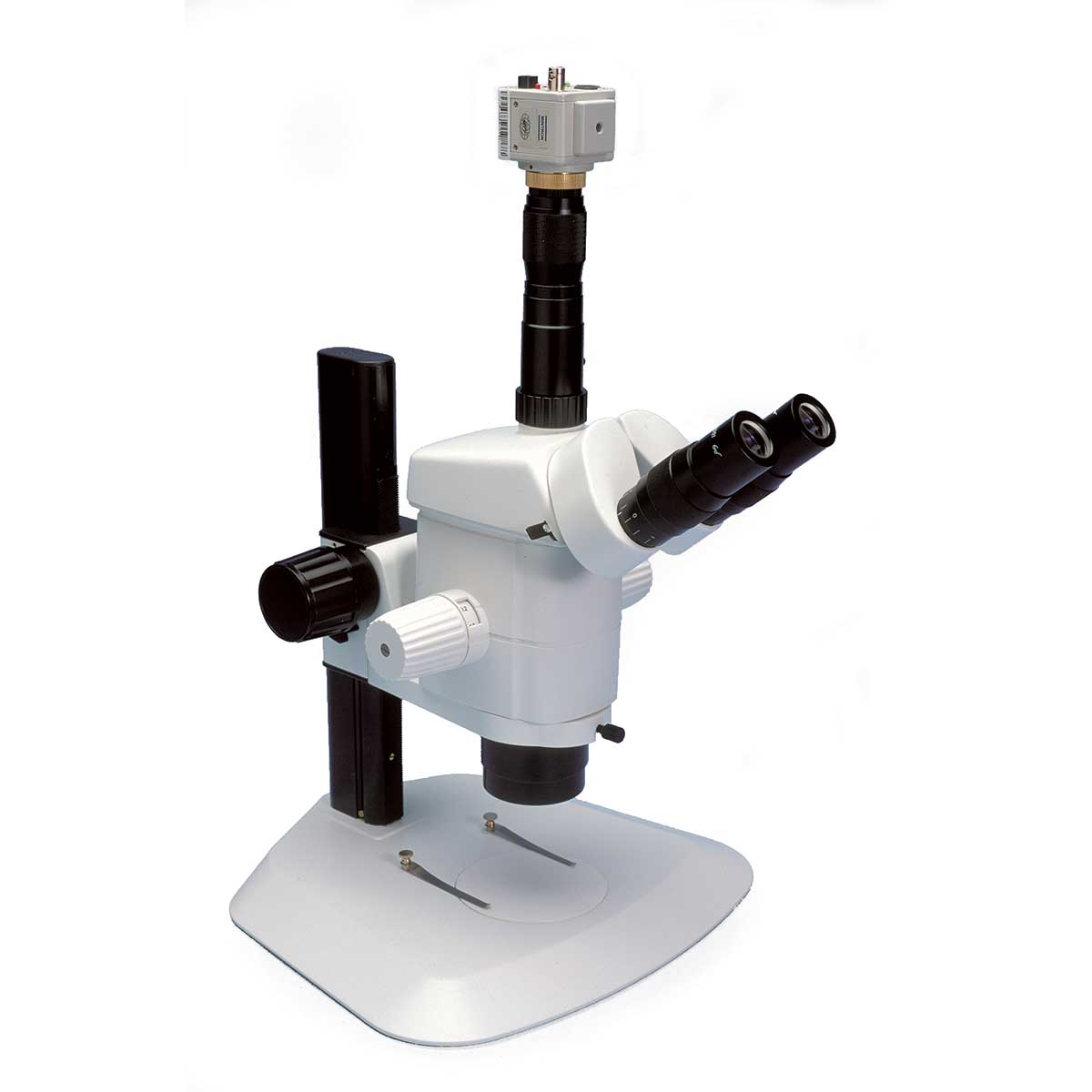

The trinocular version is a true trinocular, with continuous operation of both eyepieces and photo tube simultaneously. There is no need to block the right eyepiece to use the photoport.
Microscope objective and eyepieces work together. See Understanding Microscope Objectives.
The following images show various setups for microinjection. Keep in mind that parts are interchangeable. For example:
- M10 or the M9 magnetic base could be used.
- PZMIV microscope could be used instead of the PZMIII.
- M3301 or the KITE micromanipulators can be used, and these micromanipulators can be placed on either side. (Keep in mind, though, If you wanted to use a KITE on the right side of the setup below, you would order a KITE-R (right hand), or if you want an M3301 on the left side, you would order an M3301 .)
- 5479 or 5052 magnetic bases are virtually interchangeable.
- One or two Nanoliters, one or two UMPIII systems, or one Nanoliter and one UMPIII may be used, as desired.
ONE NANOLITER/ONE UMP3-1
ONE NANOLITER
ONE NANOLITER/M3301
ONE NANOLITER/KITE
ONE UMP3-1
