Microfluidic Pressure Source

Options

Order code	Description
505972	Kit Compressor Pressure 8 bar 120V/60HZ
505973	Kit Compressor Pressure 8 bar 230V/50Hz

Pressure Source Featuring Clean Pressurized Air and Long Life-Span

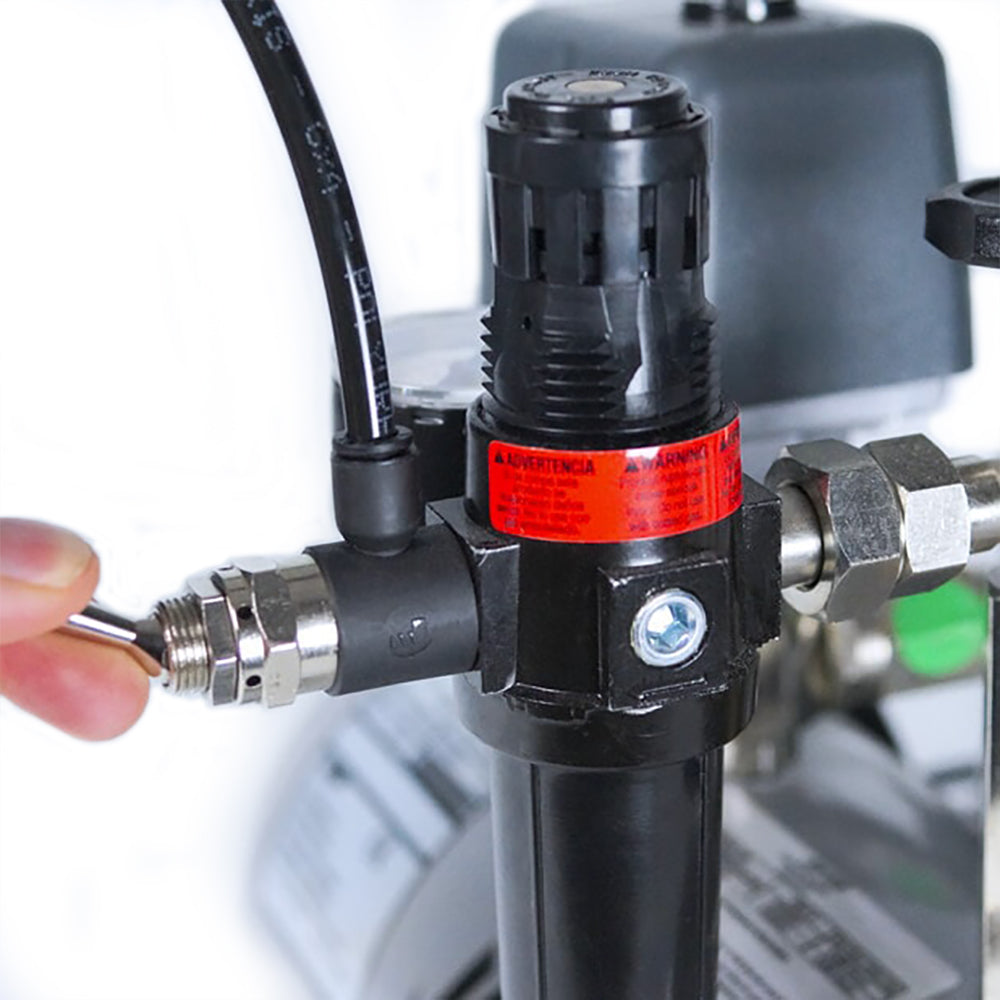

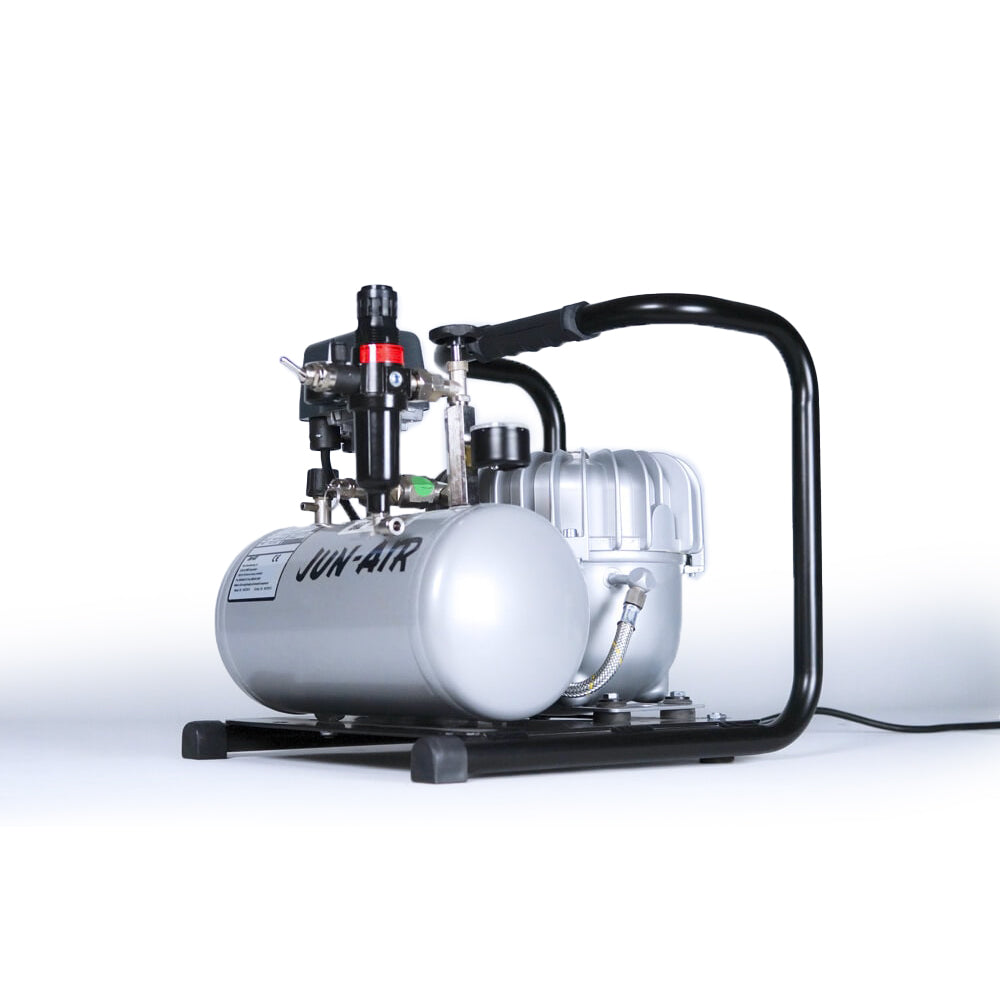

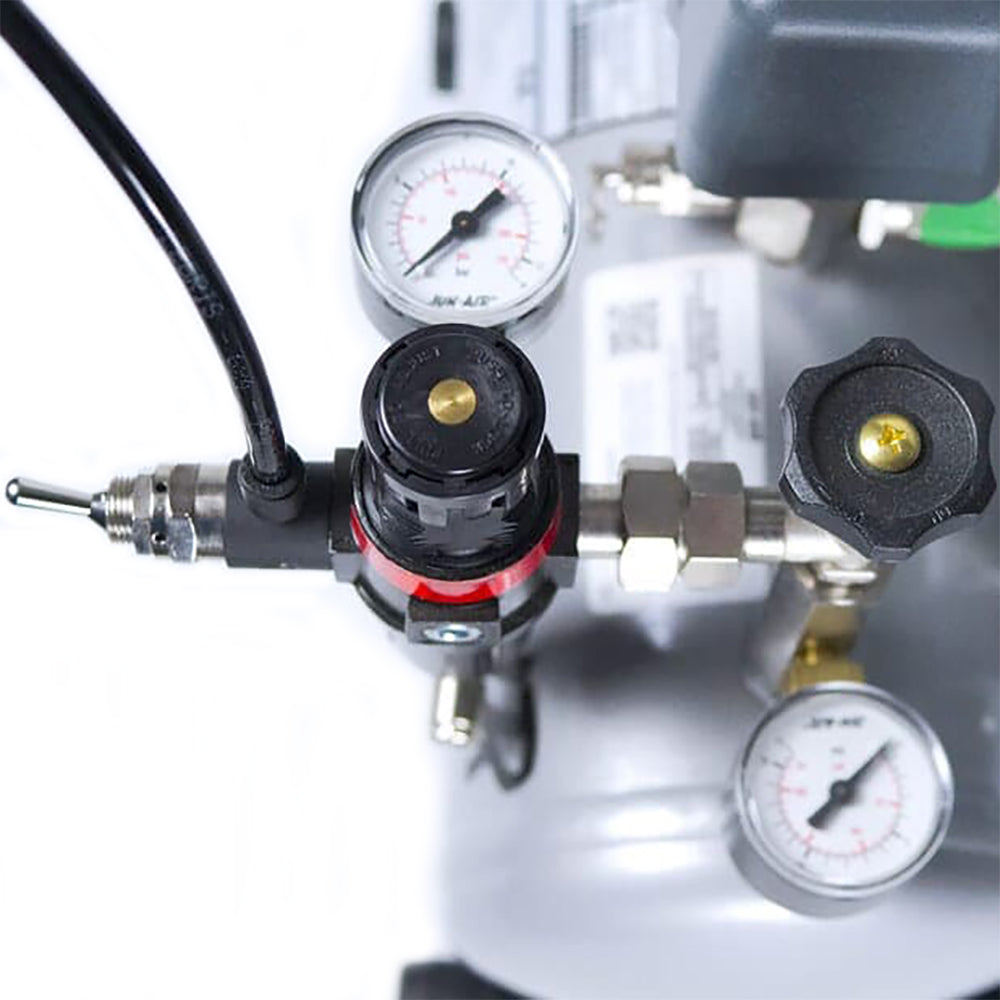

This lubricated air compressor is a powerful alternative to laboratory gas line supplies. The in-built 5 µm oil filter prevents microdroplets from entering into the instruments. In addition, anti-corrosion treatments of the receiver and long-life synthetic oil utilization makes this pressurized air source the most robust companion for pressure-driven control in laboratories. WPI's microfluidics expert partner ElveFlow specially selected this compressor as the choice for pressure stability and quality output when paired with a microfluidic pump requiring an external pressure source.

Compressor User Manual

The Air compressor is available in two versions: 230V/50Hz or 120V/60Hz

Specifications are compared to the compact Elveflow Pressure Source.

	Air compressor (KCP-230 / KCP-120)	Elveflow Pressure Source (EPS)
Performances
Max pressure	8 bar (120 psi)	3 bar (44 psi)
Air flow rate (at operating pressure)	11 L/min (at 8 bar)	1.5 L/min (at 2 bar)
Noise level	<35 dB	<53 dB
Mechanical specifications
Dimensions (l x w x h) without connectors	38.4 x 33.3 x 34.2 cm	16.1 x 19.4 x 19.5 cm
Weight	18 kg	2 kg
Pneumatic connection	6 mm push-in
Internal receiver volume	4 L	350 ml
Operating temperature	-	5-40°C
Operating humidity	-	up to 80%
Electrical specifications
Input voltage range	-	24 V
AC supply frequency	50 – 60 Hz
Power supply voltage	100 – 240 VAC
Max current consumption	0.9 A	1.5 A (typical: 0.8 A)
Max power consumption	-	36 W
