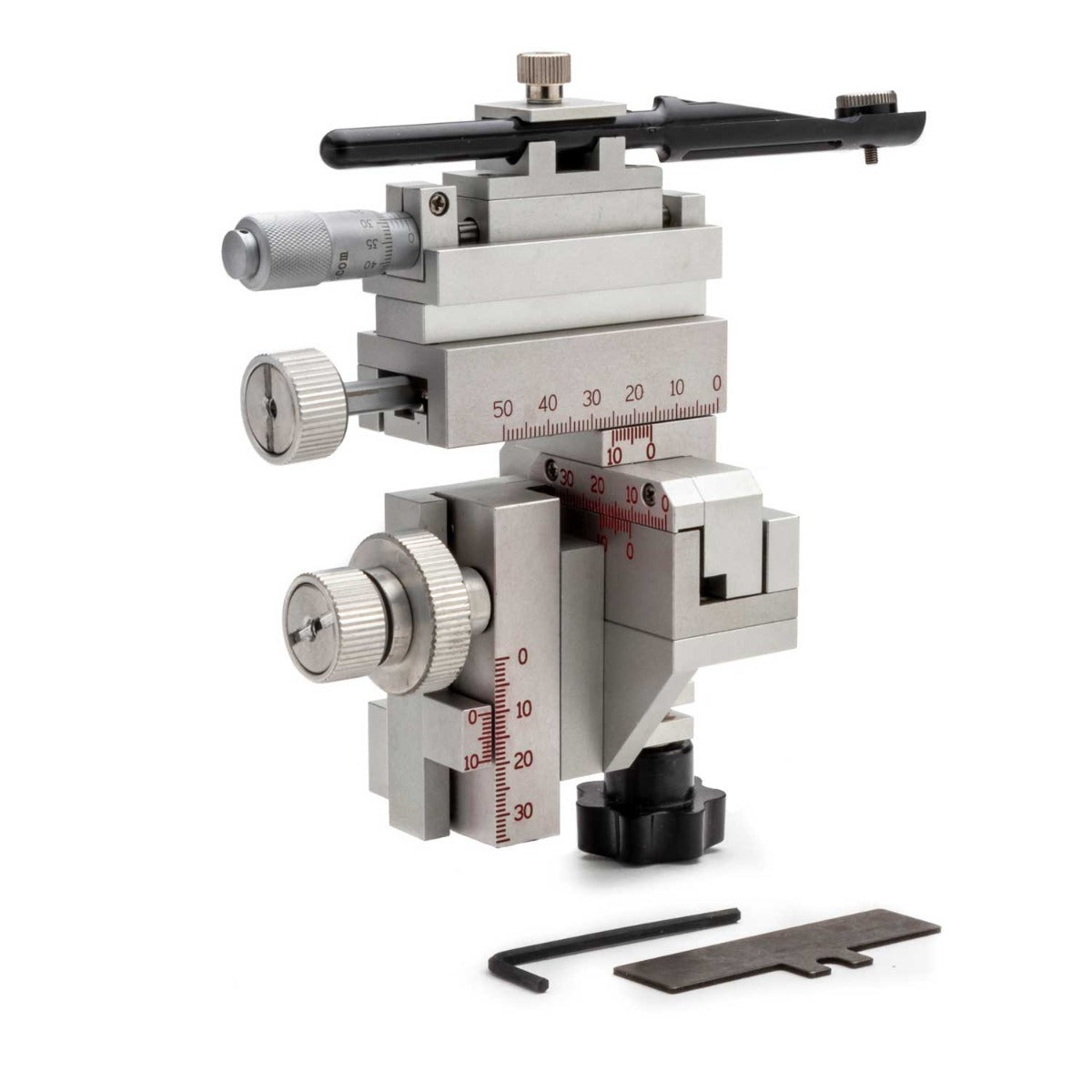

Kite Manual Micromanipulator

Economy manual micromanipulator

• Vernier scales allow readings to 0.1 mm
• X-axis fine control allows readings to 10 µm

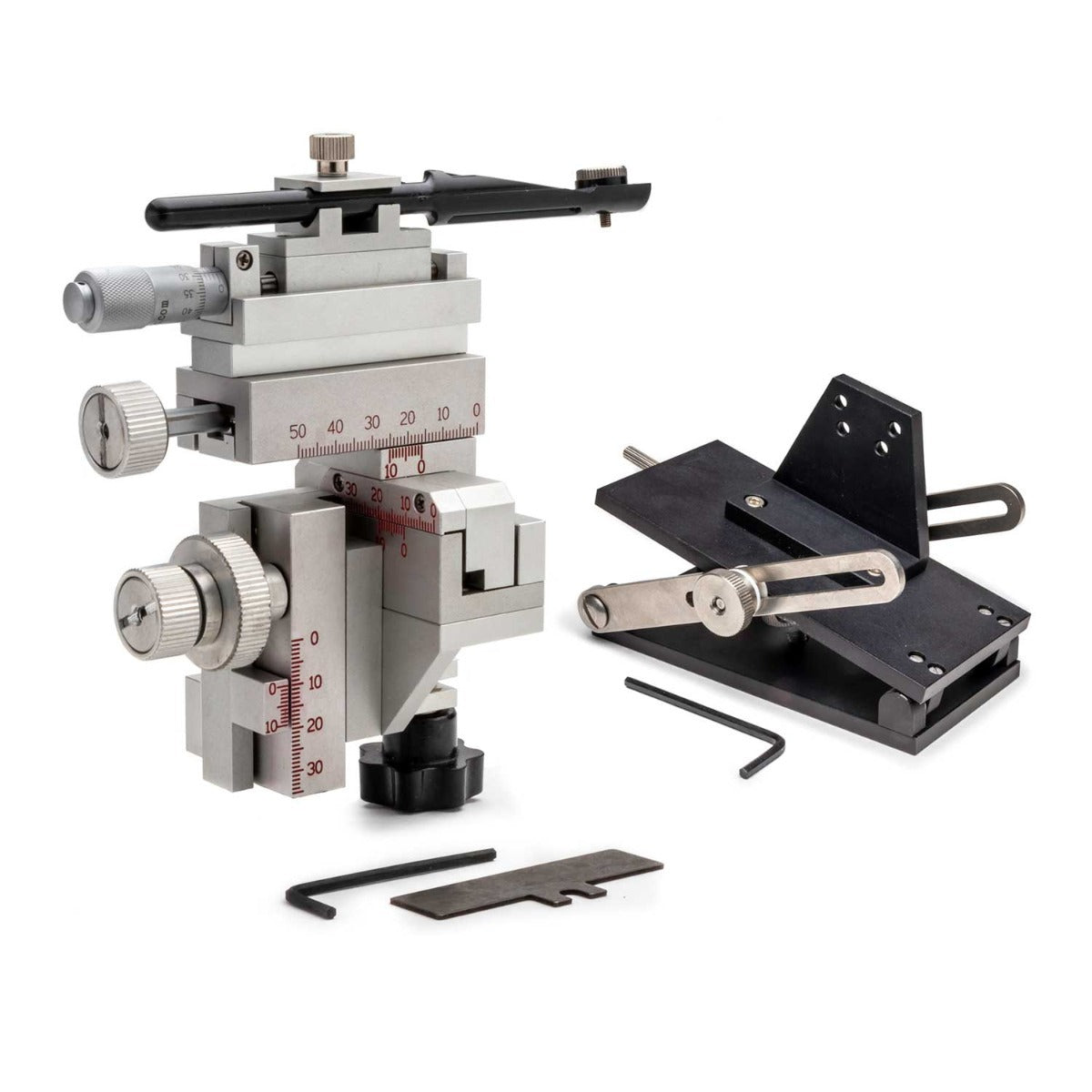

• Choice of optional M-3 Tilting base which can be mounted to a table with M6 screws. 5464 5-lb weight for Tilting Base sold separately
• Left or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH

Options

Benefits

• Control knobs clustered in the same plane for quick resolution
• Right and left hand orientation options available

Applications

• Microinjection
• Electrophysiology recording

The KITE is an economical manual micromanipulator that is perfect for student use. It is available in right or left hand versions and is also sold bundled with an optional M3 Tilting Base. Our 5 lb. weight (WPI #5464) is frequently sold with this unit to provide stability.

Mounting the KITE Manipulator

When the KITE is mounted on an an M-3 tilting base with the steel weight and tilted at 45°, the average maximum practical height from the tabletop to the center of the pivot point on the manipulator is approximately 20cm.

When the KITE is mounted on an an M10 with the steel plate, the average maximum practical height from the tabletop to the center of the pivot point on the manipulator is approximately 32cm.

Features

Vernier scales allow readings to 0.1 mm. X-axis fine control allows readings to 10 µm. Left- or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH.

Mounting Screws

The KITE mounts with two screws as shown in the image below.

The following images show various setups for microinjection. Keep in mind that parts are interchangeable. For example:

• M10 or the M9 magnetic base could be used.
• PZMIV microscope could be used instead of the PZMIII.
• M3301 or the KITE micromanipulators can be used, and these micromanipulators can be placed on either side. (Keep in mind, though, If you wanted to use a KITE on the right side of the setup below, you would order a KITE-R (right hand), or if you want an M3301 on the left side, you would order an M3301.)
• 5479 or 5052 magnetic bases are virtually interchangeable.
• One or two Nanoliters, one or two UMPIII systems, or one Nanoliter and one UMPIII may be used, as desired.

Applications Notes

ONE NANOLITER/ONE UMP3-1

ONE NANOLITER

ONE NANOLITER/M3301

ONE NANOLITER/KITE

ONE UMP3-1

Kite Micromanipulators Instruction Manual

Manipulator Care Instruction Sheet

Video

Adjusting for Mechanical Drift in a KITE Manual Micromanipulator
