SU-MP85 Micromanipulator

$8,387
$8,387

SU-MP85-R

$8,387
$8,387
Right/Left handed

Prices valid in USA, Canada, and PR only.

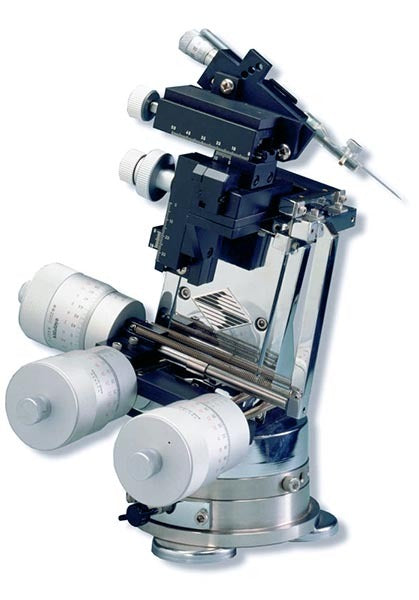

The classic micromanipulator developed by Sir Huxley many years ago is still considered by many investigators to be the finest manual micromanipulator available. The SU-MP85 offers the advantage of a very large range of movement with its built-in coarse manipulator and precise submicron movement with the fine controls. Coarse positioning is achieved with a three axis manipulator mounted on top. The ultrafine positioning is accomplished with the large micrometers mounted on the base. These micrometers provide smooth, precise movement through a 10:1 reduction mechanism.

ACCESSORIES

Details

Very large range of movement with its built-in coarse manipulator and precise submicron movement with the fine controls

Features

  • The micromanipulator is mounted on a precision rotating base featuring a positive stop and lock
  • The coarse movement is an all cross-roller bearing design consisting of coarse X, Y, and Z with an additional fine X motion
  • The micromanipulator can be ordered in either a right or left handed version

Options

Order code Description
SU-MP85-L Huxley-Wall Style Manipulator, Left Hand
SU-MP85-R Huxley-Wall Style Manipulator, Right Hand

Benefits

  • Dual springing of the moment arms to insure zero backlash and zero torsion

Applications

  • Micromanipulator applications requiring precise, fine control



The brass and stainless steel construction of the MP-85 makes for a very heavy and solid micromanipulator with excellent damping properties. This exceptionally stable design is ideal for patch clamp recording, intracellular recording, or any other application that is intolerant of drift.

The SU-MP85 is chrome-plated and anodized to prevent corrosion. The J.R. Wall designed rotating base is machined from solid stainless steel with a brass spindle; a thin Teflon washer provides for the bearing surface.

Options

  • 15º stackable wedges for tilting the manipulator
  • A set of three magnetic feet for increased stability
  • 1" thick, chrome plated, solid brass spacer

Resources

Manipulator Care Sheet

Video

Micromanipulation





Instructional Videos



Specifications


Coarse X-axis tilt 0-45º in 15º increments
Coarse Resolution .01 mm on all axes
Fine X Resolution 0.01 mm
Ultrafine (Huxley) Resolution 0.2 µm
Huxley Excursion ~ 2 mm maximum on each axis
Dimensions (Baseplate) 25 x 20 x 28 cm (10 x 10 x 12")
Weight 7 kg (15 lbs.)
SU-MP85 Micromanipulator

$8,387.00
