Aladdin Single-Syringe infusion Pump, Hold Plastic Syringes up to 60ml

The best value on syringe pumps in the market!

• Rich command set
• RS-232 and TTL control
• AL-1000 Syringe Pump accepts plastic syringes up to 60mL and selected glass micro syringes from 0.5-500 µL; AL-3000 holds syringes up to 60 mL
• Infuse/Withdraw Pump (AL-1000) or Infuse only (AL-300)
• Displays total volume dispensed in mL or µL units
• Choose system: Standard AL-1000 (AL-1000), AL-1000 Pumps (AL-2000), or Infuse Only (AL-300)

Options

Order code	Description	# Pumps	High Pressure	Programmable	Infuse/Withdraw
AL-1000	Single Syringe Pump	1	No	Yes	Infuse/Withdraw
AL-2000 (AL-DUAL-AL-1000 in Europe)	2 AL-1000 Syringe Pumps	2	No	Yes	Infuse/Withdraw

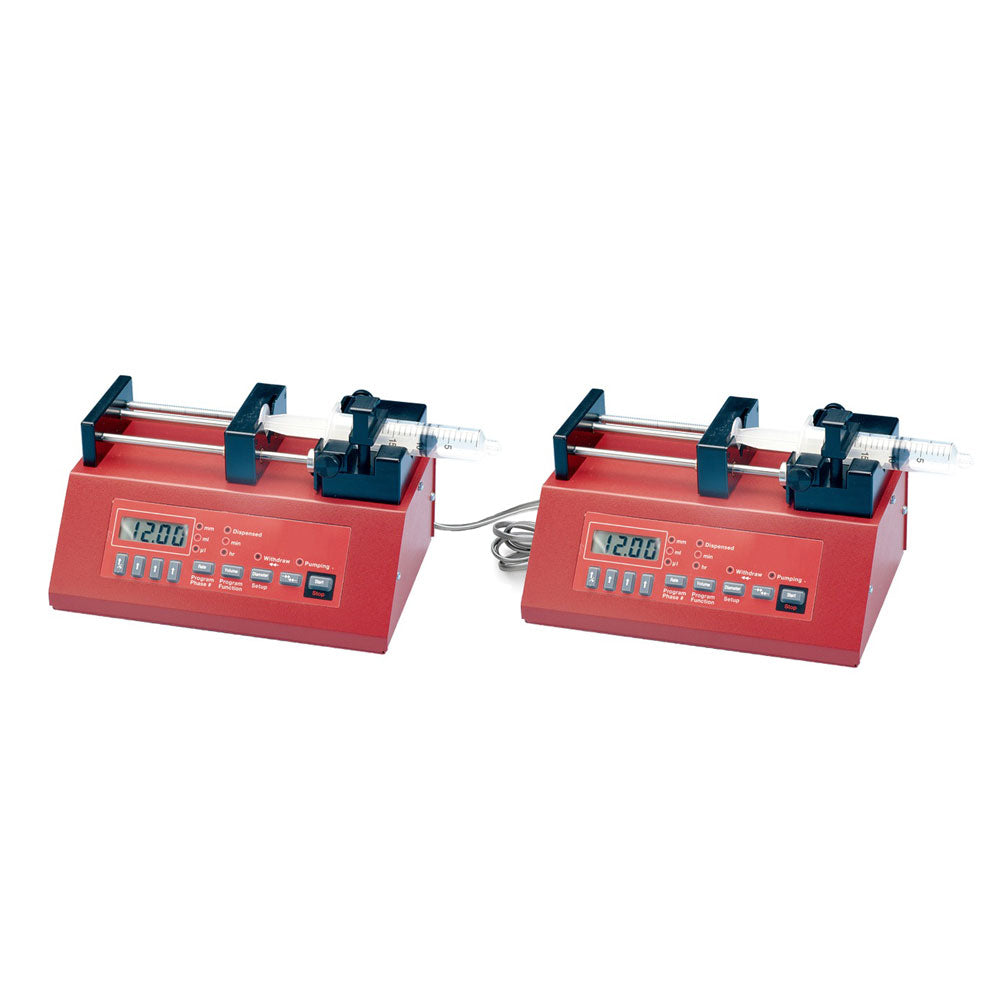

Dual Pumping Action: Daisy Chain AL-1000 Aladdins

Need a pump for two syringes? Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two AL-1000 Aladdins (AL-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

• Includes 2 x AL-1000 pumps and sync cable for reciprocating use
• Each pump accepts syringe sizes: 1-60mL, or 0.5-5 uL
• Programmable, economical, verstaile
• Network, control, and monitor up to 100 pumps with one computer

The Dual System allows the two pumps to communicate with each other through a synchronization cable. The system is flexible and can the pumps casn be configured to operate in:

• Continuous flow (push/pull configuration requires p-dkit optional check valve set)
• Emulsification
• Independently

Each AL-1000 Pump Offers

• Automatic dispensing of small volumes
• Very precise, reproducible flow rate control
• Displays total volume dispensed in mL or µL units
• Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)
• Infusion rate can be changed while pumping
• Program pump via keypad or from a computer
• Highly controllable – program sequences without a computer (holds up to 41 programming phases)
• Motor stall detection

To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

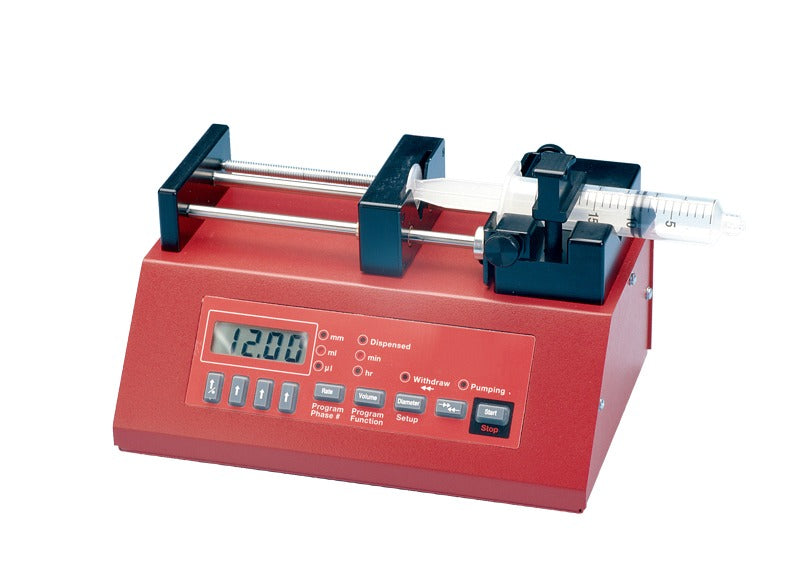

The Aladdin AL-1000 is a programmable single channel infusion / withdrawal syringe pump. It has a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1000 can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer.

Benefits

• Automatic dispensing of small volumes
• Very precise, reproducible flow rate control
• Hands-free operation with foot switch
• Program sequences without a computer (AL-1000 series)
• Selectable infusion rate units (mL/hr, µL/hr, mL/min, µL/min)

Applications

• Drug administration
• Chemical applications with slow incorporation of fixed volumes of fluids

The Aladdin pump series arguably offers the best VALUE for any syringe pump on the market.

These pumps are available in single, dual, 4 , 6, and 8 syringe capacities. Although it is one of the most cost-effective pumps available, the Aladdin pump series boasts a versatility that is unmatched in its price range with features typically found only on pumps costing more than twice as much.

The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels. The performance characteristics are admirable, considering the price.

For the budget minded lab looking for a versatile and reliable pump, the Aladdin series is an excellent option.

The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite.

Channels Per Pump	1
Type	Infusion / Withdrawal
Flow Range	0.001 µL/hr (0.5 mL syringe) to 3470 mL/hr (140 mL syringe)
Dispensing Accuracy	±1%
Syringe Sizes Accepted	0.5 µL to 60 mL or 140 mL partially filled
Linear Force	35 lb at low speed; 18 lb at maximum speed

Example Flow Rates

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	25.49 µL/hr	0.001 µL/hr
1 mL	52.86 mL/hr	0.727 µL/hr
3 mL	223.8 mL/hr	3.076 µL/hr
5 mL	372.5 mL/hr	5.119 µL/hr
10 mL	607.6 mL/hr	8.349 µL/hr
20 mL	966.2 mL/hr	13.28 µL/hr
30 mL	1260 mL/hr	17.32 µL/hr
60 mL	2120 mL/hr	29.1 µL/hr
140 mL	3470 mL/hr	47.7 µL/hr



Accessories

Reciprocating pumping kit

•504288 Reciprocating Pump Kit, Medium
•504289 Reciprocating Pump Kit, Large

GN-PC7 PC to pump cable, 7'
GN-PC25 PC to pump cable, 25'
GN-NET7 Pump to pump network cable, 7'
GN-NET25 Pump to pump network cable, 25'
GN-TTL Pump to pump reciprocating cable
ADPT2 Foot switch
AL-DUALCBL AL-2000 Synchronization Cable

AL-1000 Manual
AL-2000 Manual
Aladdin Pumps Upgrading a Firmware Chip

	AL-1000
SYRINGE SIZES	Plastic syringes up to 60mL; selected glass micro syringes from 0.5-500 uL
NUMBER OF SYRINGES	1
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	400
STEPPING (max. min.)	0.21 µm to 0.850 µm
MOTOR TO DRIVE SCREW RATIO	15/28
SPEED (max./min.)	5.1 cm/min / 0.0042 cm/hr
PUMPING RATES	1699 mL/hr with 60mL syringe, 0.73 μL/hr with 1mL syringe
MAXIMUM FORCE	35 lb. at minimum speed, 18 lb. at maximum speed
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps maximum
POWER supply	Wall adapter 12 V DC @ 850 mA
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	1.6 kg (3.6 lb.) or 3.2 kg (7.2 lbs) for the Dual system
