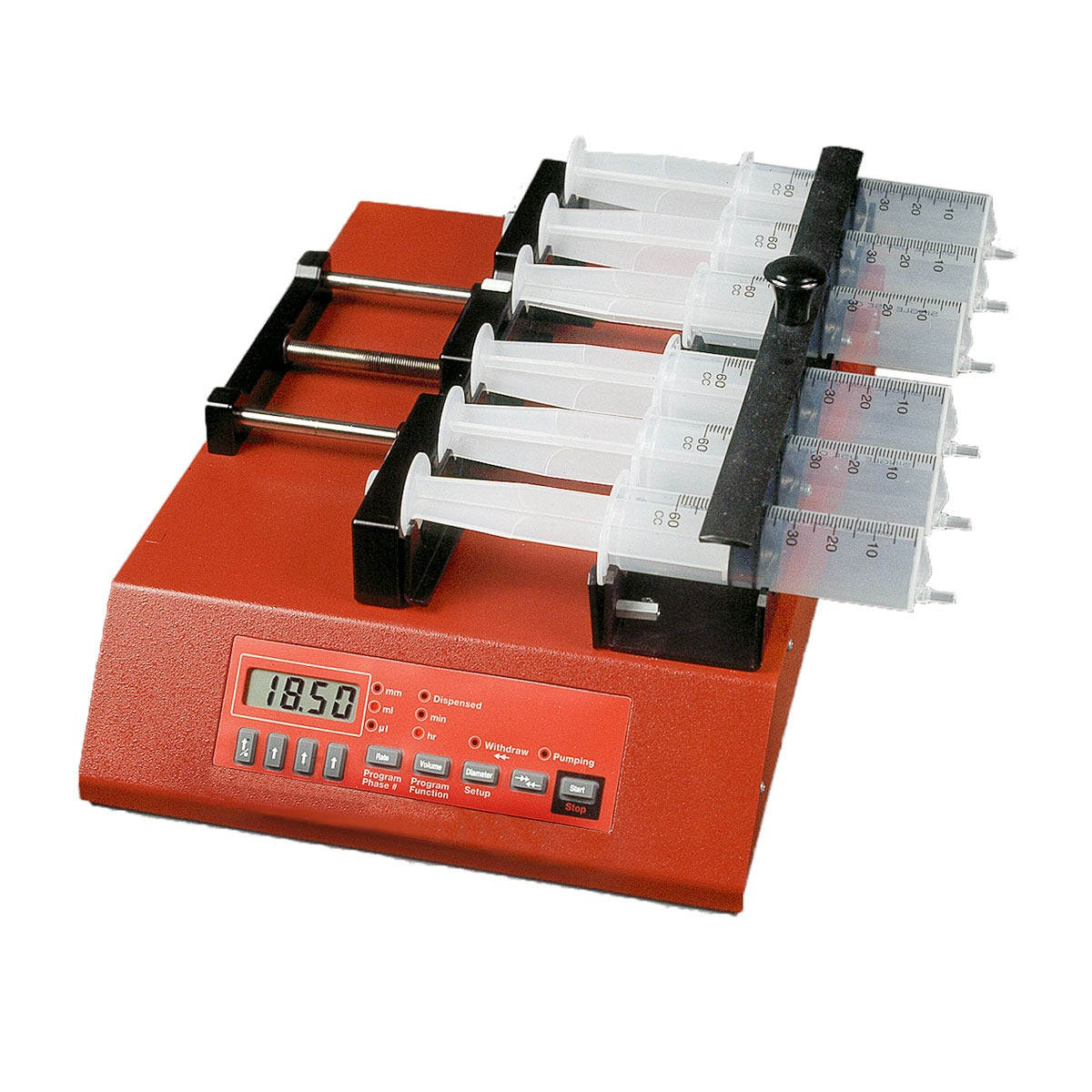

Multi-Barrel Programmable 6 Syringe Pump

  • al-6000_1
$1,590
$1,590

AL-6000

Prices valid in USA, Canada, and PR only.

The best value on syringe pumps in the market!

The Aladdin pump series offers the best VALUE for any syringe pump on the market.

This pump holds up to 6 syringes. While it is one of the most cost-effective pumps available, the Aladdin pump series boasts versatility and functionality to serve a variety of dispensing applications!

Note : Syringe(s) not included

ACCESSORIES

Details

Features

  • Multi-Barrel pump holds 2, 4 or 6 syringes of up to 140 mL
  • Infusion rates from 0.001 µL/hr (0.5 µL syringe) to 2376 mL/hr (140 mL syringe)
  • Operates stand-alone or from a computer
  • Programmable preset protocols RS-232 and TTL logic control interfaces
  • Motor stall detection
  • Non-volatile memory of all parameters and programming
  • Upgradeable memory
  • Dispensing accuracy of ±1%
  • Program sequences without a computer
  • Rich command set

Benefits

  • Automatic dispensing of small volumes
  • Very precise flow rate control

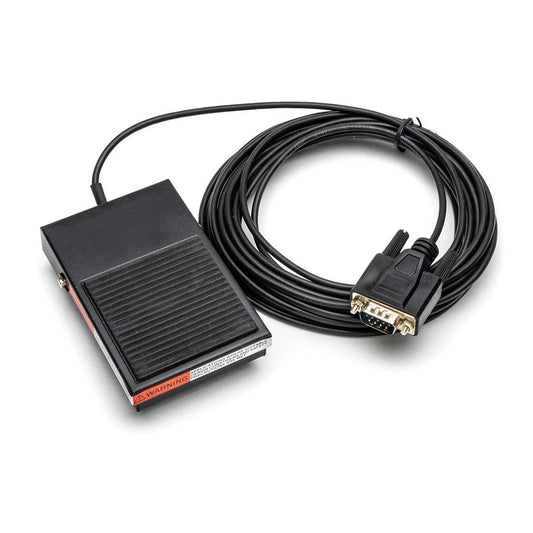

  • Hands-free operation with foot switch

Applications

  • Drug administration
  • Chemical applications with slow incorporation of fixed volumes of fluids



The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels. The performance characteristics are admirable, considering the price.

The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite. The AL-6000 has the following additional features:

  • Holds up to 6 syringes up to 60mL each
  • Infusion rates: 0.452μL/hr (1cc syringe) to 1451mL/hr (60cc syringe)
  • Fully programmable, automate with a computer (if desired)
  • Up to 41 pumping phases can be programmed to allow:pumping rate change
    • set dispensing volumes
    • pause
    • external signals
    • set alarms
  • Accuracy +/- 1%
  • 2-year warranty
Channels 6
Type Infusion / Withdrawal
Flow Range 0.001 µL/hr (0.5 µL syringe) to 2376 mL/hr (140 mL syringe)
Dispensing Accuracy ±1%
Syringe Sizes Accepted 0.5 µL to 140 mL
Linear Force Applied To All Syringes 160 lb at low speed; 30 lb at maximum speed



The Aladdin Programmable Syringe Pump is perfect for situations requiring flexibility or automation.

With a variety of pumping rates (0.45 µL/hr to 2376 mL/hr), infusion and withdraw capability, and pumping phases that can be programmed, it was designed for automation. This pump can handle applications like simple infusions, as well as complex pumping programs.

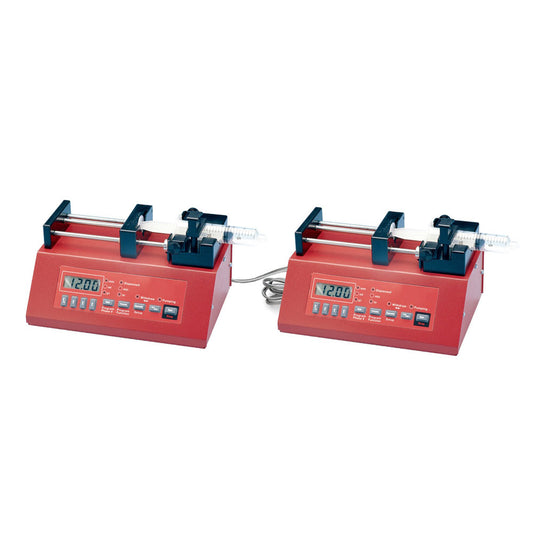

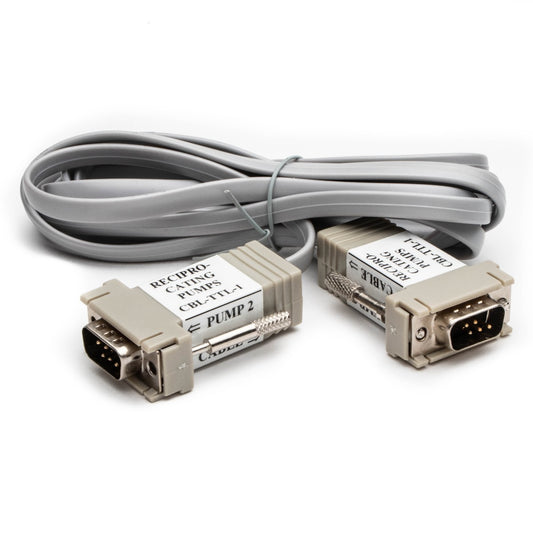

You can program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, or sound an alarm. Connect two pumps with a dual cable (WPI #GN-TTL) to create a dual pump system that allows for continuous infusion or emulsification. If required, you can network, control and monitor up to 100 pumps with a single computer.

AL-1600 Six-Channel Syringe Pump Example Flow Rates

Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr
5 mL 255 mL/hr 3.185 µL/hr
10 mL 415.9 mL/hr 5.195 µL/hr
20 mL 661.4 mL/hr 8.26 µL/hr
30 mL 862.8 mL/hr 10.78 µL/hr
60 mL 1451 mL/hr 18.1 µL/hr
140 mL 2376 mL/hr 29.7 µL/hr

Resources

Aladdin Instruction Manual
AL-6000 Manual
Aladdin Pumps Upgrading a Firmware Chip



Specifications

Syringe Sizes Up to 60mL(140mL partially filled)
Number of Syringes 2, 4 or 6
Motor Type Step Motor, 1/8 to 1/4 step modes
Steps per Revolution 200
Advance per Step 0.132291667µM to 0.264583333µM depending on motor speed
Motor to Drive Screw Ratio 5/1
Drive Screw Pitch 24 revolutions/inch
Power Supply Wall adapter 12V DC @ 1000 mA
DC Connector 2.5mm, center positive
Power Supply Type Unregulated linear external wall adapter, country and power source specific
Dimensions 26.03 x 38.1 x 12.7 cm (10 1/4 x 15 x 5 in.)
Weight 4,595 kg (10.125 lbs)
Max. Speed 3.4917cm/min
Min. Speed 0.0026cm/hr
Max. Pumping Rate 1163 mL/hr. with a B-D 60cc syringe
Min. Pumping Rate 0.454 μL/hr. with a B-D 1cc syringe
Max. Force applied to all syringes 160 lbs. at minimum speed, 30 lbs. at maximum speed
