SPLG Syringe Pump with Touchscreen

$2,400
$2,400

SPLG100

From $2,400 - $3,100
From $2,400 - $3,100
System

Prices valid in USA, Canada, and PR only.

The large touch screen color display lets you see all of the pump’s operating parameters to ensure proper operation during the experiments. Syringe size and flow rate are easily displayed, as well as the volume delivered and elapsed time. Set up is easy using the icon-driven software. An LED on the front panel makes it easy to see if the pump is running. Advanced micro stepping techniques are employed to further reduce the step angle to eliminate flow pulsation. Accuracy is ±0.5%. A wide dynamic flow range from picoliters per minute to millimeters per minute can be programmed into the pump. These versatile pumps can be connected through an RS485 interface. Add the new Adagio software to maximize the use of the pump’s functions and features. Adagio allows you to configure the pump through the software, as well as operate one or multiple pumps. LabVIEW drivers are available on the National Instruments website.

Details

Legato syringe pumps for reliable delivery with the ease of a touch screen

Features

  • High resolution color touch screen
  • Real time clock
  • Touch pad “lock” feature
  • Full metal chassis
  • Built in syringe table with up to 75 lb. linear force
  • Built in RS-485 interface to link multiple pumps
  • USB port & RS232 Interface
  • TTL interface
  • Continuous mode of operation
  • Protection with a spill dam
  • Analog control option
  • CE, UL, CSA, CB Scheme, EU RoHS compliance
  • Minimum Flow Rate: 1.26pL/min (0.5 uL syringe)
  • 100-240V AC, 50/60Hz
  • LabView drivers available from National Instruments

Options

 Order code Description
SPLG101
  • SPLG Syringe Pump with Touchscreen-Dual Infuse Only
  • Maximum Flow Rate: 25.99mL/min (10mL syringe)
SPLG110
  • SPLG Syringe Pump with Touchscreen-Infuse/Withdraw
  • Maximum Flow Rate: 88.28mL/min (60mL syringe)
SPLG100
  • SPLG Syringe Pump with Touchscreen-Infuse Only
  • Maximum Flow Rate: 88.32mL/min (60mL syringe)



Benefits

  • Automatic dispensing of small volumes
  • Very precise flow rate control
  • Hands free operation with foot pedal
  • Better flow performance with accuracy ±0.35%

Applications

  • Drug administration
  • Chemical applications with slow incorporation of fixed volumes of fluids

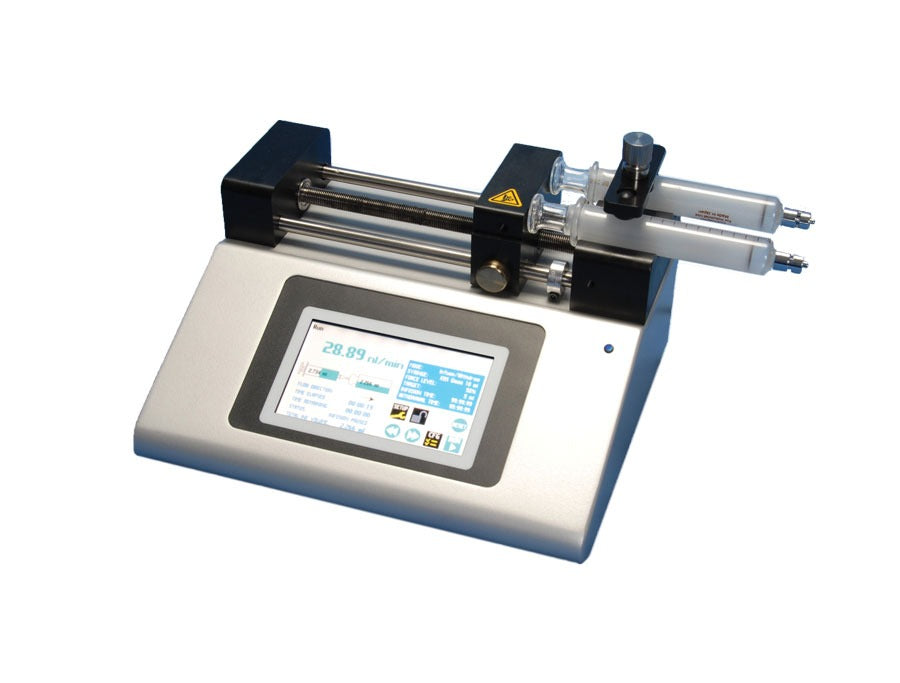

SPLG101

The SPLG101 is ideal for applications where dual syringes are required with small volumes under 10mL. It accommodates two syringes from 0.5 µL to 10 mL. The SPLG101 has a wide flow rate range from 1.26 pL/min to 25.99 mL/min, depending on syringe size.

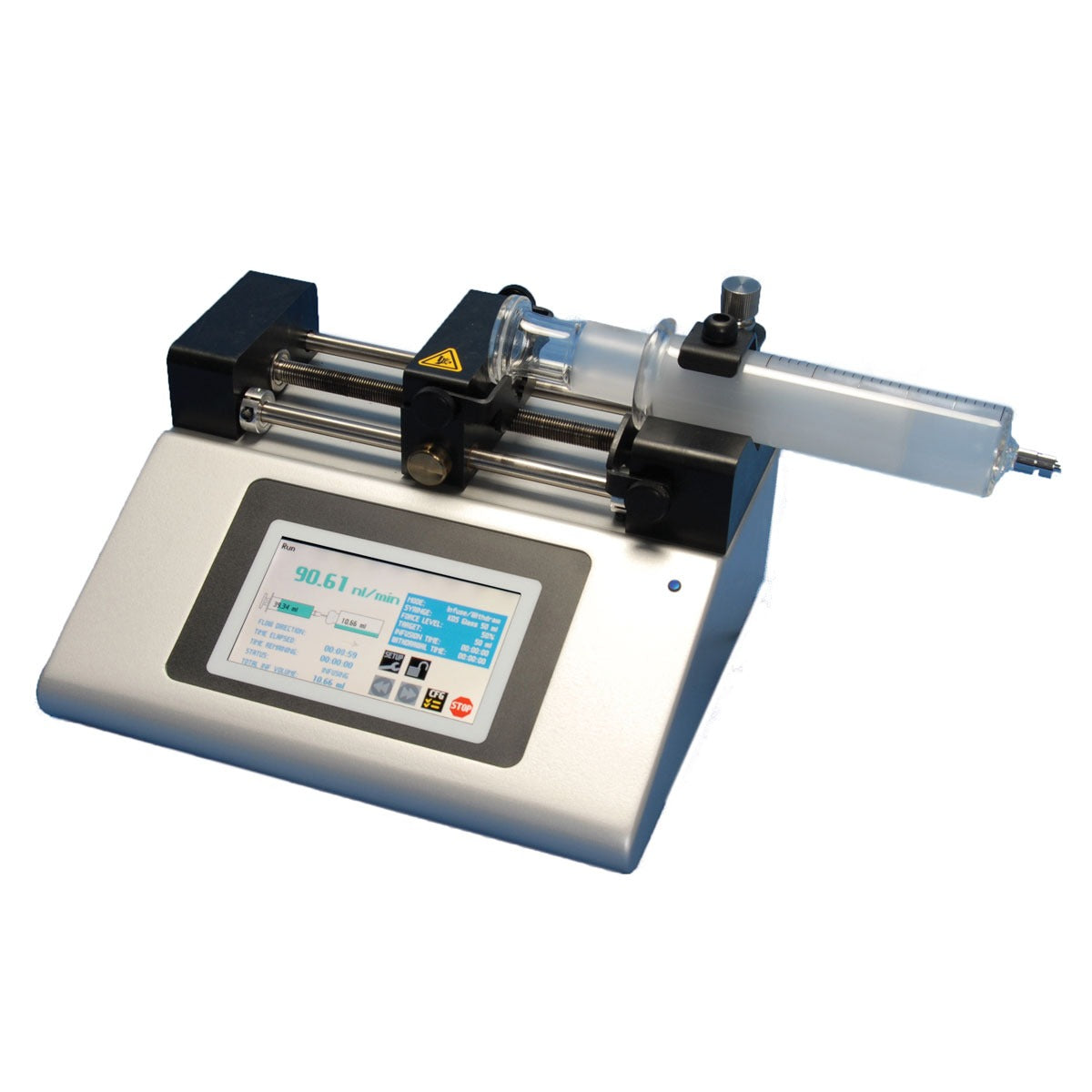

SPLG110

The SPLG110 offers infuse/withdraw flow control and programmability for up to two multi-step programs of 50 steps each. The SPLG110 has a wide flow rate range from 1.26 pL/min to 88.28 mL/min, depending on syringe size. The SPLG110 accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe can be used in the unit including glass, plastic or stainless steel. The pump is ideal for more complex multi-step dosing and has all multi-mode operation including infusion only, withdrawal only, infusion and withdrawal and withdrawal/infusion modes.

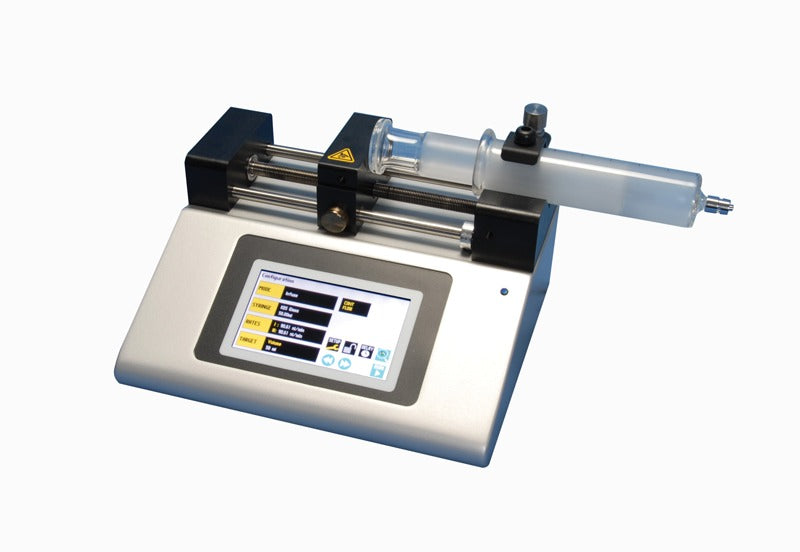

SPLG100

The SPLG100 was the first single-syringe infusion-only pump with a touchscreen interface. The SPLG100 has a wide flow rate range from 1.26 pL/min to 88.32 mL/min, depending on syringe size. It accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe, including glass, plastic or stainless steel, are held securely in place.

  • Accuracy ±0.35%
  • Holds one or two syringes from 0.5 μL to 140 mL
  • High resolution color touch screen
  • Real time clock
  • Unparalleled ease of use
  • Touch pad "lock" feature
  • LED light on front panel
  • Full metal chassis
  • Built in syringe table
  • Up to 75 lb linear force
  • Advanced microstepping techniques
  • Built in RS-485 interface to link multiple pumps
  • USB port & RS232 Interface
  • I/O & TTL interface
  • Continuous mode of operation
  • Protection with a spill dam
  • Analog control option
  • CE, UL, CSA, CB Scheme, EU RoHS

SPLG100 SERIES FLOW RATES

Syringe Diameter Minimum Maximum
0.5 μL 0.103 mm 1.260 pL/min 1.325 μL/min
1 μL 0.146 mm 2.520 pL/min 2.651 μL/min
2 μL 0.206 mm 5.100 pL/min 5.299 μL/min
5 μL 0.343 mm 14.100 pL/min 14.690 μL/min
10 μL 0.485 mm 28.260 pL/min 29.380 μL/min
25 μL 0.729 mm 63.900 pL/min 66.370 μL/min
50 μL 1.03 mm 127.600 pL/min 132.500 μL/min
100 μL 1.457 mm 255.20 pL/min 265.100 μL/min
250 μL 2.304 mm 638.300 nL/ min 662.900 μL/min
500 μL 3.256 mm 1.275 nL/min 1.324 mL/min
1000 μL 4.608 mm 2.553 nL/min 2.652 mL/min
1 mL 4.699 mm 2.655 nL/min 2.757 mL/min
3 mL 8.585 mm 8.863 nL/min 9.204 mL/min
5 mL 11.989 mm 17.290 nL/min 17.950 mL/min
10 mL 14.427 mm 25.030 nL/min 25.990 mL/min
20 mL 19.05 mm 43.640 nL/min 45.320 mL/min
30 mL 21.59 mm 56.050 nL/min 58.210 mL/min
60 mL 26.594 mm 85.050 nL/ min  88.320 mL/min



Specifications

Mode Infusion
Syringes (min./max.) 0.5 μL to 60 mL
Power 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse
Motor Drive Control Microprocessor with 1/16 microstepping
Linear Force (Maximum) 13.6 kg (30 lb.) @ 100% Force Selection
Number of Microsteps per One Revolution of Lead Screw 15,360
Advance per microstep 0.069μm/μstep
Step rate (Minimum) 27.5 sec/μstep
Step rate (Maximum) 26 μsec/μstep
Drive Motor 0.9 degree Stepper Motor
Pusher Travel Rate (Minimum) 0.15 μm/min
Pusher Travel Rate (Maximum) 159 mm/min
Flow Rate (Minimum) 1.26 pL/min (0.5 μL syringe)
Flow Rate (Maximum) 88.32 mL/min (60 mL syringe)
Dimensions 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight 2.66 kg (5.9 lb.)
Connectors RS485 - IEEE-1394 6 pos, USB Type B
SPLG Syringe Pump with Touchscreen

$2,400.00
