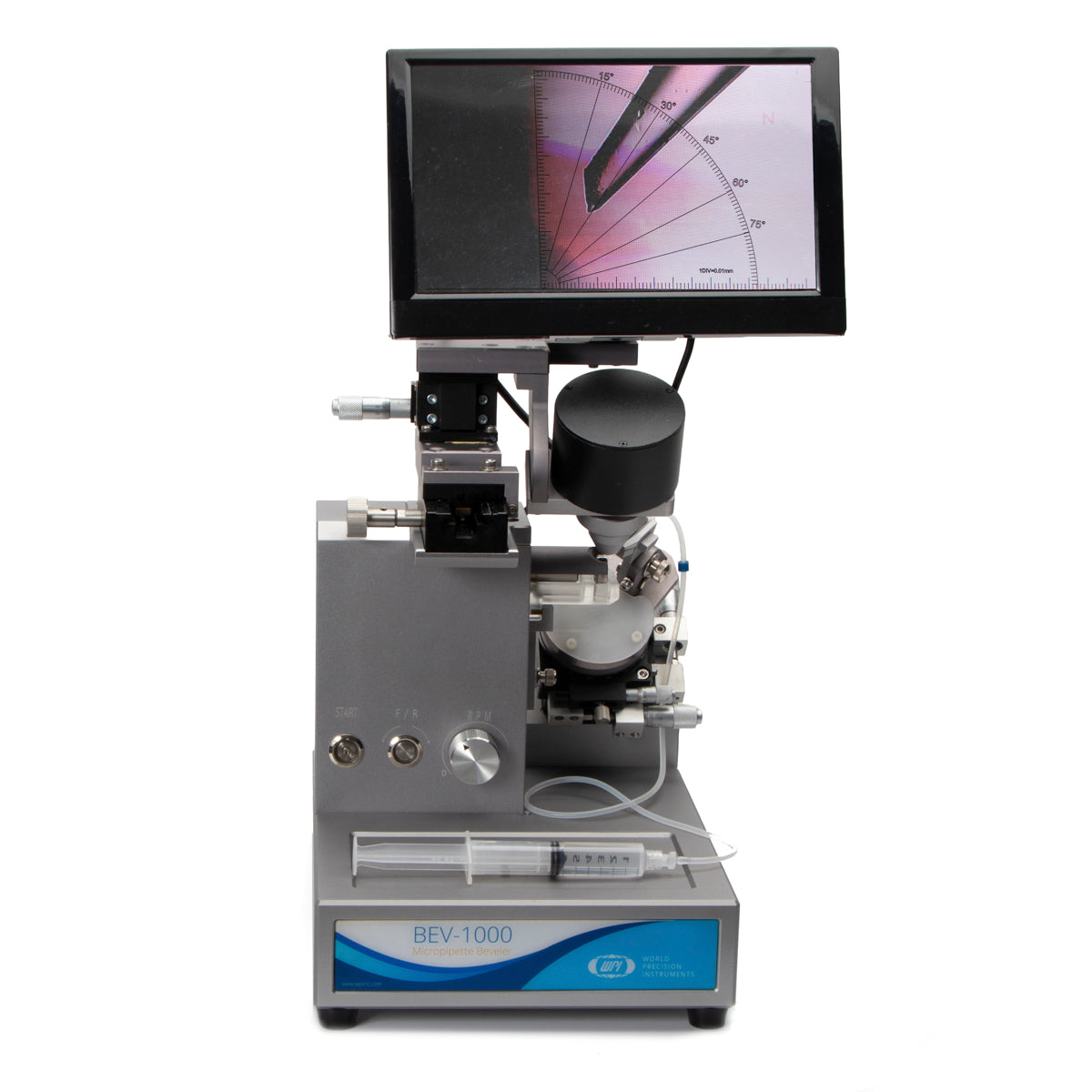

WPI Micropipette Beveler

Name: WPI Micropipette Beveler
Brand: World Precision Instruments
SKU: BEV-1000
Price: 5000.0 USD
Availability: InStock

$5,000

BEV-1000

Prices valid in USA, Canada, and PR only.

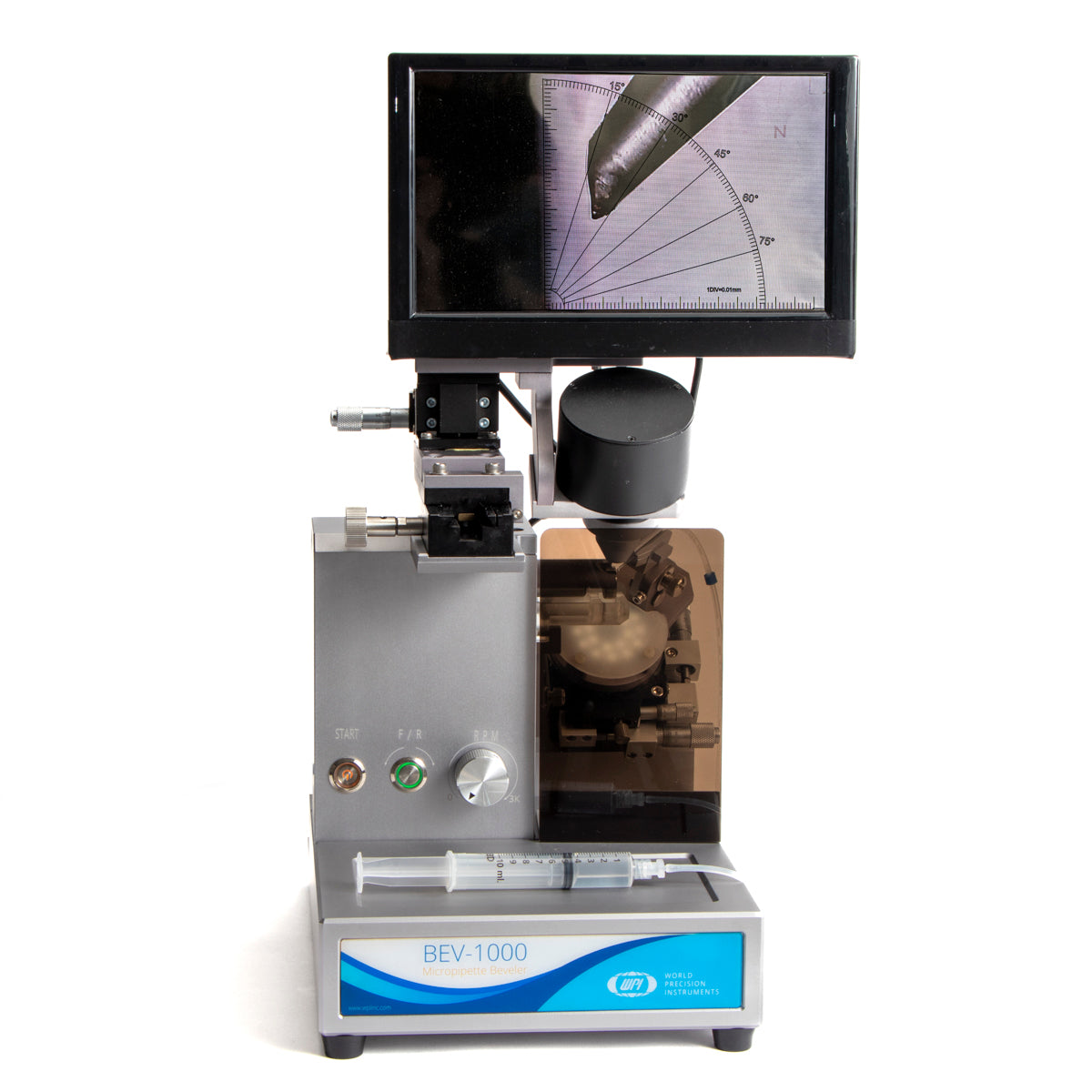

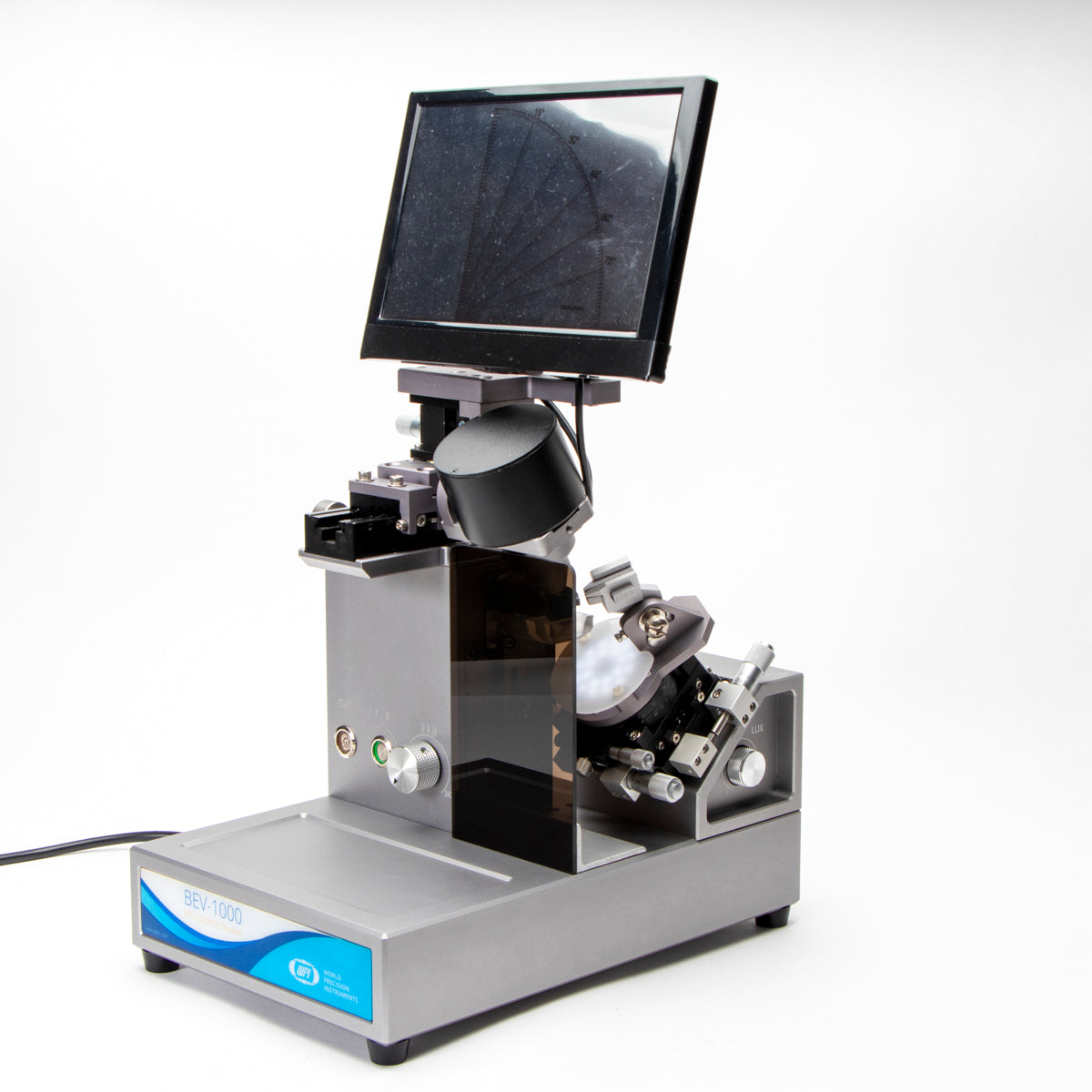

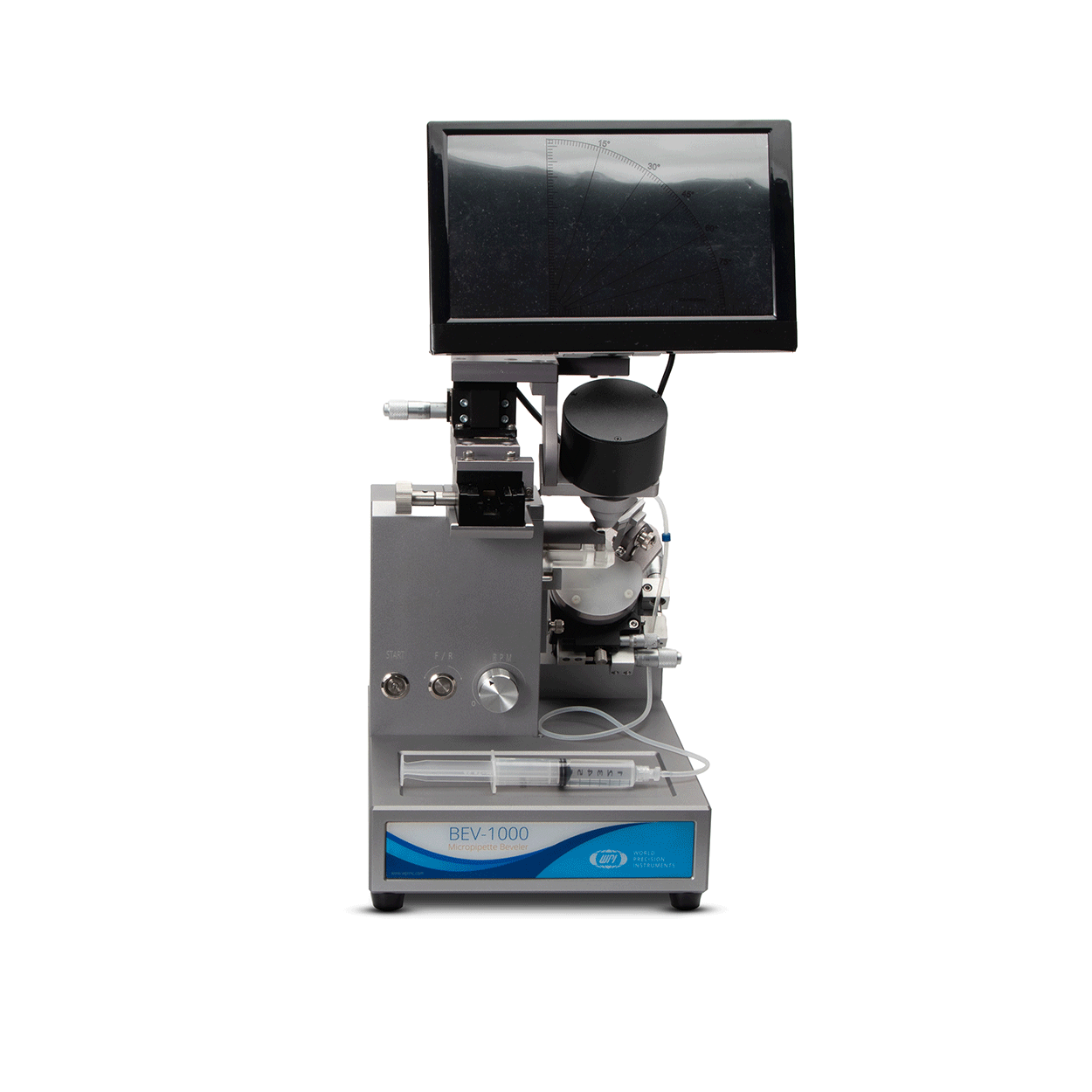

Complete, compact tabletop micropipette beveler

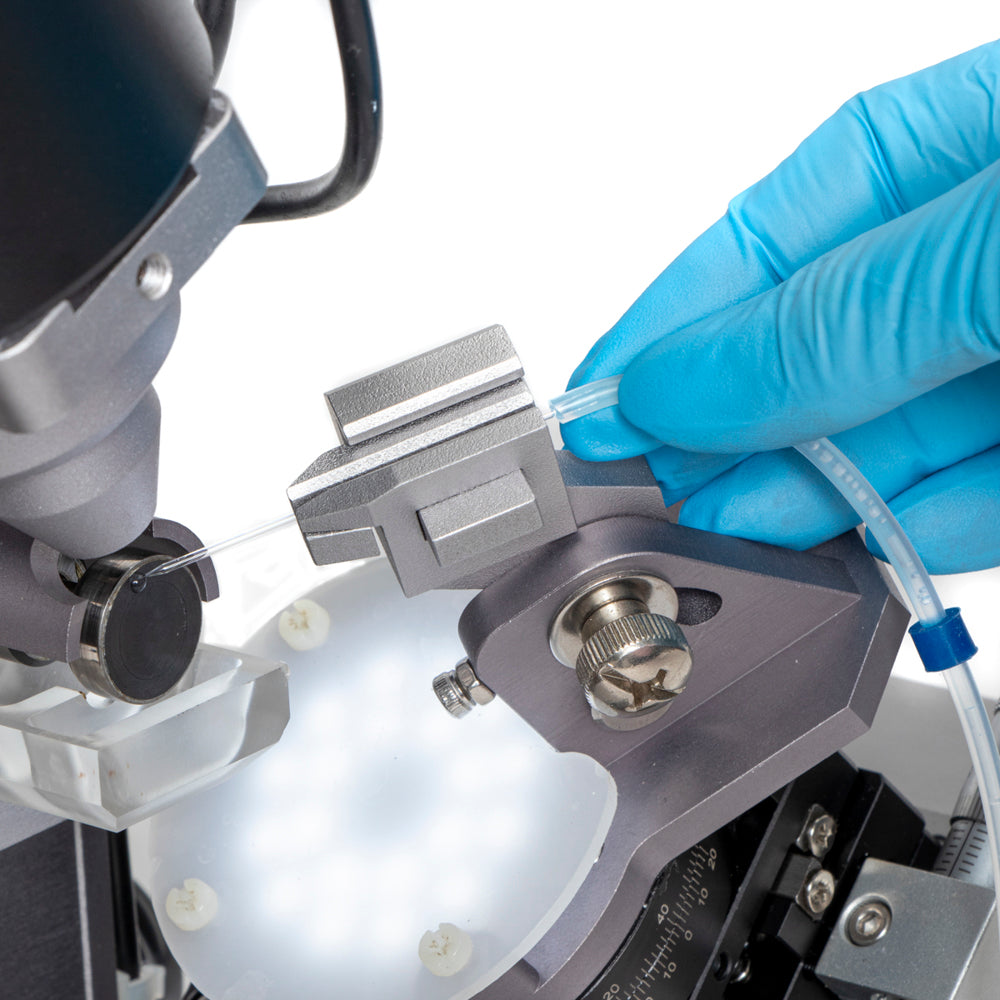

WPI’s Micropipette Beveler, the BEV-1000, is a turnkey micropipette beveling setup with a large LCD display and an adjustable light source for excellent visibility during your beveling process. The syringe assembly allows for quick rinsing of your pipette before, during, and after beveling to ensure clean and clear capillaries for use with your applications. Our durable, proprietary abrasive diamond wheel does not need to be changed out over time, meaning zero down time for system maintenance. With easy, adjustable beveling speeds (up to 3,000rpm, vs most competitors >100rpm max speed) long, arduous beveling protocols are a thing of the past.

WPI’s Micropipette Beveler is the ideal platform for your beveling needs.

Details

Features

The BEV-1000 combines high-magnification imaging and precise mechanical control
to support accurate beveling across a wide range of glass capillary sizes, as outlined
below:

Total magnification (optical + digital): 230×
9” TFT panel display resolution: 1024 × 768
Beveling operation speed: 0 - 3,000 RPM

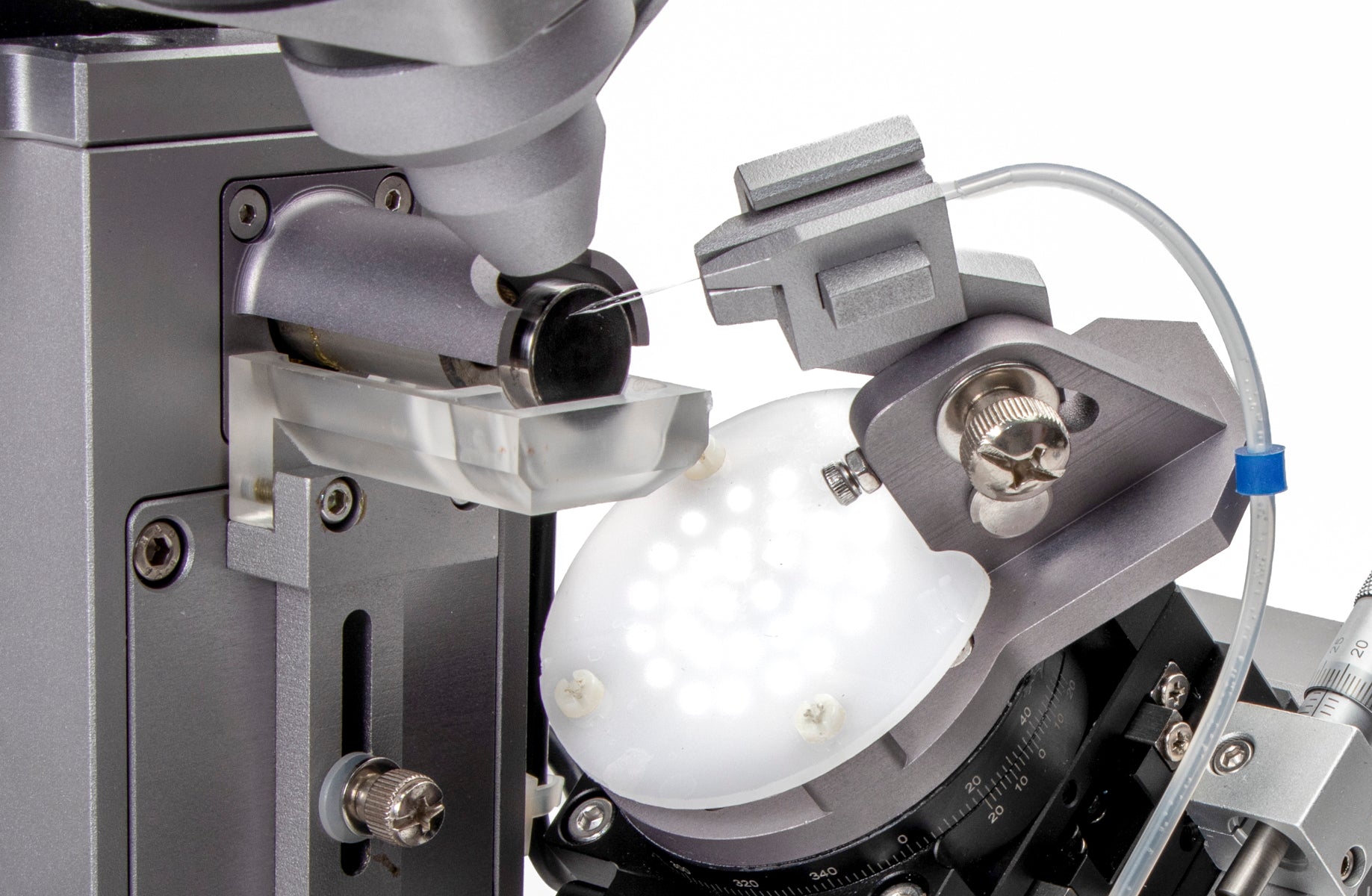

Flat diamond wheel with a surface variance of <2 μm/cm ensure you get a clean
bevel with less tip breakage
Compatible with range of glass capillary sizes, up to 3 mm outer diameter
Excellent flexibility and control over the finished beveled angle

Benefits

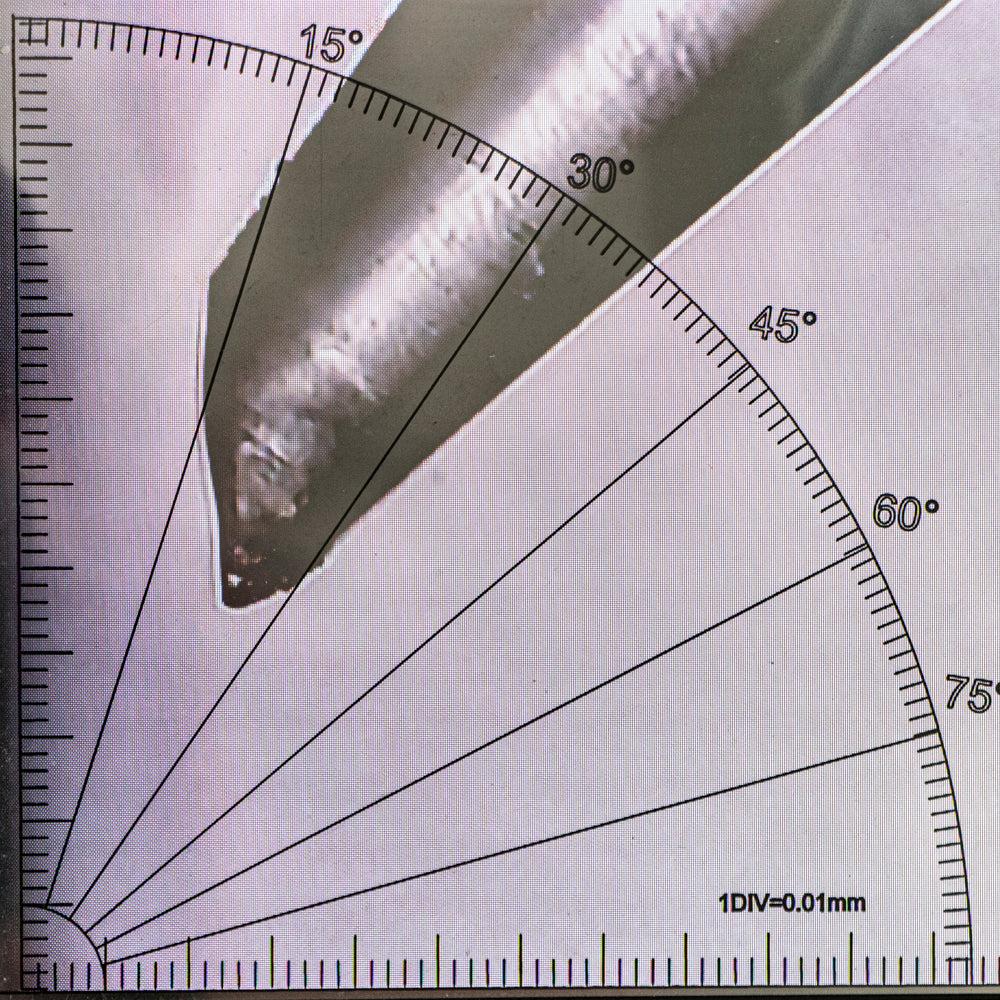

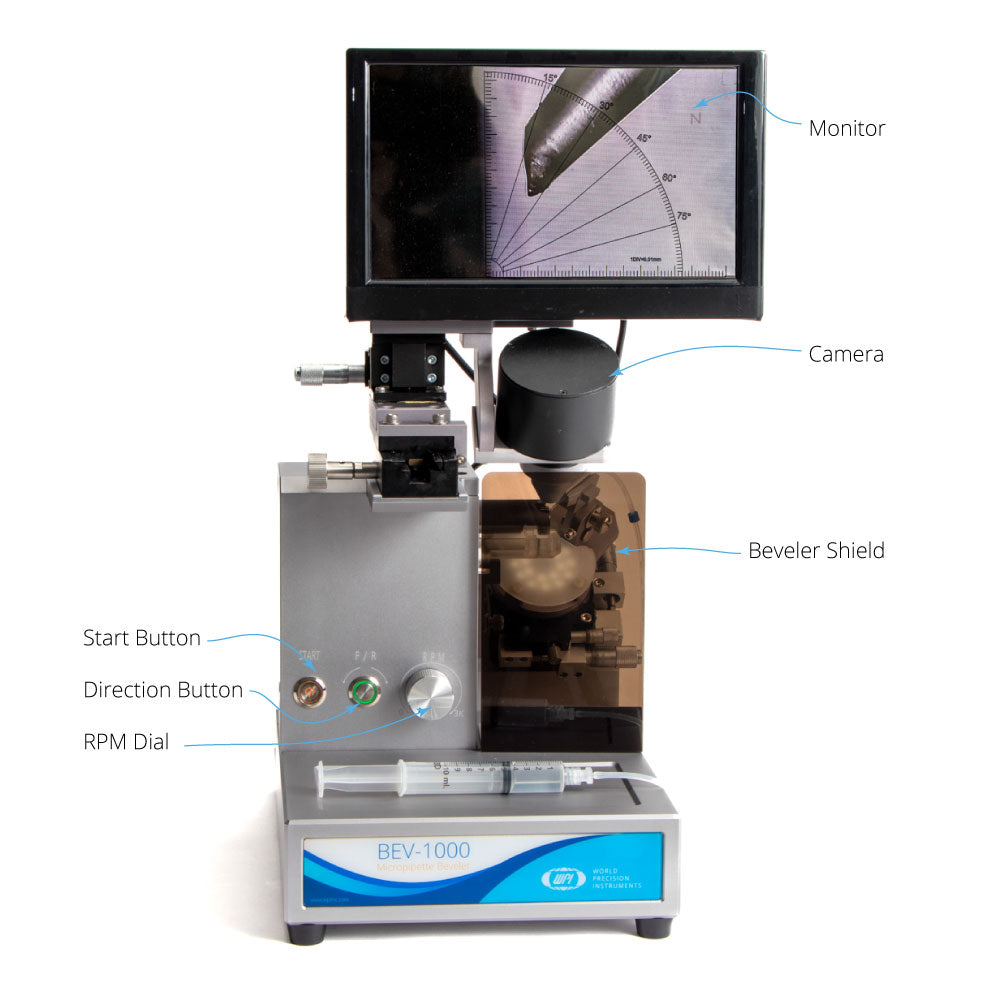

Large LCD screen for enhanced visibility, and reduced eye strain vs relying on microscope eyepieces for visualization
Adjustable speed and brightness all on one plane for easy adjustment during use
Protective tinted shield both defends against residual glass debris during beveling and brightness from light source
All-in-one system, all required components are included, no hidden costs or add-ons needed

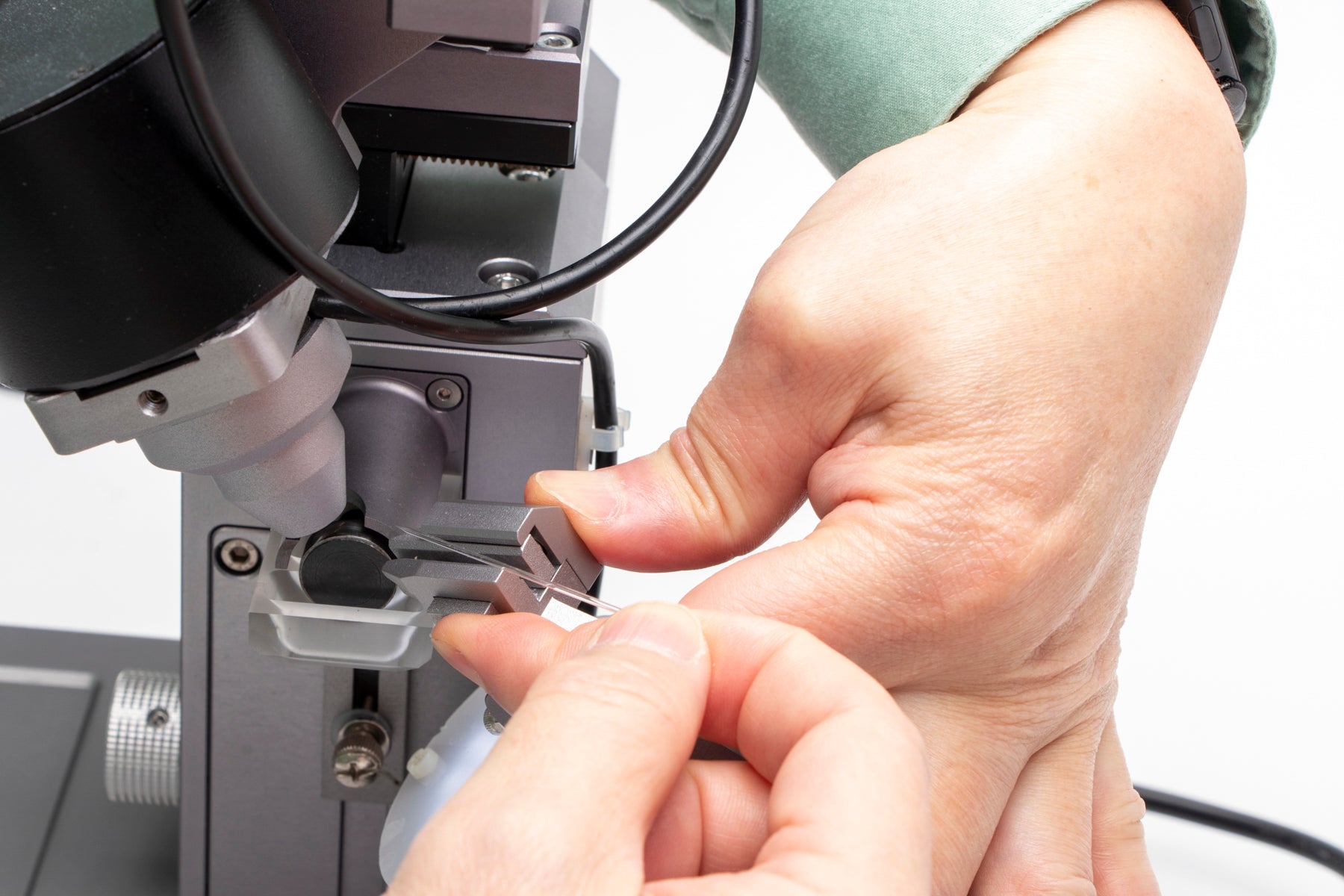

Straightforward axis manipulation for pipette vs camera adjustment

Resources

BEV-1000 Instruction Manual

Specifications

This unit conforms to the following specifications:

Type	Description
Camera Magnification	230× (total optical and digital)
Camera Working Distance (or focal length	> 12 mm
Camera Field of View	> 0.8 mm

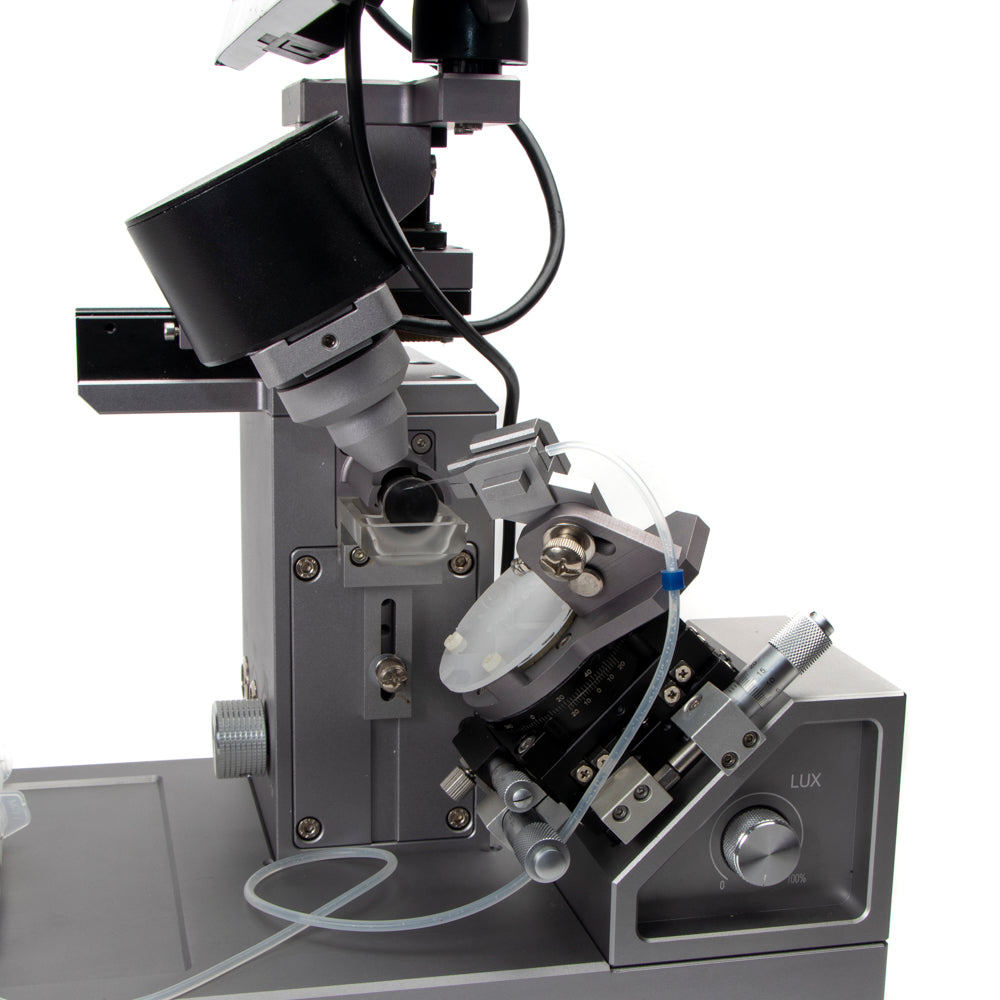

Manipulation of Camera
Y-Axis Travel Distance (front and rear)	7 mm
Z-Axis Travel Distance (up and down)	8 mm
Speed of Abrasive Diamond Wheel	0 – 3000 RPM
Abrasive Diamond Wheel Surface Flatness	< 2 µm/cm
Adaptable Glass Tube Range	Ø1 – 3 mm OD
Pre-Pulled Glass Capillary Diameter Range	0.5 to 100 µm*
Reticle Scale Resolution	8 µm/division
Minimum Measurable Tip Size	8 µm**
Minimum/Maximum Tip Beveling Range	0.1 – 100 µm
Beveled Pre-Pulled Glass Capillary Diameter	< 200 µm
Manipulation of Glass Tube
X-Axis Travel Distance (left and right)	10 mm
Y-Axis Travel Distance (front and rear	10 mm
Coarse Rotation Range	0 – 180°
Fine-Tuning Rotation Range	0 – 15°
Sliding Track and Working Platform Inclination Angle	30°
Display Size/Resolution	9" TFT panel / 1024 × 768
Display Screen Supply Voltage	12 VDC
Backlight Voltage, Power	12 VDC, 2 W
Mains Voltage, Frequency, Power	110–240 VAC, 50/60 Hz, 62 W
Dimensions	30 × 20 × 46 cm (L × W × H)
Net Weight	10 kg (22 lbs.)

*Note : Very small pipette tips (sub-micron range) may be beveled; however, measurement of the tip outer diameter below 8 µm is not verifiable using the integrated scale. External high-magnification microscopy may be required for smaller measurements.

**Note : The smallest measurement distance is 2.54 µm with 10× eyepieces, and the smallest verifiable tip size using the scale division on the monitor is 8 µm.
