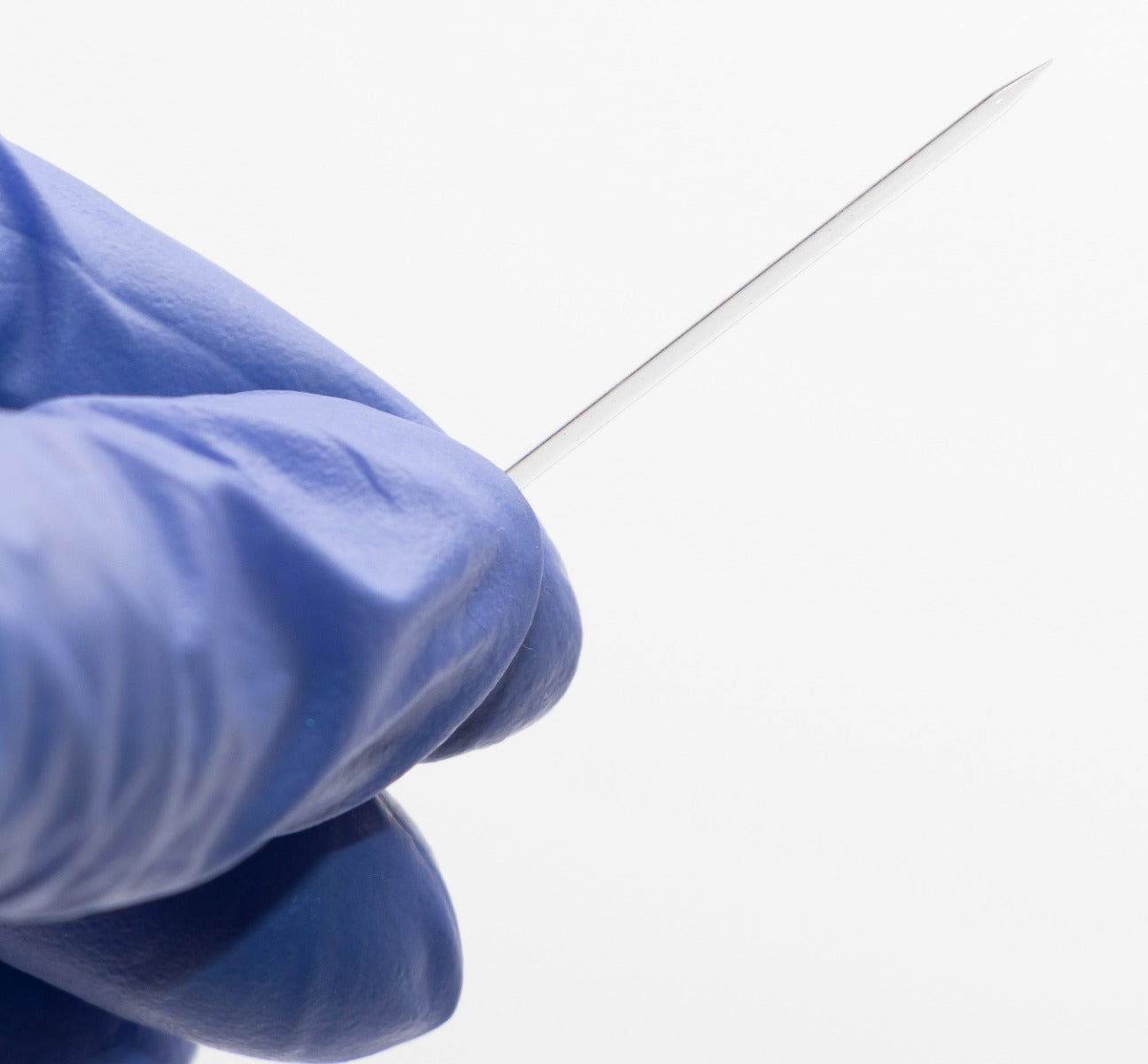

Pre-Pulled Glass Pipette Samplers

Eliminate the cost and trouble of making your own micropipettes

Features

• Schott Duran borosilicate glass
• 0.5 µm and smaller ID micropipettes include internal glass fiber for easy filling
• Tip inner diameter tolerance ±20%
• Short taper yields high strength
• Nominal length ≈ 50 mm
• Every pipette individually tested and inspected
• Vacuum packed
• Glass Outside Diameter: 1.0mm thin wall
• 10 per package (2 of each tip in 5 sizes)
• Also available: Plain Tips, Luer Tips, Luer/Silanized Tips
• Products supplied non-sterile

Options

Order code	Tips Included (2 of each)	Luer Fitting
TIPMIX01-05	0.1, 0.2, 0.3, 0.4, 0.5µm	No
TIPMIX05-10	0.5, 1, 2, 5, 10µm	No
TIPMIX01-05-L	0.1, 0.2, 0.3, 0.4, 0.5µm	Yes
TIPMIX05-10-L	0.5, 1, 2, 5, 10µm	Yes



Benefits

• Plain Shank or Luer Fittings

Applications

• Injection of dyes or proteins into cells, oocytes or other biomedical laboratory applications

WPI can quickly supply your need for consistently sized pre-pulled glass micropipettes. Tip diameters (ID) range from 0.1 to 10 µm. Silanized Tips (Luer Shank) are available. Silanization waterproofs the glass to retard water when inserting into cell. This will not let the outside fluid run down the pipette and get inside so easily.These glass needles are fabricated from Schott Duran borosilicate glass.

Certificate of Compliance

A Certificate of Compliance is available for these MicroTips. Please request one when placing your order.

UTips

Image	Descriptions
	Micropipette, 5um, 400X
	Micropipette, 10um and 5um, 40X
	Micropipette, 10um and 5um, 100X
	Micropipette,10um, 400X
	Tip 2um, 135x
	TIP10TW1
	Tip 2um
	Tip 2um, 10x
	Tip 2um, 60x
	Tip 2um, 90x
	TIP1
	TIP30
	TIP30



NOTE: Due to supply constraint, this product is currently non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.

Consistent Size Micropipettes Sell Sheet

CTE (20 °C; 300 °C)		3.3± 0.110-6/K
Transformation temperature Tg		525 ± 15 °C
Density		2.23 ± 0.02 g/cm3
Temperature  at the viscosity	1013 dPa·s 107.6 dPa·s  104 dPa·s	560 ± 10°C 820 ± 10°C 1260 ± 20°C
Heat conductivity l at 100 °C  Specific heat CP		1.2W/(m·K) 0.8J / (g·K)
Elasicity-modulus  Poisson-ratio μ		64GPa 0.20GPa
Photoelasticity Refractive index nd		4.0·10-6 mm² / N 1.473mm² / N
Relative dielectric constant  tan d	at 1 MHz and 25 °C	4.6 10-4 37 10-4
Tk 100 (DIN 52326)		250°C
Classes of chemical stability	water  acid  alkaline solution	DIN ISO 719  DIN 12 116 DIN ISO 695
