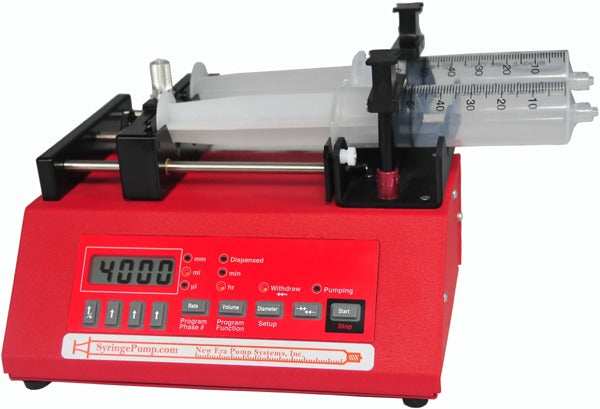

Programmable Double Syringe Pump

See the current data sheet.

Features

• Cost-effective
• Program sequences without a computer
• Rich command set
• RS-232 and TTL control
• Accepts two different syringe sizes: smallest-60mL
• Infuses and withdraws

Benefits

• Automatic dispensing of small volumes
• Very precise flow rate control
• Hands-free operation with foot switch

Applications

• Drug administration
• Chemical applications with slow incorporation of fixed volumes of fluids



The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels. The performance characteristics are admirable, considering the price.

For the budget minded lab looking for a versatile and reliable pump, the Aladdin series is an excellent option.

The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite.

The AL-4000 has these additional features:

• Holds up to 2 syringes
• Infusion rates from 1.436 µL/hr (1mL syringe) to 7515 mL/hr (60mL syringe)
• Programmable preset protocols
• Motor stall detection
• Non-volatile memory of all parameters and programming
• Upgradeable memory
• Dispensing accuracy of ±1%

The AL-4000 Programmable Syringe Pump is perfect for situations requiring flexibility or automation. With dual syringes, you can use two syringes of different size for proportional infusion. The pump accepts syringes that range from the smallest available to 60mL.

With a variety of pumping rates (1.459mL/hr. – 127.2mL/min.), infusion and withdraw capability, and pumping phases that can be programmed, the AL-4000 was designed for automation. This pump can handle applications like simple infusions, as well as complex pumping programs.

You can program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, or sound an alarm. Connect two pumps with a dual cable (WPI #GN-TTL) to create a dual pump system that allows for continuous infusion or emulsification. If required, you can network, control and monitor up to 100 pumps with a single computer.

NOTE: This product is not approved for clinical use on humans.





AL-4000 Manual
Aladdin Pumps Upgrading a Firmware Chip



SYRINGE SIZES	Up to 60 mL (140 mL partially filled)
NUMBER OF SYRINGES	2 (may be different sizes)
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	200
ADVANCE PER STEP	0.42522321 µm to 1.7009 µm, depending on motor speed
MOTOR TO DRIVE SCREW RATIO	15/28
DRIVE SCREW PITCH	20 revolutions/inch
POWER SUPPLY	Wall adapter 12V DC @ 1000 mA
DC CONNECTOR	2.5mm, center positive
POWER SUPPLY TYPE	Unregulated linear external wall adapter, country and power source specific
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	1.63 kg (3.6 lb)
Maximum speed	18.36964 cm/min
Minimum speed	0.008409 cm/hr.
Maximum pumping rate	6120 mL/hr. with a B-D 60 cc syringe
Minimum pumping rate	1.459 μL/hr. with a B-D 1 cc syringe
Maximum force	100 lbs. at minimum speed, 15 lbs. at maximum speed
Number of program phases	41
Power Supply	Wall adapter 12 V DC @ 100mA
Dimensions	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5")
Weight	1.6 kg (3.6 lb.)
