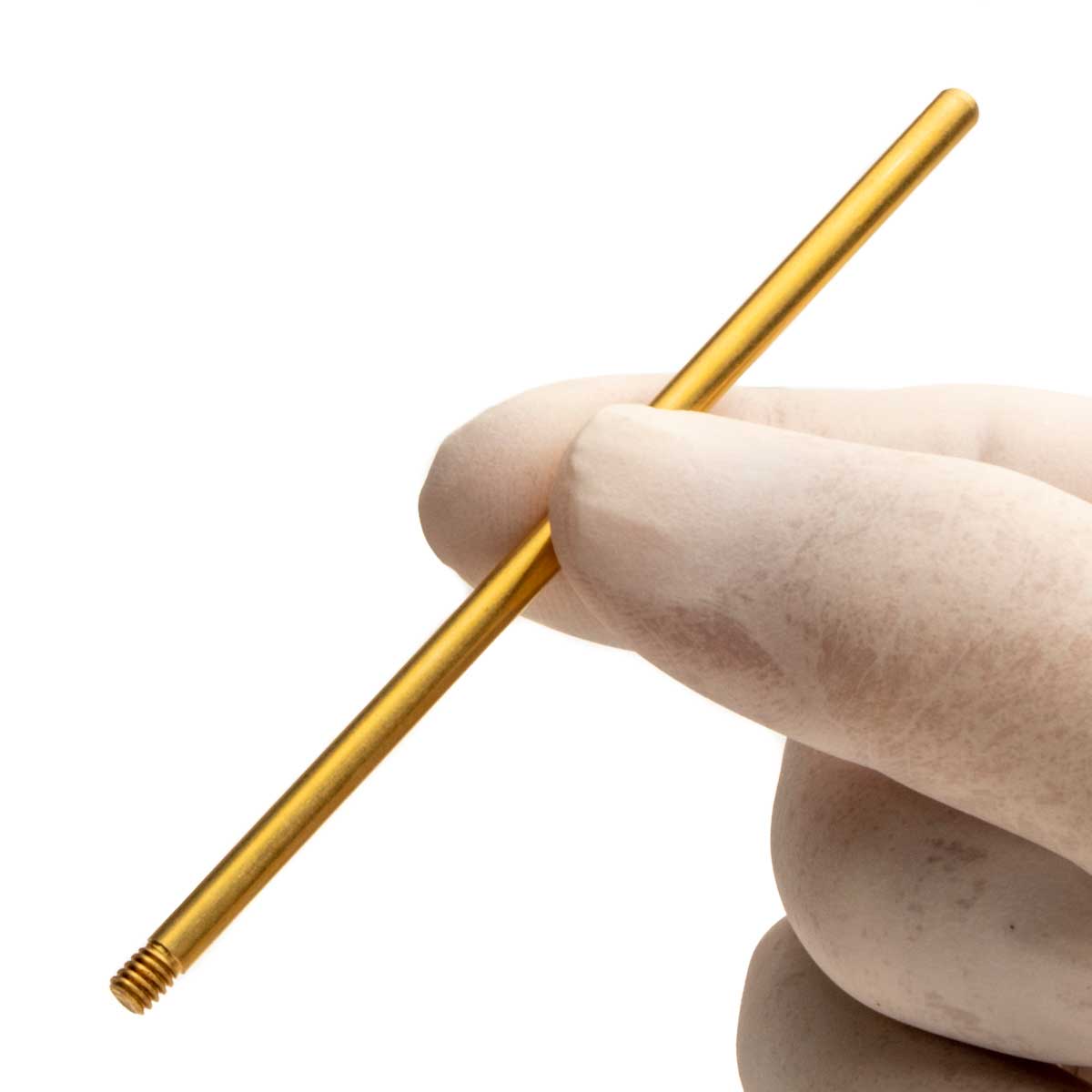

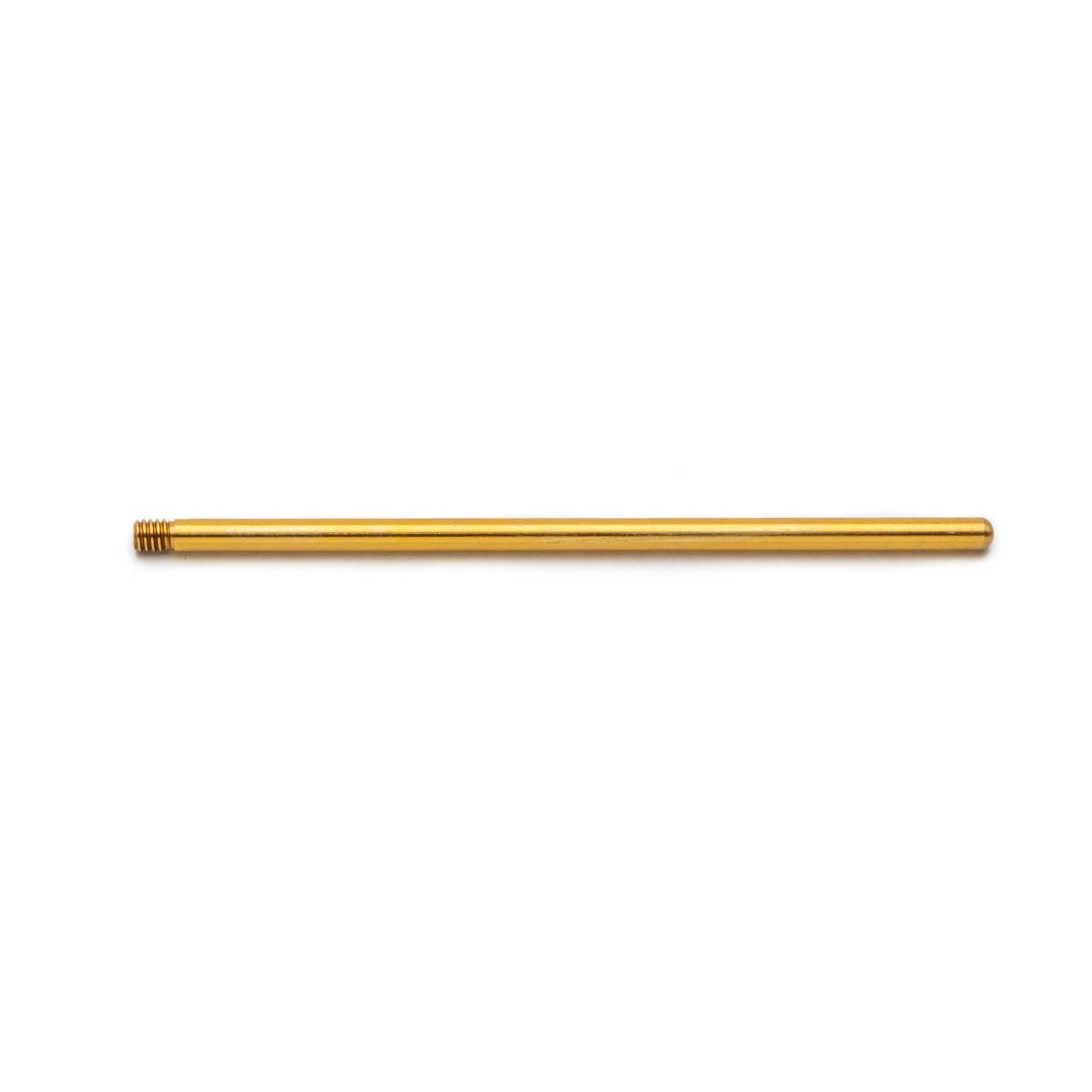

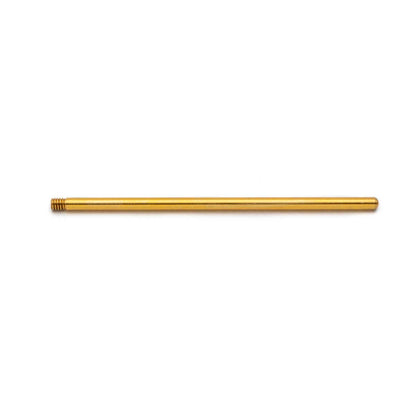

Electrode Handle 4.0 mm

A heat treated tip is ideal for penetrating tough membranes. (It is not recommended for chronic implantation.) This process is performed using a microforge in which the heating element is positioned in close proximity to the tip in order to melt the Parylene-C distal to the exposed metal. It provides a smooth transition and produces better adherence of the Parylene-C to the metal. Both the KT and non-KT electrodes are heat-treatable. The heat treatment is applied only to the parylene coating. The heat melts the parylene so it feathers down close to the shank near where the tip is exposed. This removes the abrupt edge where the parylene has been removed to create the tip exposure. The purpose is to prevent the parylene from delaminating from the electrode during implantation into tissue which could catch on the edge. Heat treatment does not work well in chronic applications, because the feather edge is susceptible to fluid intrusion overtime, which will alter the impedance characteristics of the electrode unfavorably.
