STX2 TEER Chopstick Electrodes, Mersstx01 Equivalent

STX2

Prices valid in USA, Canada, and PR only.

MERSSTX01 and STX2 are equivalent electrodes. WPI has been the original manufacturer of MERSSTX01 for use with Millicell ERS-2 for over 30 years.

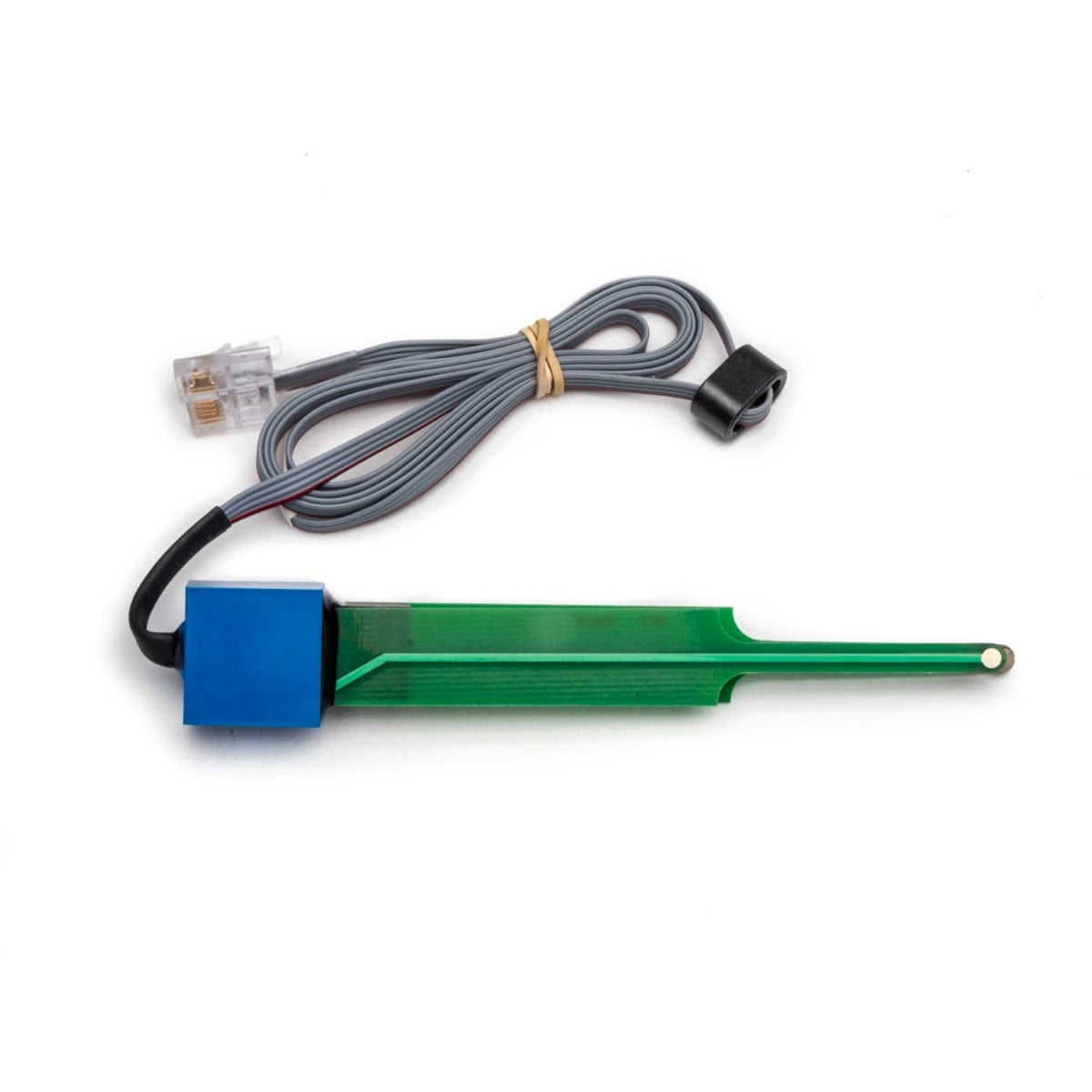

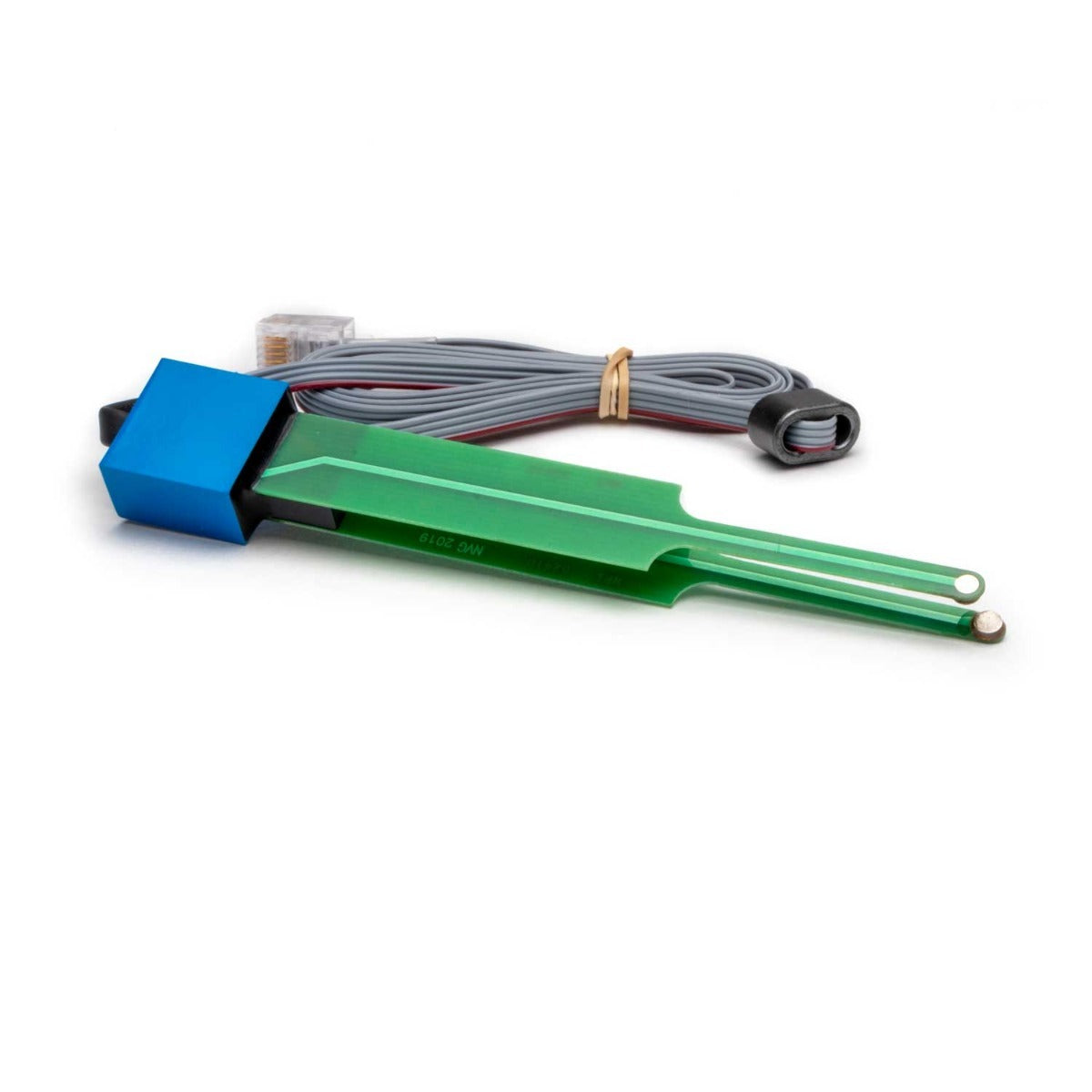

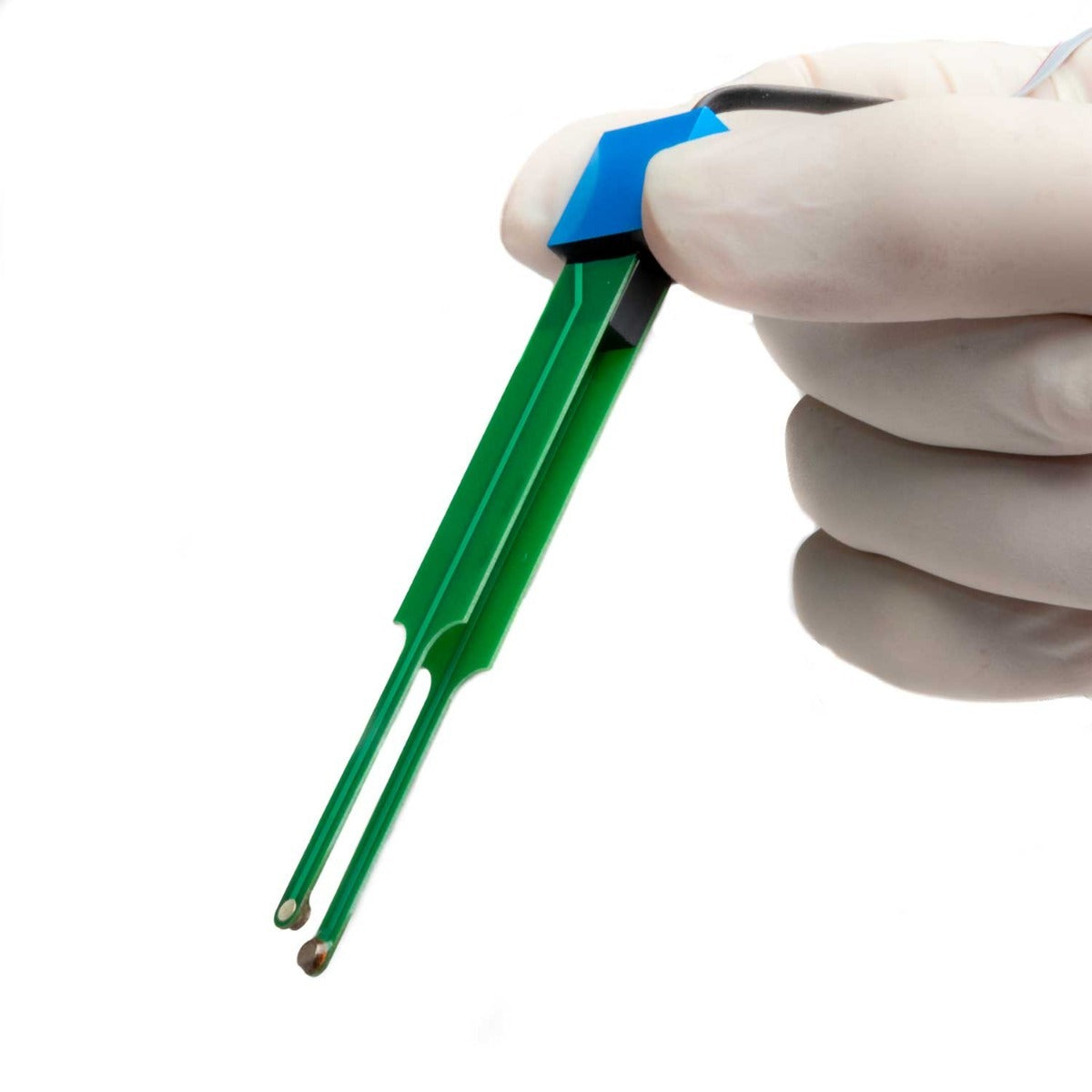

The STX2 consists of a fixed pair of double electrodes, 4 mm wide and 1 mm thick. Each stick of the electrode pair contains a silver/silver-chloride pellet for measuring voltage and a silver electrode for passing current. The small size of each electrode is designed to facilitate placement of the electrodes into cell culture wells. STX2 can be used with all tissue culture inserts currently on the market. For more accurate quantitative measurements and/or for lower resistance measurements (for example, endothelial tissue cultures) the EVOM2 can be used in conjunction with the optional Endohm chambers.



UPGRADE TO STX4 electrode, it is the most recent version of chopstick electrode for the  EVOM™ Manual, and many new features.

ACCESSORIES

Details

Sterilization

STX2 can be sterilized with EtO, alcohol or a bactericide

Features

  • 4mm fixed width double electrodes
  • 1mm thick
  • Use in cell culture wells
  • Compatible with the EVOM™, EVOM2, ERS, ERS2 (Millipore)







Resources

Declaration of conformity
STX2 Instruction Manual
