MUX Distribution Valve

$4,400
$4,400

505987

Prices valid in USA, Canada, and PR only.

12/1 rotary bidirectional microfluidic valve to perform sequential microfluidic injections—supporting automation for up to 12 liquids.

Details

MUX

Overview

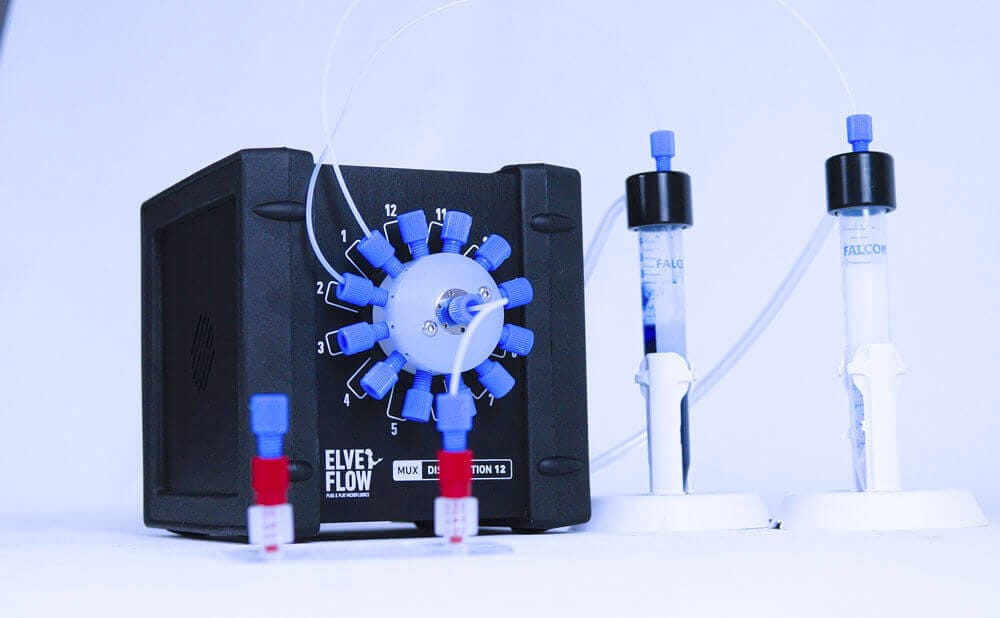

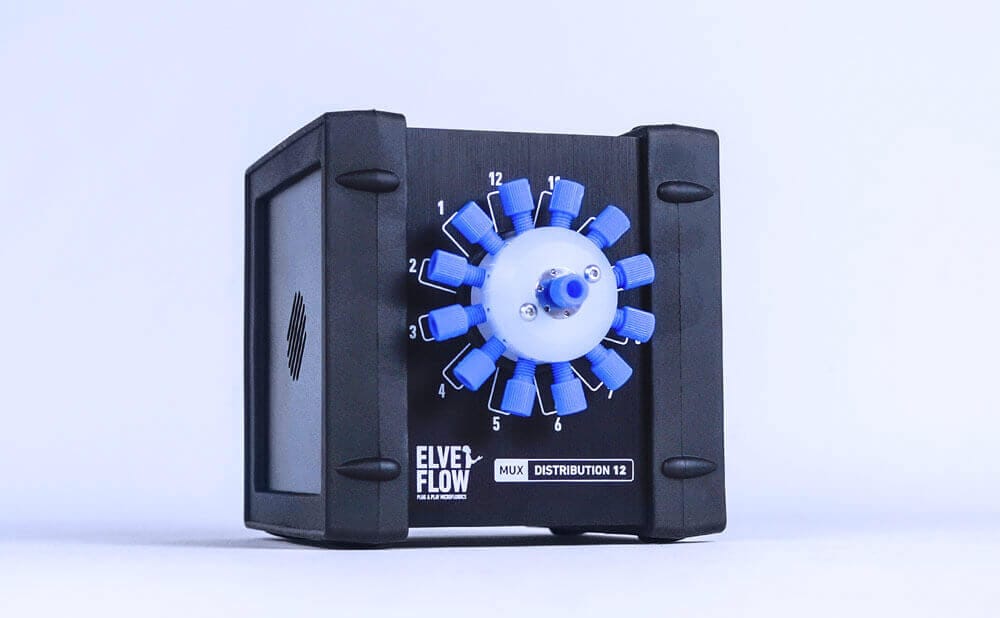

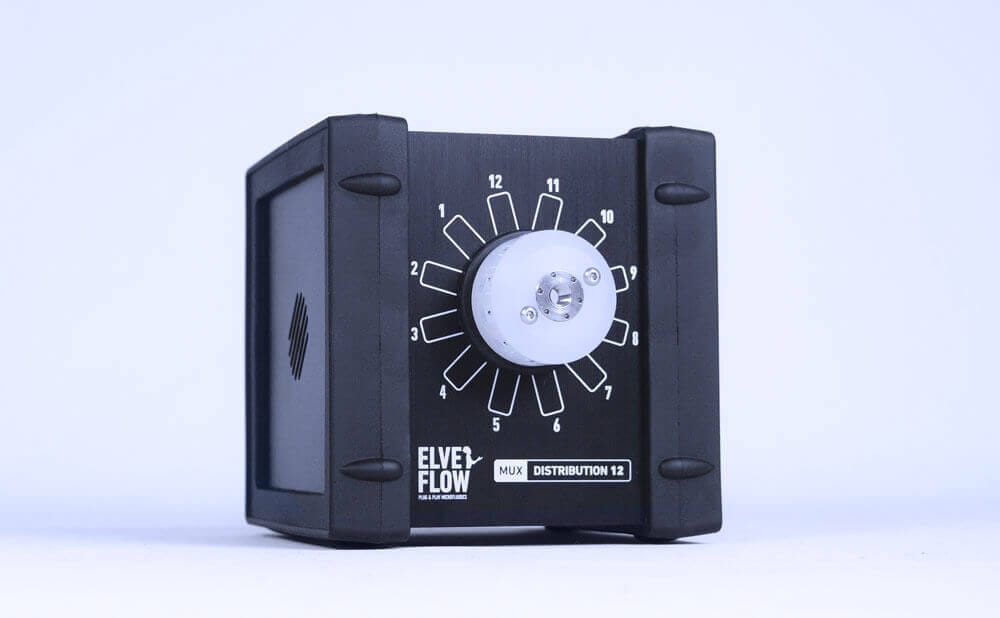

Perform microfluidic sequential injection with the 12/1 Rotary Selector Bidirectional Valve.

Combined with the OB1 microfluidic pressure controller/regulator, the MUX Distribution valve will allow you to automate injection in microfluidic experiments, program perfusion experiments, sequentially apply different reagents and many more applications.

Benefits

Inject 1 sample into 12 outputs, or up to 12 samples into 1 output

Use the MUX Distribution valve to sequentially inject up 12 different solutions into 1 microfluidic line (or vice versa) for sample collections or parallel experiments.

  • Low internal volume
  • Fast switching time
  • Workflow microfluidic automation
  • Smooth switches: no disruption of the flow
  • Easy setup and operation (plug and play software + standard fluidic connection)

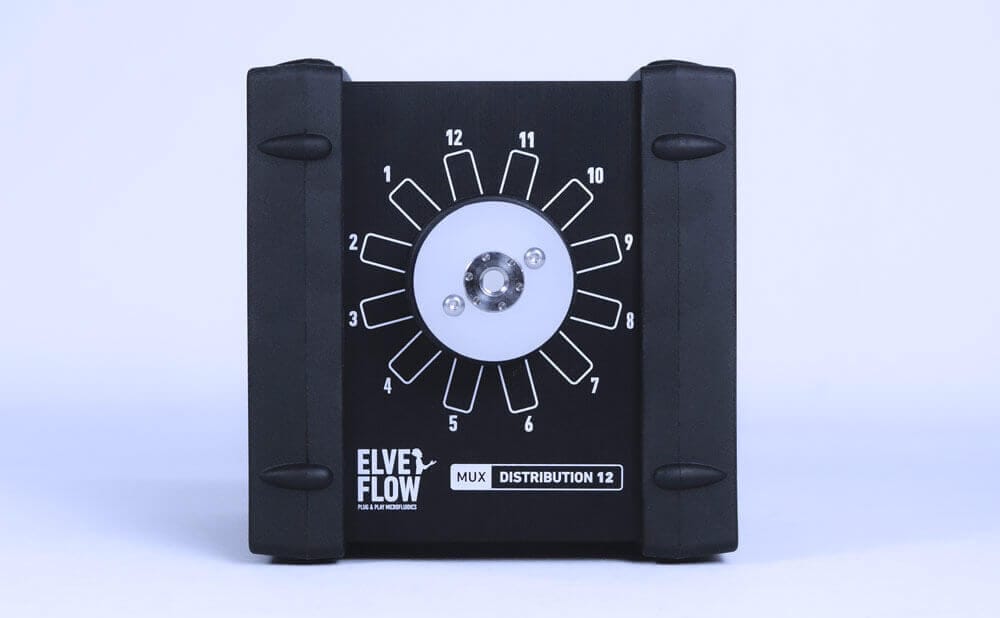

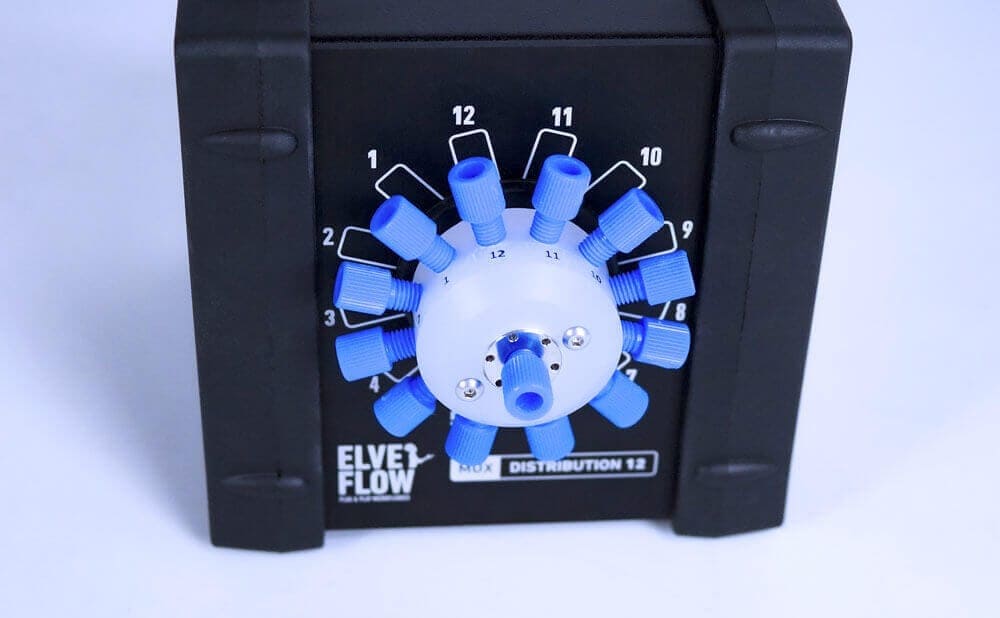

  • Bidirectional 13 ports/ 12 positions sequential injection from 12 different samples into 1 output/input

Key Advantages

  • Valve flexibility: 13 ports
  • Easy setup: standard ¼-28 fluidic fittings
  • Possibility to chose the sense of rotation
  • High chemical compatibility
  • Lowest internal volume: 3.5 µL
  • No dead volume
  • Switching time (average): 160 ms
  • Wetted materials: PCTFE, PTFE



The MUX Distribution 12/1 valve can be used in various fields of application and for any experiment that requires successive injection of fluids, such as:

  • Organic synthesis
  • Flow chemistry
  • Drug screening
  • Biochemical and electrochemical sensor calibration
  • Calibration (bench testing)
  • Sensors test rig
  • Toxicity testing
  • Seq-Fish experiments

Resources

MUX Distribution User Guide

Application Notes

Reviews



Multiple fluid switching pack - Quickly swap between fluids, gas or liquids!



How does the sequential fluid injection pack work ? - Elveflow Microfluidic Instruments



Multiple liquids switching dedicated to microfluidics



Specifications

Performances Port to port switching time (ms) 160 ms
Maximum valve update rate 2 Hz
Max recommended pressure 7 bar
Internal diameter 0.5 mm
Internal volume(1) 3.5 µL
Carryover volume(2) 1.7 µL
Dead volume (3) None
Wetted materials PCTFE, PTFE
Number or ports 13
Number of positions 12
  Operating temperature 5-40°C
  Operating Humidity 20-70% noncondensing



  1. Volume inside the system from entrance to exit
  2. Volume of liquid that will be mixed with the next liquid. It is not stuck, but will be swept next time a liquid passes.
  3. Volume that is stuck in the system (dead end), which is not clearly swept and relies on diffusion to clear out

References

Publications

Qian, T., Gil, D. A., Contreras Guzman, E., Gastfriend, B. D., Tweed, K. E., Palecek, S. P., & Skala, M. C. (2020). Adaptable pulsatile flow generated from stem cell-derived cardiomyocytes using quantitative imaging-based signal transduction. Lab on a chip, 20(20), 3744–3756. https://doi.org/10.1039/d0lc00546k

Mulas, C., Hodgson, A. C., Kohler, T. N., Agley, C. C., Humphreys, P., Kleine-Brüggeney, H., Hollfelder, F., Smith, A., & Chalut, K. J. (2020). Microfluidic platform for 3D cell culture with live imaging and clone retrieval. Lab on a chip, 20(14), 2580–2591. https://doi.org/10.1039/d0lc00165a

Li, J. R. Sanchez, F. Kohler, A. Røyne, & D. K. Dysthe. (2018). Microfluidic control of nucleation and growth of CaCO3. Crystal growth & design, 18(8), 4528-4535. https://doi.org/10.1021/acs.cgd.8b00508



  • For all publications using Elveflow products, please click here.
  • For all application notes and reviews based on Elveflow products, please click here.
