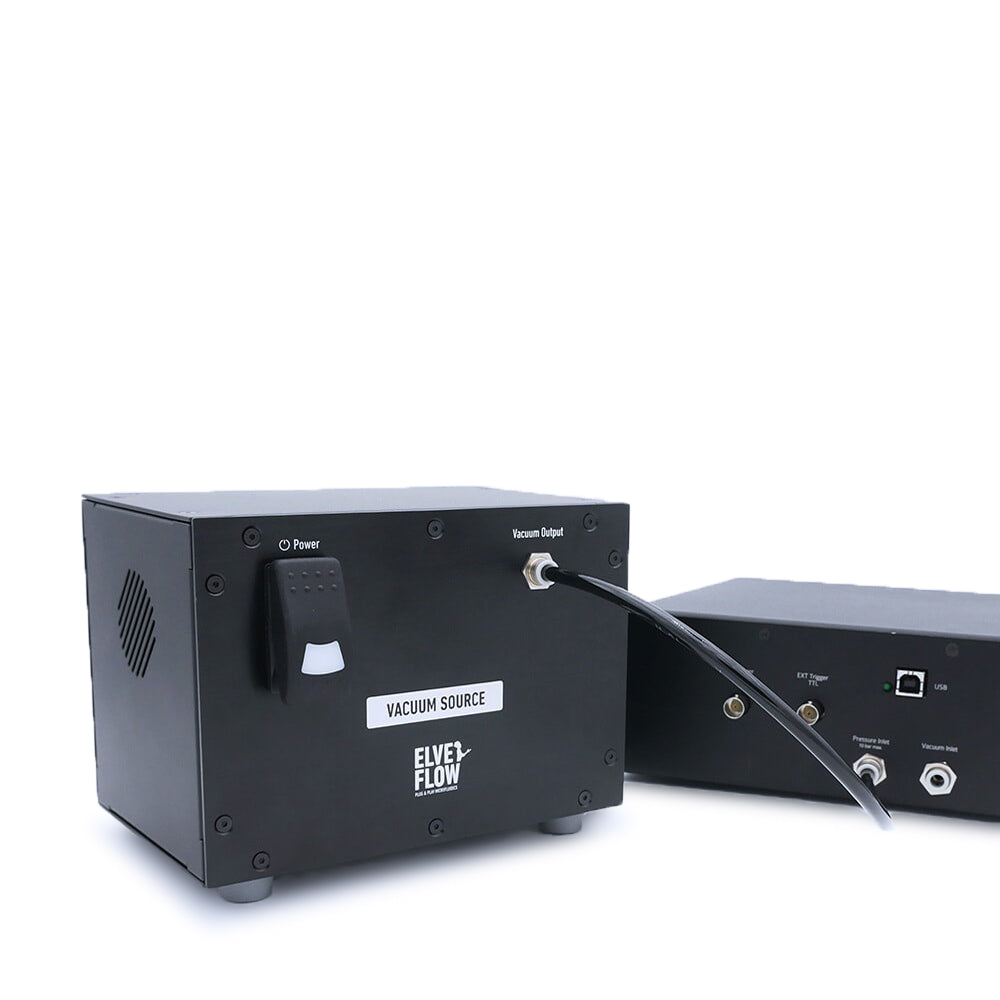

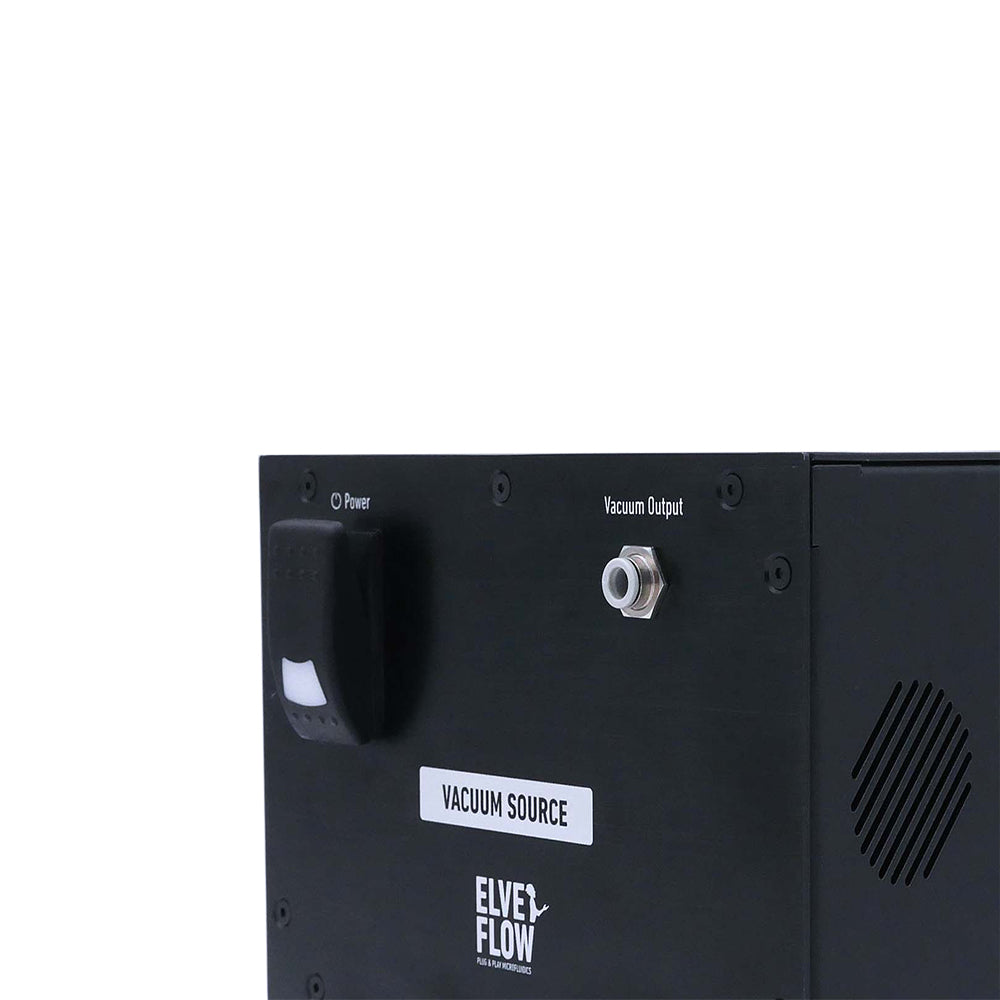

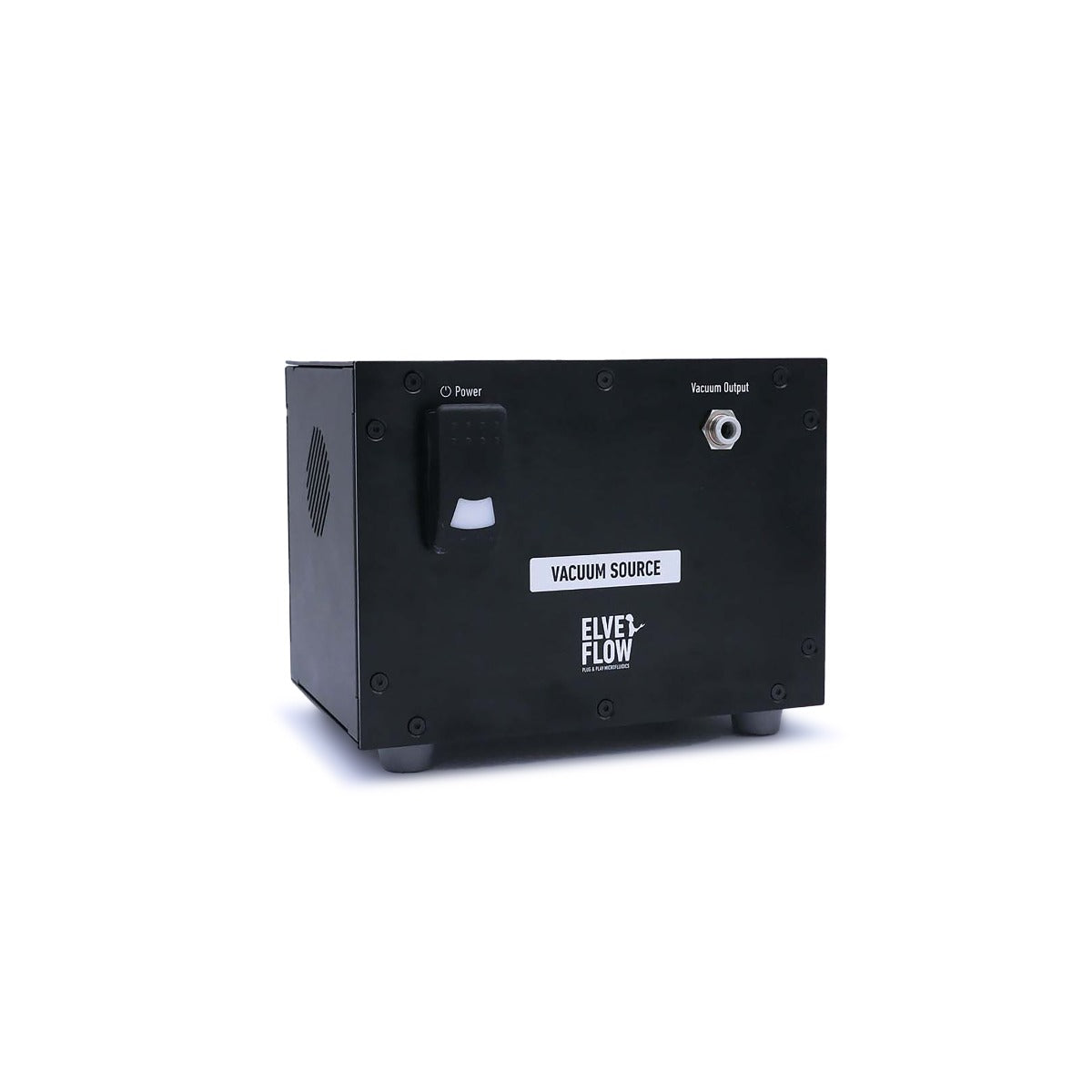

Microfluidic Vacuum Pump, Portable

$1,562
$1,562

505866

Prices valid in USA, Canada, and PR only.

WPI now introduces a portable vacuum source alternative to in-line lab vacuum supply. A robust and powerful alternative offering high performance: a stable and reliable generator (down to 850 mbar), portable with a small footprint (1.4kg), and features low noise levels (<51dB).

Details

A compact and light vacuum source

We designed an oil-free vacuum source to ease the integration in a laboratory environment thanks to its small footprint and integrated tank.

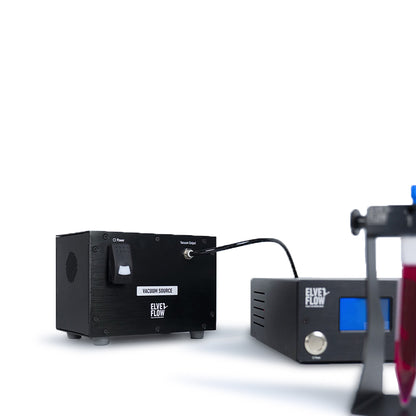

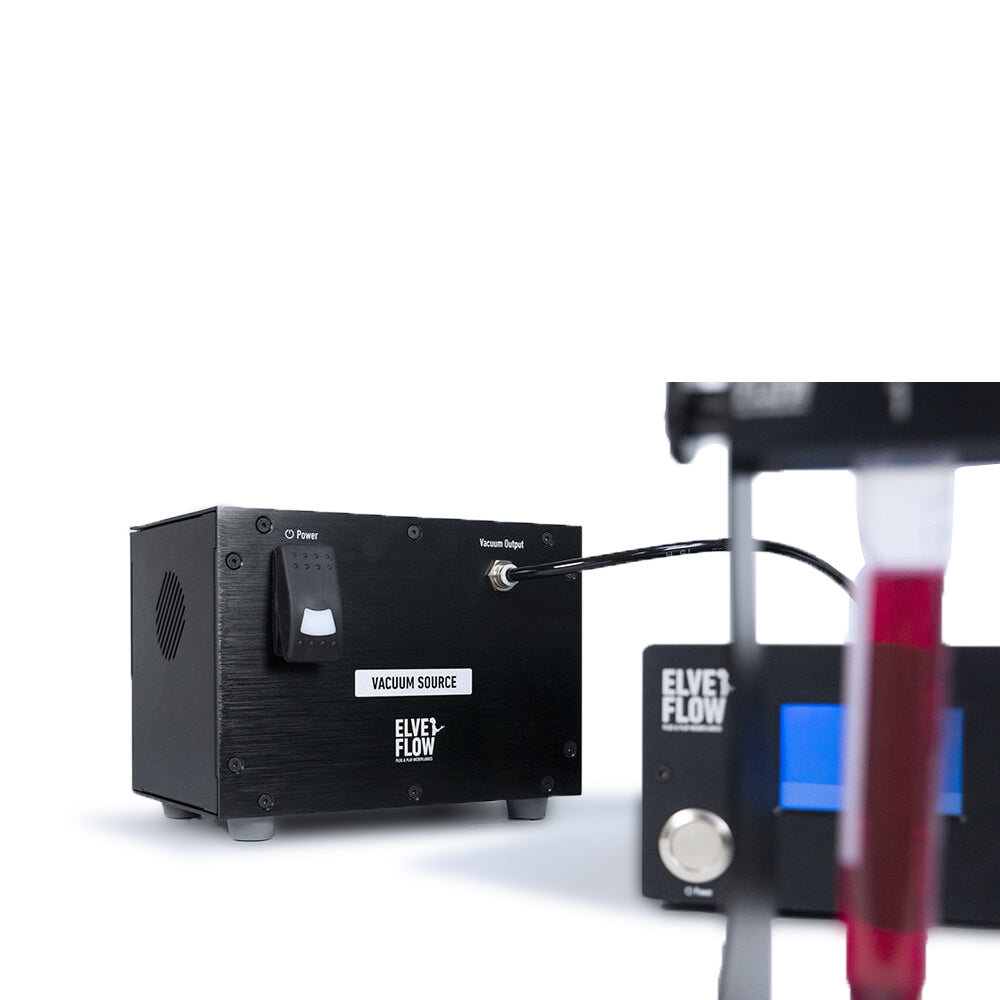

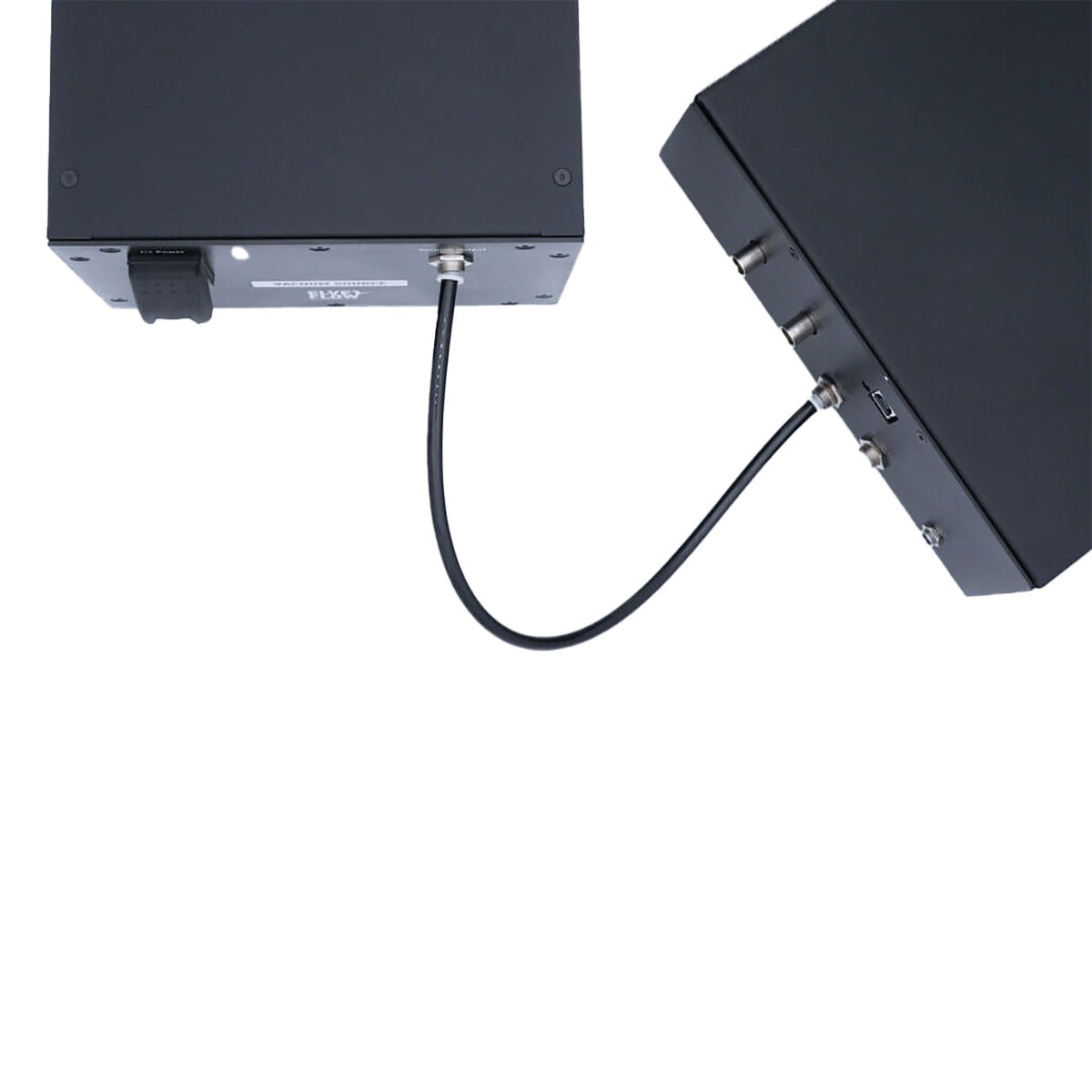

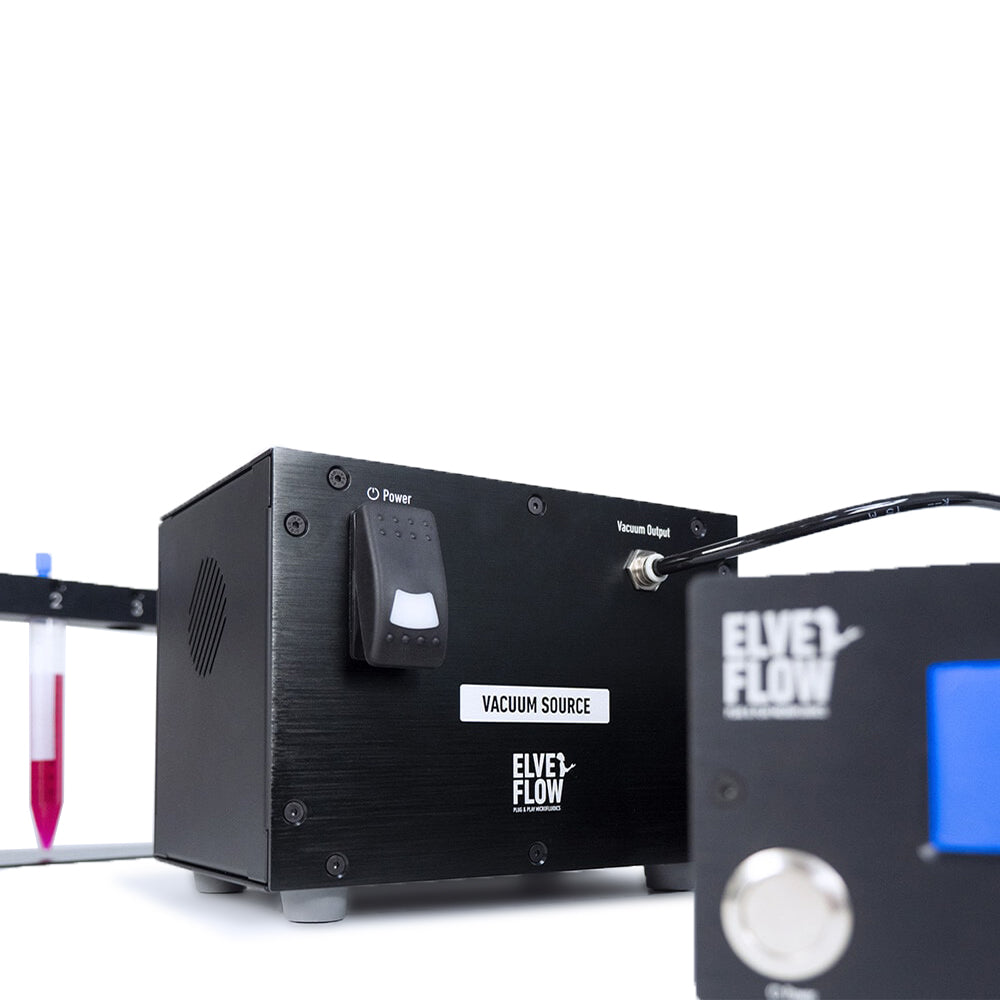

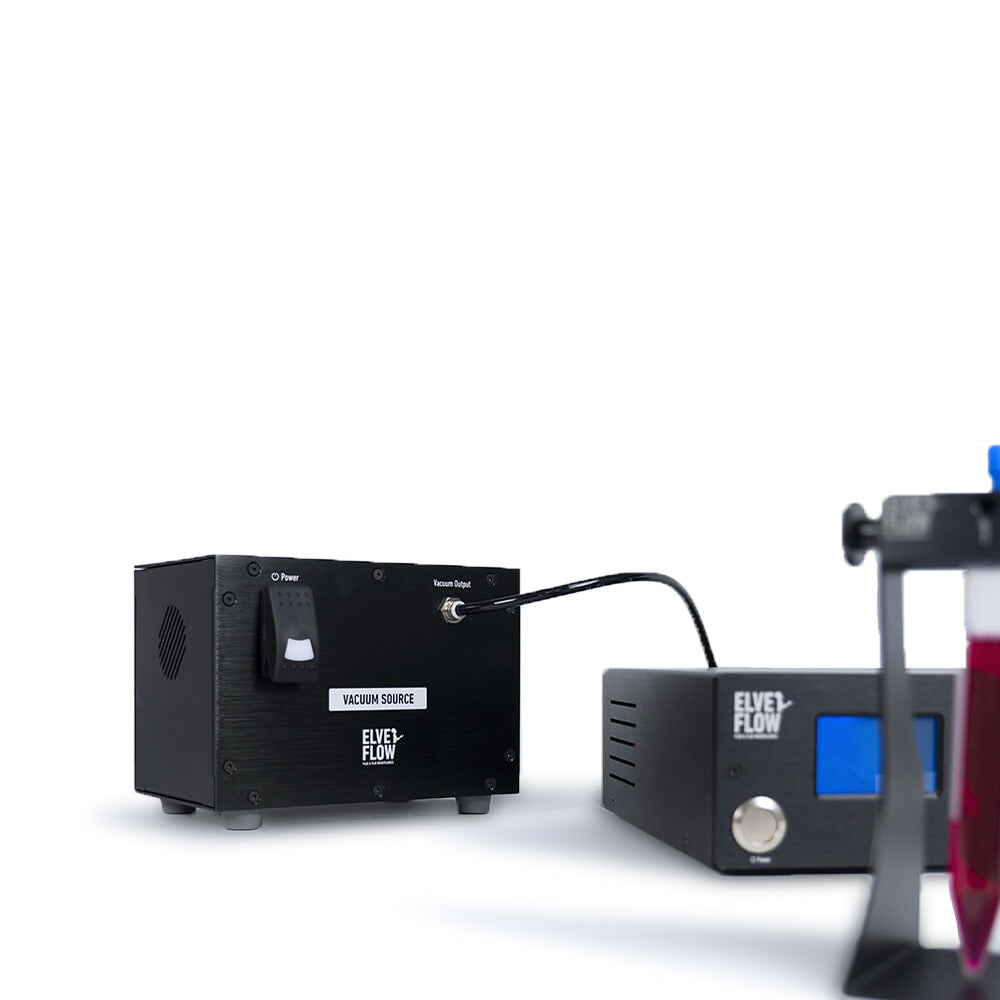

This vacuum pump is ideal to supply vacuum to a pressure regulator such as the ELVEFLOW OB1.

The steady vacuum generation goes down to -850 mbar which makes it the perfect companion product for -900/1000mbar -900/6000mbar  pressure regulators.

Content

  • 1* Pressure source instrument
  • 1* Power supply unit (24V DC)
  • 2m of pneumatic 6mm OD tubing

Resources

Vacuum Generator User Manual

Specifications

  Elveflow Vacuum Source (EVS)
Performances
Vacuum pressure (relative) -850 mbar(13 psi)
Vacuum pressure (absolute) 150 mbar (2.3 psi)
Pumping speed –
Noise level <53 dB
Mechanical specifications
Dimensions (l x w x h) 161 x 194 x 195 mm
Weight 1.4 kg
Pneumatic connection 6 mm push-in
Internal receiver volume 250ml
Operating temperature 5-40°C
Operating humidity up to 80%
Electrical specifications
Input voltage range 24 V
AC supply frequency 50-60 Hz
Power supply voltage 10-240 V
Max current consumption 1.5 A (typical: 0.8 A)
Max power consumption 36 W
Microfluidic Vacuum Pump, Portable

$1,562.00
