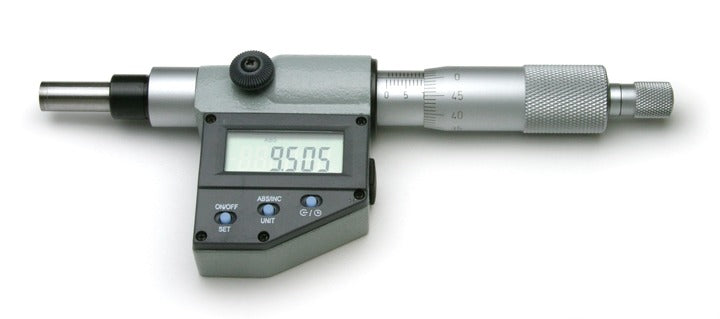

Non-Rotating Spindle Digital Micrometer Head

$377
$377

502102

Prices valid in USA, Canada, and PR only.

Details

Build your own precision micro-positioning device

The new non-rotating spindle digital micrometer head allows you to create your own micro-positioning instrument. With micron-level accuracy, it gives higher precision than a normal micromanipulator. Since the spindle does not rotate as it advances, instruments can be directly attached without the need for a complicated decoupling device. The digital display eliminates the need to squint at the notational scale. Readings can be clearly seen in either inches or millimeters. You can read both absolute position and the increment relative to a previously chosen point.

Resources

502102 Micrometer Operation Manual

Specifications

Total Travel Distance 25 mm
Resolution 0.001 mm
Accuracy ±0.003 mm
Spindle Diameter 7.5 mm
Mounting 12 x 10 mm
Total Length 166 mm
Measurement Mode Absolute and incremental
Digital Readout mm or inches
Analog Readout mm
Environmental Protection IP54
Shipping Weight 0.51 kg (1.12 lb.)
Data Output  RS232
