MicroImplant - Implantable Oxygen Microsensor

$283
$283

501658

Prices valid in USA, Canada, and PR only.

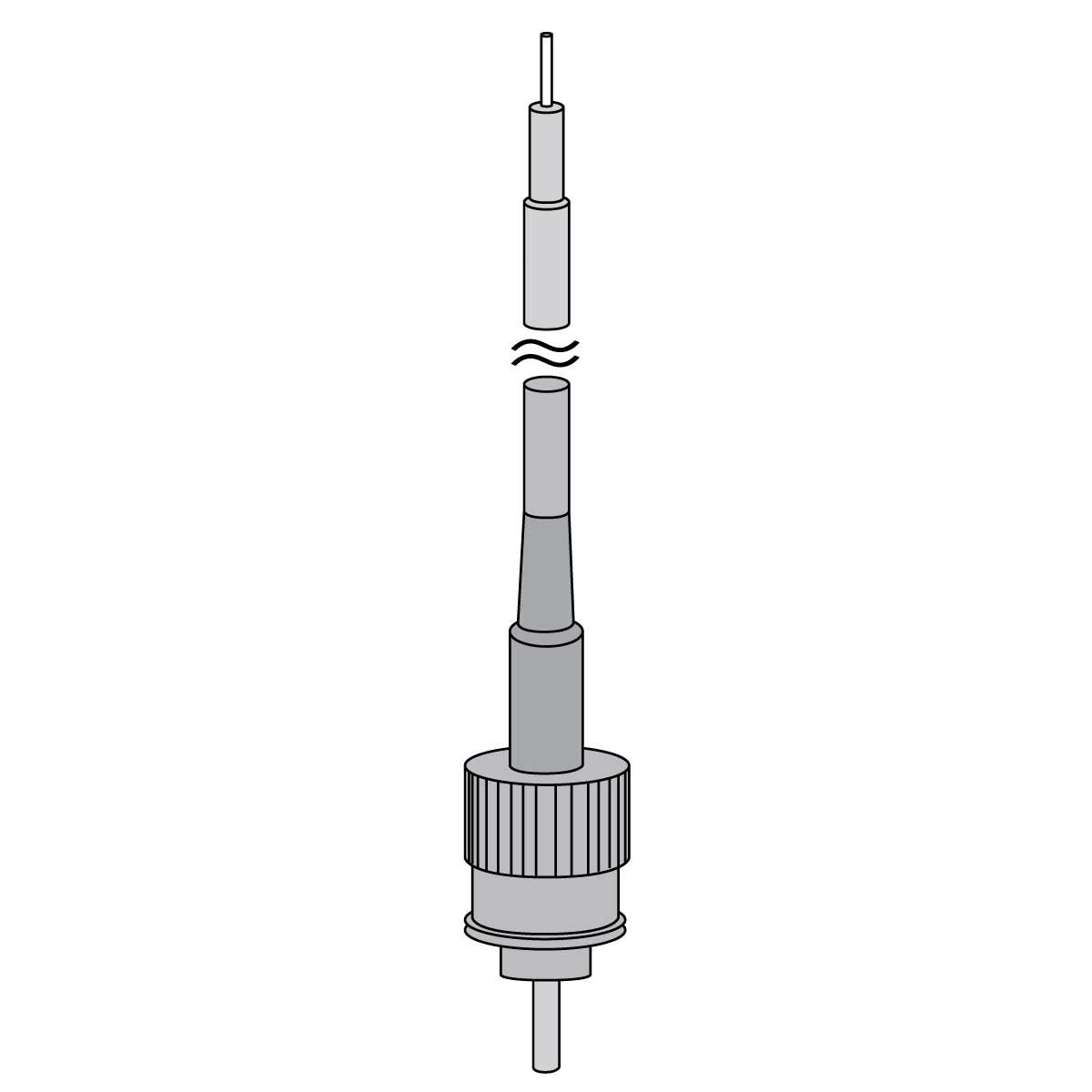

The MicroImplant fiber optic oxygen sensor is an implantable probe (IMP) with a tiny probe tip size 50 µm, an exposed fiber length of 5-mm and a jacket diameter of 900 µm. The IMP sensor was successfully implanted in crabs, fishes and soil.

Details

Features

  • Implantable oxygen microsensor
  • 2.5m cable
  • 0-250% Air saturation
  • 50um tip



OPTIONS

  •  501658-C - This sensor is coated for otical isolation. The optical isolation is an optional, opaque, oxygen-permeable material that can be coated over the luminophore that prevents ambient light from reaching the sensor and also prevents excitation light from escaping. This coating lengthens the reponse time due to the adtional layer of material that oxygen must diffuse through to reach the luminophore.
  • 501658-F - This sensor has a 140μm flat tip.


MicroImplant - Implantable Oxygen Microsensor

$283.00
