Sylgard 184

$199
$199

KWIKGARD

From $49 - $315
From $49 - $315
Surgical Options

Prices valid in USA, Canada, and PR only.

  • Kwik-Gard is specially packaged Sylgard184 silicone for quicker and easier application, eliminating the messy procedure of preparing the mixture before application. Its special cartridge controls the precise mixing ratio to ensure proper curing. The disposable tip mixes resin and hardener as they are dispensed. Since no air is introduced during mixing, the resin does not need degassing for most applications. The mixed silicone is applied directly to the site, reducing preparation time and material waste. Each Kwik-Gard cartridge contains 37 mL of resin and hardener. The dispensing tip has a dead volume of 0.75 mL.

  • 2-part silicone elastomer, ideal for potting and encapsulating applications

    This silicone elastomer has a very low dielectric constant sealing compound, which makes it ideal for patch clamping and many other lab applications, especially in electrophysiology applications.

Details

Options

Order code Description Volume Tool Mixing Tip Details

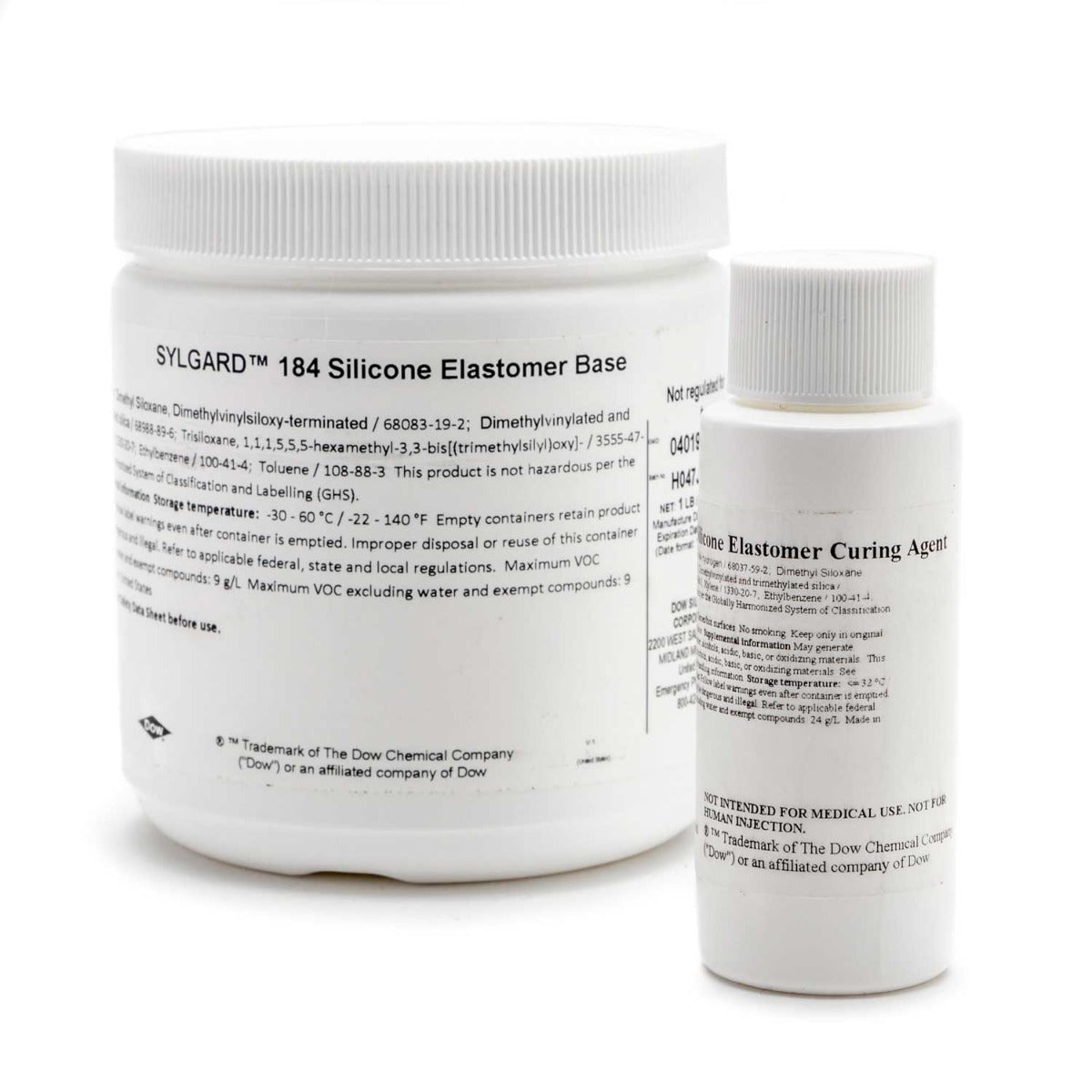

SYLG184 Sylgard 184 2-Part Silicone Elastomer 445 ml Electronic scale Weighing dish and stirring rod Weight: 1.1 lbs (0.5 kg)

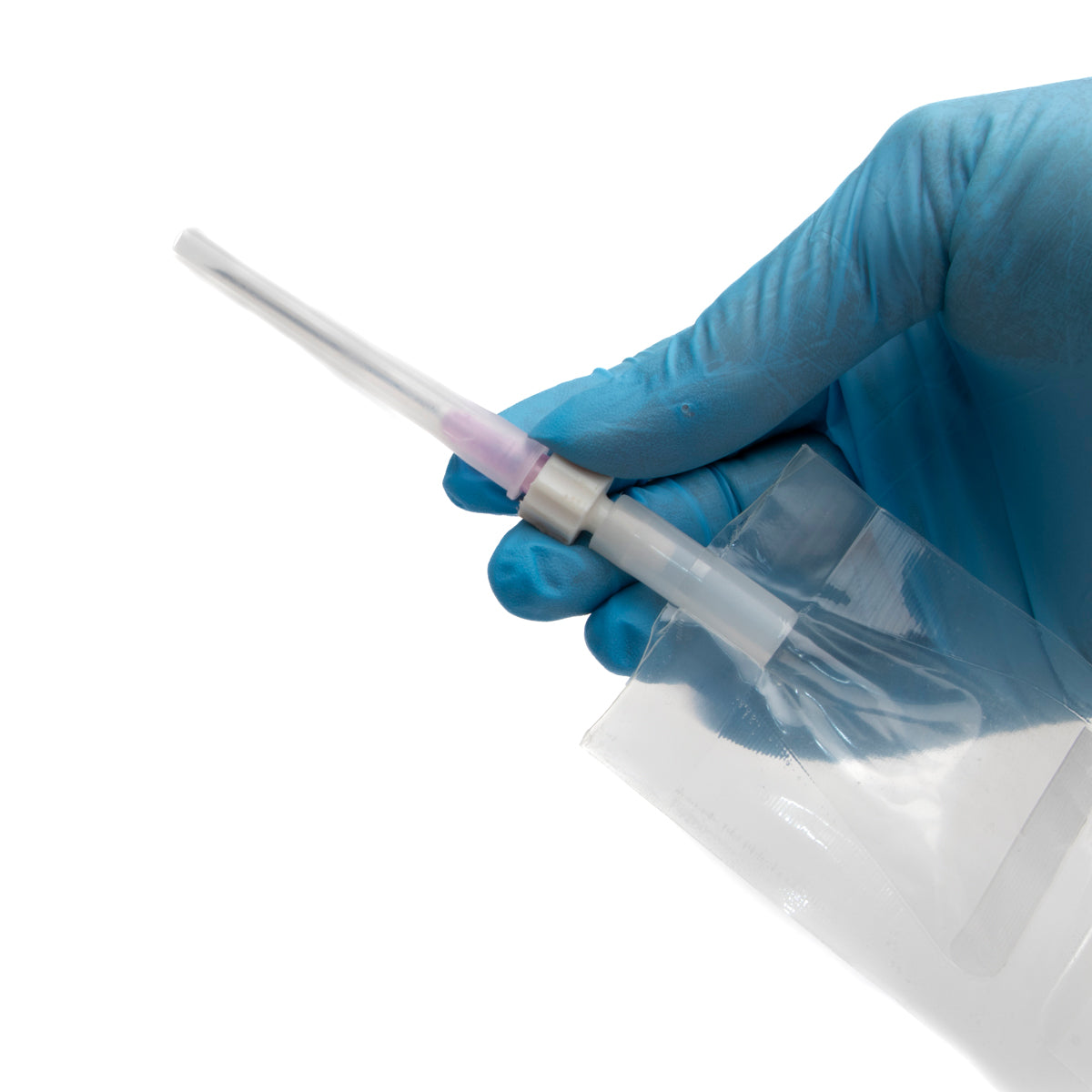

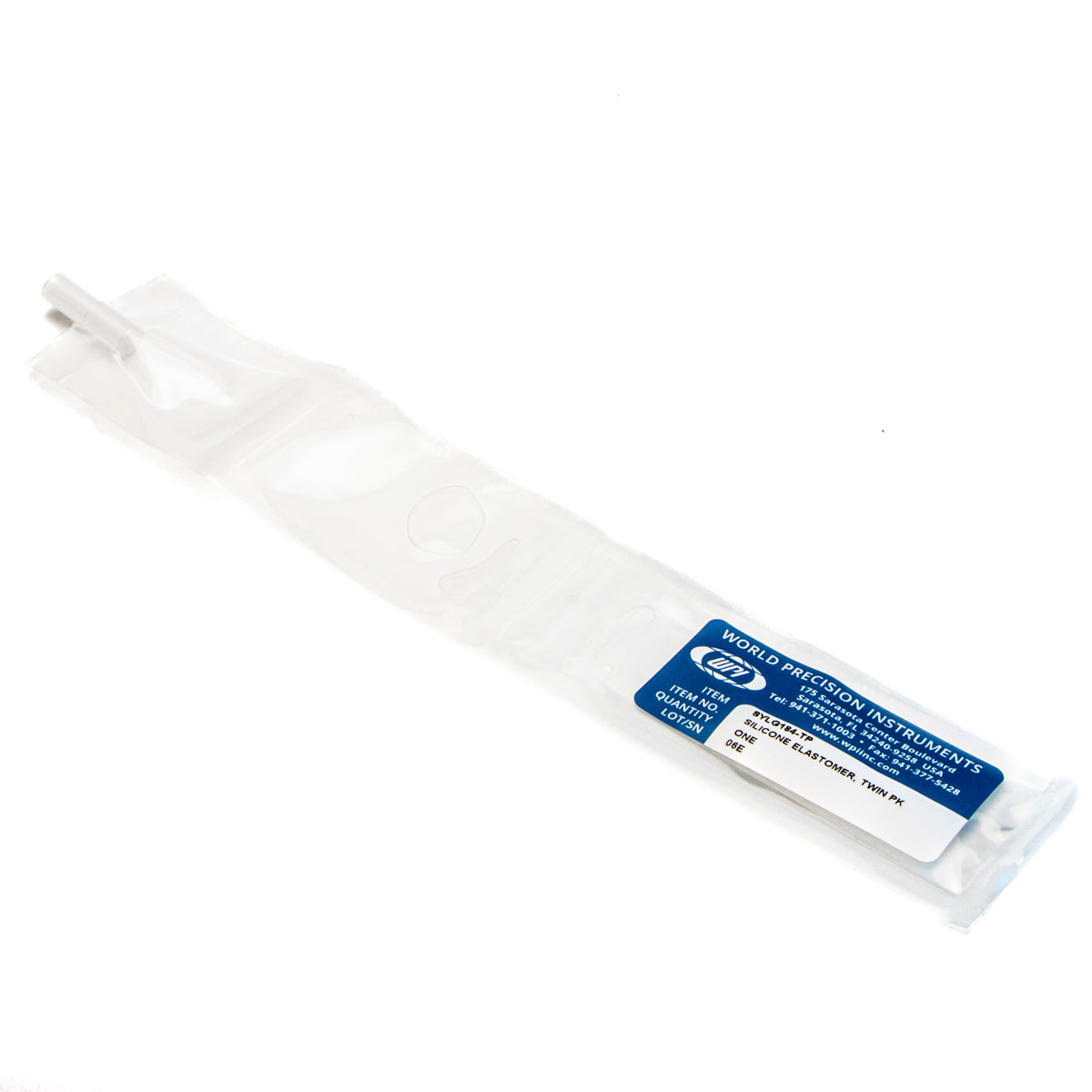

SYLG184-TP Sylgard Twin-Pack Burstable Sleeve, Single use 5 ml

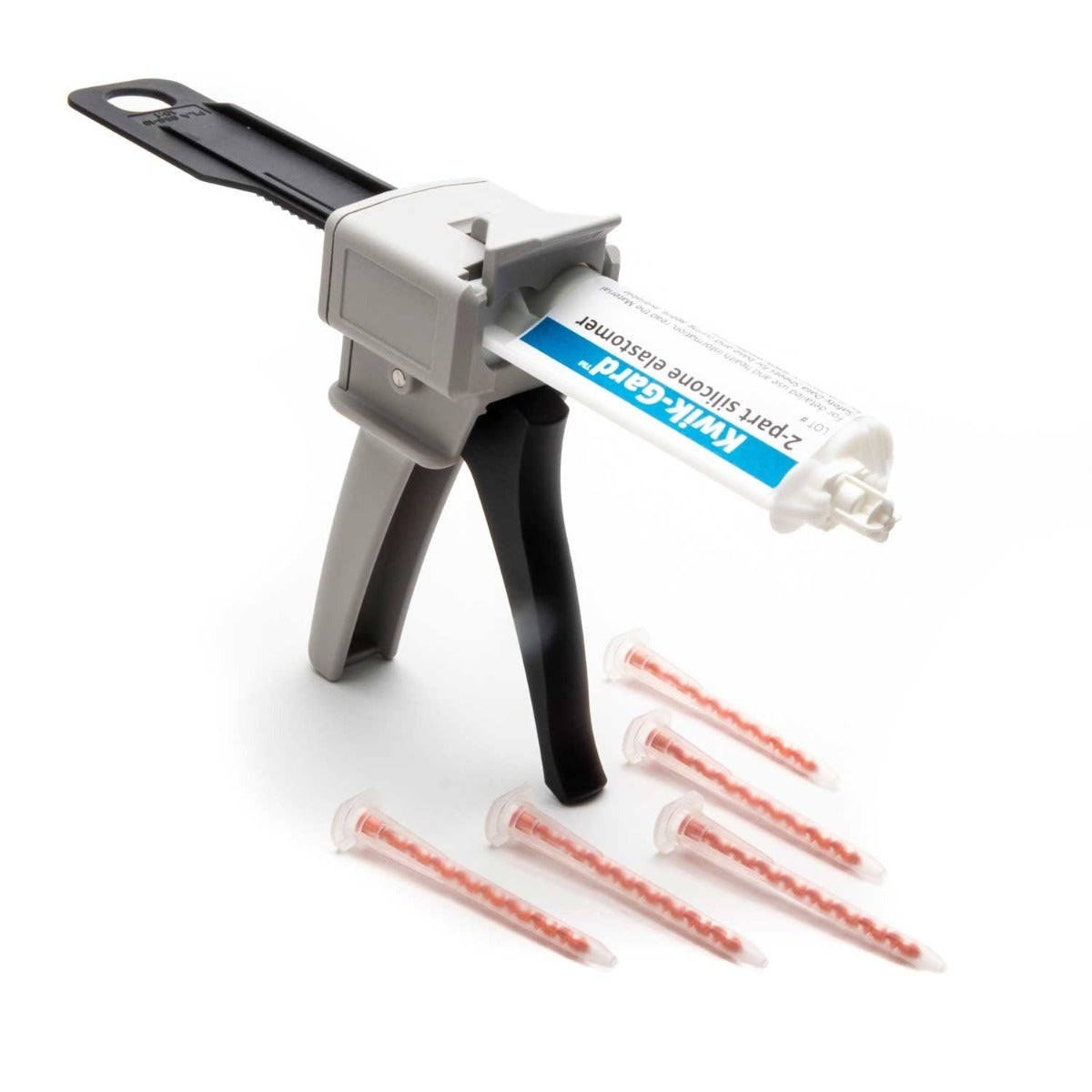

KwikGard KWIK-GARD™ Sylgard Kit with Pre-Filled Casettes, Mixing Tips and Ratchet Applicator 37 ml KwikGun Dispenser 10:1 mixing tip Specially packaged Sylgard 184 for quick and easy application

Features

  • Coat patch clamp electrodes
  • Make cell culture dishes and dissecting pads



Sylgard 184 silicone elastomer base and curing agent is supplied as a two part kit comprised of liquid components. When the base and the curing agent are thoroughly mixed in a 10:1 weight ration, the medium-viscosity liquid mixture has a consistency resembling SAE No. 40 motor oil. The liquid mixture will cure in thick or thin sections to a flexible, transparent elastomer ideally suited for electical/electronic potting and encapsulating applications.

Sylgard 184 silicone elastomer offers a flexible cure schedule from 25-150°C (77-302°F), without an exotherm. Sylgard 194 silicone elastomer requires no post cure and can be placed in service immediately following the completion of the cure schedule at an operating temperature from -55° to 200 °C. (-67 to 392°F).

Sylgard 184 silicone elastomer is especially useful for applications where clarity is desirable. For more information, please refer to the manual.

  • Curing Time: 24 hours at 25ºC, 15 min. at 150ºC
  • Tensile Strength: 900 psi
  • Hardness: 40 Shore A.



That means after curing time (24hrs@25 °C; or 15 min @ 150 °C), the mixed adhesive will reach its highest hardness and tensile strength. The professional boxers will generate punches around 800–1500 psi. It indicates how tough the cured adhesive can be.

In electrophysiological application (such as seal the glass tips around tissues/cells), such ultimate conditions are not concerned. As far as keeping high volume resistivity (electronically as insulator between the gap of glass electrode and tissues/cells), job will be well done.

NOTE: Due to supply constraint, this product is currently non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.



Resources

Documents

SYLG-184 MSDS Sheet

SYLG-184 Manual

SYLG-184-Twin-Pack Certificate of Analysis



Video

How to Properly Mix a Burstable Sylgard 184 Twin Pack

References

Szigligeti, P., Neumeier, L., Duke, E., Chougnet, C., Takimoto, K., Lee, S. M., … Conforti, L. (2006). Signalling during hypoxia in human T lymphocytes--critical role of the src protein tyrosine kinase p56Lck in the O2 sensitivity of Kv1.3 channels. The Journal of Physiology, 573(Pt 2), 357–70. http://doi.org/10.1113/jphysiol.2006.109967

Habets, R. L. P., & Verstreken, P. (2011). FlAsH-FALI inactivation of a protein at the third-instar neuromuscular junction. Cold Spring Harbor Protocols, 2011(4), pdb.prot5597. http://doi.org/10.1101/PDB.PROT5597
