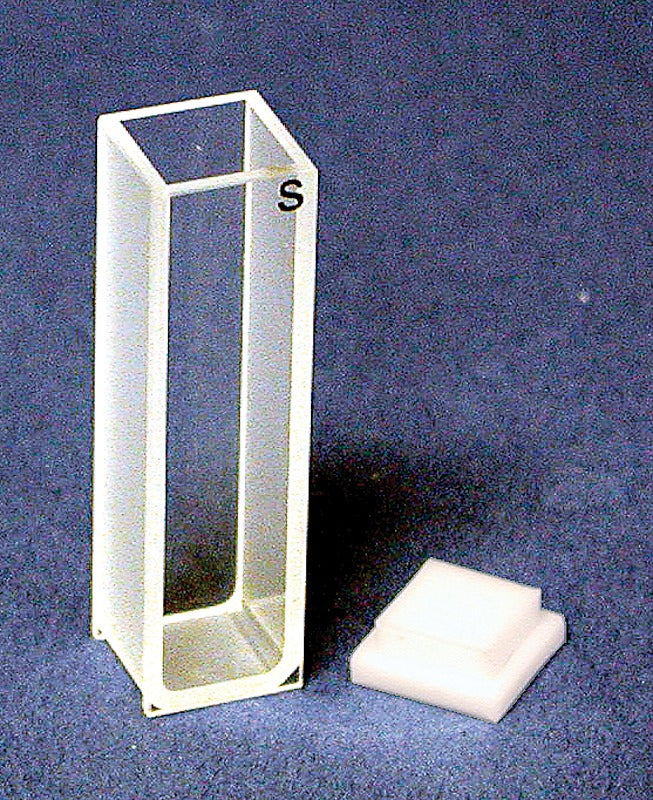

Standard Rectangular Quartz Cuvettes, Style C

Name: Standard Rectangular Quartz Cuvettes, Style C
Brand: World Precision Instruments
SKU: CUV2012-1
Price: 113.0 USD
Availability: InStock

$113

CUV2012-1

From $113 - $207

Size (mm) 10 mm Path 20 mm Path 30 mm Path

Prices valid in USA, Canada, and PR only.

Beam Width 10mm

Details

Options

Order code	Type	Description
CUV2012-1	10 mm Path	12.5 x 12.5 x 45mm V=3.5mL Beam Width 10mm
CUV2105-1	20 mm Path	22.5 x 12.5 x 45mm V=7.0mL Beam Width 10mm
CUV2106-1	30 mm Path	32.5 x 12.5 x 45mm V=10.5mL Beam Width 10mm

See the current Data Sheet.

WPI’s glass and synthetic quartz cuvettes are ideal for UV/VIS/NIR absorbance or fluorescence experiments. Synthetic quartz can be used in deep UV applications and is recommended for fluorescent applications, as it does not exhibit background fluorescence. Quartz cuvettes (absorbance, fluorescence and flow) are shipped individually packaged. These economic quartz are ideal for precision measurements because of their high quality materials used and their low manufacturing tolerances.

Technical Characteristics

Spectral Range (>80%): 200-2500 nm; Transmission Difference between different cuvettes: Less than 1% (Typical transmission curves of synthetic quartz cuvettes were measured empty, thickness 1.25 mm x 2, including surface reflections, measured with a TIDAS II against air as reference).
