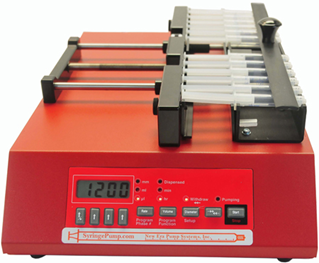

Aladdin 12-Syringe Pump

A Cost-Effective HTP Microfluidic Syringe Pump Solution

Options

Order code	Description	High Pressure	Programmable	Infuse/Withdraw
AL-1200	Aladdin 12-Syringe Pump	No	Yes	Yes
AL-1200FW1	Aladdin 12-Syringe Pump, Firmware V1 Upgrade	No	Yes	Yes

Features

• Cost-effective

• Rich command set

• RS-232 and TTL control

• Higher throughput (HTP) syringe pump solution

• Firmware upgrades V1 and V2 available

• AL-1200 Syringe Pump accepts 2 – 12ct. plastic syringes up to 3mL and selected glass microliter syringes from 0.5-500 µL

• Infusion rates from 0.454 µL/hr (1 mL syringe) to 153.2 mL/hr (3 mL syringe)

• Infuse/Withdraw Pump

• Displays total volume dispensed in mL or µL units

• Choose system:

  • Aladdin Standard 12-Syringe Pump (AL-1200)

  • Aladdin 12-Syringe Pump with Firmware V1 Upgrade (AL-1200FW1)

  • Aladdin 12-Syringe Pump with Firmware V2 Upgrade (AL-1200FW2)

Benefits

• Automatic dispensing of small volumes

• Precise, reproducible flow rate control

• Hands-free operation with foot switch

• Program sequences with or without a computer

• Selectable infusion rate units (mL/hr, µL/hr, mL/min, µL/min)

• Firmware offerings expands programming capabilities to support complex protocols

Applications

• Drug administration

• Chemical applications with slow incorporation of fixed volumes of fluids

• Seeding media for Organ-on-Chip (OOC) or Lab-on-Chip (LOC) applications



The Aladdin Programmable 12-Syringe Pump with Firmware Upgrade V1 (AL-1200FW1) or V2 (AL-1200FW2) is designed for higher-throughput micro-dispensing. With the firmware upgrade, the control parameters for functions such as ramping and creating flow gradients offers excellent utility across many sectors. Particularly, this simplistic pumping solution can be implemented into organ-on-chip (OOC) and lab-on-chip (LOC) workflows for handsfree fluid control, and service multi-stage perfusion protocols. You may program up to 41 pumping phases that include changing pumping rates, setting dispensing volumes, inserting pauses, controlling or responding to external signals, or sounding the buzzer.

For applications not requiring multimodal programming steps, the Standard Aladdin 12-Syringe Pump (AL-1200) without firmware upgrades is a great option for a straightforward, high-count syringe setup.

Although it is one of the most cost-effective pumps available, the Aladdin pump series boasts a versatility that is unmatched in its price range.

This series has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy-chained for multiple pump applications involving push/pull protocols or multiple independent channels.

The Aladdin pump series will accept syringes from WPI (NanoFil), Hamilton, Trajan Scientific (SGE), Becton Dickinson, Monoject, Terumo and Air-Tite.

AL-1200FW1 Sell Sheet
Aladdin Pumps Upgrading a Firmware Chip

Type	AL-1200
SYRINGE SIZES	Plastic syringes up to 3mL; selected glass micro syringes from 0.5-500µL
NUMBER OF SYRINGES	Up to 12
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	200
STEPPING (max. min.)	0.21 µm to 0.850 µm
MOTOR TO DRIVE SCREW RATIO	5/1
MICRO-STEPPING	1/8 TO 1/2 depending on motor speed
ADVANCE PER STEP	0.132µm to 0.529µm depending on motor speed
ACCURACY	Within 1% error
REPRODUCIBILITY	Within 0.1% error
APPLIED FORCE ACROSS SYRINGE RACK	160lbs (minimum speed); 30lbs (maximum speed)
SYRINGE INNER DIAMETER RANGE	0.100 to 50.00mm
SPEED RANGE	0.0026cm/hr to 3.4917cm/min
PUMPING RATE RANGE	0.454µL/hr (BD 1mL syringe) to 1163 mL/hr (BD 60mL syringe)
PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 Pumps Max.
RS-232 SELECTABLE BAUD RATES	300, 1200, 2400, 9600, 19200
