Micropipette Tips for Nanoliter 2020/2010

Name: Micropipette Tips for Nanoliter 2020/2010
Brand: World Precision Instruments
SKU: TIP10XV119
Price: 248.0 USD
Availability: InStock

$248

TIP10XV119

$248

Returns Policy Non-returnable/Non-refundable

Prices valid in USA, Canada, and PR only.

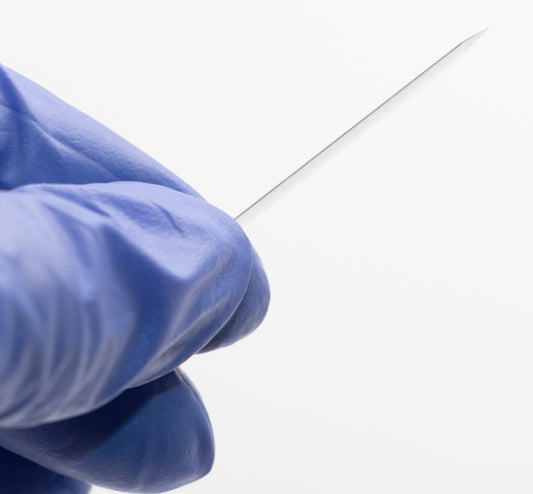

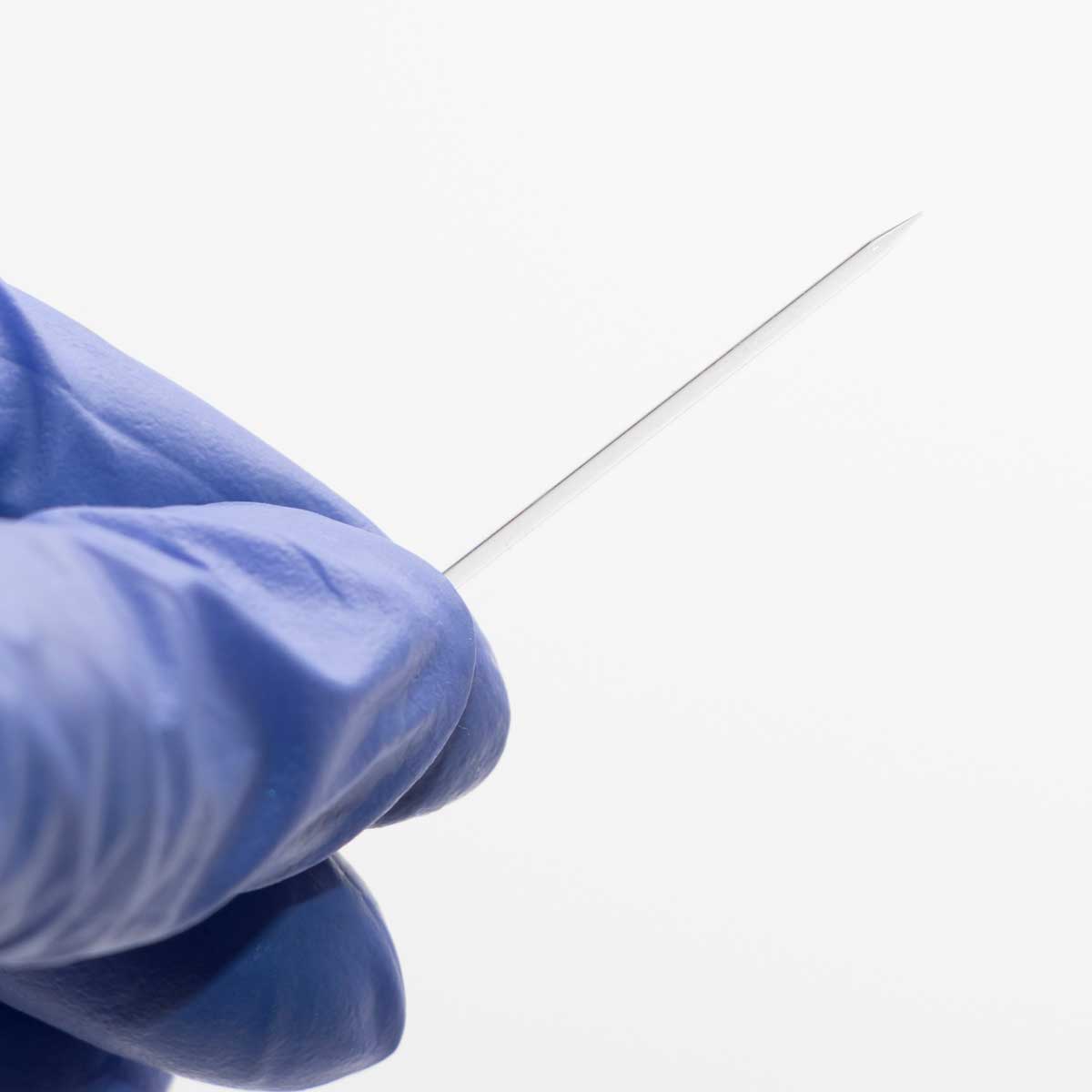

Eliminate the cost and trouble of making your own micropipettes

WPI can quickly supply your need for pre-pulled glass micropipettes for use with Nanoliter Injectors. These tips are sold in packages of 10, in vacuum packages. With a tip inside diameter of 10µm and a shank outside diameter of 1.14 mm. These MicroTips are made with glass capillaries (#504949), which is fire polished, so the shank is fire polished and the tip is not. They have no filament. Each one is quality tested.

Details

Features

Tip ID: 10 µm
Glass OD: 1.14 mm
No filament
Not fire Polished
Every pipette individually tested and inspected

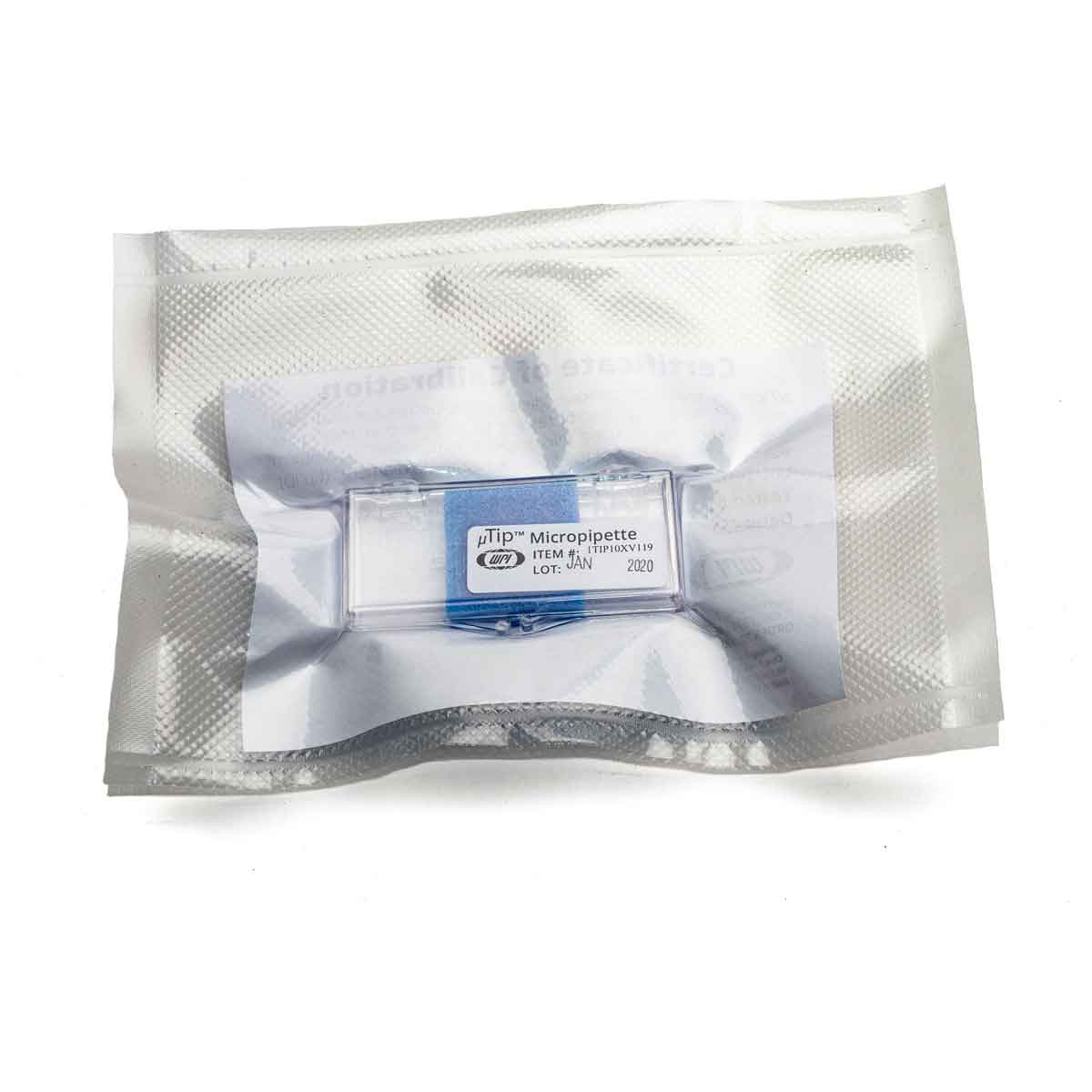

Vacuum packed
For use with the Nanoliter 2020, 2010, 2000
Compatible with NANOLITER2020 and the Injector Head: 300704
Products supplied non-sterile
10 per package

Benefits

Plain Shank

Applications

For use with the Nanoliter 2020 or older versions like the Nanoliter 2010 or Nanoliter 2000

Certificate of Compliance

A Certificate of Compliance is available for these MicroTips. Please request one when placing your order.

NOTE: Due to supply constraint, this product is currently non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.

Resources

Consistent Size Micropipettes Sell Sheet

Specifications

CTE (20 °C; 300 °C)		3.3± 0.110^-6/K
Transformation temperature Tg		525 ± 15 °C
Density		2.23 ± 0.02 g/cm³
Temperature at the viscosity	10¹³dPa·s 10^7.6 dPa·s 10⁴ dPa·s	560 ± 10°C 820 ± 10°C 1260 ± 20°C
Heat conductivity l at 100 °C Specific heat C_P		1.2W/(m·K) 0.8J / (g·K)
Elasicity-modulus Poisson-ratio μ		64GPa 0.20GPa
Photoelasticity Refractive index nd		4.0·10^-6 mm² / N 1.473mm² / N
Relative dielectric constant tan d	at 1 MHz and 25 °C	4.6 10^-437 10^-4
Tk 100 (DIN 52326)		250°C
Classes of chemical stability	water acid alkaline solution	DIN ISO 719 DIN 12 116 DIN ISO 695	1 1 2
