Boom Clamp Stand for Microscope

502006

Prices valid in USA, Canada, and PR only.

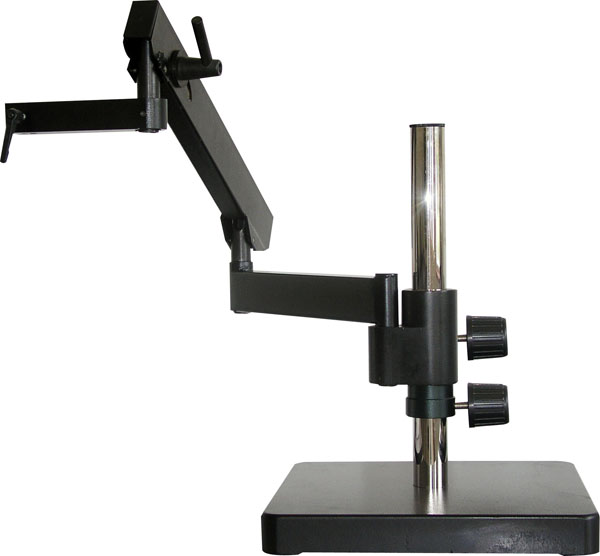

The Boom Clamp Stand is a heavy-duty support system designed for use with WPI’s PZMIII and PZMIV microscope heads. It features a permanently linked small horizontal arm and adjustable forearm that raise and lower together, keeping the arm parallel to the table surface for consistent alignment. An internal tension spring in the forearm helps prevent drift during positioning. With three pivot points (between the small horizontal bar and forearm, forearm and middle horizontal bar, and middle bar and boom stand) the unit allows precise angle control. Each pivot is equipped with a manual clutch to securely lock the arm in place.

NOTE: Requires the 502009 76 mm focus mount (sold separately).

ACCESSORIES

Details

Features

  • Heavy boom clamp stand (requires 502009 Focus Mount)
  • For use with the PZMIII or PZMIV microscope head

Details

  • Between the small horizontal bar and the adjustable forearm
  • Between the adjustable forearm and the middle horizontal bar
  • Between the middle horizontal bar and the boom stand

502006



Requirements

  • Requires 502009 focus mount (Sold separately)
  • Boom Clamp Stand without focus mount
Type Description
Vertical post 39 cm (15.1”)
Horizontal post 52 cm (21”)
Base 285 x 260x 32 mm (11.25” x 10.25”)
Articulation range 46 cm (18”)
Arm lengths L-R 23, 40, 30 cm (9”, 16”, 12”)
Shipping Weight 46 lb.

Resources

502006 Boom Clamp Stand Instruction Manual

Specifications

Type Description
Stand type Flexible arm
Vertical post height 384 mm
Maximum vertical post extended length 254 mm
Vertical post diameter 37.2 mm
Cross adapter type Dual hole adapter
Total arm length 800 mm
Length of middle horizontal bar 330 mm (13”)
Length of adjustable horizontal bar 450 mm (17.72”)
Length of short horizontal bar 170 mm (6.7”)
Maximum opening angle in vertical direction 500 mm (19.7”)
Mounting hole on the end of the horizontal arm 15.875 mm (0.625”) End adapter
Horizontal rotation angle 360º  Rotatable
Maximum revolution radius 31.89” (810 mm)
Minimum revolution radius 13” (330 mm)
Horizontal arm maximum load 11.34 kg (25 lbs.)
Horizontal arm travel mode in horizontal direction Manual
Horizontal arm travel mode in Z direction Manual
Base type Heavy duty base
Base shape Rectangle
Base dimensions 330 x 330 x 38 mm
Mount adapter size of stand Ø 22.2 mm
Surface treatment Electroplating black
Material Metal
Color Black
Weight 43.8 kg (96.56 lbs.)
Dimensions 500 x 330 x 422 mm (19.7 x 13 x 16.6”)
