Articulated Arm Stand with Table Clamp for Microscope

Skip to product information

502007



Prices valid in USA, Canada, and PR only.

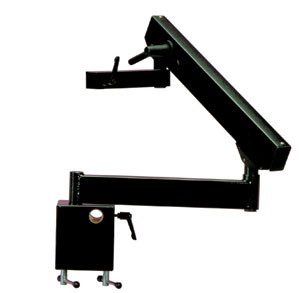

The Articulated Arm Stand with Table Clamp offers a space-saving, stable mounting solution for stereo microscope heads. Designed for flexibility and control, the small horizontal arm is permanently linked to the adjustable forearm, keeping it parallel to the table surface while raising or lowering. An internal tension spring within the forearm prevents unwanted drift, ensuring consistent positioning during use. With three pivot point, each equipped with a manual clutch, the arm can be easily rotated and securely locked in place. This stand is ideal for workstations with limited surface area and applications requiring frequent repositioning of the microscope.



Details

Features

  • Articulated Arm Table Mount w/o Focus Mount
  • Requires 502009 focus mount (sold separately) for PZMIII
  • Not recommended for PZMIV



Details

  • Between the small horizontal bar and the adjustable forearm
  • Between the adjustable forearm and the middle horizontal bar
  • Between the middle horizontal bar and the table clamp

502007

Resources

Specifications



Type Descriptions
Stand type Flexible arm
Total arm length 800 mm
Length of middle horizontal bar 330 mm (13”)
Length of adjustable horizontal bar 450 mm (17.72”)
Length of short horizontal bar 170 mm (6.7”)
Maximum opening angle in vertical direction 500 mm (19.7”)
Mounting hole on the end of the horizontal arm 15.875 mm (0.625”) End adapter
Horizontal rotation angle 360º  Rotatable
Maximum revolution radius 31.89” (810 mm)
Minimum revolution radius 13” (330 mm)
Horizontal arm maximum load 9.5 kg (20.94 lbs.)
Horizontal arm travel mode in horizontal direction Manual
Horizontal arm travel mode in Z direction Manual
Base type Clamp
Base shape Rectangle
Diameter of the base mounting hole 22 mm (0.87”)
Clamp base dimensions 104 x 77 x 136 mm (4 x 3 x 4.5”)
Clamp opening size 0–53 mm
Surface treatment Spray paint
Material Metal
Color Black
Weight 5.63 kg (12.4 lbs.)
Dimensions 104 x 450 x 320 mm (4 x 17.7 x 12.6”)
