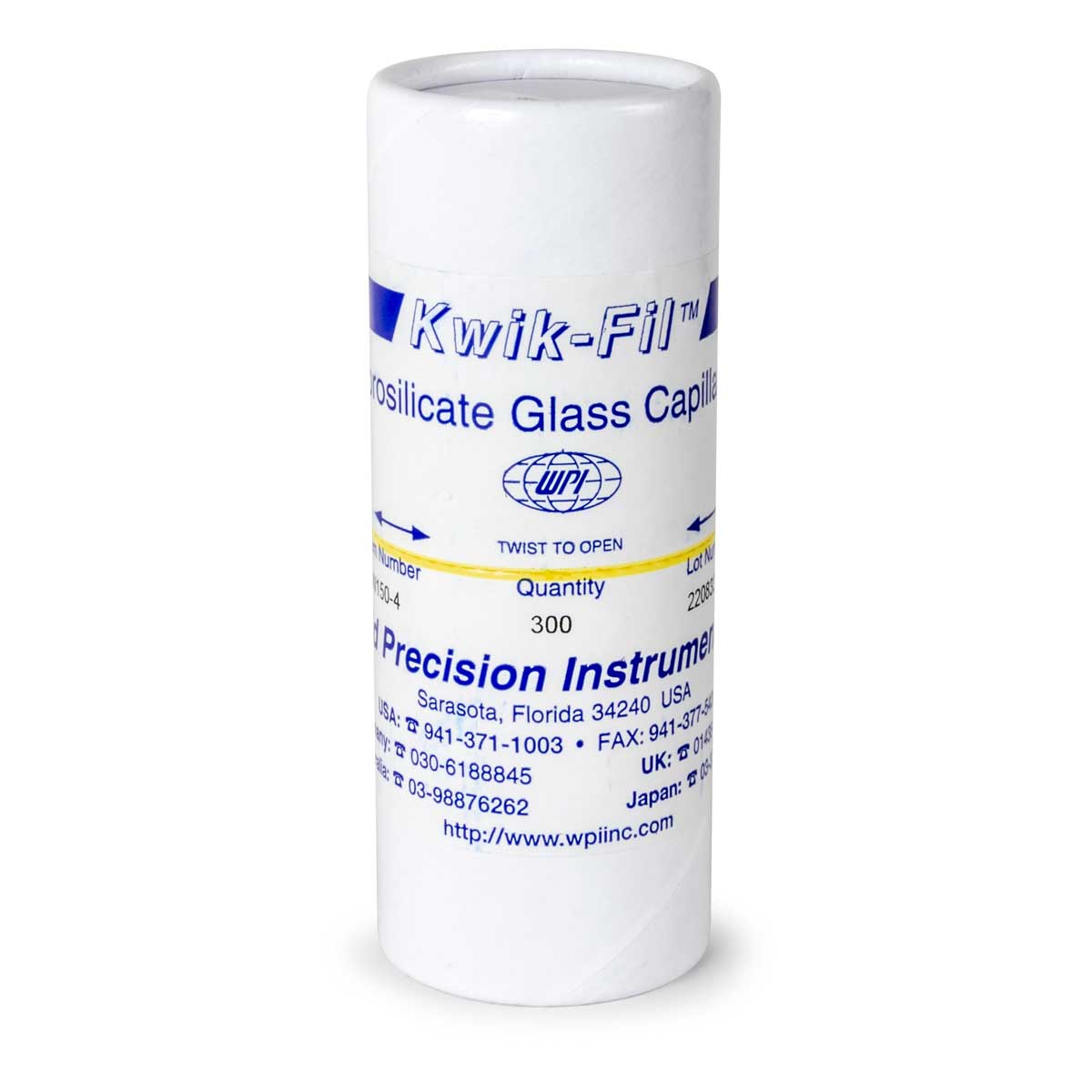

Thin Wall Glass Capillaries, No filament

Name: Thin Wall Glass Capillaries, No filament
Brand: World Precision Instruments
SKU: TW100-4
Price: 82.0 USD
Availability: InStock

$82

TW100-4

From $70 - $94

Length (in) 3 in, OD 1.0 mm, No Filament 3 in, OD 1.2 mm, No Filament 3 in, OD 1.5 mm, No Filament 4 in, OD 1.0 mm, No Filament 4 in, OD 1.2 mm, No Filament 4 in, OD 1.5 mm, No Filament 6 in, OD 1.0 mm, No Filament 6 in, OD 1.2 mm, No Filament 6 in, OD 1.5 mm, No Filament

Prices valid in USA, Canada, and PR only.

Quality glass capillaries at superior prices for microinjection and microelelctrodes.

Looking for something specific? Compare the variety of capillary glass options.

Details

Quality glass capillaries at superior prices for microinjection and microelelctrodes

Features

Quality borosilicate glass capillaries
Large variety available
Some varieties of fire polished capillary glass(See description)
OD/ID Tolerance: ±0.1 mm
Length Tolerance: ±1 mm
Recommended to use with Glass Handling Forceps (77020)
Products supplied non-sterile

Thin-Wall Single-Barrel Standard Borosilicate (Schott Duran) Glass Tubing Options

Order code	OD (mm)	ID (mm)	Length	Filament	Fire Polish	Qty

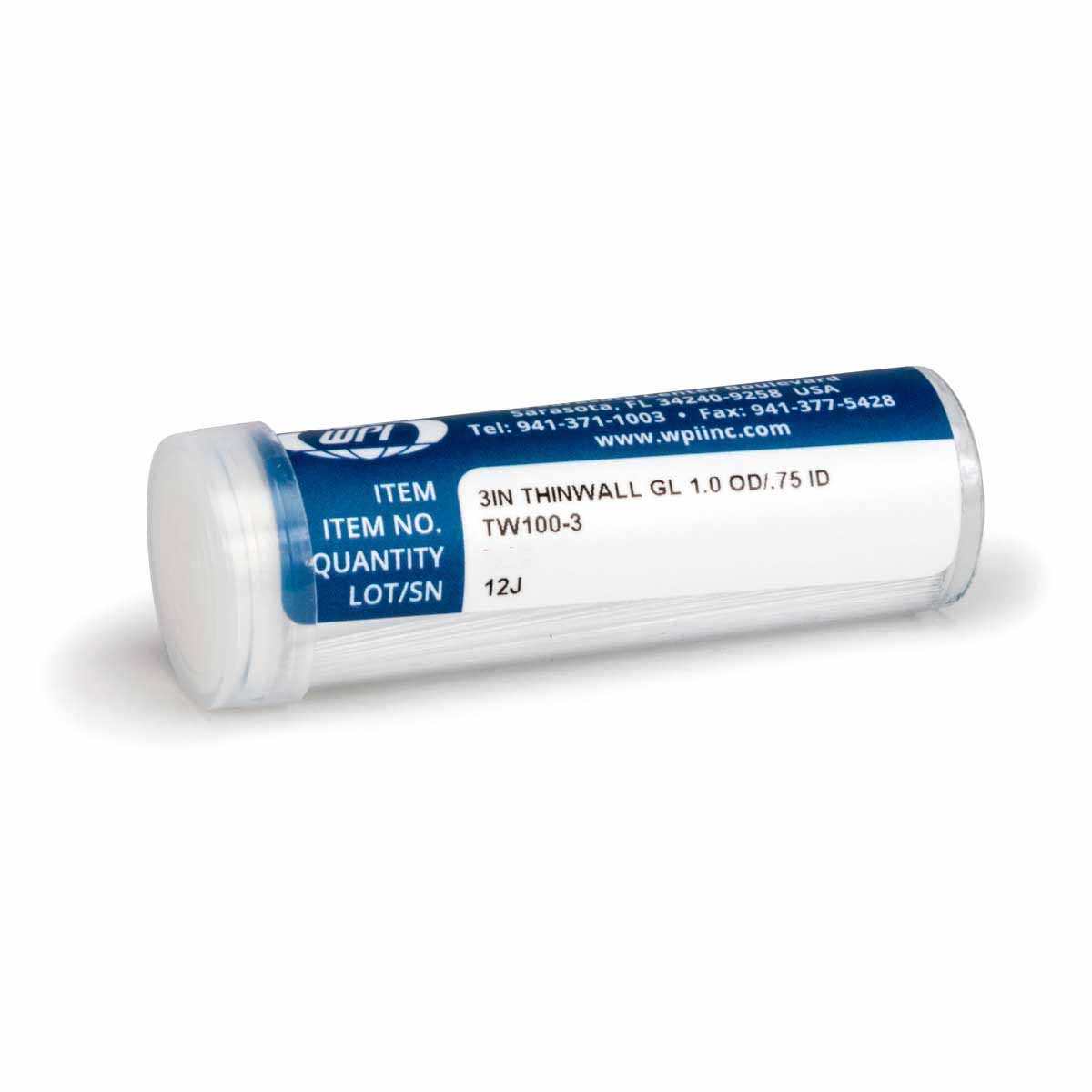

TW100-3	1.0	0.75	3 in. (76mm)	No		500

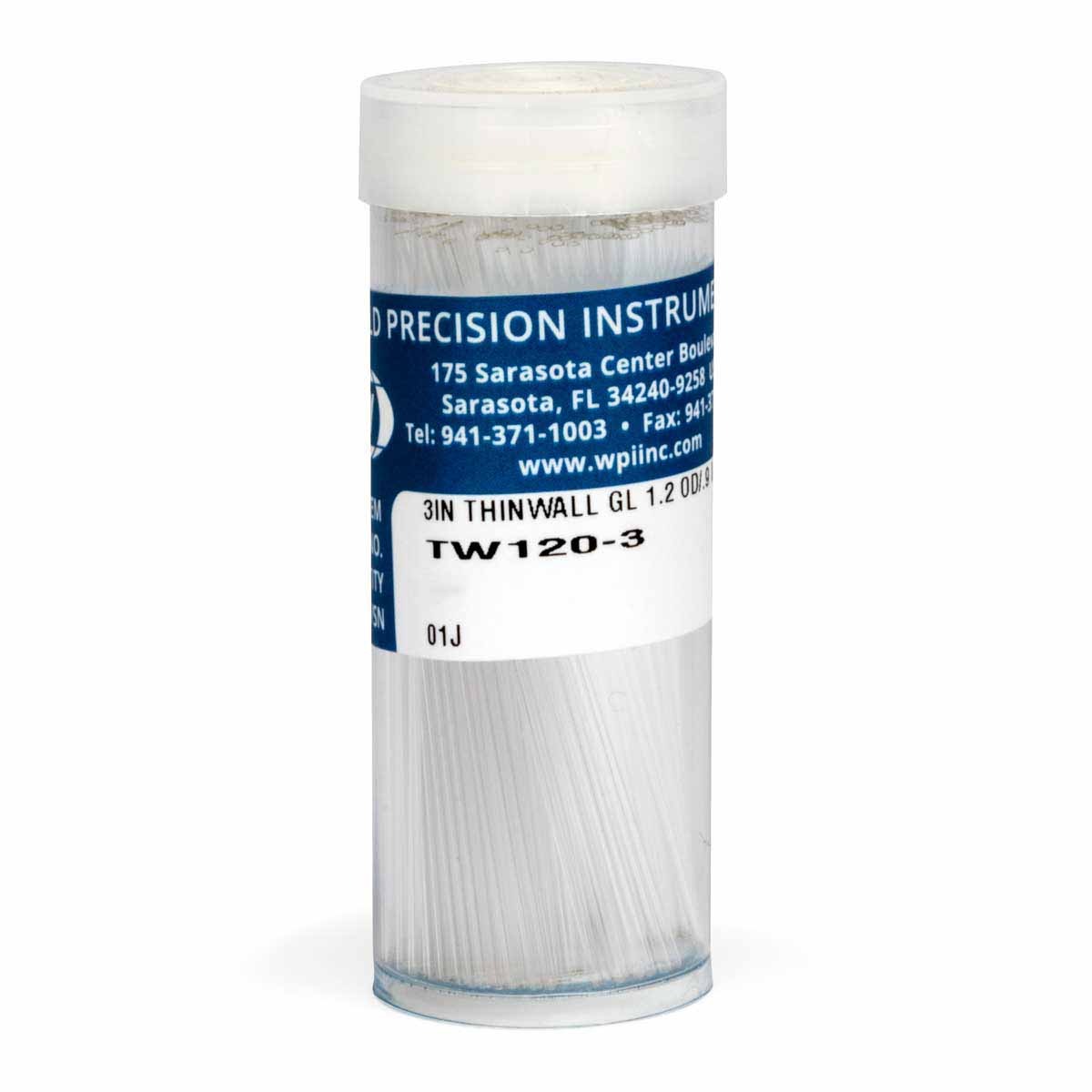

TW120-3	1.2	0.90	3 in. (76mm)	No		350

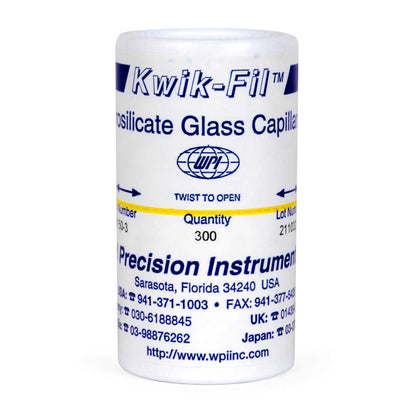

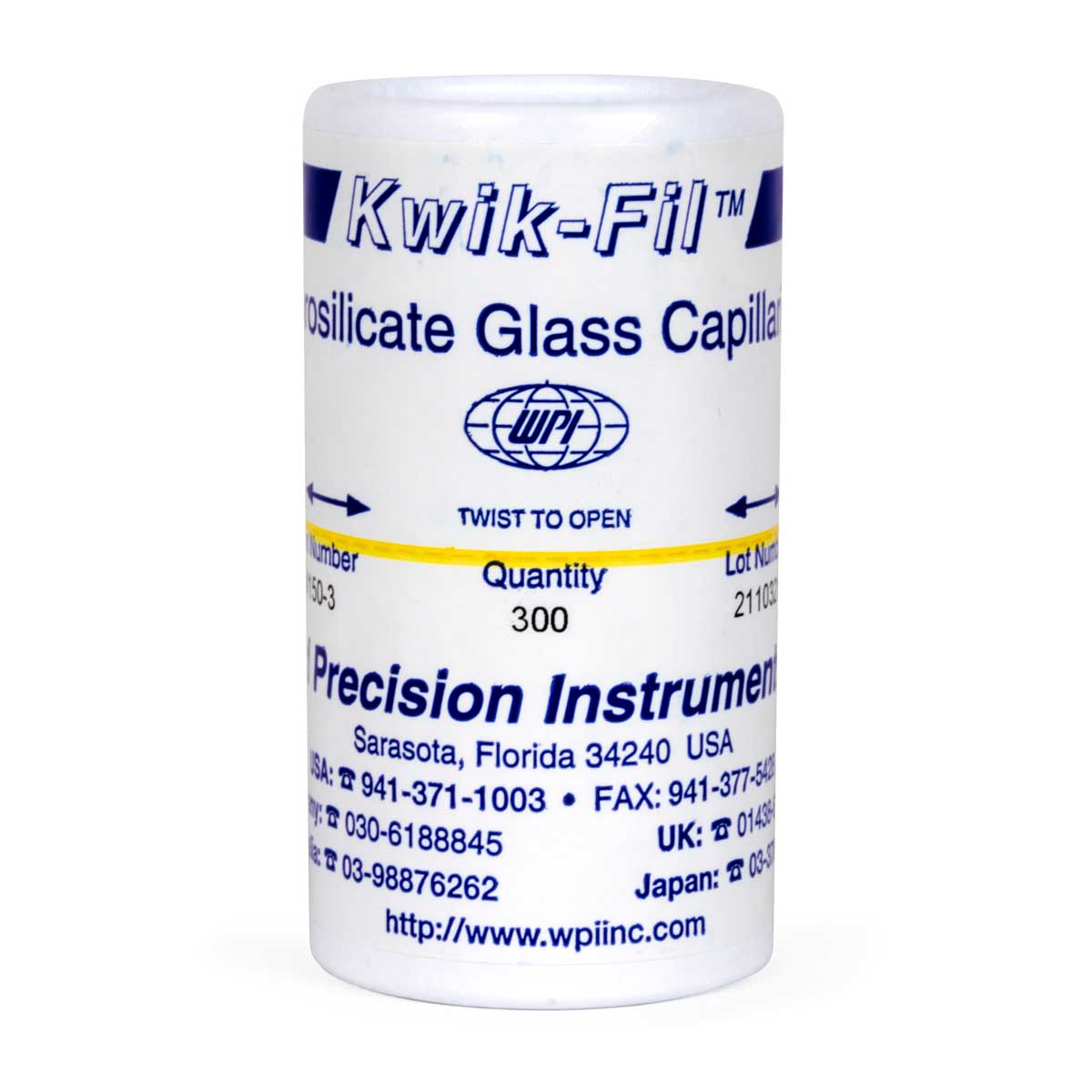

TW150-3	1.5	1.12	3 in. (76mm)	No	•	300

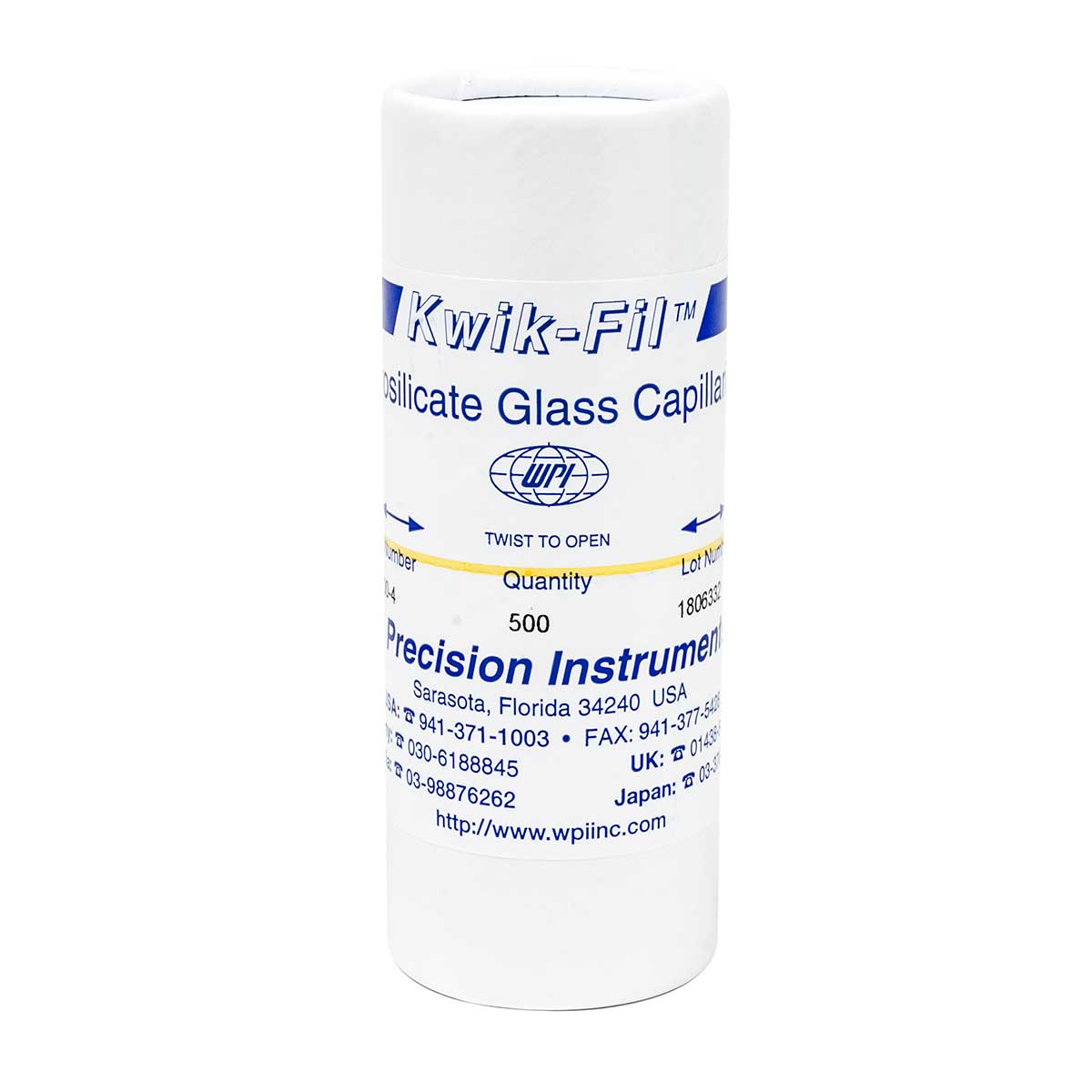

TW100-4	1.0	0.75	4 in. (100mm)	No	•	500
TW120-4	1.2	0.90	4 in. (100mm)	No		350
TW150-4	1.5	1.12	4 in. (100mm)	No	•	300
TW100-6	1.0	0.75	6 in. (152mm)	No	•	500
TW120-6	1.2	0.90	6 in. (152mm)	No		350
TW150-6	1.5	1.12	6 in. (152mm)	No	•	300

Benefits

Superior pricing
Most glass capillary orders ship within 48 hours

Applications

Microinjection
Electrophysiology
Patch clamp
Fluid Handling

Fire Polishing

Fire-Polished glass capillaries are easier to insert into microelectrode holders without damaging the gasket. More importantly, fire-polished glass capillaries won’t scratch the chloridized wire used in a recording electrode. Fire-polishing does not affect the glass’s mechanical or electrical properties.

Making Uniform, Reproducible Microelectrodes

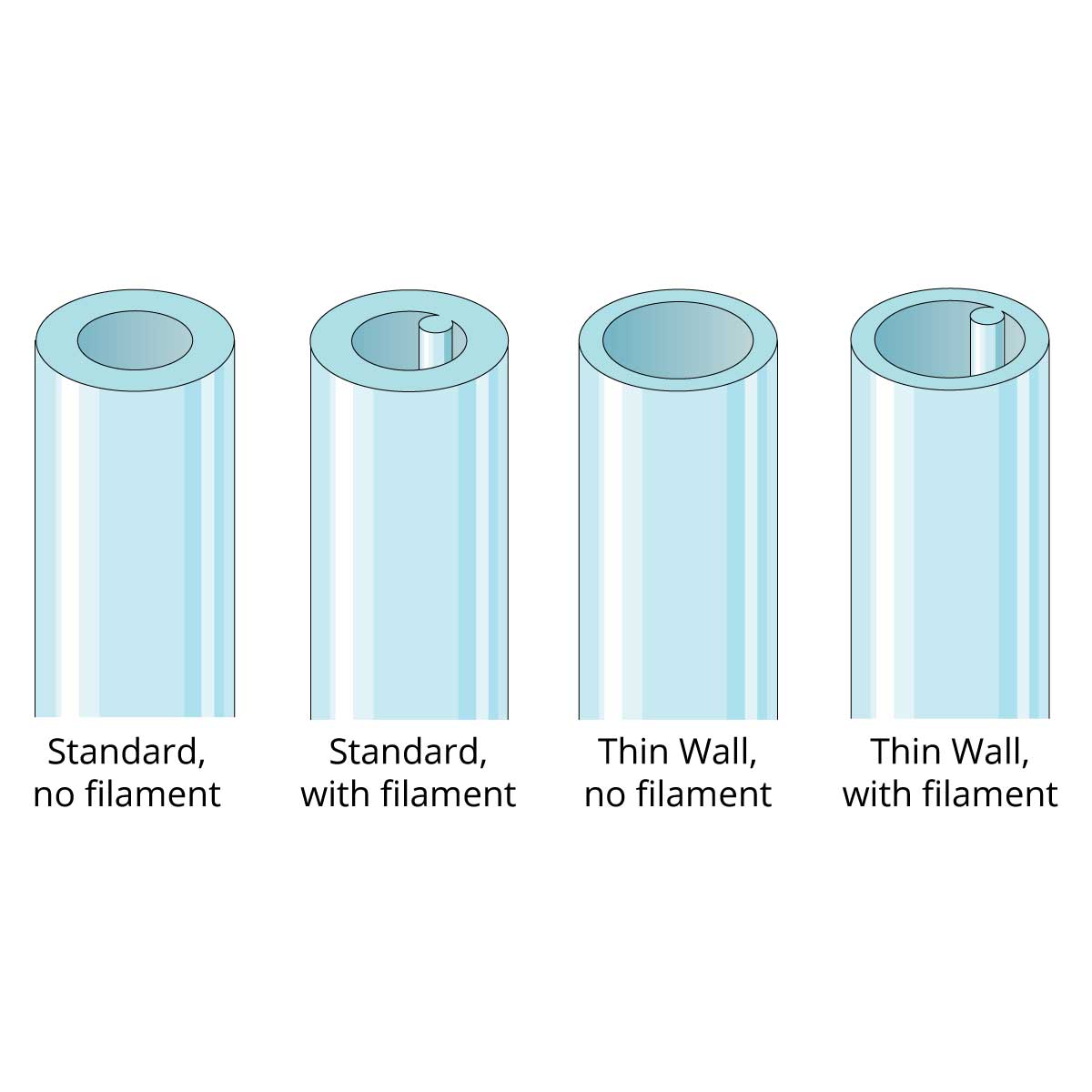

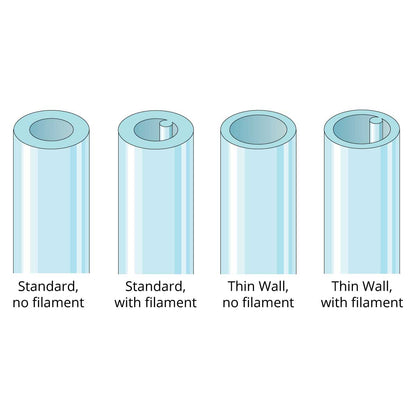

Borosilicate glass capillaries: Close dimensional tolerances assure microelectrode uniformity and reproducibility. Glass capillaries are available in 1, 2, 3, 5 and 7-barrel configurations, complete range of single barrel thin-wall sizes and a variety of special configurations. Glass capillaries with filaments contain a solid filament fused to the inner wall, which speeds filling of electrodes. Glass capillaries with or without inner filaments are available for making microelectrodes in a wide range of diameters.

Capillary Glass with Filament

Single Barrel standard wall thickness glass capillaries are offered either with or without inner filaments for quick filling in a variety of lengths and diameters.

Thin Wall Glass Capillaries

Thin Wall single barrel glass capillaries are offered both with or without inner filaments.

NOTE: Because electrode tips erode when left filled with saline solutions for long periods, electrodes should be made and filled immediately prior to use.
