Micropipette Beveler Basic System

Options

Order code	Description
SU-BV-10-B	Micropipette beveler basic system*
SU-BV-10-C	BV-10-B with electrode impedance meter
SU-BV-10-D	BV-10-B with 40X stereo microscope
SU-BV-10-E	BV-10-B with impedance meter and 40X stereo microscope
SU-BV-10-N	BV-10-B with 40X stereo microscope for NSOM, nano-ESI
SU-BV-10S	40X stereo microscope

Note

• * Includes micromanipulator, reference wick, reference wick holder, pedestal oil, degreaser, manual, and two abrasive plates (fine: 2.0 µ to 20 µ tip sizes, & extra fine: (0.7 µ to 2 µ tip sizes).
• Version “-B” or “-C” does not include a microscope.



Intracellular recording electrodes can benefit from beveling because of:

• A reduction in the tip diameter by creation of the sharp point on the electrode
• A lowered electrical resistance of the electrode due to the larger cross sectional area of the lumen.



This greatly facilitates penetrating and holding very small or difficult cells. Microinjection needles also benefit from beveling by promoting entry into cells with minimal damage while at the same time enhancing the flow of material through the needle.

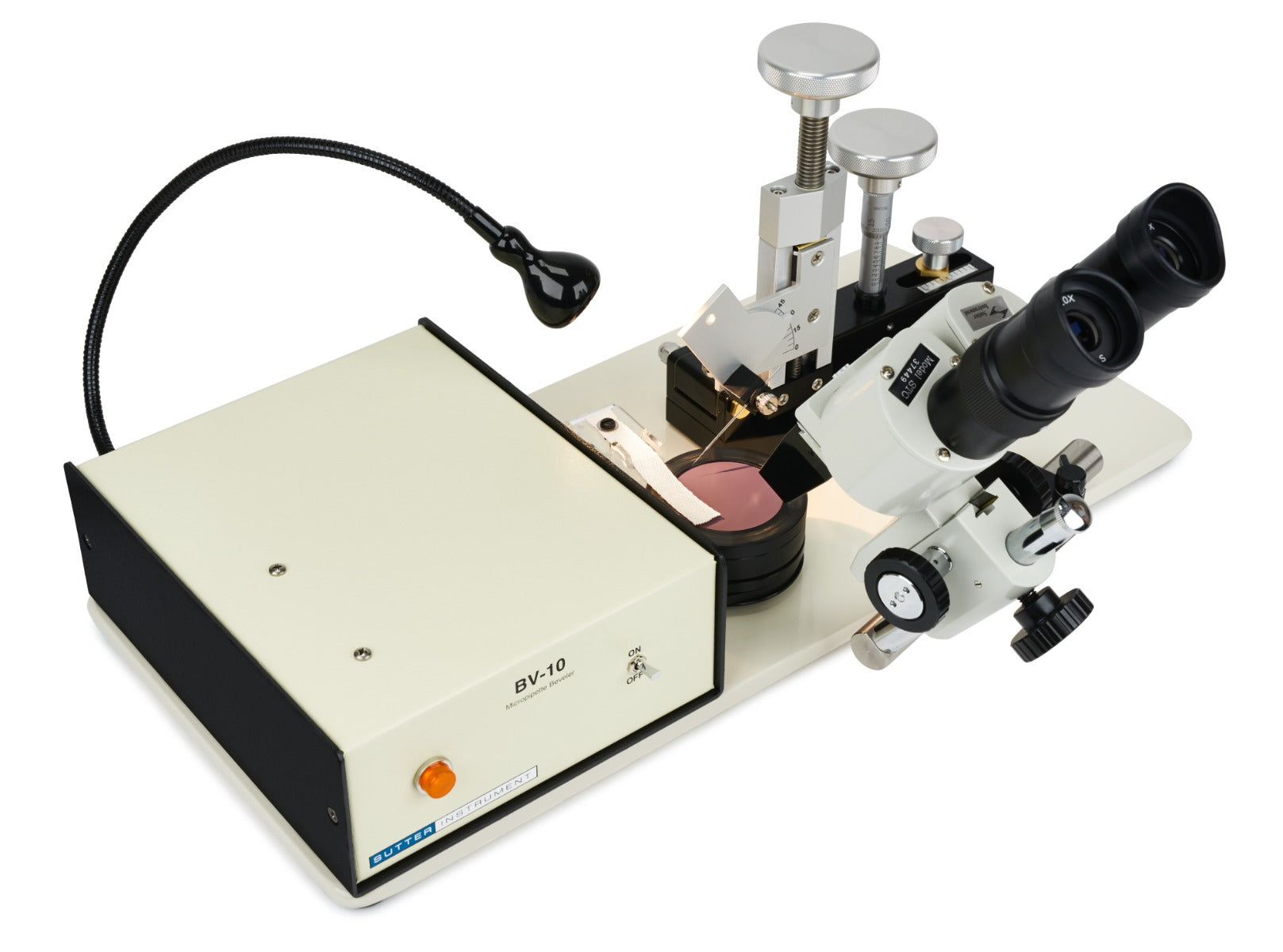

The basic beveling system consists of a stationary pedestal, optically flat to a half wave (250 nm), surface mounted on a heavy baseplate. This serves as a bearing for an abrasive coated glass grinding plate, which is also flat to half a wave. The flat abrasive plate is coupled to a low vibration, slow-speed motor by means of magnetic fields to provide a wobble-free flat grinding surface. The abrasive plates are fabricated with a proprietary process which insures a consistent abrasive coating.

A 2-axis micromanipulator holds the pipette to be beveled and permits controlled advancement onto the abrasive surface. The bevel angle and speed of advancement are adjustable. An LED lamp with a gooseneck enhances the beveling operation by providing sharp illumination of the abrasive plate and pipette.

The basic system is completed with two abrasive plates of your choice, a wick with holder (for wet beveling), pedestal oil, degreasing fluid, and manual.

Two options are available for monitoring the beveling process, an 40X stereo microscope and an electrode impedance meter. Depending on your research application, one or both of these options may be desirable. For all micropipette applications, the swing mounted microscope enhances your control of pipette advancement onto the abrasive plate and allows for viewing of the beveling operation (scope resolution is not sufficient for viewing the actual bevel except in the case of very large tips). For microelectrode applications, the impedance meter is used to monitor the tip resistance during the beveling operation. The meter is an analog design, offering three resistance ranges (0-10, 0-100, 0-500 MOhm). Measurements are made at 12 Hz to minimize capacitive contributions to the impedance measured and provide a near-true DC resistance value. A rapid roll-off is used to reduce 50/60 Hz interference, allowing operation in a laboratory environment without screening.

COMMON APPLICATIONS BV-10

FEATURES

• Vibration-free, magnetically coupled beveling surface
• Abrasive surface optically flat to a half wave (250 nm)
• Finest abrasive surface commercially available
• Synchronous clock motor insures stable rotation rate
• 7 lb steel baseplate adds additional dampening
• Integrated LED lamp
• Robust micromanipulator controls bevel angle and advancement

USER MANUALS

BV-10 Operation Manual
Pipette Cookbook (6MB PDF)

PRODUCT INFORMATION

TECHNOTES: Use of the BV-10N for Fabrication of Nano Electrospray Ionization Emitters
Download Sales Flyer

TECHNICAL SPECIFICATIONS

Beveling Range
0.1µm through 100 µm finished electrodes depending on abrasive plate used

Grinding Surface Variation
less than 1.0 µm

Grinding Speed
60 RPM

Beveling Angle Range
5-90 degrees - adjustable

Micromanipulator
course drive: 0.075 in / dial revolution
fine drive: 0.0004 in / dial revolution

Dimensions
19 in x 9 in x 8 in | 48 cm x 22 cm x 20 cm

Weight
30 lbs | 14 kg

Electrical
110-120v / 200-240v | 50/60 Hertz power line

RoHS Certified

CE Certificate
