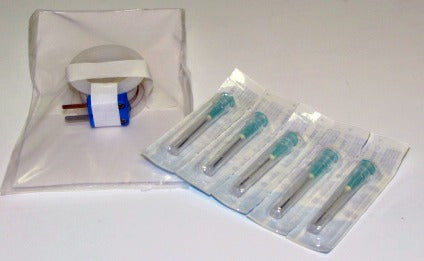

Flexible Implantable Probe

$138
$138

IT-18EXLONG

From $133 - $146
From $133 - $146
Diameter (in)_Electrophysiology

Prices valid in USA, Canada, and PR only.

Flexible Teflon microprobes are used for implantation in tissue, in spectrophotometer cuvettes, rectally in neonatal mice, in water baths, PCR thermal cyclers, etc. Also, measure animal rectal temperatures during surgical procedures and pyrogen testing or skin temperature measurement during exercise physiology studies.

Compatible with the BAT thermometer and the ATC temperature controller.

Details

Options

Order code Description Features Detail
IT-14 Flexible Implantable Probe, 0.050 inch sensor diamete
  • 0.3 sec time constant
  • Isolated
  • 150°c Max. Temperature
  • 3 ft lead length

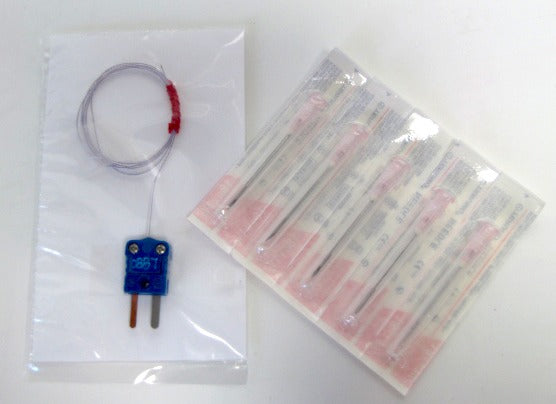

IT-14 Flexible Implantable Microprobe - Implantable in semi-solids and tissue with 14 gauge needle (supplied). Also for immersion in various solutions. Totally sheathed in chemical resistant Teflon™. Quited rugged. Maximum Temperature 150°C . Isolated. Probe diameter .050" (14 gauge represents the needle gauge that the probe can be inserted through). Time constant 0.3 seconds.

IT-18 Flexible Implantable Probe, 0.025 inch sensor diameter, 0.1 sec
  • 0.1 sec time constant
  • Isolated
  • 150°c Max. Temperature
  • 3 ft lead length

IT-18 Flexible Implantable Microprobe - Implantable in semi-solids and tissue with 18 gauge needle (supplied). Also for immersion in various solutions and rectal temperatures of small animals. Totally sheathed in chemical resistant Teflon™. Quited rugged. Maximum Temperature 150°C . Isolated. Probe diameter .050" (14 gauge represents the needle gauge that the probe can be inserted through). Time constant 0.3 seconds.

probes
IT-18EXLONG Flexible Implantable Probe, 0.025 inch sensor diameter
  • Time constant not applicable
  • Isolated
  • 150°c Max. Temperature
  • 5 ft lead length

IT-18EXLONG Flexible Implantable Microprobe with 5 foot lead - Implantable in semi-solids and tissue with 18 gauge needle (supplied). Also for immersion in various solutions and rectal temperatures of small animals. Totally sheathed in chemical resistant Teflon™. Quited rugged. Maximum Temperature 150°C . Isolated. Probe diameter .050" (14 gauge represents the needle gauge that the probe can be inserted through). Time constant 0.3 seconds.

IT-1E Flexible Implantable Probe, 0.025 inch sensor diameter, 0.005 sec
  • 0.005 sec time constant
  • Isolated
  • 150°c Max. Temperature
  • 3 ft lead length
  • As IT-18 sensor except bead exposed. Combines ultra-fast reponse of IT-23 with sheath strength of IT-18.

IT-1E Flexible Implantable Microprobe - For ultra fast measurements and for use on micro-size specimens. Similar to our most popular IT-18 microprobe but the sensor bead is exposed, resulting in the same ultra-fast response time of the IT-23 but with the Teflon™ sheath strength of the IT-18. Time constant 0.005 seconds. Tissue Implantable with a 18 gauge needle (supplied). Rather fragile at tip. Coated in Teflon™. Maximum Temperature 150°C. Isolated. Probe tip diameter .011", sheath diameter .025'' . 3 foot lead.

IT-21 Flexible Implantable Probe, 0.016 inch sensor diameter
  • 0.08 sec time constant
  • Isolated
  • 150°c Max. Temperature
  • 1 ft lead length

IT-21 Flexible Implantable Microprobe - Implantable in semi-solids and tissue with 21 gauge needle (supplied). Ideal for subcutaneous and cranial temperatures in small animals. Also for immersion in various solutions. Totally sheathed in chemical resistant Teflon™. Maximum Temperature 150°C . Isolated. Probe diameter .016" (21 gauge represents the needle gauge that the probe can be inserted through). Time constant 0.08 seconds.

IT-23 Flexible Implantable Probe, 0.009 inch sensor diameter
  • 0.005 sec time constant
  • Isolated
  • 150°c Max. Temperature
  • 3 ft lead length
  • For ultra fast measurements and for use on micro-size specimens. Tissue implantable with 23ga. Needle (supplied). Rather fragile.

IT-23 Flexible Implantable Microprobe - For ultra fast measurements and for use on micro-size specimens. Time constant 0.005 seconds. Tissue Implantable with a 23 gauge needle (supplied). Fairly fragile. Sensor wires are twisted TFE Teflon™ insulated. Maximum Temperature 150°C. Isolated. Probe diameter .011", 3 foot lead.

probes

Time Constant is defined as the time required to reach 63% of final temperature in liquid. An accurate reading is obtained when the reading stops changing, typically 5-10 time constants.

Maximum Temperature refers to intermittent use of probe. When probe is used for continuous measurements, maximum temperature should be reduced by 25% unless specified.

Flexible Microprobe

Applications

Designed for high accuracy on extremely small specimens such as insects, seeds, etc. Maximum insertion depth 1/8". Totally sheathed in chemical resistant Teflon.






Details

When precise temperature measurements are required, WPI can provide you with a very accurate monitor and thermocouple microprobes. WPI monitors have both resolution and accuracy of 0.1°C in the 0-50°C range and are traceable to NIST standards, whereas, other competitive electronic thermometers have an accuracy that is usually to 0.5°C or worse. Furthermore, all our type T clinical probes are guaranteed accurate to 0.1°C, due to our stringent wire standards. These are five times more accurate than competitive probes made with regular “Special Limits” wire.

Probe Sterilization Methods

The needle microprobes and animal rectal probes are all designed to withstand sterilization by ETO gas and gluteraldehyde solution. Our flexible implantable microprobes are both ETO gas sterilizable and autoclavable.



To view more details when selecting a temperature probe, see the Temperature Probe Details page.



Resources

IT-18 Instruction Manual

IT-23 Instruction Manual

Specifications

Type IT-14 IT-18 IT-18EXLONG IT-21 IT-23 IT-1E
Sensor Tip Diameter .050" .025''   .016'' 0.011'' .009''
Accuracy ±0.1°C in the physiological range ±0.1°C in the physiological range ±0.1°C in the physiological range ±0.1°C in the physiological range ±0.1°C in the physiological range ±0.1°C in the physiological range
Time Constant 0.3 seconds 0.1 seconds 0.1 seconds 0.08 seconds 0.005 seconds 0.005 seconds
Maximum Temperature 150°C 150°C 150°C 150°C 150°C 150°C
Minimum Temperature -100°C -100°C -100°C   -100°C -100°C
Lead Length 3 ft. 3 ft. 5 ft. 1 ft. 3 ft. 3 ft.
Sterilization Protocol Autoclavable, ETO gas, Isoprophyl Alcohol and Gluteraldehyde solution Autoclavable,ETO Gas, Isoprophyl alcohol or gluteraldehyde solution Autoclavable, ETO gas, Isoprophyl Alcohol and Gluteraldehyde solution Autoclavable, ETO gas and Gluteraldehyde solution Autoclavable, ETO gas, Isoprophyl Alcohol and Gluteraldehyde solution Autoclavable, ETO Gas, Isoprophyl Alcohol and Gluteraldehyde solution
