Compound Teaching Microscope System

Teaching Microscope System

Options

Order code	Description	Details

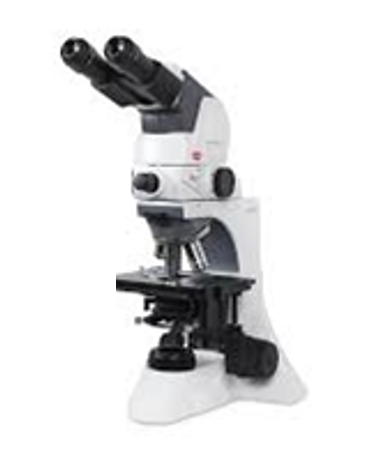

INV-TB	Binocular Teaching Microscope, NO Observers	Standalone binocular microscope system, NO observers

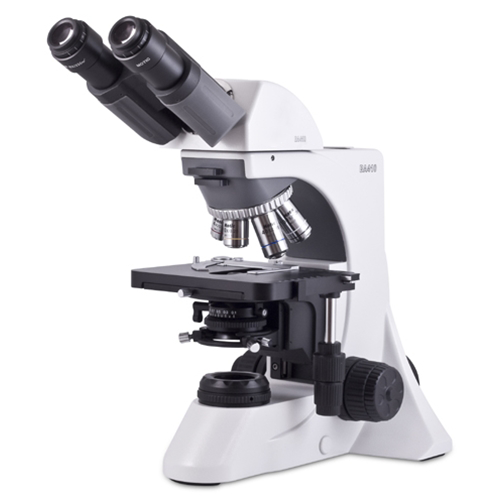

INV-TT	Trinocular Teaching Microscope, NO Observers	Standalone trinocular microscope system, NO observers

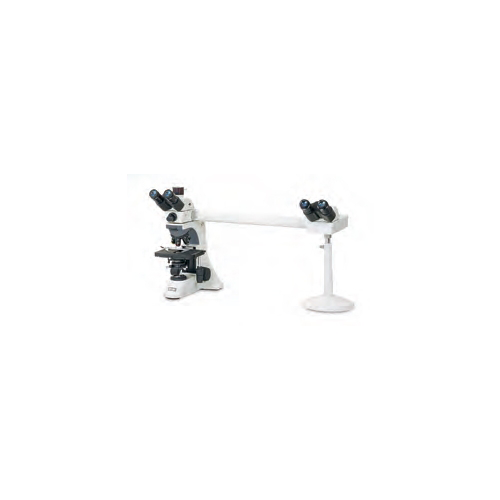

INV-TT-1	Trinocular Teaching Microscope +1 Observer	Trinocular microscope system, with one observer column (single eyepiece set)

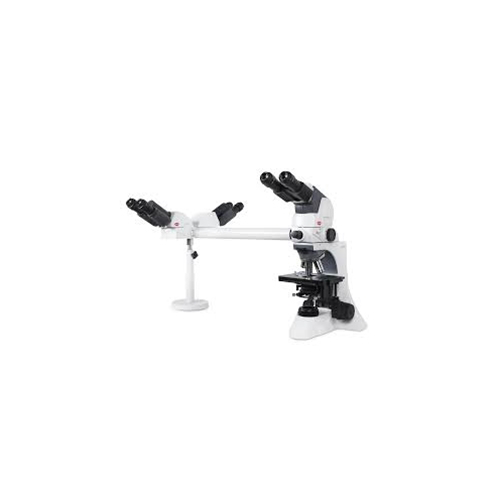

INV-TT-2	Trinocular Teaching Microscope +2 Observers	Trinocular microscope system, with one observer column (dual eyepiece set)

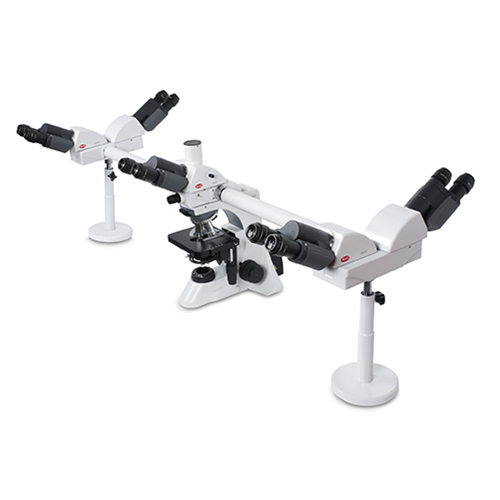

INV-TT-4	Trinocular Teaching Microscope +4 Observers	Trinocular microscope system, with two observer columns (two dual eyepiece sets)

Features

• Objective Lenses: Reversed facing sextuple objective turret revolving nosepiece holds Lead-Free, Color Corrected Infinity System (CCIS) EC-H Plan Achromat objectives 4x, 10x, 40xr, 100xr (oil). Optional 2x, 20x and 60x objectives are available.
• Eyepieces: Siedentopf widefield 10x eyepieces, FN 22mm, 30° inclined binocular tubes with interpupillary distance adjustments from 55 mm to 75 mm. (WF15x and WF20x eyepieces available). Independent diopter adjustments are on each eyepiece. Includes rubber eyeshields. Trinocular port includes a 20/80 beam splitter.
• Viewing Heads: Optional optical bridge(s) with observation head(s).
• Total Magnification: 40x, 100x, 400x, 1000x.
• Specimen Stage: Rectangular mechanical stage, 174mm x 145mm with a travel range of 76mm x 50mm. Low positioned coaxial control knobs make it easy to control stage movement. The stage is protected with a special hard coating to protect against abrasion and fungus growth.
• Stand: Effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the "Y" support in the back of the microscope provides extra lateral stability.
• Focusing: Fine and coarse coaxial focusing. The Combination of a triangular steel rail with an adjustable torque contrail knob provides for easy control of the coarse focusing tension and total vertical movement of 25mm at 2 μm.
• Condenser: The substage condenser mount is height adjustable (rack and pinion) and has a dovetail mount with clamp screw. The newly developed swing-out Achromat condenser with numerical aperture of 0.90, provides homogeneous illumination for observation and photomicrography at all magnifications from 2x to 100x.
• Illumination: 6V / 50W quartz halogen Koehler illumination system provides bright, even illumination at any magnification. The centerable lamp is housed externally and has an externally operated mechanism for control of all facets of illumination. A diffuser is housed in the base of the microscope. The diffuser can be easily removed from the light path through a selector switch located on the base.
• Polarized Light: Two filter slots in the upper part of the stand accommodate an optional analyzer and a First Order Red Compensator (535nm), #INV-T-KIT. The slide mounted analyzer is removable for quick changes between polarizing and standard brightfield operation. The polarizer is installed over the field iris.
• Size: 15.9" high.
• Includes: Vinyl dust cover, 45mm blue filter, 5ml of immersion oil and owner's manual.
• Warranty: 1 Year Warranty.
