E-Z Anesthesia® has taken the vaporizer to the next level. In an era of advancing technology, people have asked for the vaporizer to follow along with the digital trend. E-Z Anesthesia has taken the best of the both worlds and combined them into a very reliable, user-friendly, state-of-the-art system. The Digital Anesthesia System, AD-5000, enhances the always reliable TEC 3 vaporizer.



Details

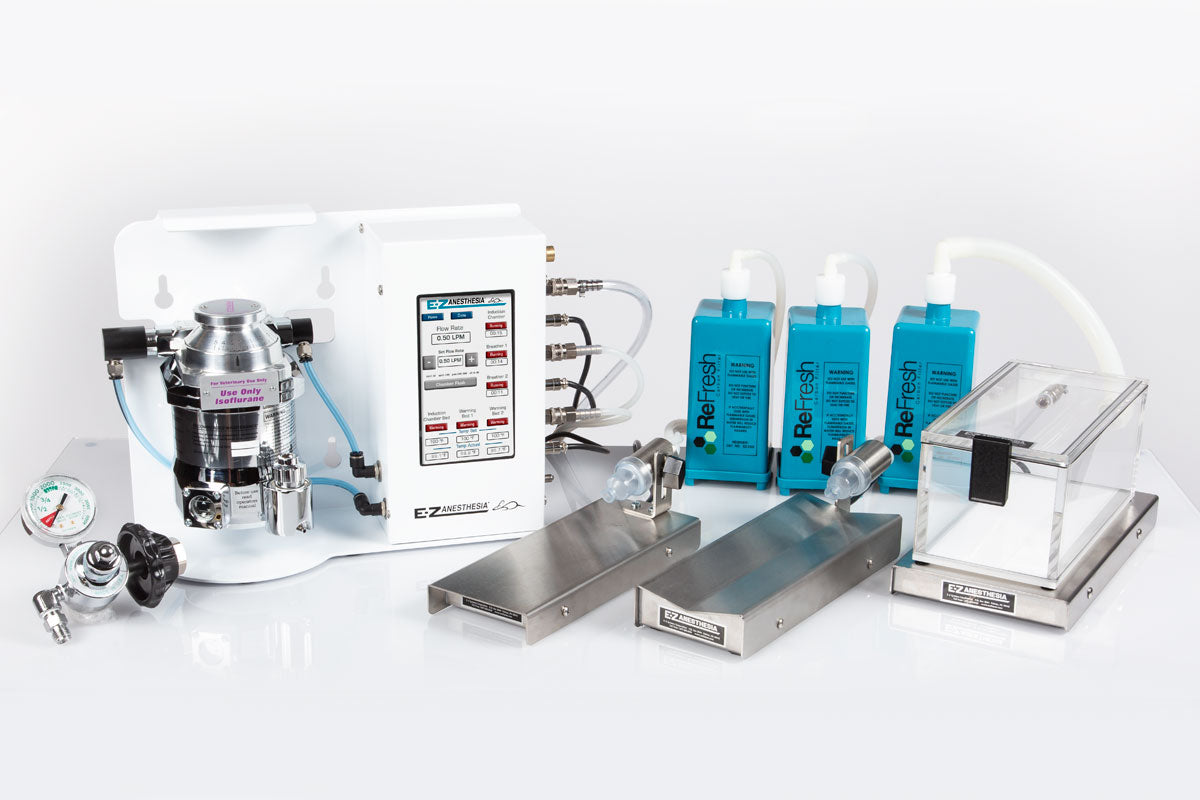

Digital Anesthesia Vaporizer Machine includes,

  • (1) Oxygen or Air Regulator
  • (1) Induction Chamber (standard EZ-178)
  • (1) Heated Chamber Warmer without breather
  • (2) Heated Surgery Beds with Breathers – Flat or V-Shaped
  • (1) Case of ReFresh Charcoal Filters, 8ct
  • Also includes mouse/rat nosecones, nosecone plugs, and all connecting tubes
  • (2) Anesthesia Masks (rat and mouse)
  • (2) Nosecone plugs
    *All connective tubings included

*Other configurations are available, please contact your representative for details

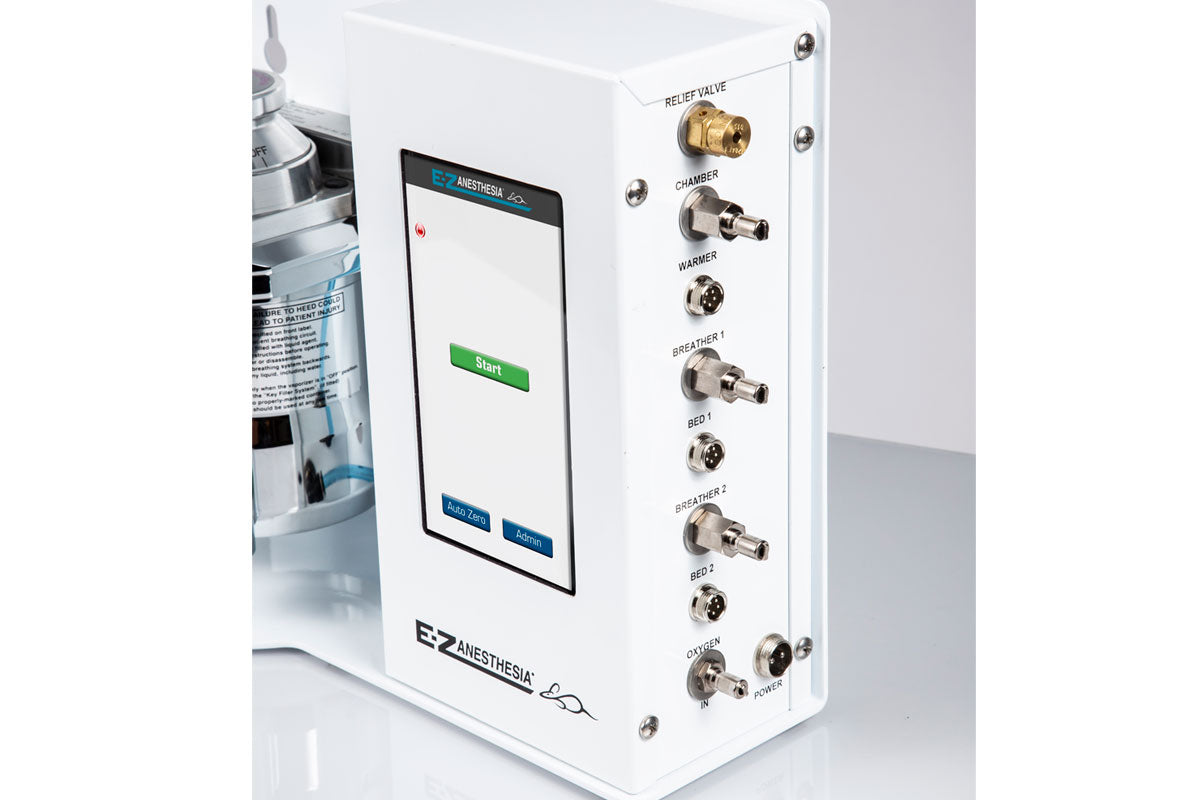

Vivid 7″ Touch Screen

The AD-5000 incorporates a vivid touch screen that allows the operator to have a full range of exciting features. We have incorporated an exclusive digital flow control that gives the user a precise range of .5 to 2.5 LPM. The digital anesthesia system controls 3 outputs. This allows the user to run an induction chamber with two additional breathers. With our exclusive flow circuit, the user chooses any combination of outputs while our digital flow control automatically adjusts for the correct flow rates. The induction chamber and breathing circuits include an elapsed timer for accurate monitoring.



New Digital Warming Surgery Beds

We have further advanced our system to include digital warming beds to help maintain the patients’ body temperature during surgical procedures. Each of the warming circuits displays the individually controlled set temperature. All settings made in the administrator options are password-protected to safeguard controls from tampering individuals. When all procedures are complete, simply press the “Done” button, and our system shuts down in the proper sequence ensuring a longer life for your equipment.

Specifications

Type Description
Anesthetic Isoflurane 0 – 5%
Carrier Gas Oxygen or Air
Flow Range 0.5 – 2.5 LPM (per output)
Flow Adjustment 0.25 LPM increments
Number of Outputs 3
Input Voltage 120/240 VAC 1.6 amp 50/60 Hz
Minimum psi Required 15 psi
