Celloger® Mini Plus
EVI-LCI-01-18
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.

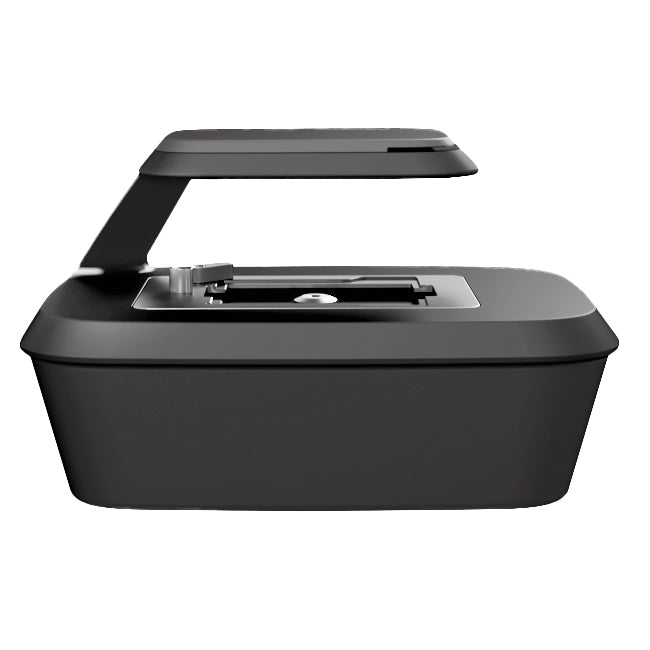

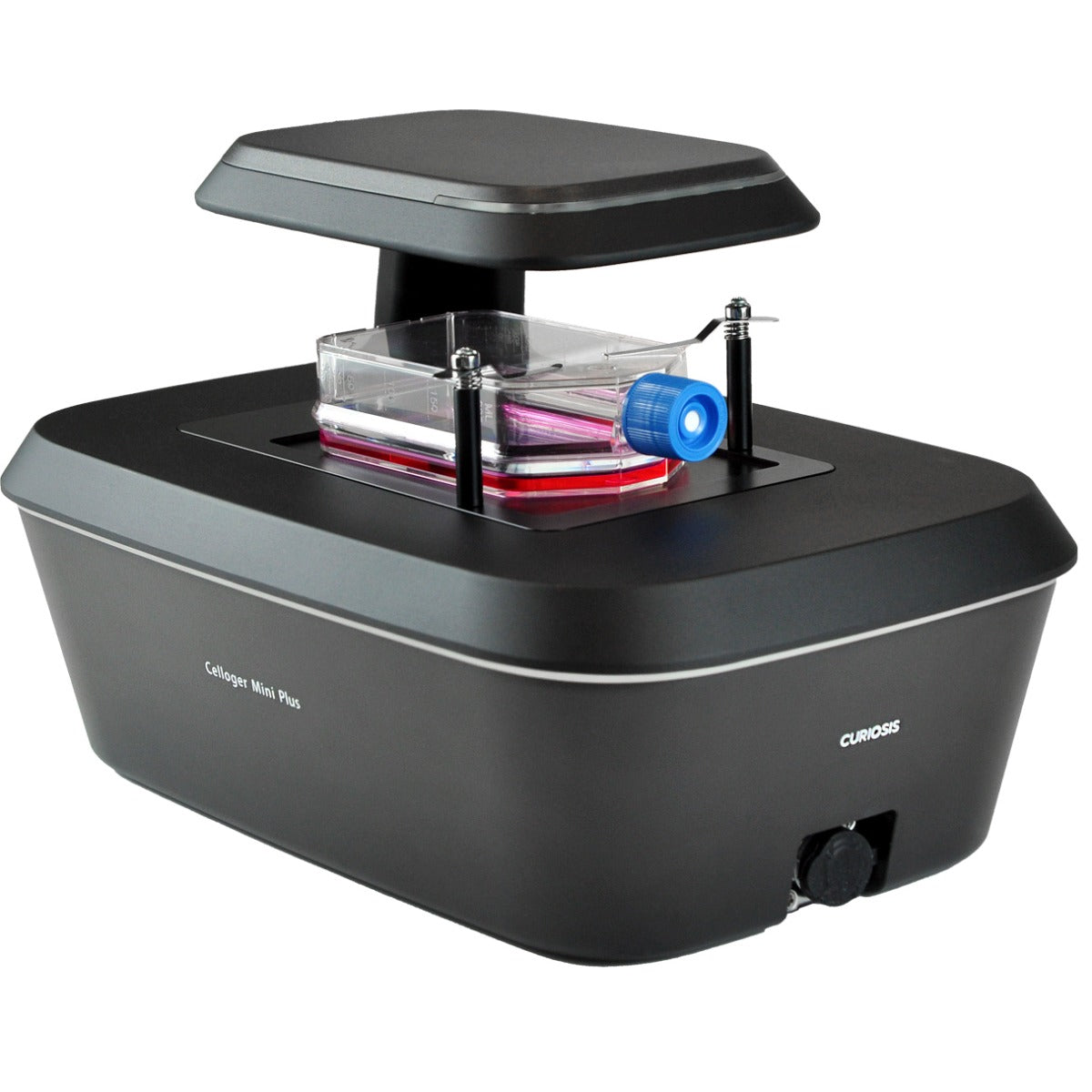

Celloger® Mini Plus is an automated live cell imaging system that is equipped with an advanced fluorescence and bright field microscopy, auto-focusing and real-time, multi-position imaging technology for a well plate, dish or T-flask. The streamlined process provides an easy workflow solution giving you a full set of tools you need to acquire the best quality images and accurate research results. The compact nature of the Celloger® Mini Plus allows positioning in an incubator, providing improved cell viability, because there are fewer disturbances over the course of your experiment, reducing chances of cellular abnormality.
NOTE: WPI is an authorized distributor of
ACCESSORIES
Details
Details
Simplify your Image Capture with Celloger® Mini Plus
Options
| Order code | Description |
| EVI-LCI-01-17 | Celloger® Mini Plus, Brightfield, 2X Magnification |
| EVI-LCI-01-18 | Celloger® Mini Plus, Brightfield, 4X Magnification |
| EVI-LCI-01-19 | Celloger® Mini Plus, Brightfield, 10X Magnification |
| EVI-LCI-01-20 | Celloger® Mini Plus, Brightfield, 4X Magnification, with Green Fluorescence |
| EVI-LCI-01-21 | Celloger® Mini Plus, Brightfield, 10X Magnification, with Green Fluorescence |
| EVI-LCI-01-22 | Celloger® Mini Plus, Brightfield, 4X Magnification, with Red Fluorescence |
| EVI-LCI-01-23 | Celloger® Mini Plus, Brightfield, 10X Magnification, with Red Fluorescence |
The Celloger® Mini Plus live cell imaging system includes two software packages:
- Celloger® Mini Plus Scan to control the actual operation of Celloger® Mini Plus device which includes real-time cell monitoring and time-lapse imaging functions.
- Celloger® Mini Plus Analysis for analyzing and post-processing of the images. This comes with an unlimited software usage license, ideal for allowing multiple users to work with the unit without additional fees.
Expand Your Cell Discoveries with Celloger® Mini Plus
Multi-position imaging - Fully-automated, multi-position imaging for high resolution analysis with a motorized camera that allows for multi-point imaging up to 96 wells.
High compatibility - Compatible with various cell and tissue culture vessel types.

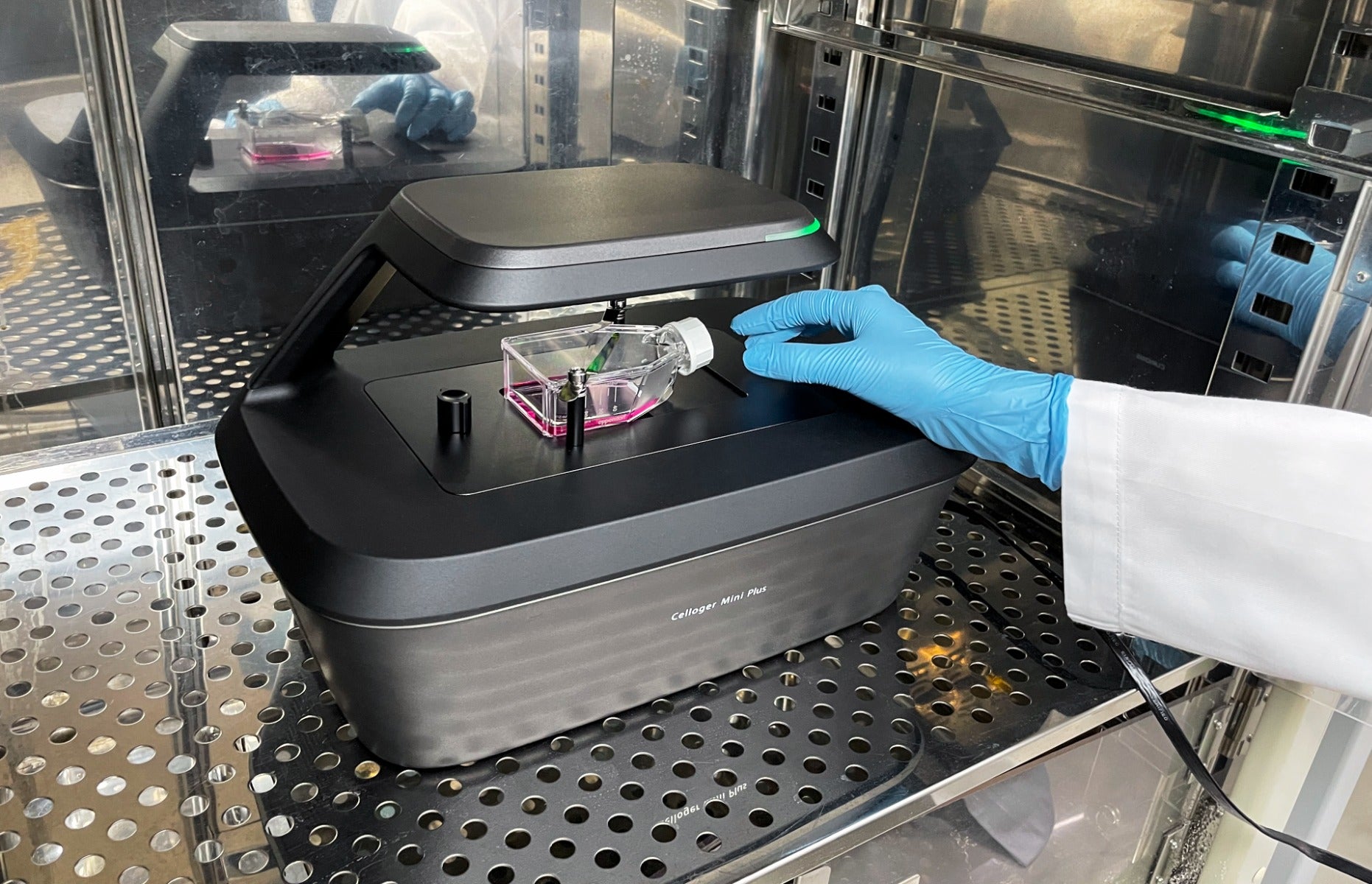

Compact size - Celloger® Mini Plus is a live cell imaging system that easily fits into a standard CO₂ incubator.
Z-stacking imaging - Capture multiple focal planes and use the Z-stacking function to view high dynamic range (HDR) images.
Image stitching - Stitching combines images for analysis of a single high resolution composite image. This enables analysis of a larger volume and sections.
Auto-focusing - You get increased focus speed and reproducibility with reliable auto-focusing function.
Intuitive interface - With user-friendly functions, the easy-to-use analysis tools such as confluency mark, growth curve and a ruler are build into the included software.
Fluorescence imaging - One color fluorescence (Green or Red) and bright field imaging.
Benefits Unique to Celloger® Mini Plus
For automated Live Cell Images you have choices. Here's what makes Celloger® Mini Plus unique in its class:
- Stable Stage – Get clearer images with a stable plate. Unlike other devices, Celloger® Mini Plus has a fixed stage and the optics move.
- Open-Source Data – Unlike other brands, Celloger® Mini Plus gives you the raw images so that you can work with any analysis software you prefer, like Image J.
- Regular Software Updates – Stay current with all the new functions of the Celloger® Mini Plus software. Customers are lifetime members and are never charged for the software updates.
- Unlimited Software Usage License – Multiple users may analyze images using their own computers (after the scanning is complete) without additional fees. Other brands limit usage to one computer.
Multi-Point Imaging
- The camera system travels 117mm x 77mm (x and y axis respectively), multiple points within the travel range can be captured following the schedule (intervals, cycles, total time) you set.

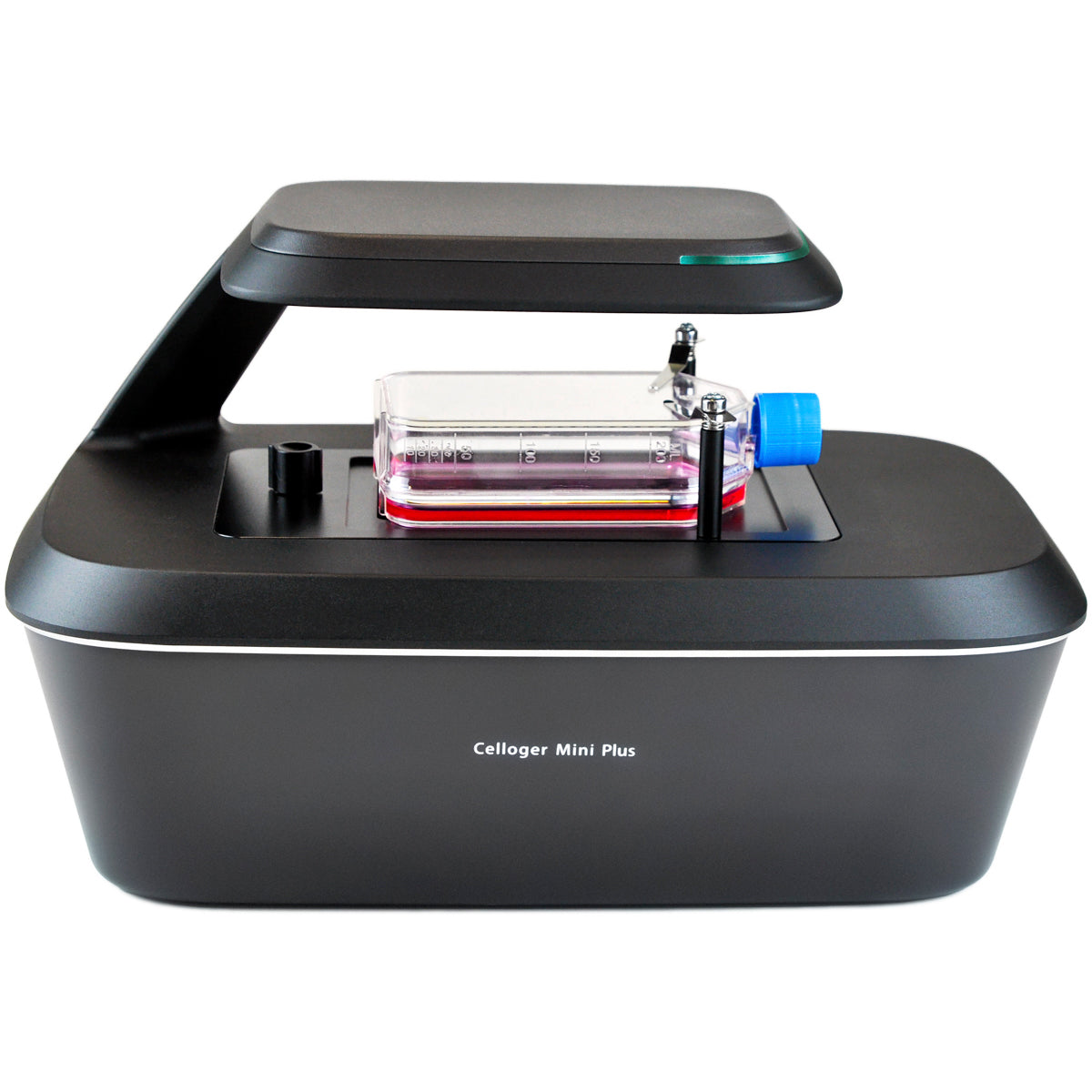

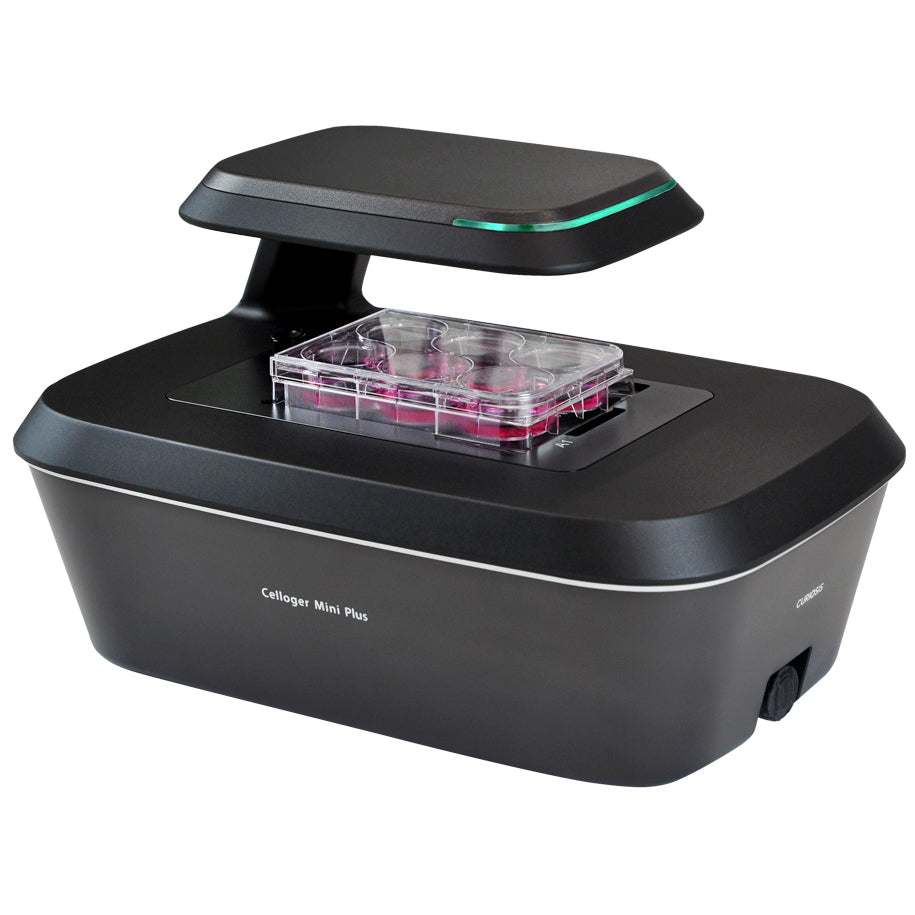

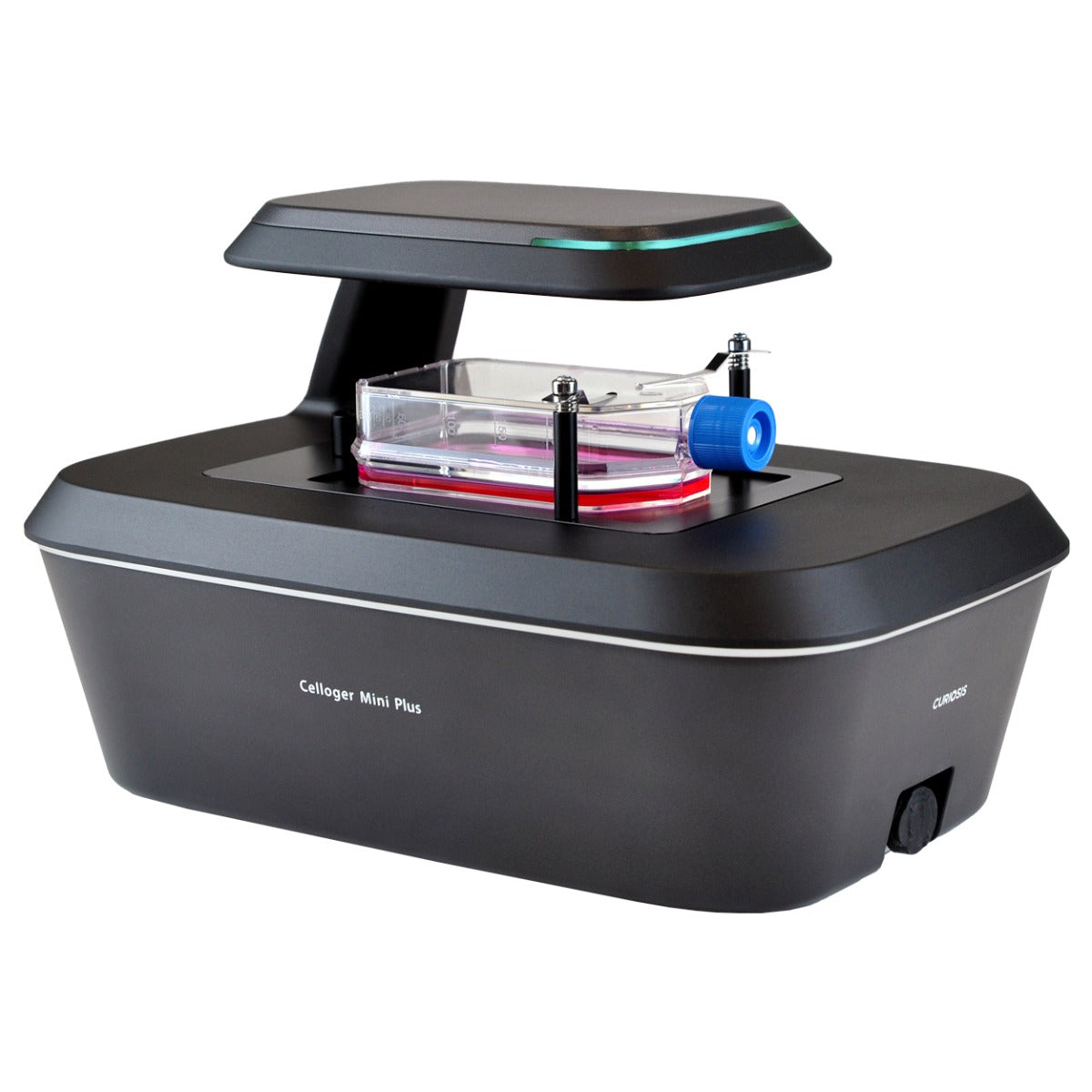

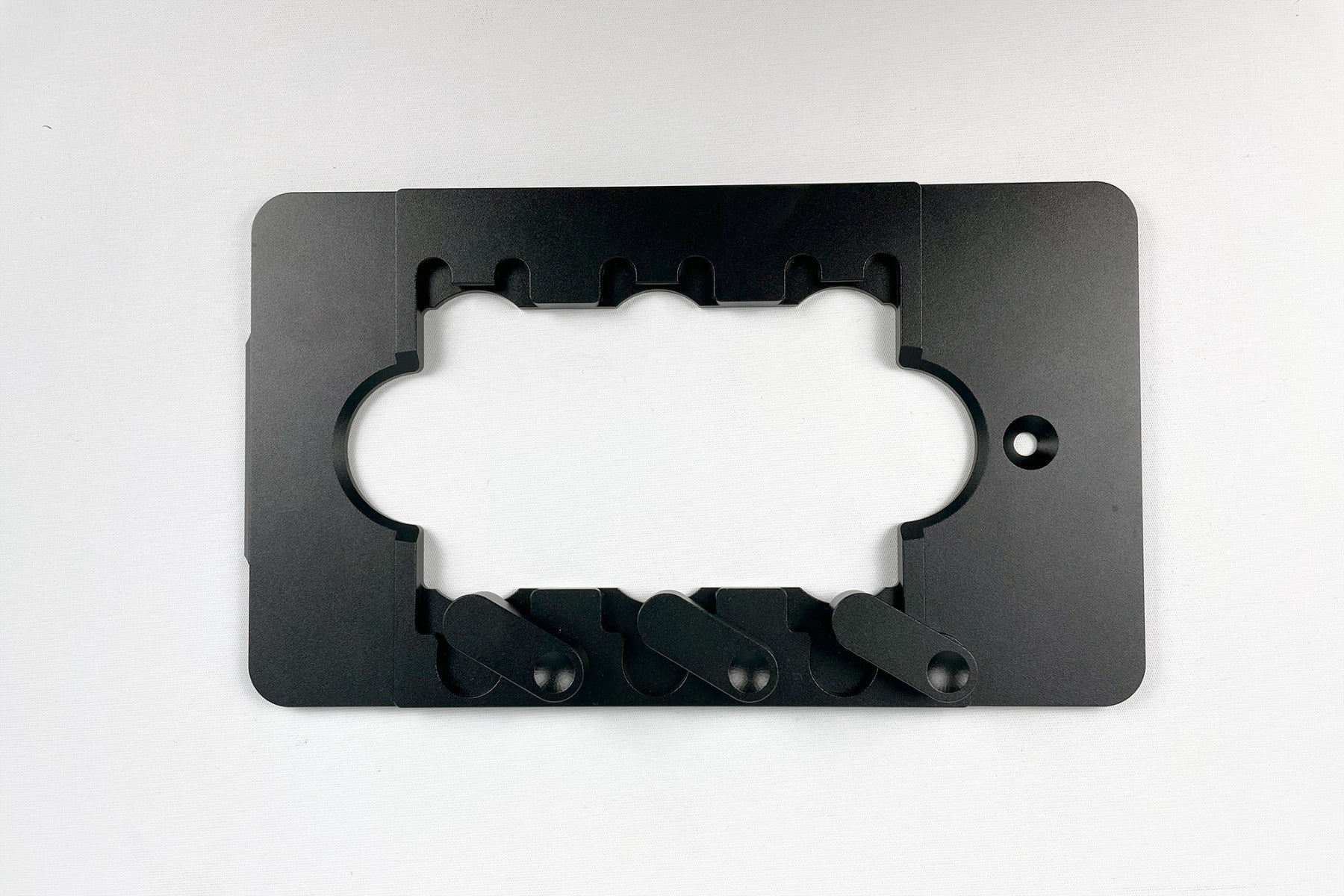

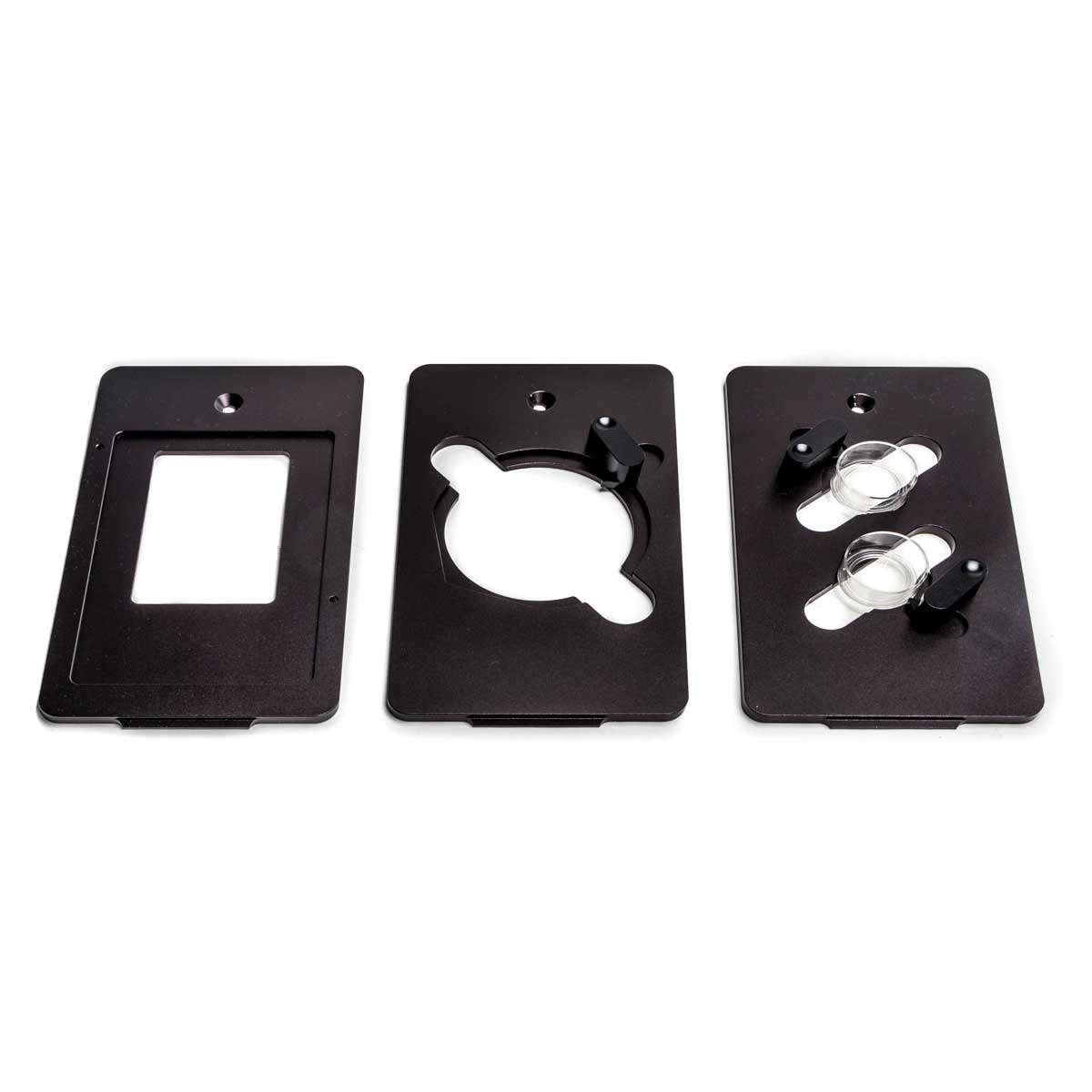

- Different kinds of vessels can be used (Well plates, dishes, flasks, slides)
Stable Imaging Performance

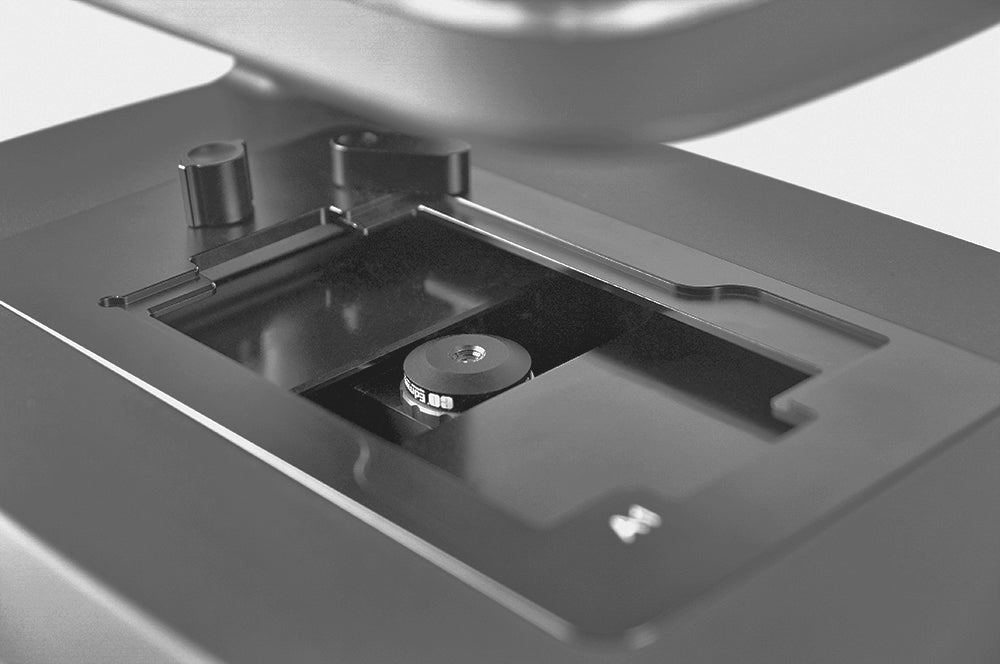

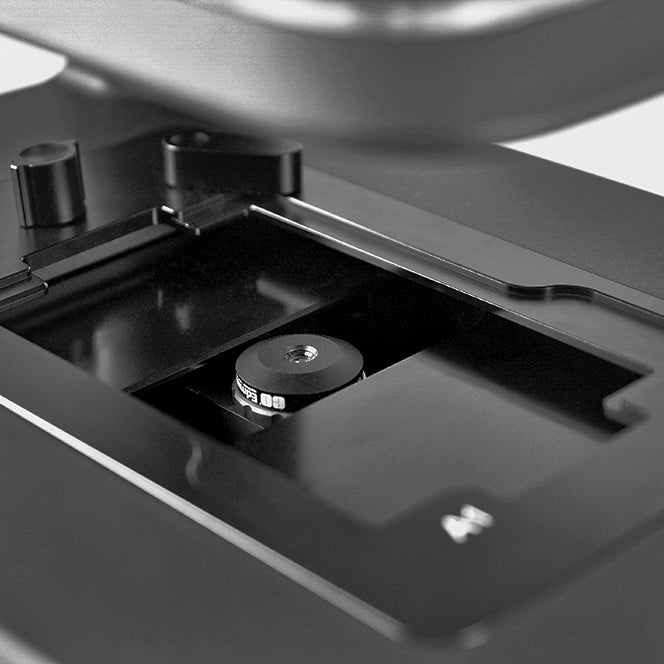

- Celloger® Mini Plus has a stationary stage, and the camera (located inside the system) moves to capture the images of cell in multiple positions. This offers greater stability of the live cell imaging platform.
- Precise and sensitive fluorescence detection is possible with the integrated, hard-coated, optical setup and LED filter with more than 50,000-hour lifetime.
Compact Size

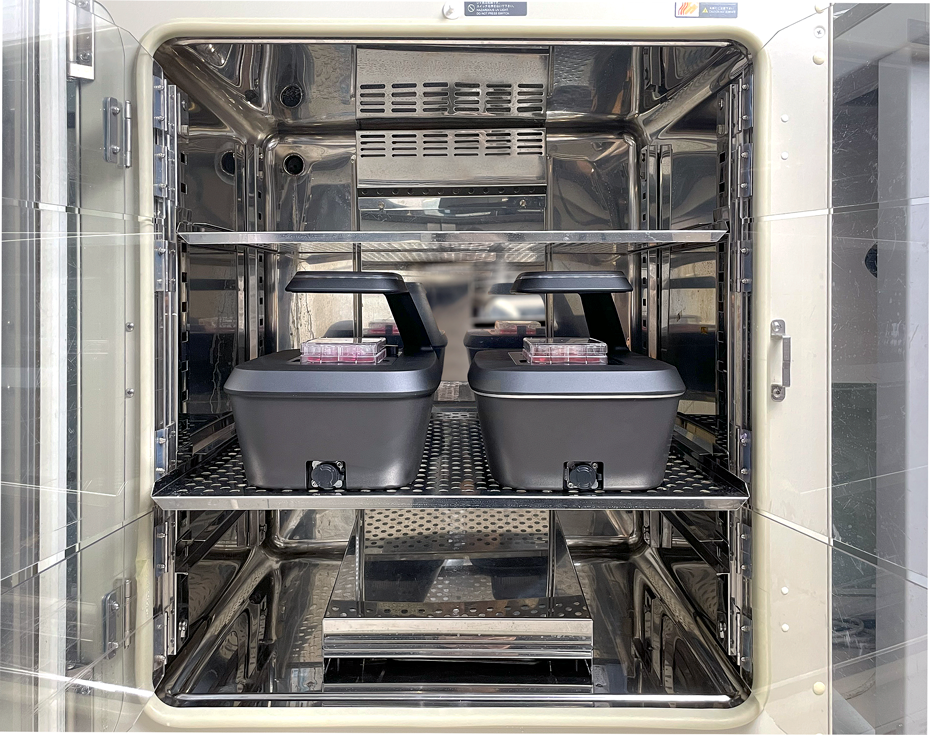

- Celloger® Mini Plus is compact in size with 226(h) x 358(l) x 215(w)mm, which allows several Celloger® Mini Plus systems to fit into a standard CO2 incubator.
- Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Mini Plus, you can easily monitor live cells inside the incubator without disturbing the environment suitable for cell culture, even for extended periods.
Scanning Application
The scanning application is used for capturing images. You can preview cells, schedule image capture, adjust light and contrast, and monitor time lapse progression from one intuitive screen. It includes auto-focusing technology that finds a clear focal plane of cells and has excellent repeatability.
Z-Stacking
With the Z-stacking function, where images of multiple planes of focus are merged, spheroid cells can be clearly observed under time-lapse imaging.
Image Stitching
Image stitching lets you capturing multiple images and combine the overlapping parts to enable high-resolution mapping of a large sample area.
Time Lapse Imaging
The Celloger® Mini Plus Scan app gives you an intuitive interface for scheduling your time-lapse images. You can set the total time, cycle and intervals for the time lapse images of your live cell imaging setup.
Analysis Application
A variety of tools in the analysis application simplify the analytic process, reducing errors and saving time.
- Intensity Histograms
- Confluency Graphs
- Channel Merge
- Video Creation
- Manual Counting
- Measurement
- More
