EVOM™ Auto Electrode Array For TEER

EVA-EL-03-01

Options

Prices valid in USA, Canada, and PR only.

World Precision Instruments (WPI), the global leader in TEER technology, is proud to introduce the EVOM™ Auto, our newest entry into our pioneering EVOM family of products. The EVOM™ Auto automates measurements of TEER in epithelial or endothelial monolayers cultured on high throughput screening (HTS) 24 and 96-well and plates utilizing our innovative EVOM technology, qualitatively measuring cell monolayer health and quantitatively measuring cell confluence by determining an increase or a plateau in tissue resistance.

Automated measurement of tissue resistance of  transwell cell cultures provides the advantages of speed and precision, minimizes the chances of contamination, and ensures the rapid availability of measured resistance data. EVOM™ Auto produces a low AC current that omits any adverse physiological effects of the measurement technique on the samples and is specially designed for the non-destructive, high throughput screening of epithelial/ endothelial cellular physiology (e.g.,  confluence of cellular monolayers, barrier integrity of cell cultures, cytotoxicity).

To learn more about our warranty options, click here.

Details

Options

Order code Description

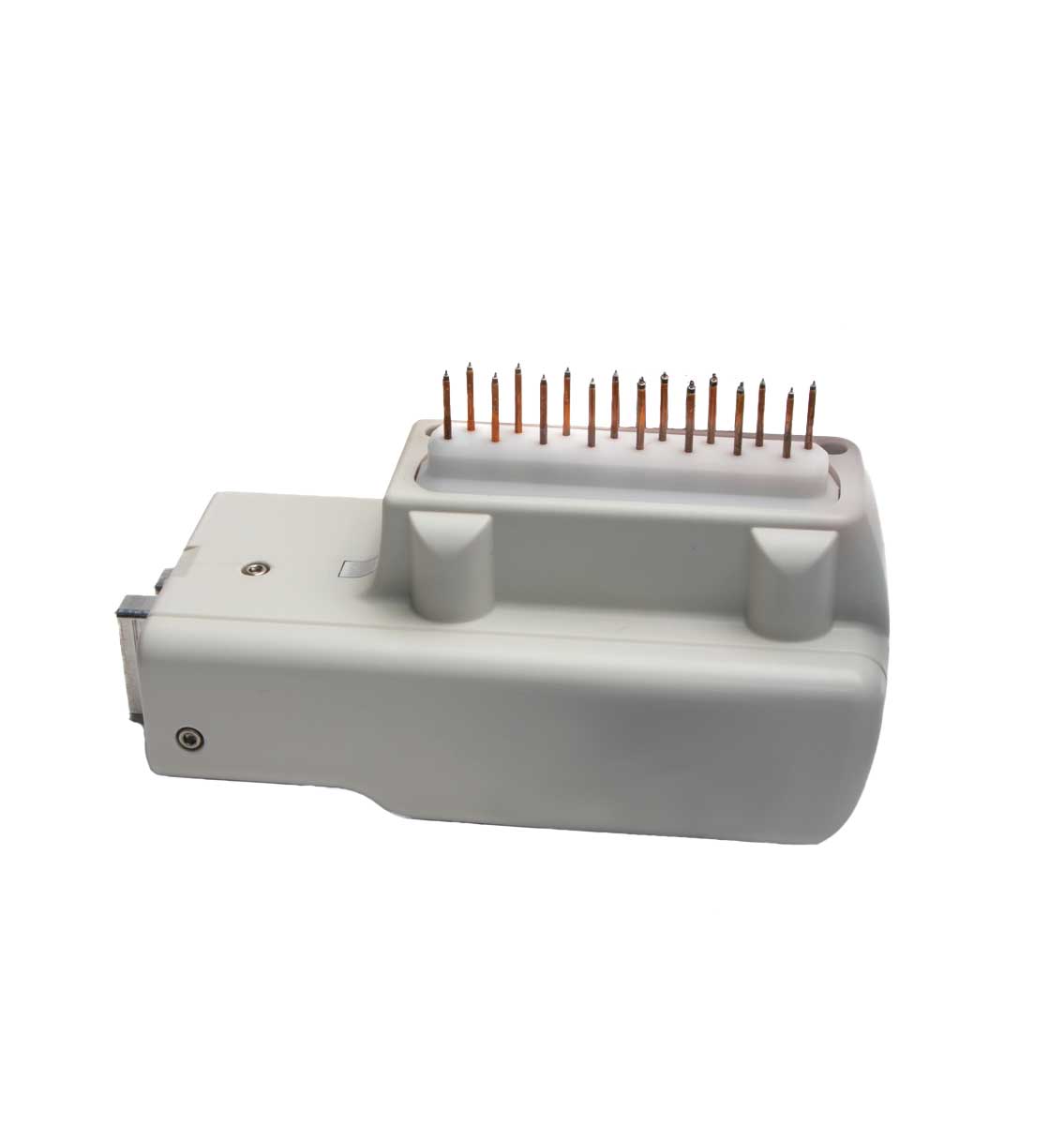

EVA-EL-03-01 EVOM™ Auto 96 HTS Electrode Array For TEER

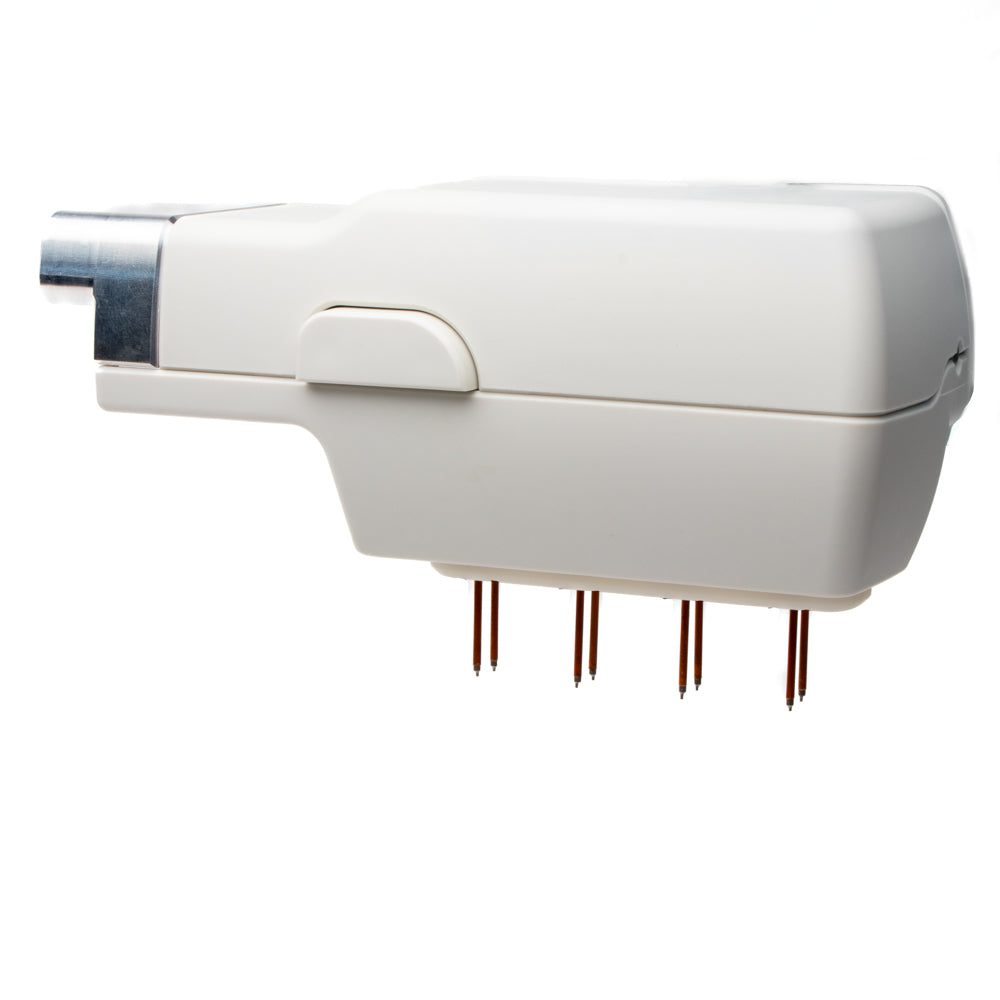

EVA-EL-03-02 EVOM™ Auto 24C HTS Electrode Array For TEER

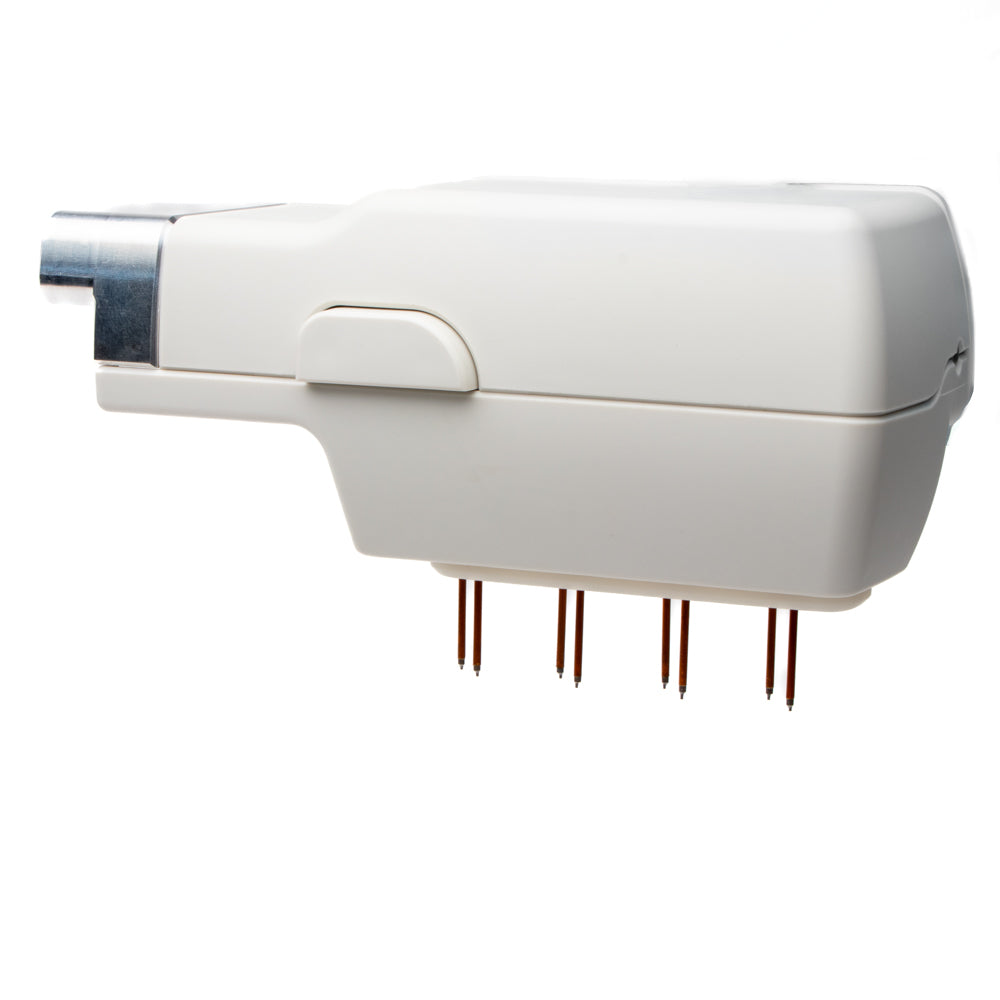

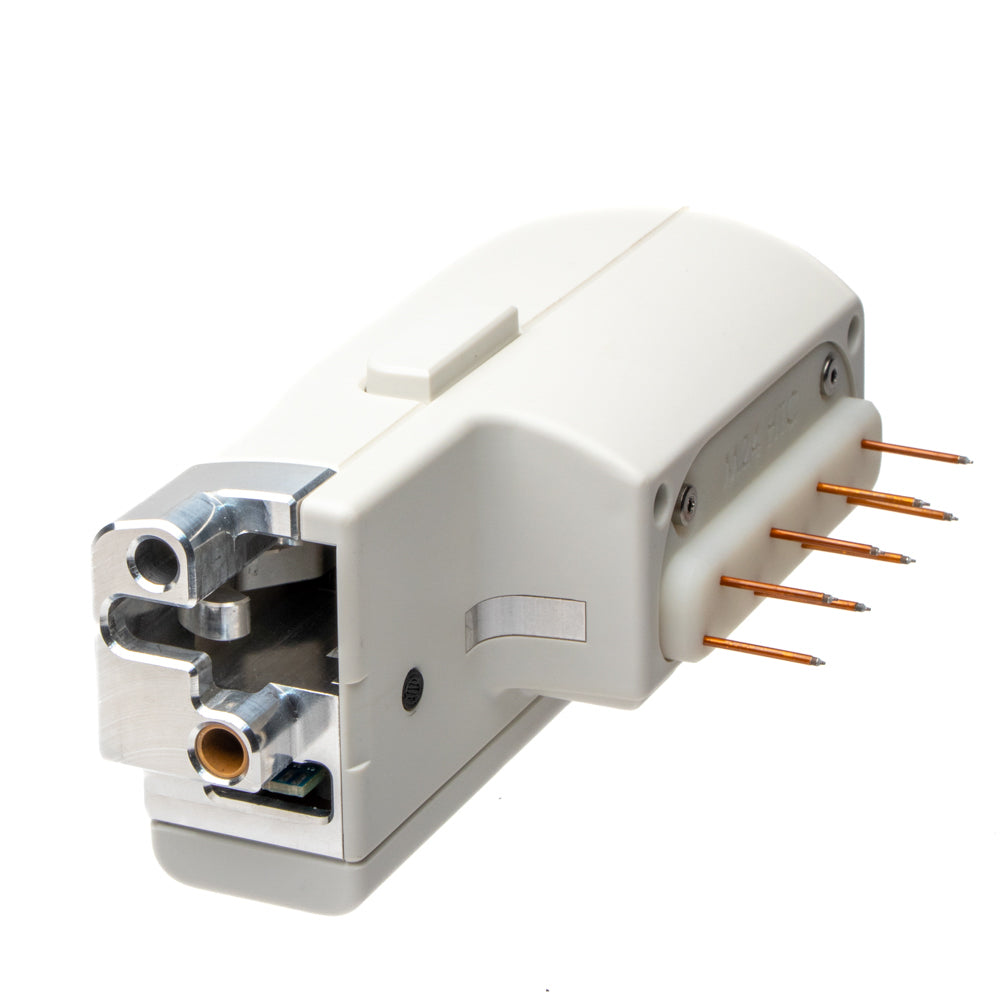

EVA-EL-03-03 EVOM™ Auto 24M HTS Electrode Array For TEER

EVOM™ Auto For Reliable, Repeatable Measurement

  • Most reliable and convenient method of evaluating and monitoring the structural integrity of epithelial tissue culture in vitro
  • High-throughput 24 and 96-well plate system for labs with high volume
  • Unparalleled measurement accuracy with continuous data recording capability
  • Measure cellular activity label-free and real-time
  • 96 well plate electrode array is compatible with a wide variety of 96-well HTS plates: Corning, Millipore, and MatTek
  • 24C electrode array for Corning 24 HTS plates and 24M electrode array for 24 well Millipore 24 HTS plate
  • Easy switch and measurement in different plate types (24 or 96) by swapping electrode array and plate adapters using the same system
  • With web-based software, no operating system or security upgrades are required

Benefits

System Includes

System Part Numbers (include an electrode array) Description
EVA-MT-03-01 EVOM™ Auto V3 For TEER Measurement in 96 HTS Plate
EVA-MT-03-02 EVOM™ Auto V3 For TEER Measurement in 24C HTS Plate
EVA-MT-03-03 EVOM™ Auto V3 For TEER Measurement in 24M HTS Plate

With additional electrode arrays, the same system can be used for other plate types. Click here for EVOM™ Auto system webpage.

Electrode Array Part number includes all the required matching accessories

Electrode Array Part Numbers Description Depth Adjustment Fixture Included Plate Adapter Key Included
EVA-EL-03-01 EVOM™ Auto 96 HTS Electrode Array For TEER
  • (1) C96 (for Corning 96)
  • (1)  M96 (for Millipore 96)
  • (1) MT 96 (for MatTek 96)
  • (2) C96/ MT96 Adapter for Corning and Mattek 96 HTS Plates
  • (2) M96 Adapter for Millipore 96 HTS Plates
EVA-EL-03-02 EVOM™ Auto 24C HTS Electrode Array For TEER
  • (1) C24 for Corning 24
  • (2) C24/ M24 Adapter for Corning 24 and Millipore 24 HTS Plates

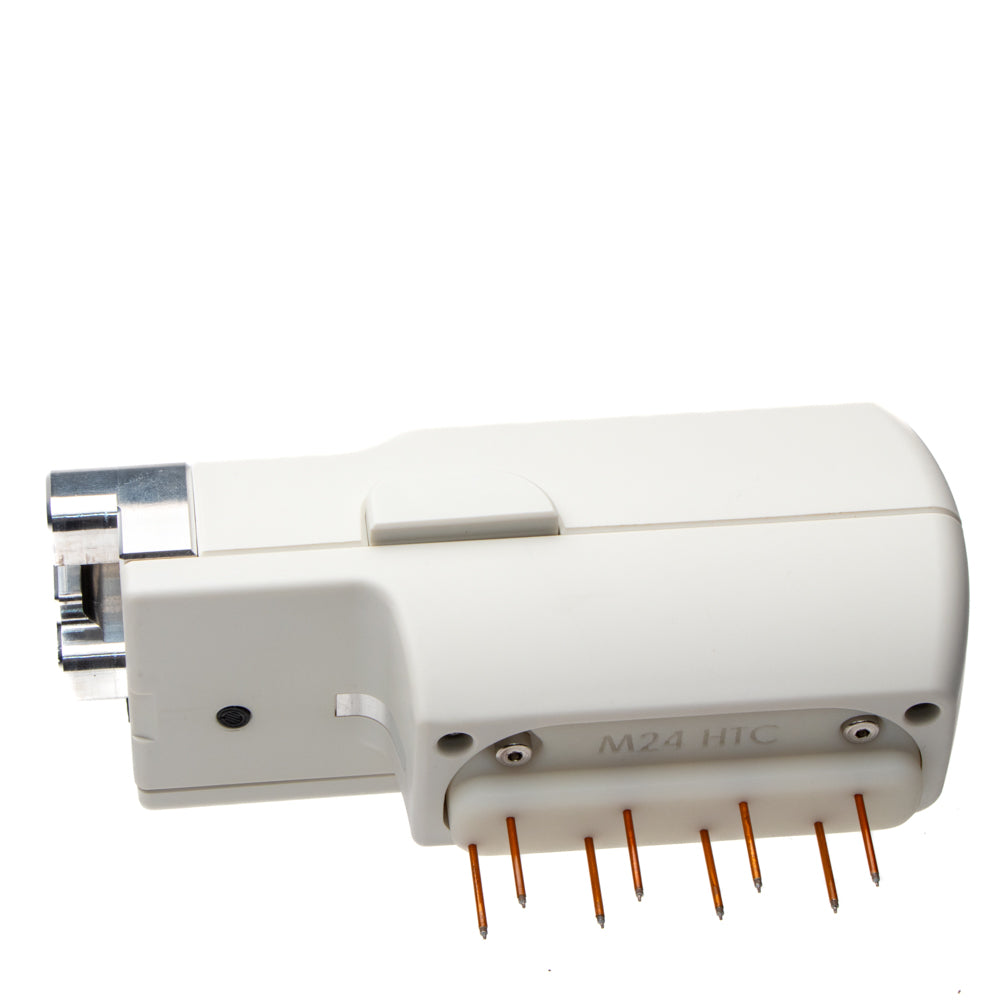

EVA-EL-03-03 EVOM™ Auto 24M HTS Electrode Array For TEER
  • (1) M24 for Millipore 24
  • (2) C24/ M24 Adapter for Corning 24 and Millipore 24 HTS Plates

*24C = Corning 24

*24M = Millipore 24

Note

  • Two identical plate adapter keys and one depth adjustment fixture are included per matching plate type. One plate adapter is needed and a 2nd one is provided as a spare.
  • If two different plate types are listed for the plate adapter key, it means both plate types can be used with the same plate adapter key. Example: C24/M24 plate adapter key is used for Corning 24 and Millipore 24 well HTS plates.

EVOM™ Auto Electrode Array Premium Warranty Options

Order code Description
EVA-EL-03-01-EX1 EVOM™ Auto 96 HTS Electrode Array For TEER-Premium Warranty 1 Year
EVA-EL-03-02-EX1 EVOM™ Auto 24C HTS Electrode Array For TEER-Premium Warranty 1 Year
EVA-EL-03-03-EX1 EVOM™ Auto 24M HTS Electrode Array For TEER-Premium Warranty 1 Year

Note

  • Premium warranties for the electrodes can only be purchased at the time of purchase of new electrodes.

  • Premium warranties cover any accidental damages.

  • Premium warranties exclude cosmetic damages that do not impact performance of the electrode.
