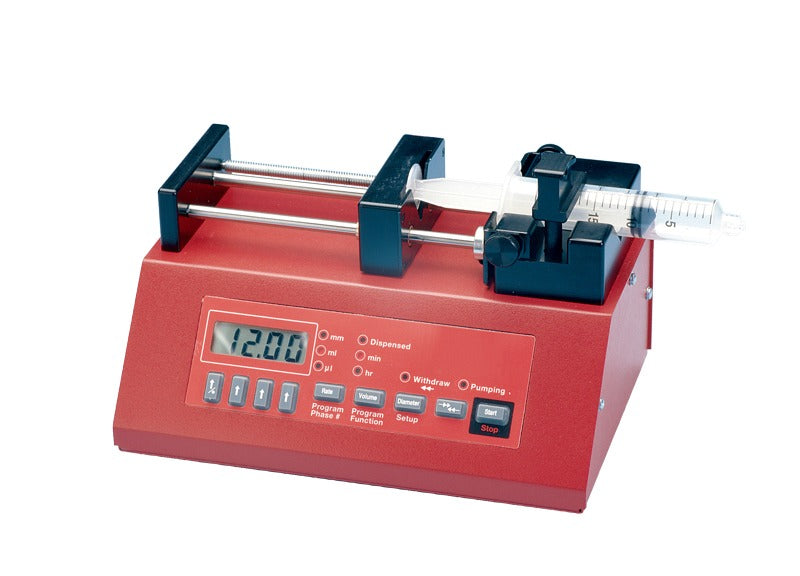

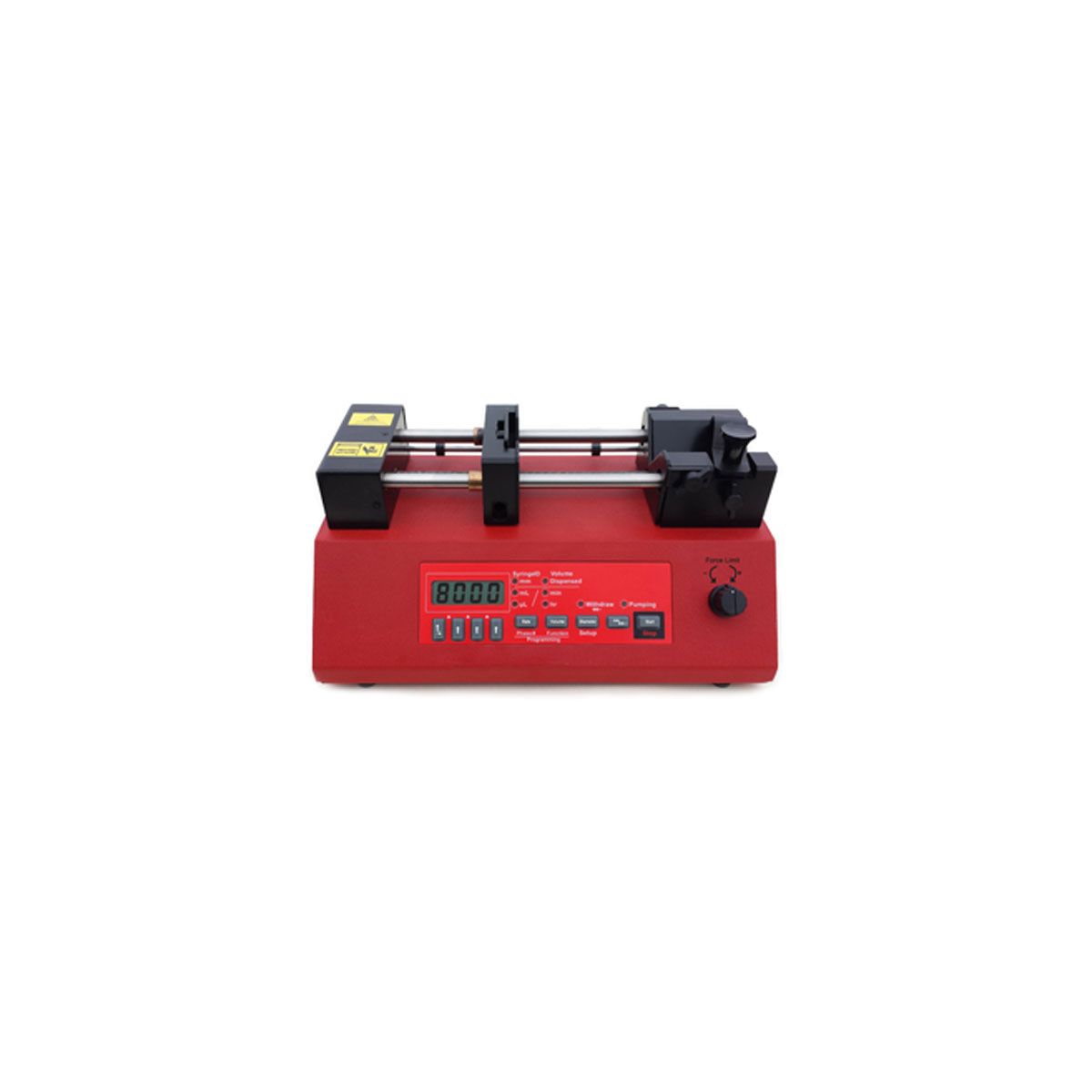

Aladdin High Pressure Single-Syringe Pump

  • programmable_syr_508e712908afc_2
  • al-1000hp2_3
$950
$950

AL-1000HP

From $950 - $2,555
From $950 - $2,555
System

Prices valid in USA, Canada, and PR only.

WPI's Aladdin High Pressure Single Syringe Pump is often used in research where precise, controlled delivery of fluids at elevated pressures is required. High-pressure syringe pumps can be used in chemical synthesis processes requiring precise control over the addition of reagents. This is especially important in reactions that occur under high pressures, such as certain types of catalytic reactions or polymerization processes.

These high pressure Aladdin pumps hold a single syringe up to 140 mL (a 200mL syringe partly filled). They can infuse from 1.733 µL/hr with a 1mL syringe up to 340.6 mL/min with a 140 mL syringe. With all the advanced function and programming features of the Aladdin series of syringe pumps, you can choose between 100 lb. (AL-1000HP) and 200 lb.(AL-10000HP2) force.

Note : Syringe(s) not included

ACCESSORIES

Details

Features

The best value on high pressure syringe pumps in the market!

  • High Pressure (up to 100lb linear force)
  • Automatic dispensing of small volumes
  • Very precise, reproducible flow rate control
  • Displays total volume dispensed in mL or µL units
  • Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)
  • Infusion rate can be changed while pumping
  • Program pump via keypad or from a computer
  • Highly controllable – program sequences without a computer (holds up to 41 programming phases)
  • Network, control, and monitor up to 100 pumps with one computer
  • Hands-free operation with optional foot switch ADPT2
  • Holds 1 Syringe up to 140 mL. (200 mL partially filled)
  • Infusion rates from 1.733 µL/hr (1 mL syringe) to 340.6 mL/min (140 mL syringe)
  • Easy-to-use keypad interface
  • Space Saving Chassis: Foot print size of only 11 1/4" x 6 1/8"
  • Won't take up unnecessary space on your laboratory or production bench
  • Includes all the advanced functions and programming features of the Aladdin series
  • Force options :  100 lbs (AL-1000HP) or 200 lbs (AL-1000HP2)

Options

  • AL-1000HP  (AL-1010 in Europe) is a programmable, high pressure, single syringe pump style for infuse and withdraw.
  • AL-1000HP2 is a single syringe pump with no stall detections that holds a syringe as large as 140mL (200mL partially filled to 160mL)

High-pressure syringe pumps can also be utilized in biological and biochemical research for controlled delivery of solutions, such as high-pressure cell lysis, protein folding studies, or studies involving high-pressure biophysical techniques. Researchers studying catalysis, especially those focusing on heterogeneous catalysis, may use high-pressure syringe pumps to deliver reactants at controlled rates and pressures. This is important for understanding and optimizing catalytic processes. In microfluidics research, where small volumes of fluids are manipulated, high-pressure syringe pumps can be used to precisely control the flow of fluids through microchannels and devices.

Channels 1
Type Infusion / Withdrawal
Flow Range 0.001 µL/hr (0.5 µL syringe) to 208.3 mL/min (140 mL syringe)
Dispensing Accuracy ±1%
Syringe Sizes Accepted 0.5 µL to 60 mL or 140 mL partially filled
Linear Force 100 lb at low speed; 18 lb at maximum speed



To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

The Aladdin AL-1010 is a high pressure programmable single channel infusion / withdrawal syringe pump. It has a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1010 can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer. (For Linear/Gradient programs use AL-1010X)

Example Flow Rates

Syringe Size Maximum Rate Minimum Rate
0.5 µL 91.83 µL/hr 0.001 µL/hr
1 mL 190.4 mL/hr 1.453 µL/hr
3 mL 806.1 mL/hr 6.151 µL/hr
5 mL 1341 mL/hr 10.24 µL/hr
10 mL 2188 mL/hr 16.7 µL/hr
20 mL 3479 mL/hr 26.55 µL/hr
30 mL 4539 mL/hr 34.64 µL/hr
60 mL 7635 mL/hr 58.3 µL/hr
140 mL 208.3 mL/min 95.37 µL/hr



Dual pumping action

Need a pump for two syringes? Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two Aladdins (AL-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

Resources

AL-1000 Manual
AL-2000 Manual
Aladdin Pumps Upgrading a Firmware Chip

Specifications

AL-1000HP Mechanical & Electrical Specifications

SYRINGE SIZES 1-60mL (140 mL partially filled)
NUMBER OF SYRINGES 1
MOTOR TYPE Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS 200
STEPPING (max. min.) 0.425µm (1/8 stepping) to 1.701µm (1/2 stepping)
MOTOR TO DRIVE SCREW RATIO 15/28
SPEED (max./min.) 18.4 cm/min / 0.0084 cm/hr
PUMPING RATES 6120 mL/hr with 60 mL syringe, to 1.459 µL/hr with 1 mL syringe
MAXIMUM FORCE 100 lb. at min. speed, 18 lb. at max. speed
NUMBER OF PROGRAM PHASES 41
RS-232 PUMP NETWORK 100 pumps maximum
POWER supply Wall adapter 12 V DC @ 850 mA
DIMENSIONS 22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT 1.6 kg (3.6 lb.)



AL-1000HP2 Mechanical & Electrical  Specifications

DRIVE BLOCK TYPE Solid (Must use Purge Function to move pusher block)
MOTOR TYPE Step motor
MOTOR STEP/REVOLUTION 200
MOTOR TO DRIVE SCREW RATIO 14/22
DRIVE SCREW PITCH 20 revolutions/"
POWER SUPPLY TYPE External, country and power specific
POWER SUPPLY OUTPUT RATING 24V DC @ 1200mA
POWER CONNECTOR 2.1 mm, center positive, DC
VOLTAGE AT POWER CONNECTOR 24V DC at full load
AMPERAGE 1200mA at full load
DIMENSIONS 11 1/4" x 6 1/8" x  6 3/8" (LxWxH)
WEIGHT 7.8125 lbs (3.55lkg)

AL-1000HP2 Operational Specifications

MAX FORCE 200 LBS
MICRO-STEPPING 1/8 to 1/1 depending on motor speed
ADVANCE PER STEP 0.50511364 um to 4.040909 um depending on motor speed
MAX SPEED 30.033 cm/min
MIN SPEED 0.00998882 cm/hr
MAX PUMPING RATE 340.6 mL/min with a 140mL syringe
MIN PUMPING RATE 1.733 uL/hr with B-D 1 mL syringe
SYRINGE INSIDE DIAMETER RANGE 0.100 to 50.00 mm
NUMBER OF PROGRAM PHASES 41
RS-232 PUMP NETWORK 100 pumps MAX
RS-232 SELECTABLE BAUD RATES 300, 1200, 2400, 9600, 19200
