Aladdin Microfluidic Syringe Pump

Features

• Very precise, with reproducible flow of ±0.2%
• Smooth pumping at ultra low flow rates - advance per step: 4.252232 Nanometers
• Advanced smooth linerar/gradient pumping functions
• Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)
• Infusion rate can be changed while pumping
• Includes the X Upgrade Smooth Linear/Gradient increasing and decreasing pumping feature
• Holds 1 syringe up to 60 ml for the AL-1000MF (AL1002X in Europe) or 2 syringes for the AL-4000MF (AL-4002X in Europe)
• Program pump via keypad or from a computer
• Highly controllable – program sequences without a computer (holds up to 41 programming phases)
• Network, control, and monitor up to 100 pumps with one computer
• Hands-free operation with optional foot switch ADPT2
• Motor stall detection

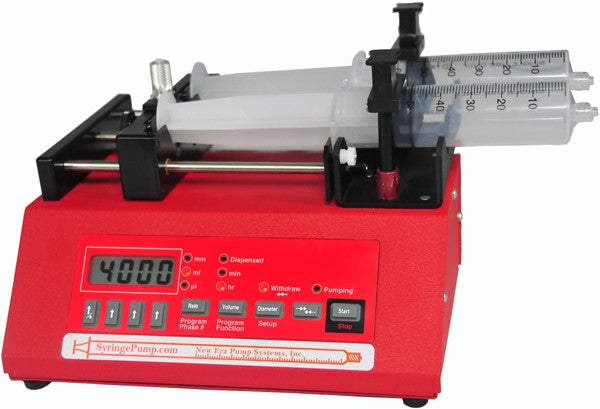

• Available in Double Syringe (AL-4002X) version
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately

Channels	1 or 2
Type	Infusion / Withdrawal
Flow Range	0.008 nL/hr (0.5 µL syringe) to 2545 µL/min (140 mL syringe)
Dispensing Accuracy	±0.5%
Syringe Sizes Accepted	0.5 µL to 60 mL or 140 mL partially filled
Linear Force	150 lb at low speed; 18 lb at maximum speed



To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

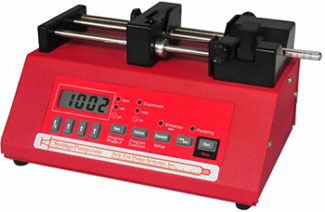

The Aladdin AL-1002X is a programmable single channel infusion / withdrawal syringe pump for applications demanding smooth, highly reproducable nano and pico liter flow rates. It's metal casing provides stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1002X can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer. It includes Linear/Gradient programs enabling the setting of the start pumping rate, end pumping rate and the time.

Example Flow Rates

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	18.70 nL/min	0.008 nL/hr
1 µL	37.57 nL/min	0.015 nL/hr
2 µL	74.81 nL/min	0.029 nL/hr
5 µL	187.3 nL/minr	0.071 nL/hr
10 mL	445.6 µL/min	167 nL/hr
20 mL	708.7 µL/min	265.5 nL/hr
30 mL	924.5 µL/min	346.4 nL/hr
60 mL	1503 µL/min	563.2 nL/hr

Example NanoFil™ Syringe Flow Rates

Syringe Size	Inside Diameter (mm)	Maximum Rate (µL/hr)	Minimum Rate (nL/hr)
10 µL	0.465	22.05	155.6
100 µL	1.457	209.2	247.4

Check out WPI’s NanoFil Syringe line offering virtually zero dead-volume fluid delivery—the most reliable glass microliter syringes on the market!

Dual Pumping Action

Need a pump for two syringes? Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two Aladdins (AL-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

Aladdin Pumps Upgrading a Firmware Chip

SYRINGE SIZES	up to 60 mL (or 140 mL partially filled)
NUMBER OF SYRINGES	1
MOTOR TYPE	Step Motor
STEPS PER REVOLUTIONS	400
STEPPING (max. min.)	4.25223214 nm to 34.0178571 nm depending on motor speed
MOTOR TO DRIVE SCREW RATIO	15/28
SPEED(max./min.)	8.40896E-05 cm/hr / 0.224469144 cm/min
PUMPING RATES	1699 mL/hr with 60mL syringe, to 0.73µL/hr with 1mL syringe
MAXIMUM FORCE	150 lb at min. speed, 18 lb at max. speed
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps maximum
POWER SUPPLY	Wall adapter 12V DC @ 1000mA
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	1.7 kg (3.8 lb)
