Sterilization Baskets, Side Perforated, Flat Base

Features

• Manufactured with stainless steel 304
• Electropolished
• Burr free to protect wraps and prevent injury
• Smooth rounded corners
• Double frame lids available

Benefits

• Side walls are perforated to protect sharp instrument edges and tips from damage. The hole size is 2.0 mm.
• Meets all the requirements of automatic washing and sterilization for all types of instruments
• Separate lids are available with single frame, double frame and detention shapes
• Available with drop in and folding handles
• Top and bottom frame diameter: 5.0 mm
• Flat base basket available in welded mesh with opening square 6.0 mm, wire diameter 1.2 mm.
• Stacking frame can also be available on request.

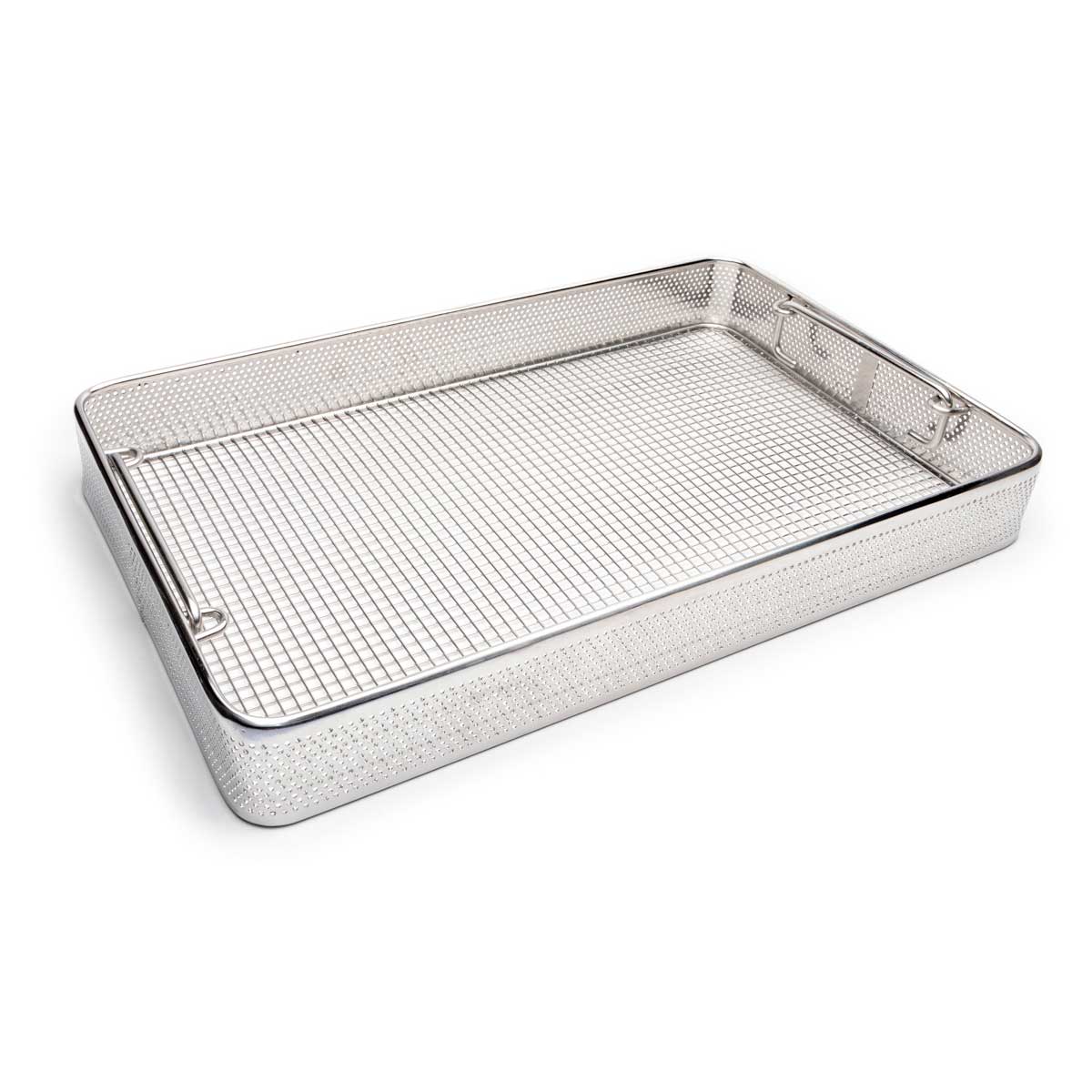

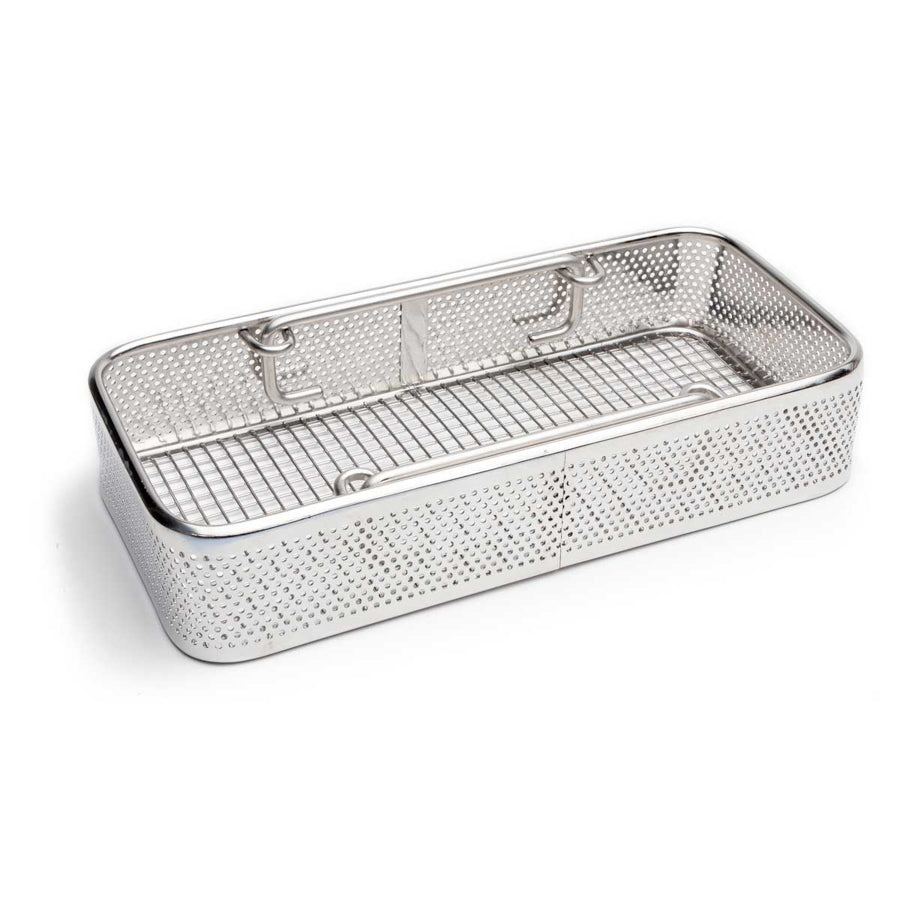

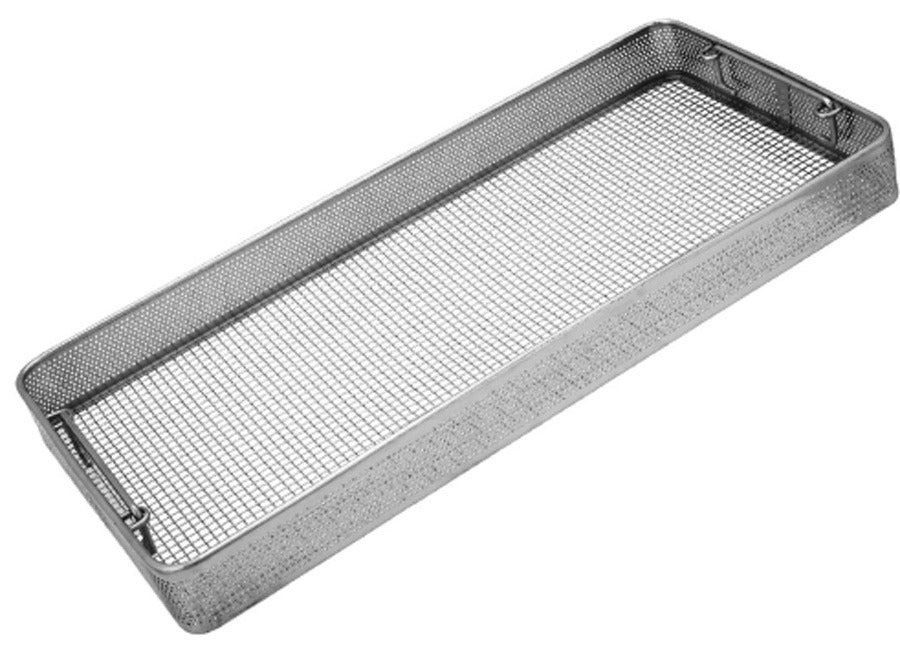

The images show the flat base from the inside (upper left), the inner mounted drop handles (upper right), the flat base from the outside (lower left) and the smooth rounded corners (lower right).

Applications

• Instrument cleaning and sterilization
• Instrument storage
• The flat base is designed for quickly drying of the instruments after washing & sterilizing

Size Options for Sterilization Baskets

Order code	Basket Size
WP-4545	120 x 250 x 50 mm
WP-4546	120 x 250 x 60 mm
WP-4547	120 x 250 x 70 mm
WP-4548	120 x 250 x 100 mm
WP-4549	240 x 250 x 50 mm
WP-4550	240 x 250 x 60 mm
WP-4551	240 x 250 x 70 mm
WP-4552	240 x 250 x 100 mm
WP-4553	405 x 250 x 50 mm
WP-4554	405 x 250 x 60 mm
WP-4555	405 x 250 x 70 mm
WP-4556	405 x 250 x 100 mm
WP-4557	480 x 250 x 50 mm
WP-4558	480 x 250 x 60 mm
WP-4559	480 x 250 x 70 mm
WP-4560	480 x 250 x 100 mm
WP-4565	480 x 360 x 50 mm
WP-4566	480 x 360 x 60 mm
WP-4567	480 x 360 x 70 mm
WP-4568	480 x 360 x 100 mm
WP-4569	480 x 480 x 50 mm
WP-4570	480 x 480 x 60 mm
WP-4571	480 x 480 x 70 mm
WP-4572	480 x 480 x 100 mm
WP-4561	540 x 250 x 50 mm
WP-4562	540 x 250 x 60 mm
WP-4563	540 x 250 x 70 mm
WP-4564	540 x 250 x 100 mm
