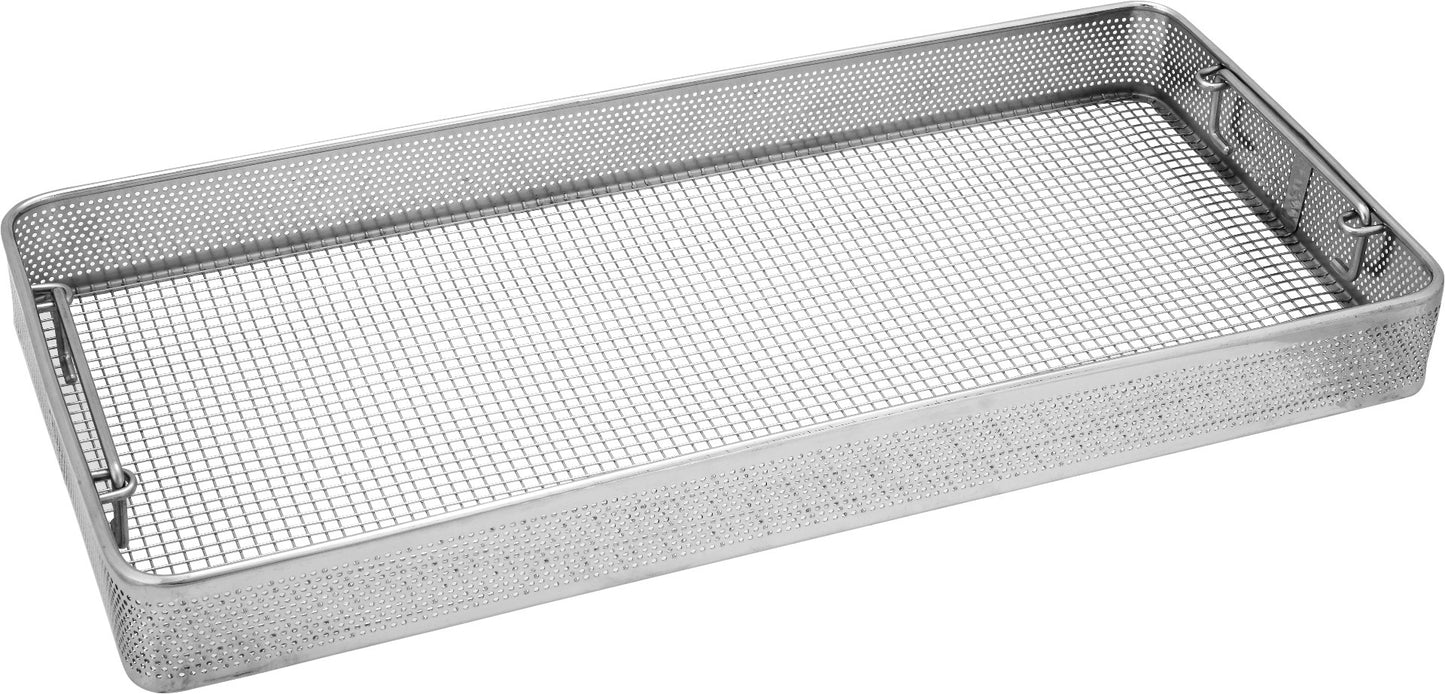

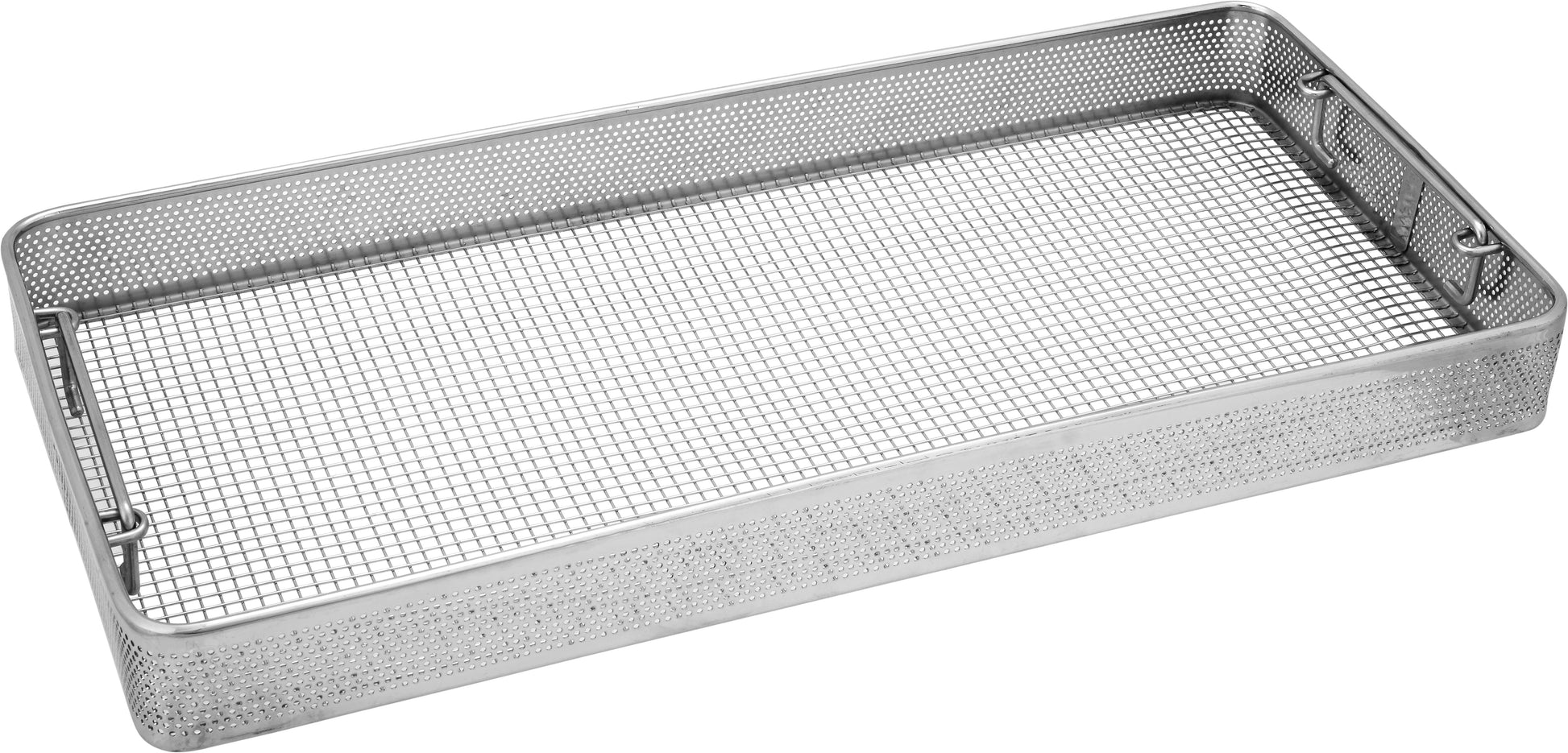

Sterilization Baskets, Side Perforated, Woven Wire Base

Features

• Manufactured with stainless steel 304, non-magnetic
• Electropolished
• Burr free to protect wraps and prevent injury
• Smooth rounded corners
• Single frame, double frame and detention frame lids available

Benefits

• Side walls are perforated to protect sharp instrument edges and tips from damage. The hole size is 2.0 mm.
• Meets all the requirements of automatic washing and sterilization for all types of instruments
• Separate lids are available with single frame, double frame and detention shapes
• Available with drop in and folding handles
• Top and bottom frame diameter: 5.0 mm
• Base available in wire mesh with opening squares of 4.2 mm and wire diameter of 1.0 mm

The images show the smooth round corners (left) and the inner mounted drop in handles (right)

Applications

• Instrument cleaning and sterilization
• Instrument storage

Size Options for Sterilization Baskets

Order code	Basket Size
WP-4610	240 x 120 x 30 mm
WP-4611	240 x 120 x 50 mm
WP-4612	240 x 120 x 60 mm
WP-4608	240 x 120 x 70 mm
WP-4609	240 x 120 x 100 mm
WP-4607	240 x 250 x 30 mm
WP-4613	240 x 250 x 50 mm
WP-4615	240 x 250 x 60 mm
WP-4616	240 x 250 x 70 mm
WP-4617	240 x 250 x 100 mm
WP-4622	300 x 300 x 50 mm
WP-4623	300 x 300 x 60 mm
WP-4656	405 x 250 x 30 mm
WP-4657	405 x 250 x 50 mm
WP-4658	405 x 250 x 60 mm
WP-4659	405 x 250 x 70 mm
WP-4660	405 x 250 x 100 mm
WP-4624	470 x 400 x 60 mm
WP-4606	480 x 250 x 30 mm
WP-4618	480 x 250 x 50 mm
WP-4619	480 x 250 x 60 mm
WP-4620	480 x 250 x 70 mm
WP-4621	480 x 250 x 100 mm
WP-4625	480 x 480 x 50 mm
WP-4626	480 x 480 x 60 mm
WP-4628	500 x 300 x 50 mm
WP-4661	540 x 250 x 30 mm
WP-4662	540 x 250 x 50 mm
WP-4663	540 x 250 x 60 mm
WP-4664	540 x 250 x 70 mm
WP-4665	540 x 250 x 100 mm
WP-4632	550 x 430 x 50 mm
WP-4634	600 x 300 x 60 mm
