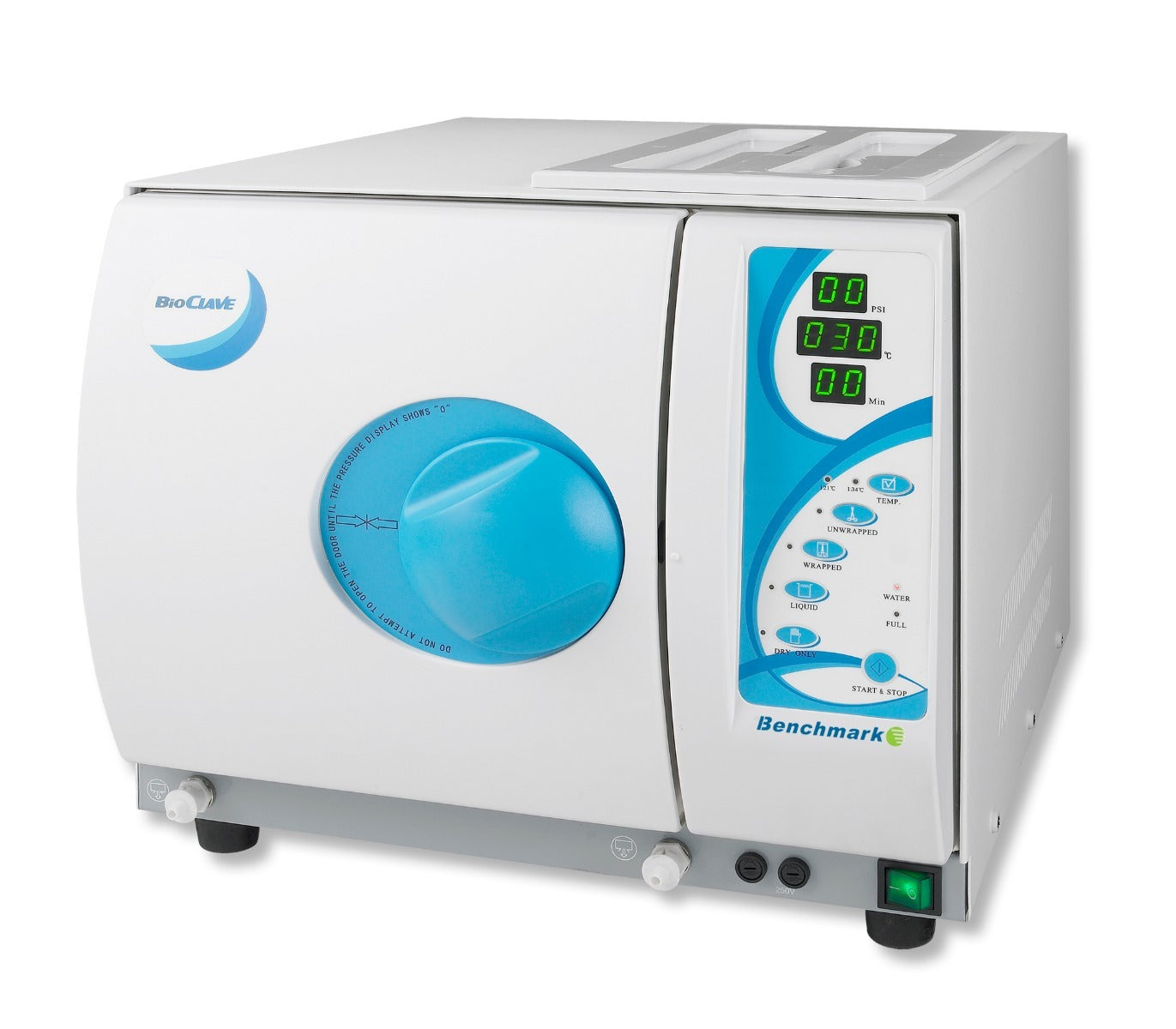

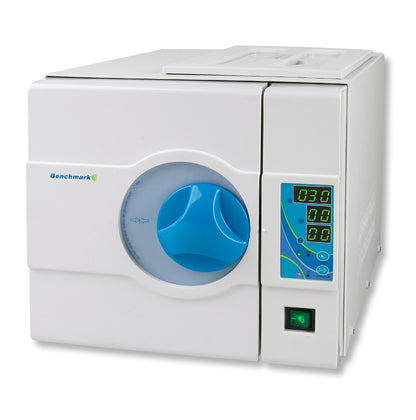

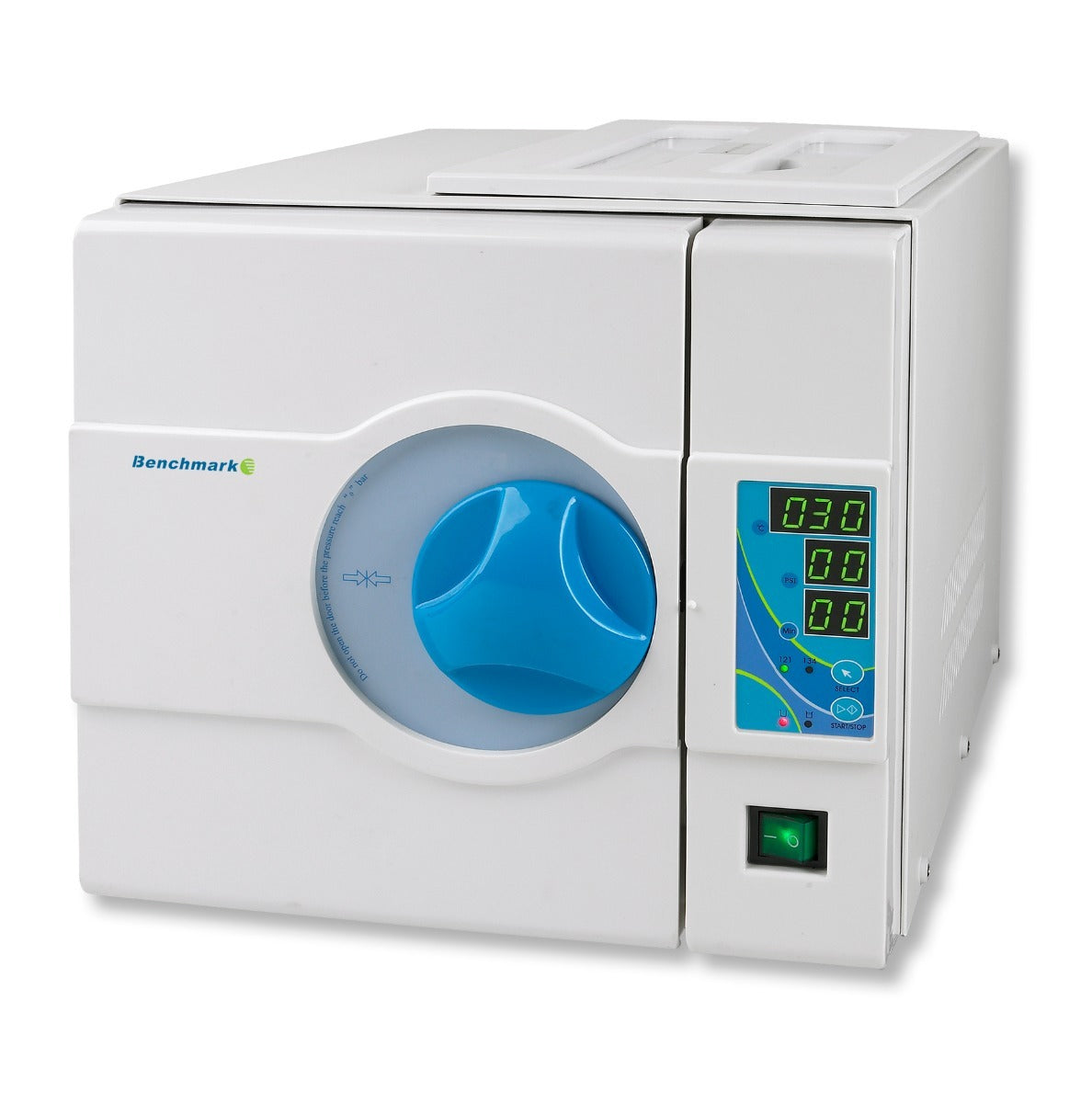

Benchtop Autoclave, 16 Liter, Tray dimensions 16.5 x 27 cm (6.5x10.75")

$5,041
$5,041

ST5188

From $5,041 - $12,843
From $5,041 - $12,843
Options

Prices valid in USA, Canada, and PR only.

Benchtop Autoclave is ideal for small scale sterilization of microdissection and veterinary instruments.

The autoclave comes pre-programmed for basic sterilization. Choose either the 120ºC or 134ºC temperature mode, and the cycle time is fixed. This is the perfect autoclave for small spaces.

Available in 8L, 18L and 28L chamber volumes, these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI.

Simply press the Start button, and the entire sequence runs–fill, sterilize, exhaust and dry.

Details

Research autoclave

Options

Order code  Descriptions Plug type
ST5188  Mini Autoclave, 8L
ST5190 Autoclave, 18L
ST5192 Autoclave, 28L 110V
ST5192-EU Autoclave, 28L 208-240V

Features

  • Rapid, complete sterilization
  • All models small enough for benchtop use
  • Available in 8,18,28 L Tank

Benefits

  • Fully automatic–just press START
  • Benchtop model

Applications

  • Small scale sterilization of microdissection and veterinary instruments

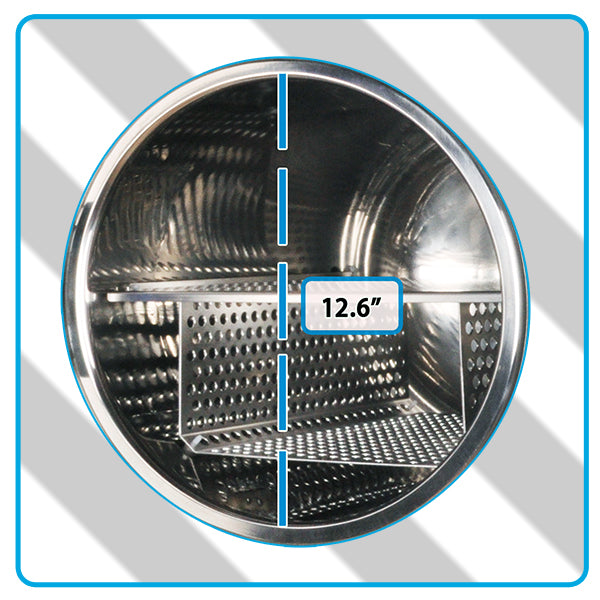

The stainless steel sterilization chamber accommodates a variety of liquids, media, instruments, glassware and plasticware. The Bioclave 28L features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is our only model capable of sterilizing 1- and 2-liters flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.

Simply press the Start button, and the entire sequence runs–fill, sterilize, exhaust and dry.

Resources

Surgical Instruments - Care and Handling

Specifications

Type Description
Chamber Volume 8L/16L/28L
Max. Pressure 8L/16L/28L 29 PSI (2 Bar) / 29PSI (2 bar) / 34.8 PSI (2.4 Bar)
Chamber Dims. 8L 6.7 x 12.5in. (17 x 31cm)
Chamber Dims. 16L 12.6 x 16.4in (24.8 x 35cm)
Chamber Dims. 28L 23 x 35in. (32 x 41.7cm)
Exterior Dims. 8L 20 x 13.5 x 12.9in (22 x 17.5 x 15.7cm)
Exterior Dims. 16L 25 x 25 x 22in (51 x 34 x 33cm)
Exterior Dims. 28L 56 x 44.5 x 40in (63.5 x 63.5 x 55.9cm)
Weight 8L/16L/28L 74 lbs (33 kg) / 89 lbs. (40 kg) / 209 lbs (95 kg)
Electrical 8L/16L 115 or 230V 50-60Hz
Electrical 28L 115 or 230V 50-60Hz, (230V ONLY accepts 208 to 240V)
Power 8L/ 16L/28L 950W / 1600W / 2300W
Warranty 1 year
Benchtop Autoclave, 16 Liter, Tray dimensions 16.5 x 27 cm (6.5x10.75")

$5,041.00
