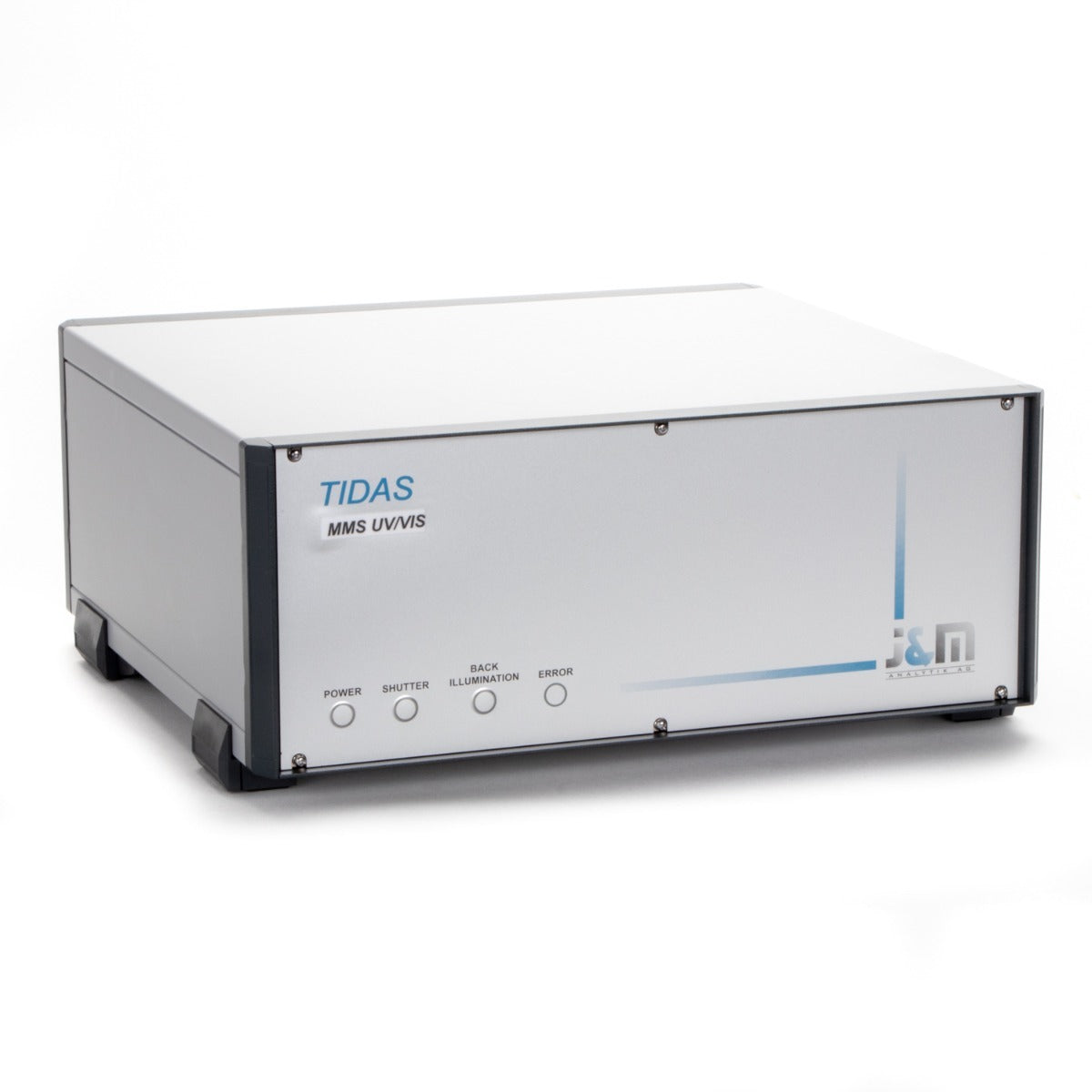

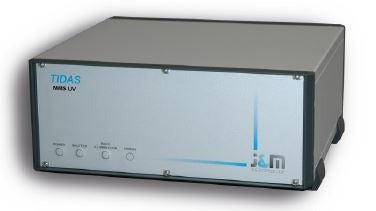

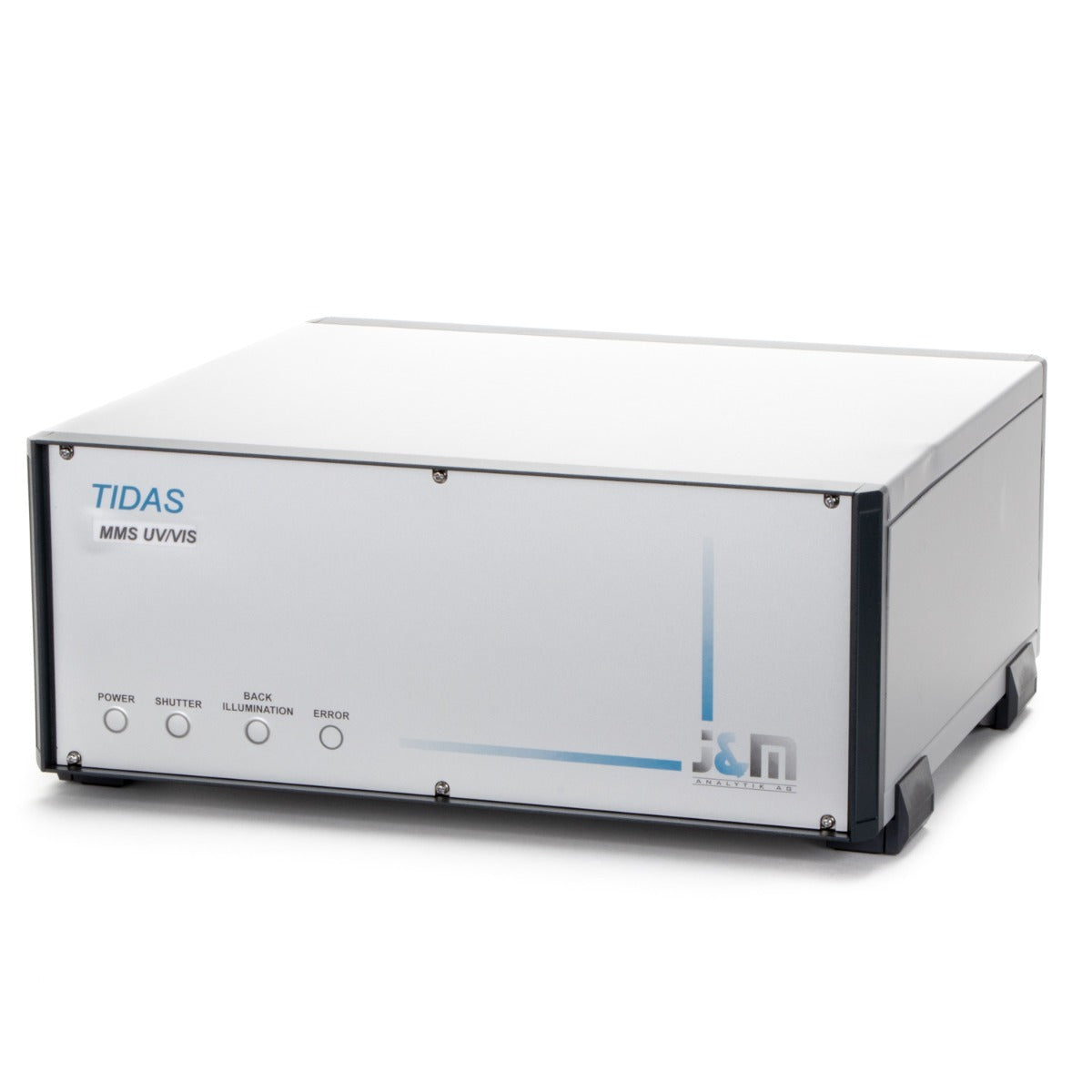

Photo Diode Array (PDA) Spectrophotometer System

$17,000
$17,000

505069

From $17,000 - $24,000
From $17,000 - $24,000
UV (nm)

Prices valid in USA, Canada, and PR only.

Photo Diode Array (PDA) Spectrophotometer System- Part of the Tidas S300 series of spectrophotometers. Choose from various wavelength detection options.

Details

Features

  • Tidas S300 series spectrophotometers
  • Choose wavelength detection range options:
    • UV (190-390nm) with integrated D2 Lamp (505066)
    • UV/VIS (190-720nm) with integrated deuterium and halogen lamps (505067)
    • VIS/NIR (300-1100nm) with integrated Halogen Lamp (505068)
    • Z-Axis Vertical Extension for Quad Manipulator (505133)

Options

Order code Description
505066 UV (190-390nm) with integrated D2 Lamp
505067 UV/VIS (190-720nm) with integrated deuterium and halogen lamps
505068 VIS/NIR (300-1100nm) with integrated Halogen Lamp
505069 VIS/NIR (300-1100nm) without Halogen Lamp





Specifications



Type  505066 505067 505068 505069
Description UV (190-390nm) with integrated D2 Lamp UV/VIS (190-720nm) with integrated deuterium and halogen lamps VIS/NIR (300-1100nm) with integrated Halogen Lamp VIS/NIR (300-1100nm) without Halogen Lamp
Wavelength range 190 - 390 nm 190 - 720 nm 300 - 1100 nm 300 - 1100 nm
Spectral resolution < 3 nm < 7 nm < 10 nm < 10 nm
Wavelength accuracy ± 1 nm ± 1 nm < 3 nm < 3 nm
Photometric accuracy UV ± 10 mAU ± 10 mAU
Photometric accuracy VIS   ± 10 mAU
Wavelength reproducibility < 0,1 nm < 0,1 nm < 0,1 nm < 0,1 nm
Baseline drift @ 250 nm 5*10-4 AU/h according to ASTM E685   5*10-4 AU/h according to ASTM E685 5*10-4 AU/h according to ASTM E685
Signal-to-noise ratio < 3*10-5 AU according to ASTM E685   < 3*10-5 AU according to ASTM E685 < 3*10-5 AU according to ASTM E685
Number of diodes 256 256 256 256
Dimensions 345 x 145 x 315 mm (W x H x D) 345 x 145 x 315 mm (W x H x D) 345 x 145 x 315 mm (W x H x D) 345 x 145 x 315 mm (W x H x D)
Weight 8 kg 8 kg 8 kg 8 kg
Voltage 85 - 265 VAC / 47 - 63 Hz 85 - 265 VAC / 47 - 63 Hz 85 - 265 VAC / 47 - 63 Hz 85 - 265 VAC / 47 - 63 Hz

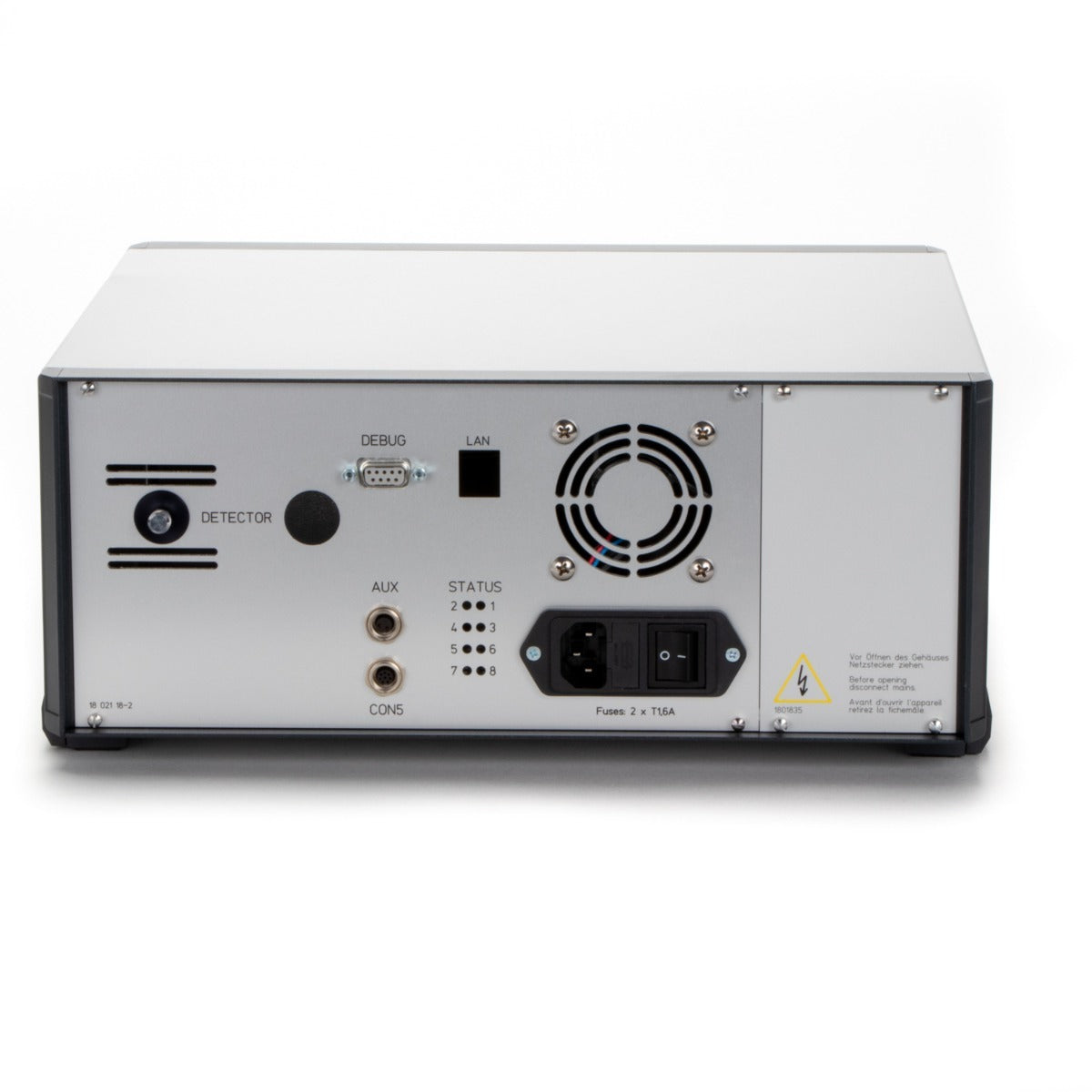

IN/OUT Standard: 2 x IN / 2 x OUT Standard: 2 x IN / 2 x OUT Standard: 2 x IN / 2 x OUT Standard: 2 x IN / 2 x OUT
Illumination 2 white LED, SMA 905 2 white LED, SMA 905 2 white LED, SMA 905 2 white LED, SMA 905
Optical connection SMA 905 SMA 905 SMA 905 SMA 905
A/D converter 16 Bit 16 Bit 16 Bit 16 Bit
