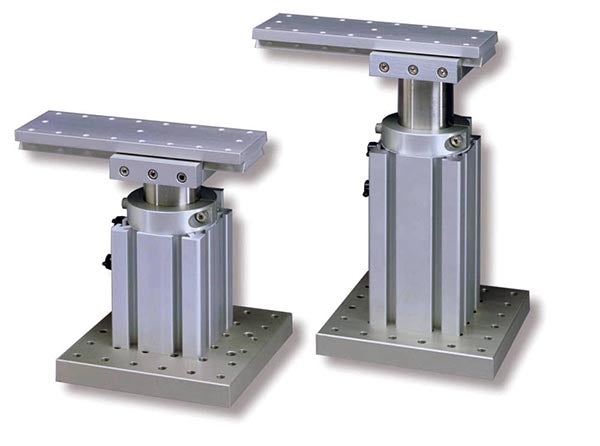

Gantry stand for Sutter motorized manipulators

Options

Order code	Description	Detail
505796	Short gantry stand for Sutter motorized manipulators, square base	Short Gantry stand 6.7-9.6in, square base
505990	Short gantry stand for Sutter motorized manipulators, narrow base	Short Gantry stand 6.7-9.6in, narrow base
505991	Standard gantry stand for Sutter motorized manipulators, narrow base	Standard Gantry stand 8.7-13.4in, narrow base
505992	Tall gantry stand for Sutter motorized manipulators, narrow base	Tall Gantry stand 10.7-15.4in, narrow base
505993	Short gantry stand for Sutter motorized manipulators, thin base	Short Gantry stand 6.7-9.6in, thin base
505994	Standard gantry stand for Sutter motorized manipulators, thin base	Standard Gantry stand 8.7-13.4in, thin base
505995	Tall gantry stand for Sutter motorized manipulators, thin base	Tall Gantry stand 10.7-15.4in, thin base
505996	Standard gantry stand for Sutter motorized manipulators, square base	Standard Gantry stand 8.7-13.4in, square base
505997	Tall gantry stand for Sutter motorized manipulators, square base	Tall Gantry stand 10.7-15.4in, square base

A quick lock mechanism allows easy unlocking and rotation of the post/cantilever assembly up to 320 degrees, then rotation back to the same positive stop position and locking in place (e.g. insertion and removal of microelectrodes from headstages). Remove the positive stop and you have a full 360 degree rotation. A Teflon washer contributes to the smooth rotation of the system.

The solid aluminum baseplate has through-holes on 1 inch (25mm) centers for mounting onto tables. The cantilever has eighteen 1 inch spaced 10-32 holes along the edges. The MT-75/LS manipulator mount provides additional flexibility of movement. In multiple manipulator setups, rotational movement for pipette replacement is often not possible. Using a long linear rail, the manipulator can be quickly and smoothly moved to a location where there is easy access to the pipette for replacement. After replacement, the manipulator can be slid back into a fixed stop that defines the working position.

Vertical positioning is achieved with an aluminum collar which securely locks onto the steel post to fix the height of the system. These systems are very stiff, deflecting approximately 2 µm per 25 mm rise with a 1.5 kg load at the end of the cantilever.



The MT-75 is available in various configurations:

Please see the full Gantry Selection Guide for assistance in selecting your configuration.

The linear slide system can also be added to existing MT-75 stands by ordering the MT-7004 linear slide cantilever alone.



FEATURES

• Adjustable vertical and horizontal axes

• Up to 360 degrees of rotation

• Suitable for upright and inverted microscopes

• Quick lock mechanism allows for easy positioning

• Solid construction provides stable mounting

• Optional linear slide provides smooth and easy movement for pipette replacement



Gantry Stand Selection Guide
Comparison of Dovetail Column Inserts



Order code	Description
Dimensions of Baseplate	6 in x 6 in x .75 in | 153 mm x153 mm x 19 mm
Dimensions of Cantilever	2.5 in x 8 in x .75 in | 64 mm x 204 mm x 19 mm
Total Stand Height	MT-75 Adjustable 8.71 in to 12.25 in | 221 mm to 311 mm MT-75S Adjustable 6.71 in to 7.25 in | 170 mm to 184 mm
Weight	MT-75 11 lb 7 oz | 5.2 kg MT-75S 9 lb 14 oz | 4.5 kg MT-75T 13 lb | 5.9 kg
