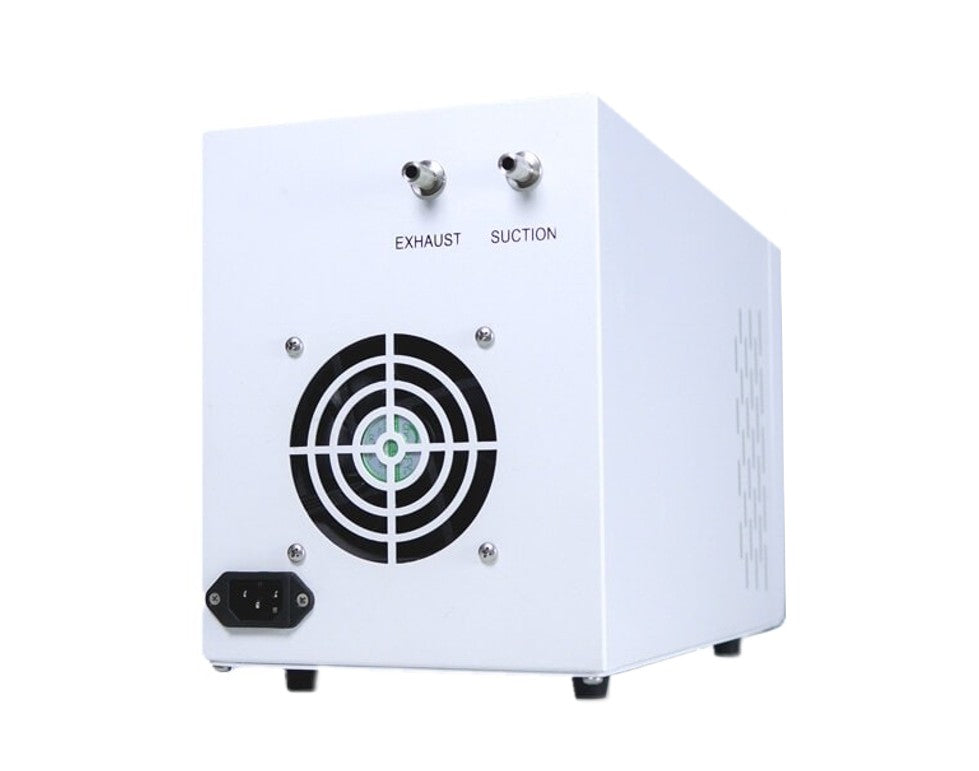

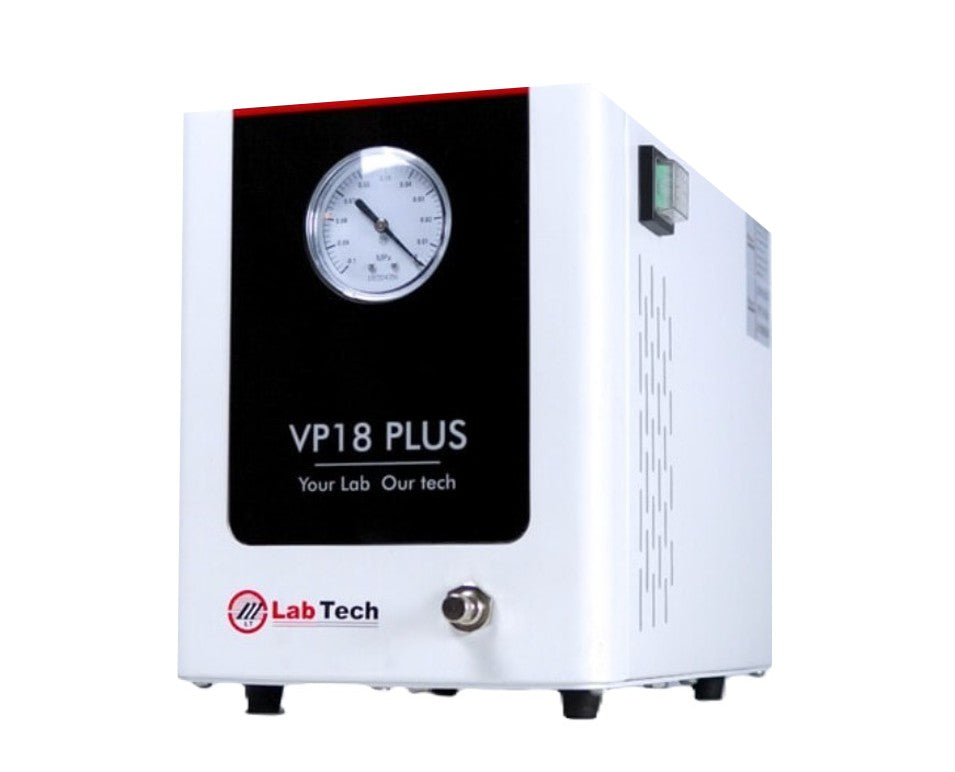

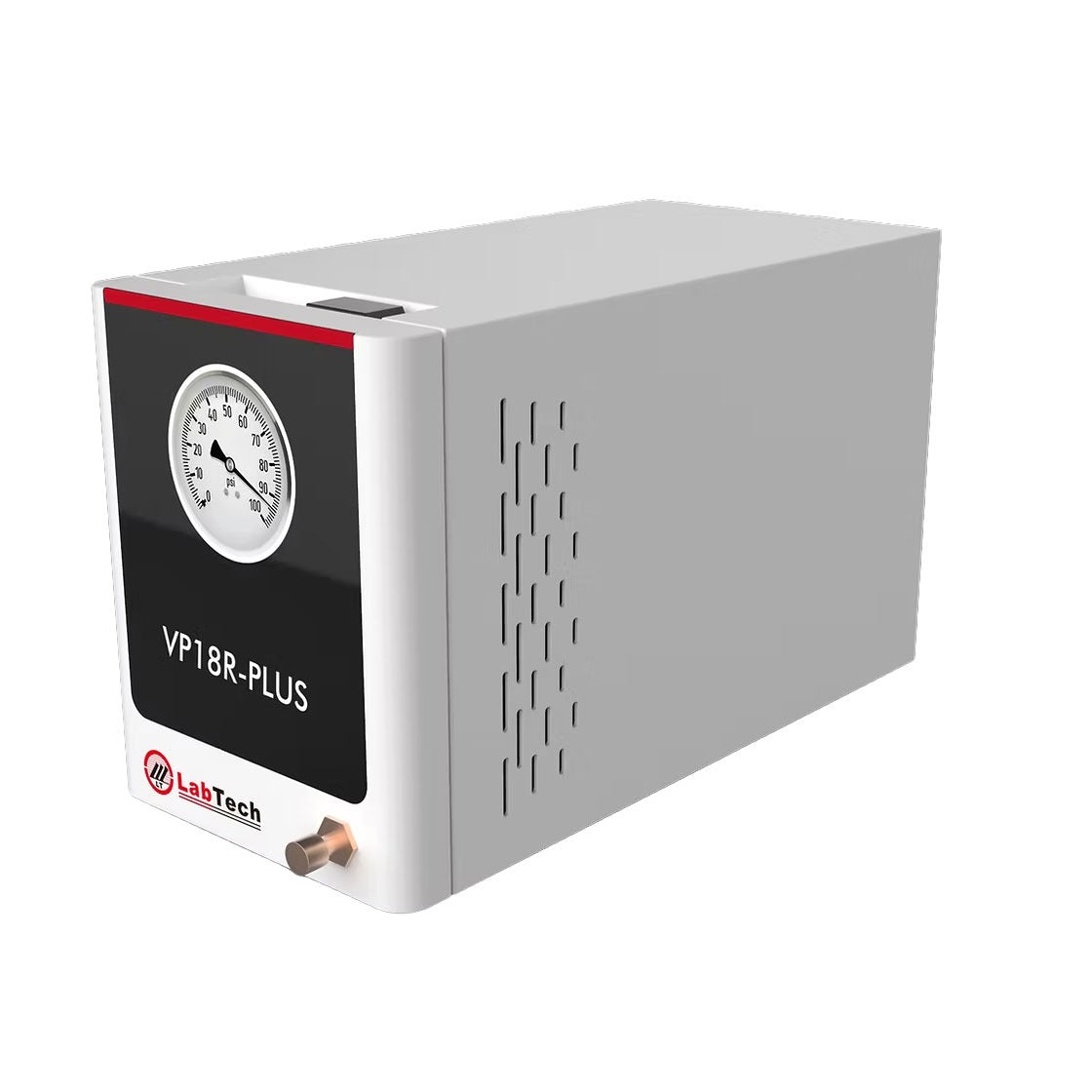

Microfluidic Vacuum Pump

$1,691
$1,691

505863

Prices valid in USA, Canada, and PR only.

WPI now introduces an external vacuum source alternative to in-line lab vacuum supply. A robust and powerful system offering high performance: -980mbar (-15psi), and anti-corrosive coating & oil-free for a long lasting product. Featuring low noise and vibration at 42dB.

Details

Options

Order code Description
505863 Microfluidic Vacuum Pump, 110V, 20mbar
505864 Microfluidic Vacuum Pump, 230V, 20mbar

High efficiency and long lifespan vacuum pump

This high accuracy microfluidic vacuum source generates negative pressure for microfluidic flow control without installation/connection of any instrument.

The anticorrosive coating of the receiver ensures a long lifespan of the instruments.

Elveflow has selected a totally oil free, low noise, high efficiency and long lifespan vacuum pump to be used as vacuum source for the OB1 pressure controller.

Resources

Vacuum Generator User Manual



Specifications

The Vacuum Pump is available in two versions: 230V/50Hz or 110V/60Hz

Specifications are compared to the compact Elveflow Vacuum Source.



505863 (110V) / 505864 (220V)

505866
Performances

Vacuum pressure (relative) -980 mbar (-15 psi) -850 mbar(-13 psi)
Vacuum pressure (absolute) 20 mbar (0.3 psi) 150 mbar (2.2 psi)
Pumping speed 18 L/min 8 L/min at 0 bar
Noise level <42 dB <53 dB
Mechanical specifications

Dimensions (l x w x h) 30 x 17 x 24 cm 16.1 x 19.4 x 19.5 cm
Weight 3 kg 1.4 kg
Pneumatic connection 6 mm push-in
Internal receiver volume
Operating temperature - 5-40°C
Operating humidity - up to 80%
Electrical specifications

Input voltage range - 24 V
AC supply frequency - 50-60 Hz
Power supply voltage 100 – 240 vac
Max current consumption
Max power consumption 140 W 36W
