Aladdin Flow controller
Regular price
$175
Sale price
$175
Regular price
Unit price
per
505837
Regular price
From $175 - $200
Sale price
From $175 - $200
Regular price
Unit price
per
Couldn't load pickup availability
Prices valid in USA, Canada, and PR only.
505837

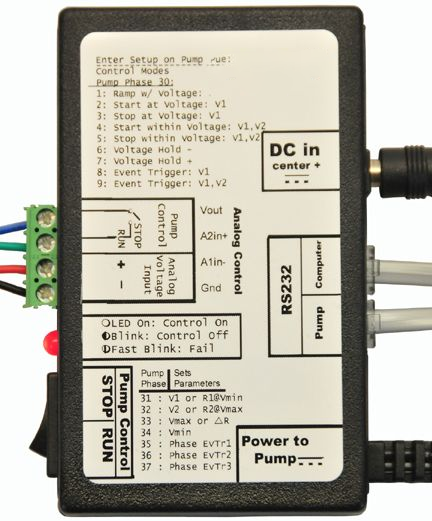

A closed-loop flow controller perfect for easily interfacing a single AL-1000 pumps with an RS-232 interface. The flow rate of the pump can be manipulated based on voltage input (ie. start/stop the pump at pre-defined voltages). Maintaining a voltage window translates to maintenance of pressure or pH level, important for a variety of applications.
505838
An upgraded closed-loop flow controller perfect for easily interfacing two AL-1000 pumps with an RS-232 interface. The flow rate of the pumps can be manipulated based on voltage input (ie. start/stop the pump at pre-defined voltages). Maintaining a voltage window translates to maintenance of pressure or pH level, important for a variety of applications.
ACCESSORIES
Details
Details
Options
| Order code | Description |
| 505837 | Aladdin Flow controller V1 |
| 505838 | Aladdin Flow Control V2 |
505837 Features
- Vary the pumping rate in proportion to a variable voltage input -- start or stop the pump at predefined voltages
- Control the pumping rate to maintain a voltage window (ie. - maintain a pressure or pH level)
- Compatible with the AL-1000 syringe pump via an RS-232 interface
- Interface your pressure sensors, PLCs, sensors, joysticks, and more with the Aladdin Analog Sensor Interface to your AL-1000 pump
- No computer required-- operates stand alone
- Optional: output event data to a computer for logging
- Over 10 modes of operation
- Trigger program events according to voltage
- No complicated user interface
505838 Features
The upgraded version of Aladdin Flow Control v1 adds the following features:
-
Dual Pump Control: Operates 2 pumps as a system:
- Simultaneous Dual Pump Mode: 2 pumps operate at the same flow rate and direction
- Inverted Gradient Constant Flow Rate Mode: 2 pumps inversely varying flow rates combine to a constant flow rate
-
Alternating Pump Mode:
- Continuous Infusion: One pump infuses while other pump refills. Then pumps switch.
- Alternate Infusion of 2 Fluids. Automatically switches between pumps
- Hysteresis Mode
- Digital Sensor Interface
- RS-232 Serial Command Interface: Send commands, query data, remote control, network with pumps.
- Local Setup Option: Store operational parameters directly on the interface instead of pump
Inverted Gradient Constant Flow Rate Mode
Ramping (gradient) with Voltage
Automatically adjusts the pumping rate proportionally to the voltage.
Pressure Controlled Infusion
Automatically varies the pumping rate to maintain a pressure by utilizing your pressure sensor with a voltage output.
Start/stop pump at a voltage trigger
Start/stop pump within a voltage range
